TGN61R-NKPSKD (2005)

Toyota Fortuner

Production Apr 2005 - Aug 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0504- )KUN6#,TGN61..GCC,IDN,PHL,TH,VN

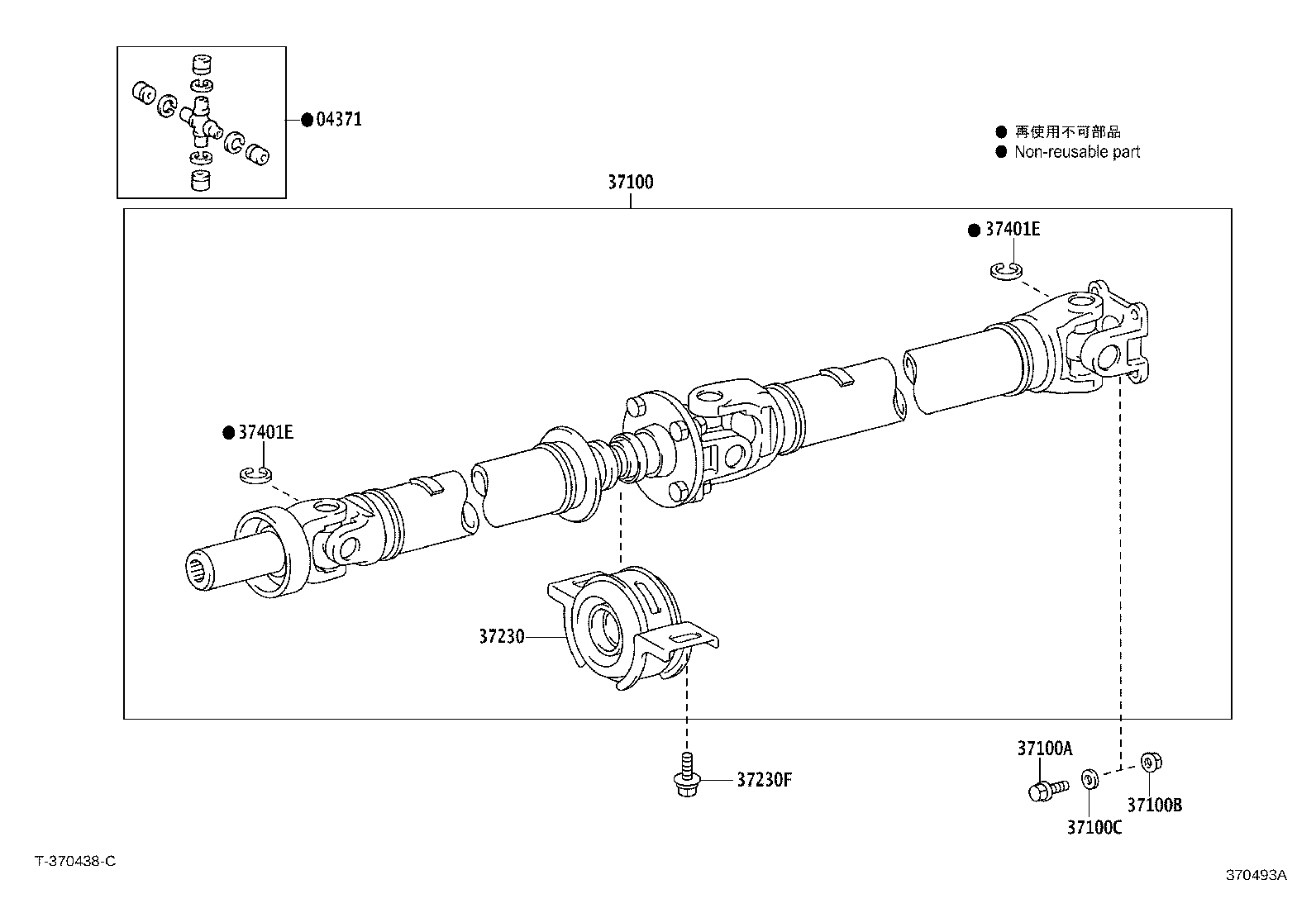

Click highlighted areas on diagram

diagram 04371 37100 37100A 37100B 37100C 37230 37230F 37401E 37401E
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-0K050

KUN60;TGN61..4FC

 3
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-0K210

TGN61..4FC

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-T0084

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 4
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-0K021

KUN60,TGN61..SR

 1
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90520-T0008

KUN60,TGN61..SR

T=2.21,MARK G

 8
90520-T0010

KUN60,TGN61..SR

T=2.25,MARK J

 8
90520-T0007

KUN60,TGN61..SR

T=2.19,MARK F

 8
90520-T0016

KUN60,TGN61..SR

T=2.37,MARK 5

 8
90520-T0017

KUN60,TGN61..SR

T=2.39,MARK 6

 8
90520-T0012

KUN60,TGN61..SR

T=2.29,MARK 1

 8
90520-T0014

KUN60,TGN61..SR

T=2.33,MARK 3

 8
90520-T0019

KUN60,TGN61..SR

T=2.43,MARK 8

 8
90520-T0021

KUN60,TGN61..SR

T=2.47,MARK 10

 8
90520-T0013

KUN60,TGN61..SR

T=2.31,MARK 2

 8
90520-T0009

KUN60,TGN61..SR

T=2.23,MARK H

 8
90520-T0022

KUN60,TGN61..SR

T=2.49,MARK A

 8
90520-T0011

KUN60,TGN61..SR

T=2.27,MARK K

 8
90520-T0023

KUN60,TGN61..SR

T=2.51,MARK B

 8
90520-T0020

KUN60,TGN61..SR

T=2.45,MARK N

 8
90520-T0026

KUN60,TGN61..SR

T=2.57,MARK E

 8
90520-T0018

KUN60,TGN61..SR

T=2.41,MARK 7

 8
90520-T0015

KUN60,TGN61..SR

T=2.35,MARK 4

 8
90520-T0025

KUN60,TGN61..SR

T=2.55,MARK D

 8
90520-T0024

KUN60,TGN61..SR

T=2.53,MARK C

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90520-T0008

KUN60,TGN61..SR

T=2.21,MARK G

 8
90520-T0010

KUN60,TGN61..SR

T=2.25,MARK J

 8
90520-T0007

KUN60,TGN61..SR

T=2.19,MARK F

 8
90520-T0016

KUN60,TGN61..SR

T=2.37,MARK 5

 8
90520-T0017

KUN60,TGN61..SR

T=2.39,MARK 6

 8
90520-T0012

KUN60,TGN61..SR

T=2.29,MARK 1

 8
90520-T0014

KUN60,TGN61..SR

T=2.33,MARK 3

 8
90520-T0019

KUN60,TGN61..SR

T=2.43,MARK 8

 8
90520-T0021

KUN60,TGN61..SR

T=2.47,MARK 10

 8
90520-T0013

KUN60,TGN61..SR

T=2.31,MARK 2

 8
90520-T0009

KUN60,TGN61..SR

T=2.23,MARK H

 8
90520-T0022

KUN60,TGN61..SR

T=2.49,MARK A

 8
90520-T0011

KUN60,TGN61..SR

T=2.27,MARK K

 8
90520-T0023

KUN60,TGN61..SR

T=2.51,MARK B

 8
90520-T0020

KUN60,TGN61..SR

T=2.45,MARK N

 8
90520-T0026

KUN60,TGN61..SR

T=2.57,MARK E

 8
90520-T0018

KUN60,TGN61..SR

T=2.41,MARK 7

 8
90520-T0015

KUN60,TGN61..SR

T=2.35,MARK 4

 8
90520-T0025

KUN60,TGN61..SR

T=2.55,MARK D

 8
90520-T0024

KUN60,TGN61..SR

T=2.53,MARK C

 8
