TGN61R-EKPSKD (2006)

Toyota Fortuner

Production Oct 2006 - Aug 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0903) ; (0903- )IDSUV

Click highlighted areas on diagram

diagram 827110K070 8271116820 8271152070 8271152070 8271152090 85035 85035 8504 8504 85301 85310 85317A 85330 85330A 85332 85336D 85348 85348G 85371 85372 85373 85373 9011906171 9011906818 90119T0079 90119T0144 9046707076A0
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
85301 - INLET SUB-ASSY, WASHER
85301-0K040

GGN50,TGN51,61..IDSUV

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0K080

GGN50,TGN51,61..IDSUV

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0K040

GGN50,TGN51,61..IDSUV

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-0K070

GGN50,TGN51,61..IDSUV

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33803

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

*H,L=1910

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

*H,L=510

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

*H,L=120

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

*H,L=120

 2
Common parts
82711-0K070
82711-16820
82711-52070
82711-52090
90119-06171
90119-06818
90119-T0079
90119-T0144
90467-07076A0
Linked diagrams
8504

(1107- )IDSUV

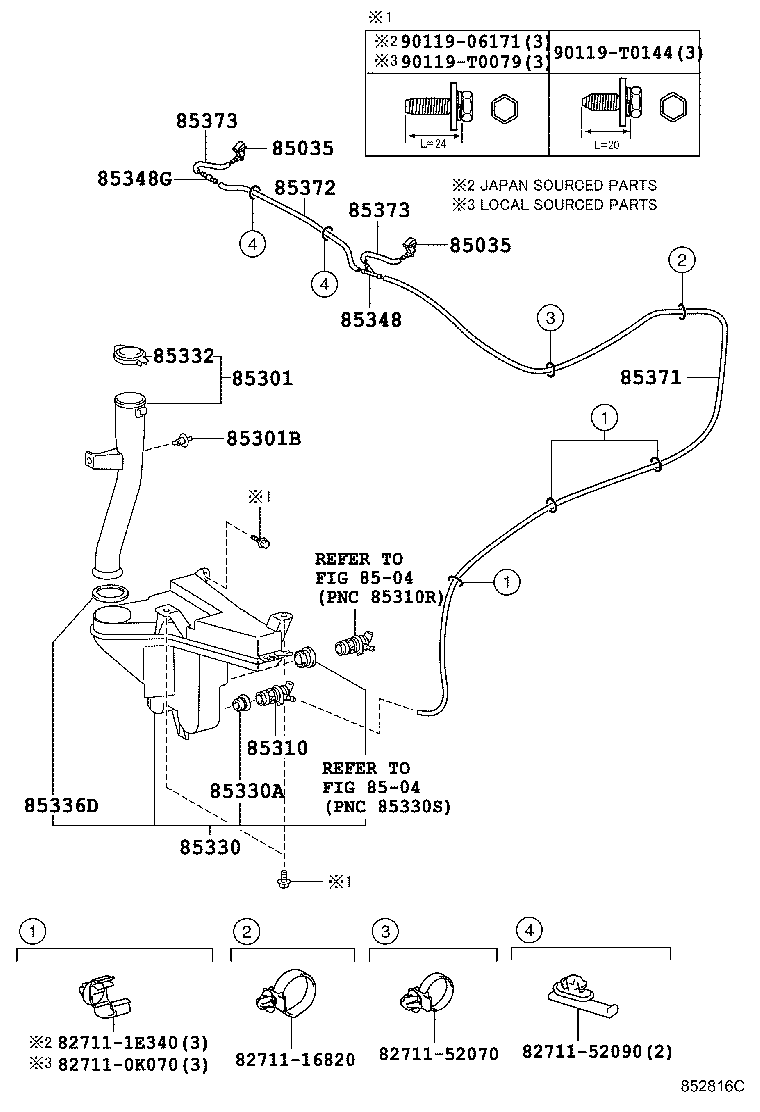

Click highlighted areas on diagram

diagram 827110K070 8271116820 827111E340 8271152070 8271152090 85035 85035 8504 8504 85301 85301B 85310 85330 85330A 85332 85336D 85348 85348G 85371 85372 85373 85373 9011906171 90119T0079 90119T0144
Part # Description Qty Price
Common parts
82711-0K070
82711-16820
82711-1E340
82711-52070
82711-52090
90119-06171
90119-T0079
90119-T0144
Linked diagrams
8504

(1107- )GGN50,KUN51,60,TGN51,61..IDSUV

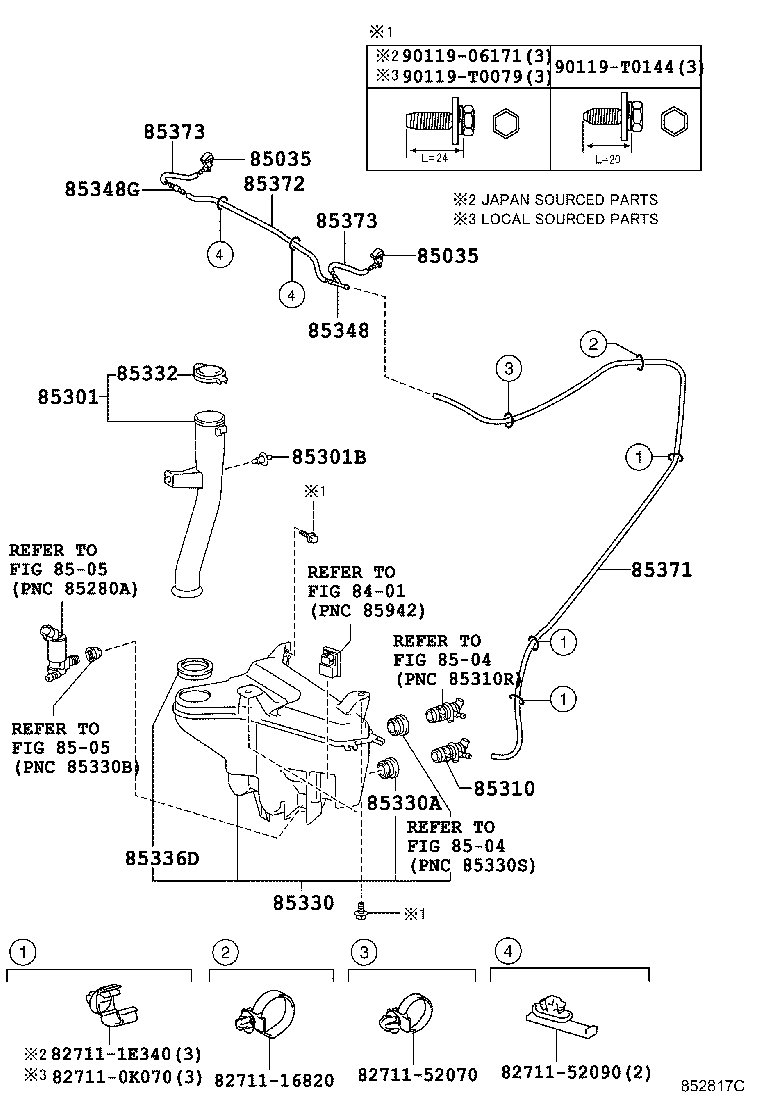

Click highlighted areas on diagram

W(HEADLAMP CLEANER)

diagram 827110K070 8271116820 827111E340 8271152070 8271152090 8401 85035 85035 8504 8504 8505 8505 85301 85301B 85310 85330 85330A 85332 85336D 85348 85348G 85371 85372 85373 85373 9011906171 90119T0079 90119T0144
Part # Description Qty Price
Common parts
82711-0K070
82711-16820
82711-1E340
82711-52070
82711-52090
90119-06171
90119-T0079
90119-T0144
Linked diagrams
8401
8504
8505
