TGN61R-EKPSKD (2006)

Toyota Fortuner

Production Oct 2006 - Aug 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0808)GCC,GEN,IDN,PHL,TH ; (0501-0809)MA ;(0501-0810)LA,SA ; (0501-0812)GGN60

Click highlighted areas on diagram

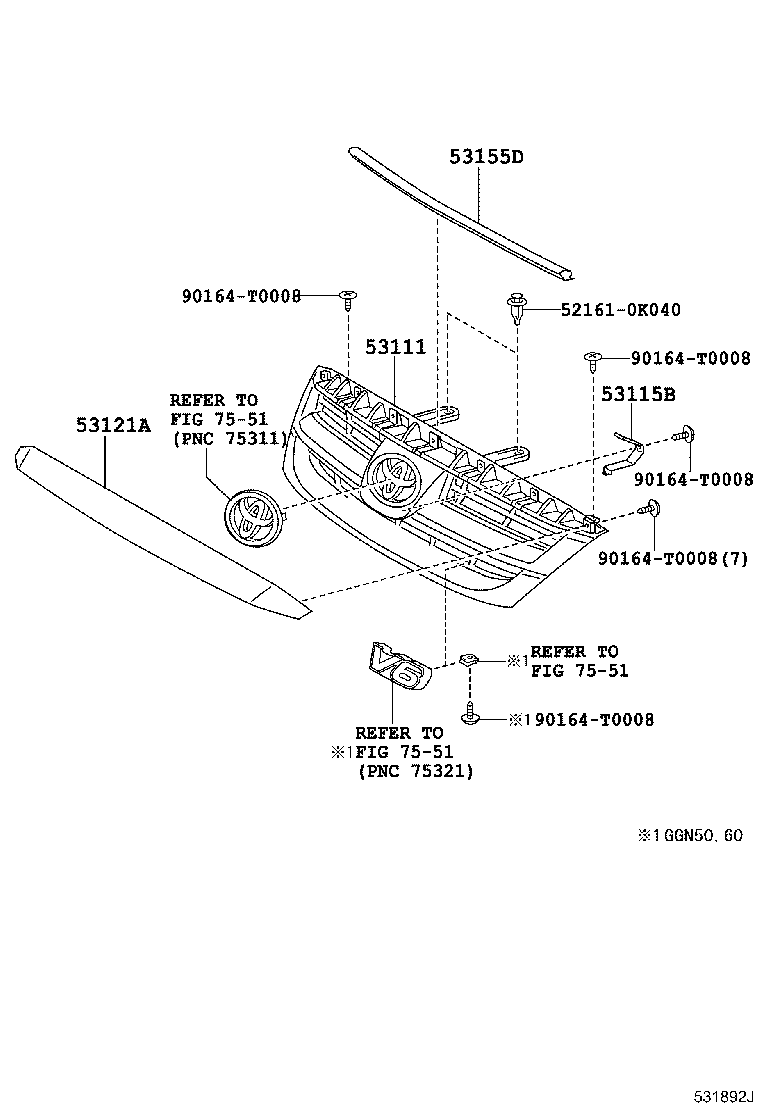

diagram 521610K040 53111 53115B 53121A 53155D 7551 7551 7551 90164T0008 90164T0008 90164T0008 90164T0008 90164T0008
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-0K901

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

PAINT REQ.

 1
53115B - BRACKET, RADIATOR GRILLE
53115-0K010

TGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH

 1
53121A - MOULDING, RADIATOR GRILLE
53121-0K030

TGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH

 1
Common parts
52161-0K040
90164-T0008
Linked diagrams
7551

(1107- )

Click highlighted areas on diagram

diagram 52161R 53111 53121A 53145B 53155D 7551 90164T0008 90164T0008 9016750063
Part # Description Qty Price
Common parts
90164-T0008
90167-50063
Linked diagrams
7551
