TGN61R-EKPSKD (2006)

Toyota Fortuner

Production Oct 2006 - Aug 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0808)KUN5#,6#..RHD ; (0808- )KUN61..SA; (0808- )KUN50,60..RHD ; (0808-

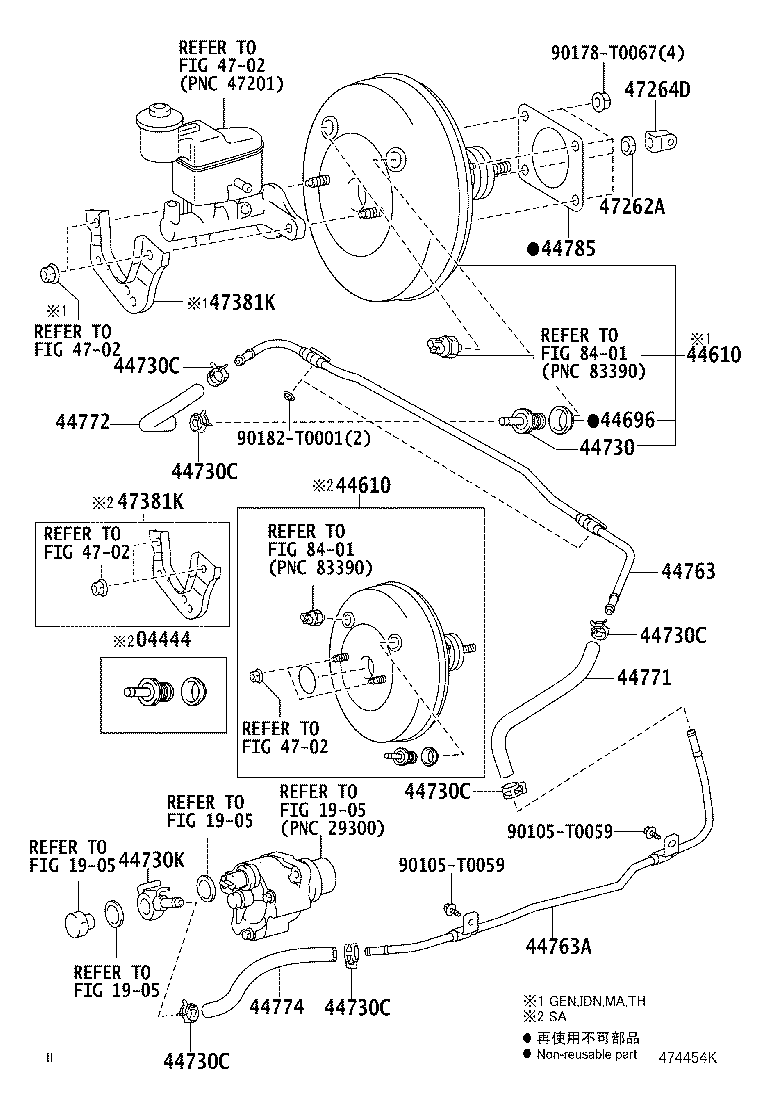

Click highlighted areas on diagram

diagram 04444 1905 1905 1905 1905 44610 44610 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44763 44763A 44771 44772 44774 44785 4702 4702 4702 4702 47262A 47264D 47381K 47381K 8401 8401 90105T0059 90105T0059 90178T0067 90182T0001
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0K010

TGN51,61..IDN,MA

 1
44610 - BOOSTER ASSY, BRAKE
44610-0K010

TGN51,61..IDN,MA

 1
44696 - GROMMET, CHECK VALVE
90080-48050

TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 1
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0K010

KUN60..SUVW..IDN;KUN5#,TGN51,61..IDN,MA,TH

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K010

TGN51,61..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-17010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
94120-41000

TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0K010

TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010

TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010

TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 1
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
8401

(0501- )TGN51,61..RHD
