TGN61L-NKPSKM (2005)
Toyota Fortuner

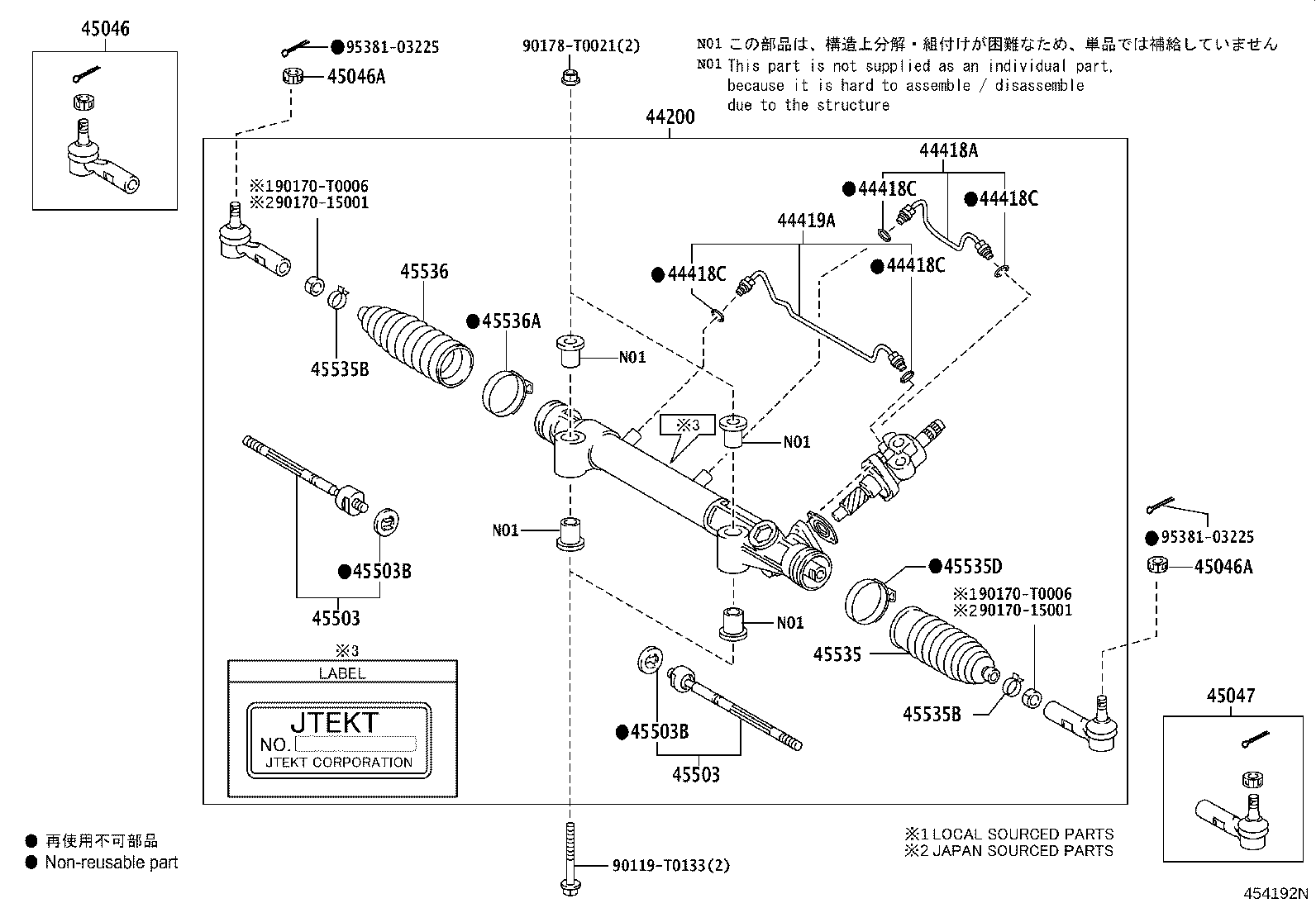

ILLUST NO. 1 OF 2(0504- )LHD..ANCOM,GCC,GEN,PHL,SA,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09281 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0002 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0002 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-09281 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09321 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09321 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-T0001 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) OD=43 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-T0001 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) OD=43 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-0K010 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-T0001 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-0K010 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-T0001 |
TGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-T0133 | ||||
| 90170-15001 | ||||
| 90170-T0006 | ||||
| 90178-T0021 | ||||
| 95381-03225 | ||||
