TGN61L-NKPDGG (2011)
Toyota Fortuner

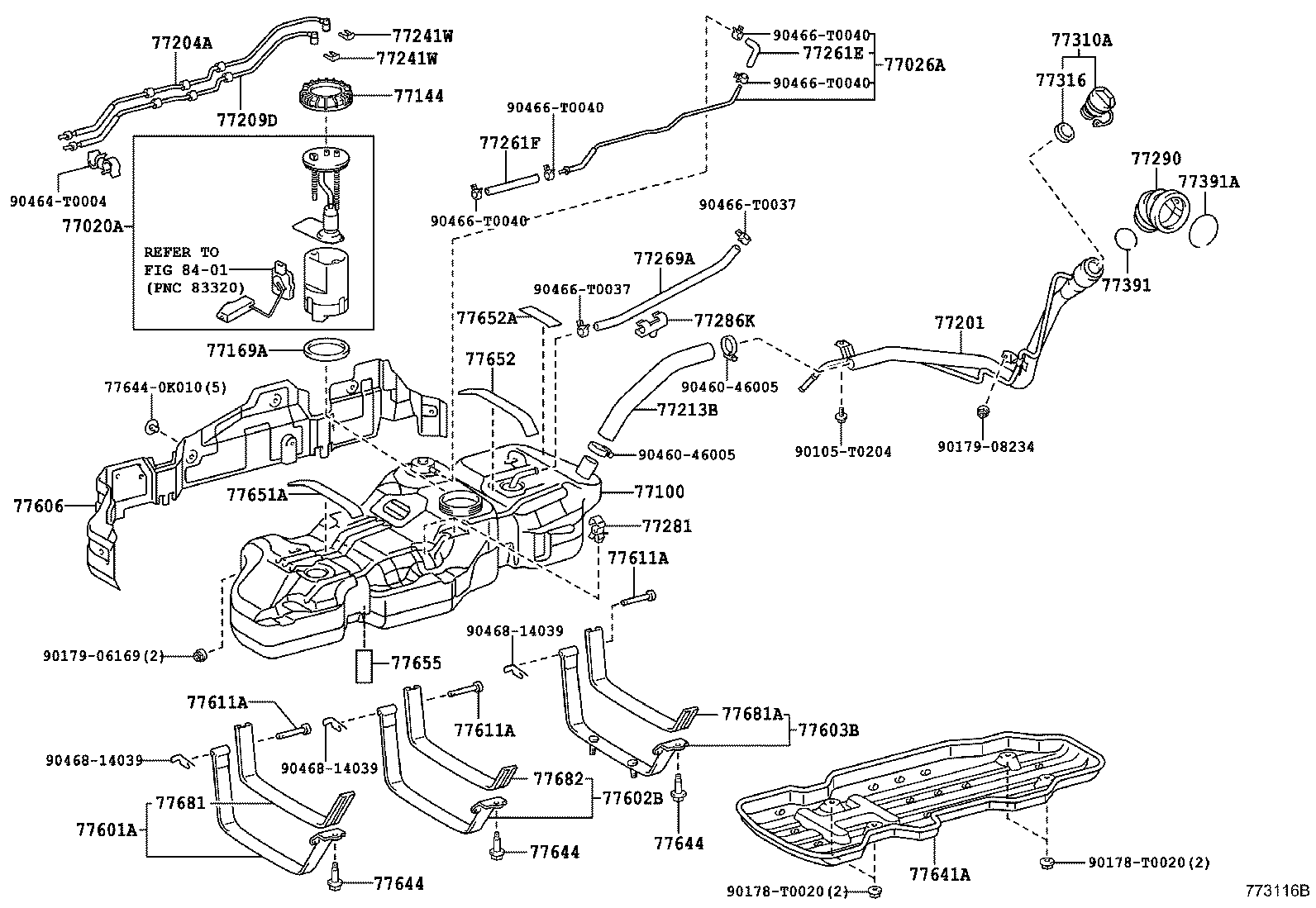

ILLUST NO. 1 OF 4(1110- )HTWCF
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0K210 |
TGN61..HTWCF |
1 | ||
| 77020-0K140 |
TGN51,61..HTWC..(CO,GCC,KZS,LA,SA) |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-0K020 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0K290 |
GGN50,60,TGN51,61..SUVW..(ANCOM,CO,LA) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0K143 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,TGN51,61..SUVW..(CO,LA);KUN5#,60,LAN50..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0K030 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K030 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0K070 |
GGN50..IDSUV..LA;GGN50,60,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH *H,L=140 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH *H,L=160 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-0K030 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-0K070 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K120 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-0K060 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 77371-35010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH *300 |
1 | ||
| 77391-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH *299 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0K140 |
GGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA) |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-0K130 |
GGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA) |
1 | ||
| 77603B - BAND SUB-ASSY, FUEL TANK, NO.2 RH | ||||
| 77603-0K050 |
GGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA) |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0K010 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
3 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
3 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
3 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0K040 |
KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,60,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
3 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
3 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-0K030 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-0K030 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-0K040 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-0K050 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-0K080 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-0K100 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-0K090 |
KUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA) |
1 | ||
| Common parts | ||||
| 77644-0K010 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-06169 | ||||
| 90179-08234 | ||||
| 90460-46005 | ||||
| 90464-T0004 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||

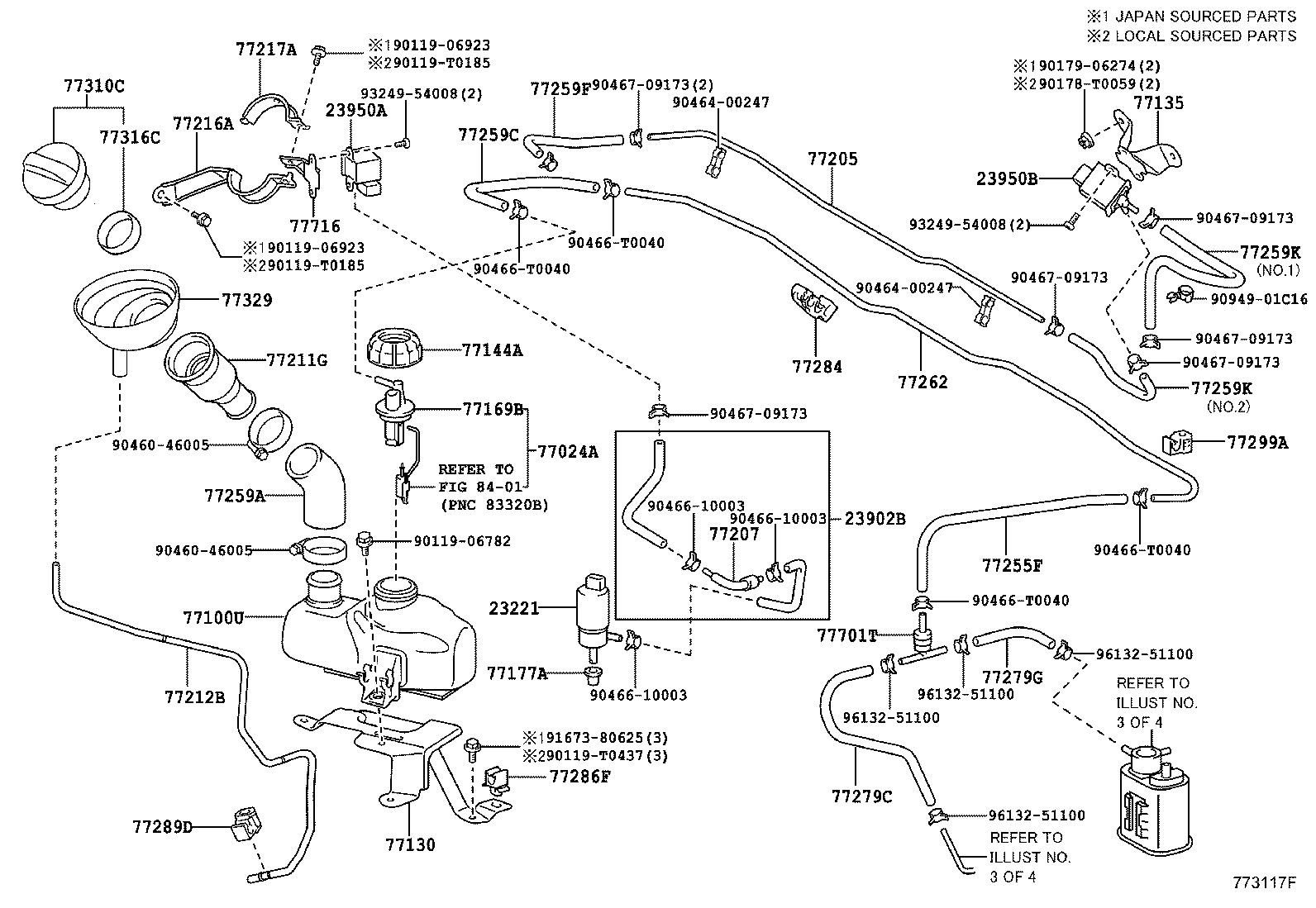

ILLUST NO. 2 OF 4(1110- )HTWCF
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23221-0D221 |
2TRFE..TGN61..HTWCF |
1 | ||
| 23221-0D030 |
2TRFE..TGN61..HTWCF |
1 | ||
| 23220-0C050 |
2TRFE..TGN51,61..HTWC..(CO,EPT,GCC,LA,MA,PHL,SA,TH,VN) |
1 | ||
| 23902B - TUBE SUB-ASSY, FUEL, NO.2 | ||||
| 23902-0C010 |
2TRFE..TGN61..HTWCF |
1 | ||
| 23950A - VALVE ASSY, SOLENOID | ||||
| 23950-0C010 |
2TRFE..TGN61..HTWCF |
1 | ||
| 23950B - VALVE ASSY, SOLENOID | ||||
| 23950-0C010 |
2TRFE..TGN61..HTWCF |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12112 |
TGN61..HTWCF |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77101-0K080 |
TGN61..HTWCF |
1 | ||
| 77130 - BRACKET ASSY, AUXILIARY FUEL TANK | ||||
| 77130-0K010 |
TGN61..HTWCF |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-71010 |
TGN61..HTWCF |
1 | ||
| 77144A - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02100 |
TGN61..HTWCF |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-12040 |
TGN61..HTWCF |
1 | ||
| 77177A - GASKET, CHECK VALVE | ||||
| 77177-12040 |
TGN61..HTWCF |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-71010 |
TGN61..HTWCF |
1 | ||
| 77207 - TUBE SUB-ASSY, FUEL | ||||
| 23903-0C010 |
TGN61..HTWCF |
1 | ||
| 77211G - PIPE, FUEL TANK FILLER | ||||
| 77211-0K100 |
TGN61..HTWCF |
1 | ||
| 77212B - TUBE, FUEL TANK FILLER, NO.2 | ||||
| 77212-71020 |
TGN61..HTWCF |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-0K090 |
TGN61..HTWCF |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0K030 |
TGN61..HTWCF |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95337-06038 |
TGN61..HTWCF L=380 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77213-71020 |
TGN61..HTWCF |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 23282-75020 |
TGN61..HTWCF |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 23274-0C010 |
TGN61..HTWCF |
1 | ||
| 77259K - HOSE, FUEL | ||||
| 23284-0C010 |
TGN61..HTWCF NO.2:REFER ILLUST. |
1 | ||
| 23286-0C010 |
TGN61..HTWCF NO.1:REFER ILLUST. |
1 | ||
| 77259K - HOSE, FUEL | ||||
| 23284-0C010 |
TGN61..HTWCF NO.2:REFER ILLUST. |
1 | ||
| 23286-0C010 |
TGN61..HTWCF NO.1:REFER ILLUST. |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-0K010 |
TGN61..HTWCF |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 77259-71090 |
TGN61..HTWCF |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77249-71010 |
TGN61..HTWCF |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77285-28010 |
TGN61..HTWCF |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-42060 |
TGN61..HTWCF |
1 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
TGN61..HTWCF |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
TGN61..HTWCF |
1 | ||
| 77310C - CAP ASSY, FUEL TANK | ||||
| 77310-12170 |
TGN61..HTWCF |
1 | ||
| 77316C - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
TGN61..HTWCF |
1 | ||
| 77329 - COVER, FUEL TANK CAP | ||||
| 77329-02020 |
TGN61..HTWCF |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10094 |
TGN61..HTWCF |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-71010 |
TGN61..HTWCF |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| 90119-06923 | ||||
| 90119-T0185 | ||||
| 90119-T0437 | ||||
| 90178-T0059 | ||||
| 90179-06274 | ||||
| 90460-46005 | ||||
| 90464-00247 | ||||
| 90466-10003 | ||||
| 90466-T0040 | ||||
| 90467-09173 | ||||
| 90949-01C16 | ||||
| 91673-80625 | ||||
| 93249-54008 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

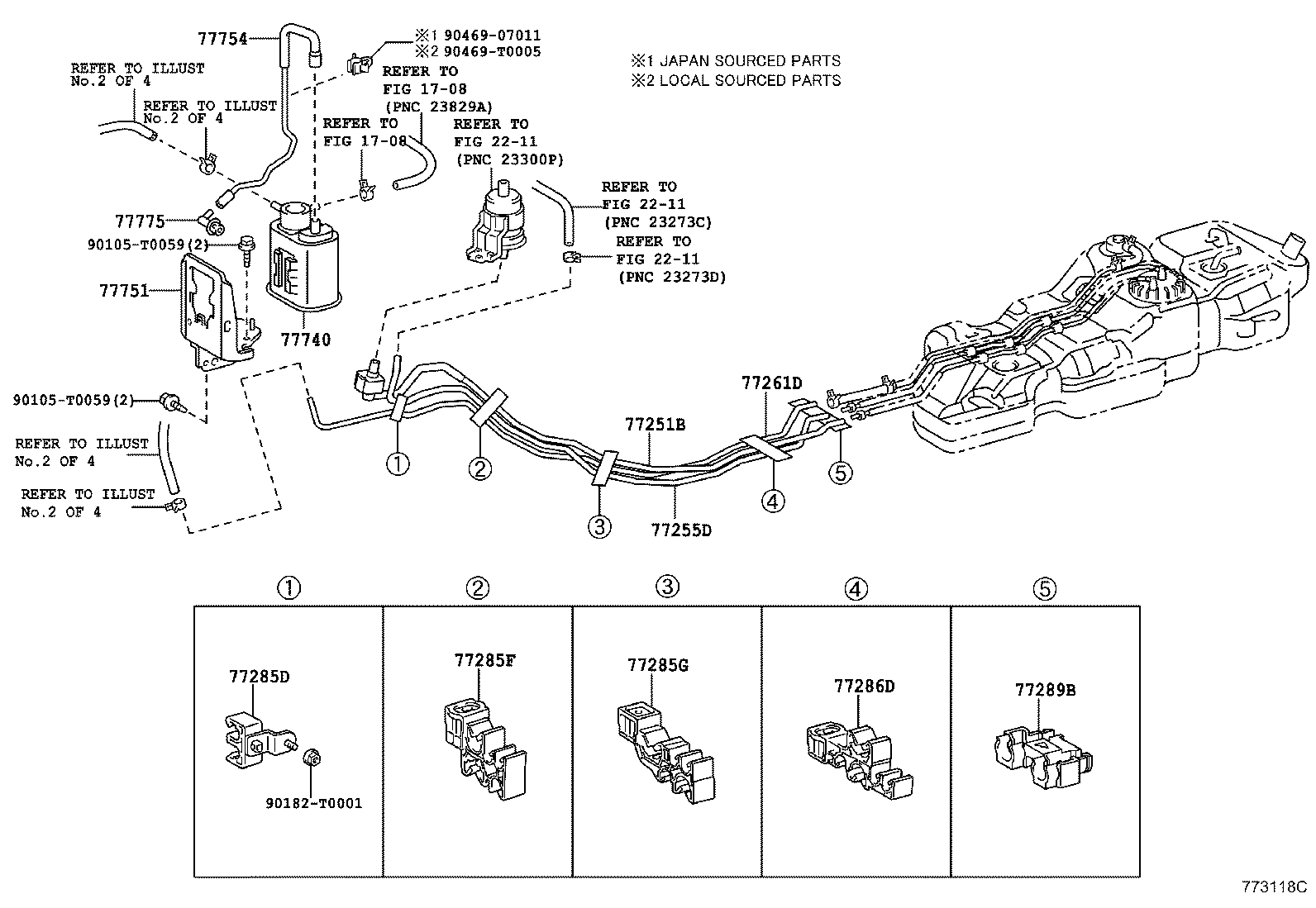

ILLUST NO. 3 OF 4(1110- )HTWCF
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0K040 |
GGN50,60,TGN51,61..HTWC..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 77251-0K080 |
TGN61..HTWCF |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0K040 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0K020 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K020 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K040 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K050 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K090 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-0K010 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-0K010 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-0K010 |
GGN50,60,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,PHL,TH) |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0K010 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-0K010 |
GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90182-T0001 | ||||
| 90469-07011 | ||||
| 90469-T0005 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
