TGN61L-NKMDKG (2005)
Toyota Fortuner
(0501-0808)KUN5#,6#,LAN50,TGN51,61..5F ; (0808-0810)KUN5#,6#,LAN50,TGN51,61..5F..GC

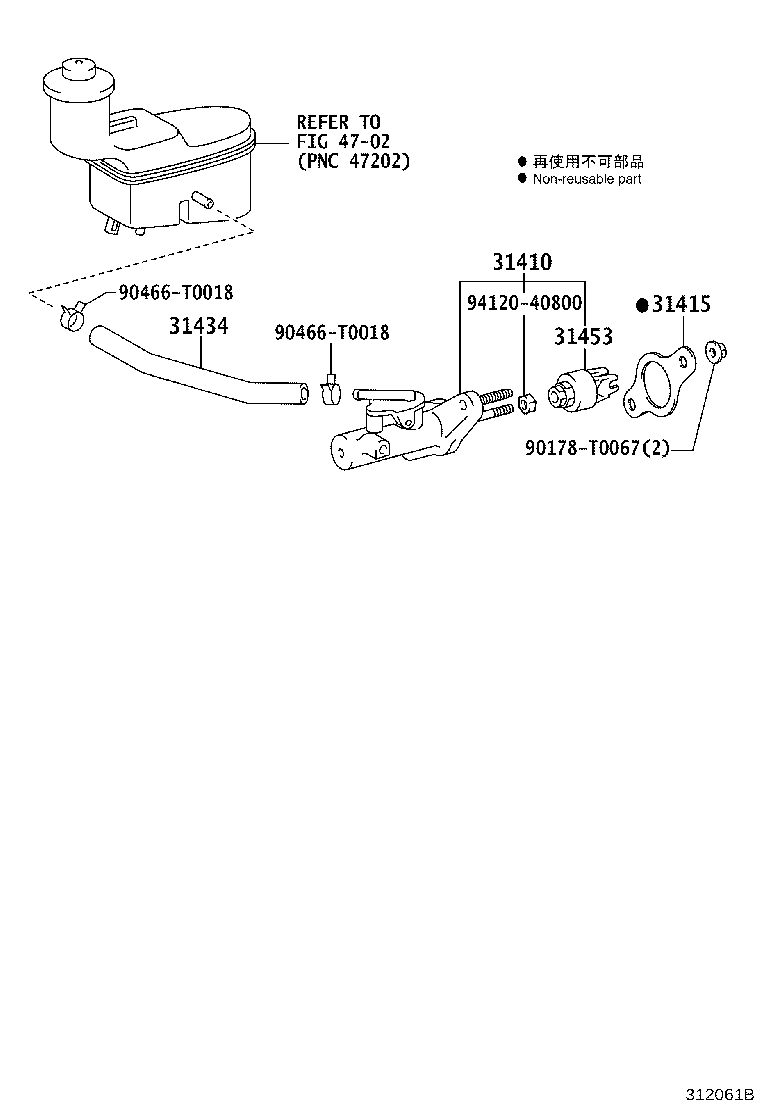

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-0K013 |
KUN60..SUVW..5F;KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 31420-0K013 |
KUN60..SUVW..5F;KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 31420-0K012 |
KUN5#,6#,LAN50,TGN51,61..5F |
1 | ||
| 31420-0K012 |
KUN5#,6#,LAN50,TGN51,61..5F |
1 | ||
| 31420-0K013 |
KUN60,LAN50,TGN51,61..5F..(GCC,IDN,LA,PHL,SA,VN) |
1 | ||
| 31420-0K013 |
KUN60,LAN50,TGN51,61..5F..(GCC,IDN,LA,PHL,SA,VN) |
1 | ||
| 31420-0K030 |
KUN51,6#..5F..(GEN,IND,LA,SA,TH) |
1 | ||
| 31420-0K030 |
KUN51,6#..5F..(GEN,IND,LA,SA,TH) |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-0K010 |
GGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F |
1 | ||
| 31415-0K010 |
GGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F |
1 | ||
| 31415-0K010 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 31415-0K010 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-71040 |
GGN50,KUN51,61..LHD..5F |
1 | ||
| 31434-71040 |
GGN50,KUN51,61..LHD..5F |
1 | ||
| 31434-71020 |
KUN60,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31434-71020 |
KUN60,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-0K010 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 31404-0K010 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 31404-0K010 |
GGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F |
1 | ||
| 31404-0K010 |
GGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F |
1 | ||
| Common parts | ||||
| 90178-T0067 | ||||
| 90466-T0018 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(0808- )KUN51,60..5F..GEN,TH ; (0810- )KUN51,61..5F..IND,LA,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-0K013 |
KUN60..SUVW..5F;KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 31420-0K012 |
KUN5#,6#,LAN50,TGN51,61..5F |
1 | ||
| 31420-0K013 |
KUN60,LAN50,TGN51,61..5F..(GCC,IDN,LA,PHL,SA,VN) |
1 | ||
| 31420-0K030 |
KUN51,6#..5F..(GEN,IND,LA,SA,TH) |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-0K010 |
GGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F |
1 | ||
| 31415-0K010 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-71040 |
GGN50,KUN51,61..LHD..5F |
1 | ||
| 31434-71020 |
KUN60,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-0K010 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 31404-0K010 |
GGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F |
1 | ||
| Common parts | ||||
| 90178-T0067 | ||||
| 90466-T0018 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
