TGN61L-NKMDGG (2011)
Toyota Fortuner

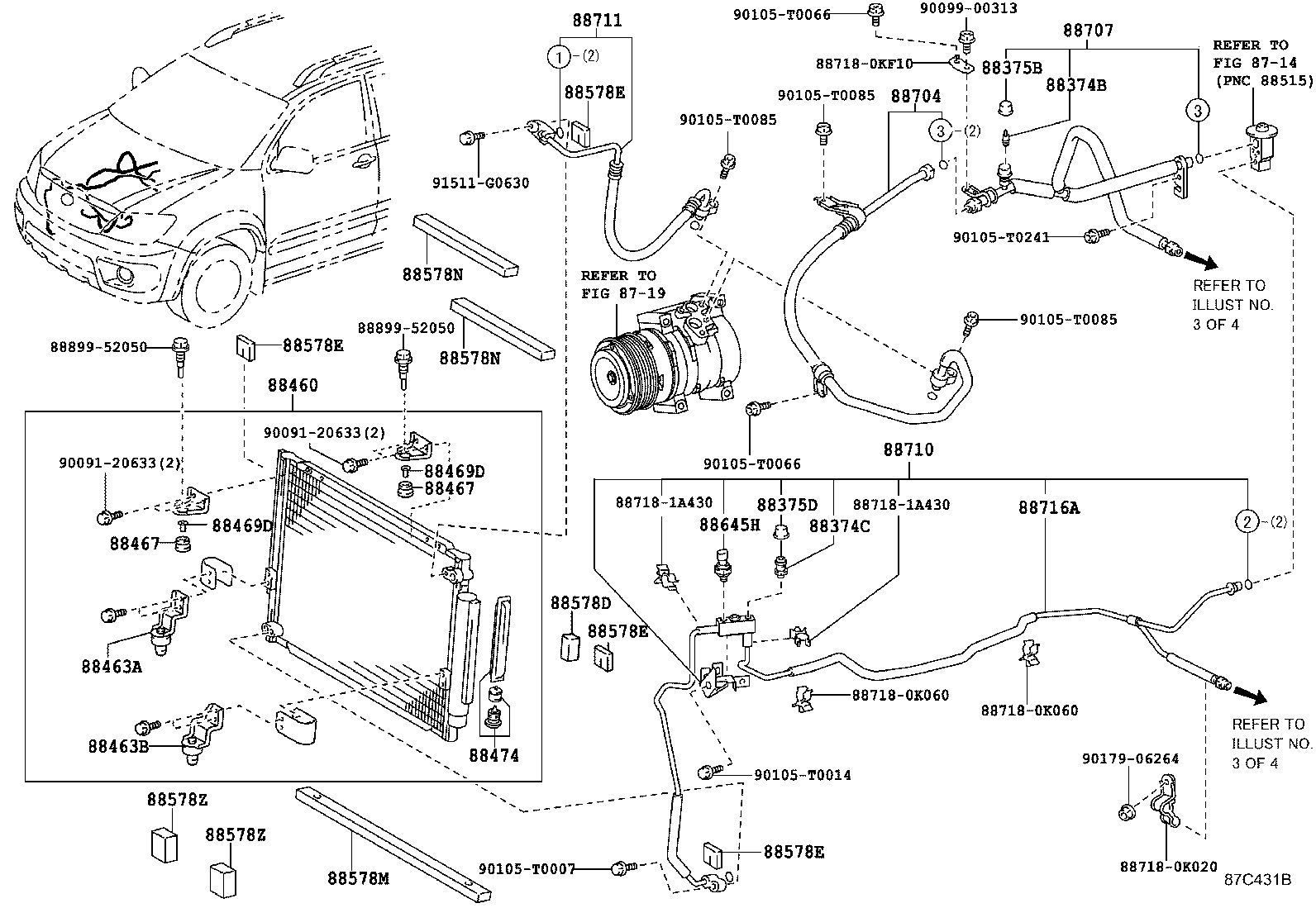

ILLUST NO. 2 OF 4(1110- )TGN51,61..CO,LA
FRONT(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-02010 |
TGN51,61..CO,LA |
2 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-33070 |
GGN50,TGN51,61..IDSUV..GCC;GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-02130 |
KUN51..5FC..CO;KUN51..SUVW..(5F,5FC)..LA;GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-02120 |
GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K160 |
GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K470 |
GGN50,KUN51,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K460 |
GGN50,KUN51,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN51..SUVW..(CO,IND,LA);GGN50,KUN6#,TGN51,61..CO,IND,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN51..SUVW..(CO,IND,LA);GGN50,KUN6#,TGN51,61..CO,IND,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN61..5FC..TH;KUN61..4FC..(IND,TH);TGN61..CO,GCC,GEN,IDN,LA,PHL;GGN50,60,KUN5#,60,TGN51..(IDSUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K230 |
GGN50,KUN51,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K220 |
GGN50,KUN51,TGN51,61..SUVW..(CO,LA) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K220 |
GGN50,KUN51,TGN51,61..SUVW..(CO,LA) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K220 |
GGN50,KUN51,TGN51,61..SUVW..(CO,LA) |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K220 |
GGN50,KUN51,TGN51,61..SUVW..(CO,LA) |
4 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-0K201 |
TGN51,61..CO,LA |
1 | ||
| 88578N - PACKING, COOLING PIPE, NO.4 | ||||
| 88578-0K720 |
TGN51,61..CO,LA |
2 | ||
| 88578N - PACKING, COOLING PIPE, NO.4 | ||||
| 88578-0K720 |
TGN51,61..CO,LA |
2 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-0K740 |
GGN50,KUN51,TGN51,61..SUVW..(CO,LA) |
2 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-0K740 |
GGN50,KUN51,TGN51,61..SUVW..(CO,LA) |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KUN60..IND,SA;KUN6#..5FC..TH;KUN51..SUVW..5FC;GGN50,60,KUN50,61,LAN50..CO,IDN,IND,LA,SA;KUN51,TGN51,61..SUVW..(4FC,5F)..(CO,IND,LA,SA);KUN51,60,TGN51,61..(IDSUV,SASUV)..(GEN,IDN,LA,PHL) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K242 |
TGN61..HTWCF AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K850 |
TGN51,61..CO,LA |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88717-0KC20 |
GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88707-0K060 |
TGN61..HTWCF AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K120 |
TGN61..HTWCF AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-0KB00 |
GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K191 |
TGN51,61..CO,LA |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KF50 |
GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| Common parts | ||||
| 88718-0K020 | ||||
| 88718-0K060 | ||||
| 88718-0KF10 | ||||
| 88718-1A430 | ||||
| 88899-52050 | ||||
| 90091-20633 | ||||
| 90099-00313 | ||||
| 90105-T0007 | ||||
| 90105-T0014 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| 90179-06264 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 3 OF 4(1110- )SUVW..CO,LA
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-0K180 |
GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-0K190 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-0K520 |
GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88707C - TUBE SUB-ASSY, SUCTION, C | ||||
| 88707-0K530 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-0KF70 |
GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-0KF80 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-0KF90 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-0KG00 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-0KG10 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88716K - PIPE, COOLER REFRIGERANT LIQUID, K | ||||
| 88716-0KG20 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-0KC40 |
GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-0KC50 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-0KC60 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-0KC70 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) | ||||
| 88717-0KC80 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88717J - PIPE, COOLER REFRIGERANT SUCTION, J | ||||
| 88717-0KC90 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KD70 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KD60 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KD90 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KD80 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-0KD60 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-0KD70 |
KUN51..SUVW..SR..(CO,LA);GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| Common parts | ||||
| 90099-00313 | ||||
| 90105-T0148 | ||||
| 90179-06264 | ||||
| Linked diagrams | ||||
| 8714 | ||||
