TGN51R-NKPSKP (2013)
Toyota Fortuner

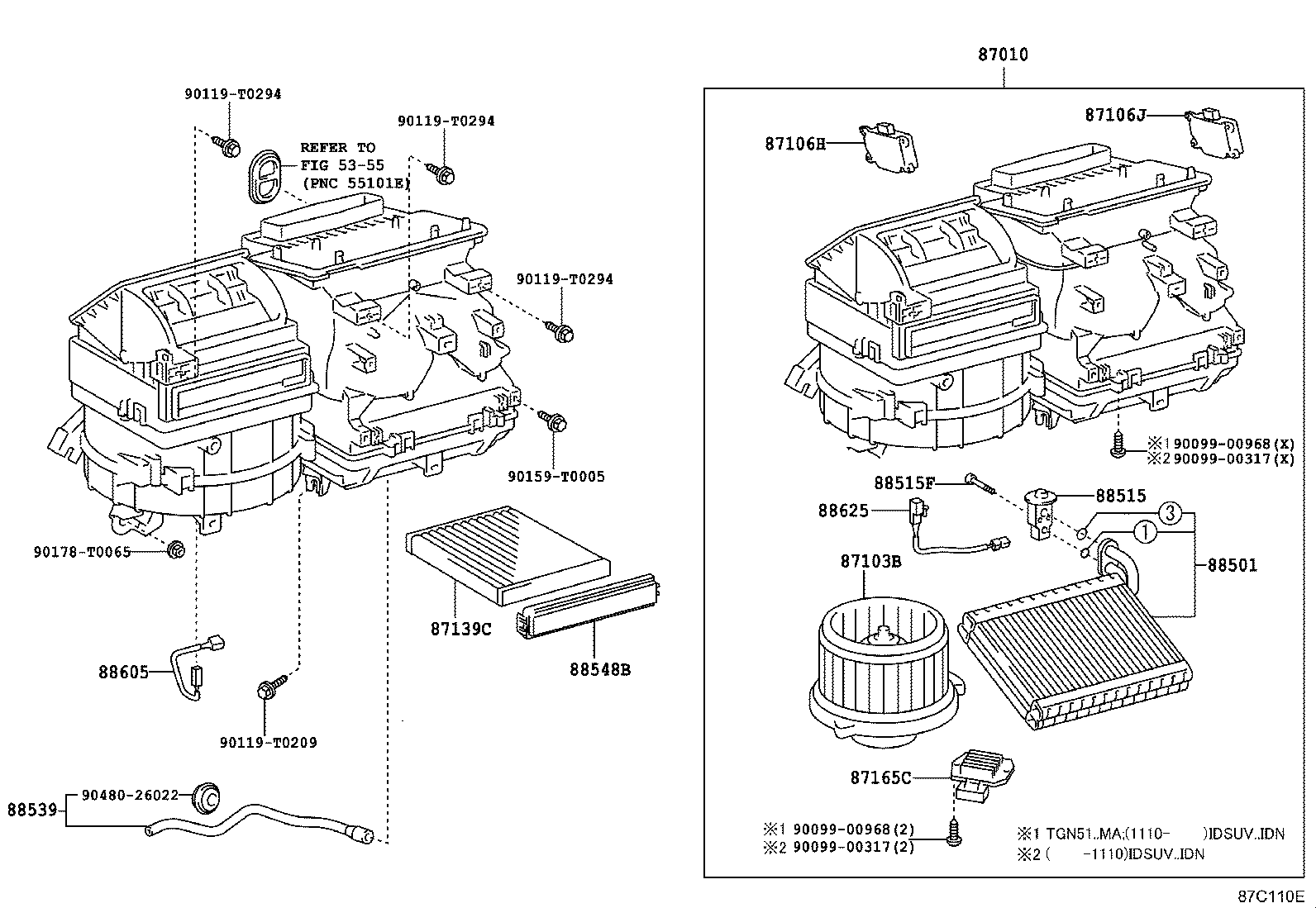

ILLUST NO. 1 OF 3(1107- )KUN50,60,TGN51..IDN,PKN ; (1107- )KUN51,61,TGN61..4FC,5FC..IDN,TH ; (
FRONT(AUTO COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0K043 |
KUN60..SUVW..IDN;KUN51,61,TGN51,61..SUVW..(4FC,5FC)..(IDN,PKN,TH) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K112 |
KUN51,6#,TGN51,61..SUVW..(IDN,PKN,TH) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-0K100 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 87106-0K040 |
KUN50,60,TGN51..SR..(IDN,MA,PKN);KUN51,61,TGN61..(4FC,5FC)..(IDN,TH) |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0K070 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 87106-0K050 |
KUN60..SUVW..IDN;KUN51,61,TGN51,61..SUVW..(4FC,5FC)..(IDN,PKN,TH) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
LAN50..LHD;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;KUN61..(5F,5FC)..(IND,TH);TGN51..CO,EPT,KZS,MA,PKN,VN;KUN60,TGN61..CO,IND,LA,SA,TH,VN;KUN51..SUVW..(4FC,5F)..(CO,IND,LA,SA);GGN50,60,KUN50,61..ANCOM,CO,EPT,IDN,LA,MA,SA;GGN50,KUN60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) *DPF |
1 | ||
| 87139-06080 |
KUN5#,6#,TGN51,61..IDN,MA,PHL,PKN,TH,VN STANDARD |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-71020 |
KUN61;KUN51..RHD..4FC..SA;KUN51..LHD..SASUV..4FC;KUN51..LHD..5F..(CO,GEN,LA);KUN51..RHD..5F..(GEN,IND,SA);TGN51..GEN,IDN,KZS,MA,PKN,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);KUN51..(IDSUV,SUVW,THSUV)..(4FC,5FC)..(CO,GEN,IND,LA,PHL,TH);GGN50,60,KUN50,60..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,SA) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K090 |
TGN51..PKN |
1 | ||
| 88501-0K161 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 88515-0K180 |
KUN51,61..5FC..TH;TGN51,61..KZS,PKN,VN;KUN51..LHD..SUVW..GEN;KUN60..IDSUV..4FC..GEN;KUN60..LHD..5F..(GEN,VN);GGN50,KUN51..LHD..IDSUV..(GEN,LA);KUN60..SUVW..(4FC,5FC)..(GEN,IDN,TH) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,MA,PHL,PKN,TH,VN) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K050 |
TGN51,61..SUVW..(GEN,IDN,PKN,TH);KUN51,60..RHD..SUVW..5F..(GEN,IDN,TH) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..RHD..(GEN,IDN,MA,PKN,SA,TH) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-0K090 |
TGN51..PKN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02110 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN) |
1 | ||
| Common parts | ||||
| 90099-00317 | ||||
| 90099-00968 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
ILLUST NO. 1 OF 3(1107- )RHD
FRONT(AUTO AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K380 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 87050-0K750 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K112 |
KUN51,6#,TGN51,61..SUVW..(IDN,PKN,TH) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-0K100 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 87106-0K040 |
KUN50,60,TGN51..SR..(IDN,MA,PKN);KUN51,61,TGN61..(4FC,5FC)..(IDN,TH) |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0K070 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 87106-0K050 |
KUN60..SUVW..IDN;KUN51,61,TGN51,61..SUVW..(4FC,5FC)..(IDN,PKN,TH) |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0K040 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K010 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 87107-0K020 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K190 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 87130-0K440 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
LAN50..LHD;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;KUN61..(5F,5FC)..(IND,TH);TGN51..CO,EPT,KZS,MA,PKN,VN;KUN60,TGN61..CO,IND,LA,SA,TH,VN;KUN51..SUVW..(4FC,5F)..(CO,IND,LA,SA);GGN50,60,KUN50,61..ANCOM,CO,EPT,IDN,LA,MA,SA;GGN50,KUN60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) *DPF |
1 | ||
| 87139-06080 |
KUN5#,6#,TGN51,61..IDN,MA,PHL,PKN,TH,VN STANDARD |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-71020 |
KUN61;KUN51..RHD..4FC..SA;KUN51..LHD..SASUV..4FC;KUN51..LHD..5F..(CO,GEN,LA);KUN51..RHD..5F..(GEN,IND,SA);TGN51..GEN,IDN,KZS,MA,PKN,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);KUN51..(IDSUV,SUVW,THSUV)..(4FC,5FC)..(CO,GEN,IND,LA,PHL,TH);GGN50,60,KUN50,60..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,SA) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K090 |
TGN51..PKN |
1 | ||
| 88501-0K161 |
TGN51..PKN AIR CONDITIONER-AUTO AIR CONDITIONER DUAL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 88515-0K180 |
KUN51,61..5FC..TH;TGN51,61..KZS,PKN,VN;KUN51..LHD..SUVW..GEN;KUN60..IDSUV..4FC..GEN;KUN60..LHD..5F..(GEN,VN);GGN50,KUN51..LHD..IDSUV..(GEN,LA);KUN60..SUVW..(4FC,5FC)..(GEN,IDN,TH) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,MA,PHL,PKN,TH,VN) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K050 |
TGN51,61..SUVW..(GEN,IDN,PKN,TH);KUN51,60..RHD..SUVW..5F..(GEN,IDN,TH) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..RHD..(GEN,IDN,MA,PKN,SA,TH) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-0K090 |
TGN51..PKN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02110 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN) |
1 | ||
| Common parts | ||||
| 90069-32033 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
ILLUST NO. 2 OF 3(1107- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-0K250 |
KUN51..(SASUV,SUVW,THSUV)..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN6#,LAN50,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K030 |
KUN51..(SASUV,SUVW,THSUV)..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN6#,LAN50,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K030 |
KUN51..(SASUV,SUVW,THSUV)..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN6#,LAN50,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K110 |
KUN51..(SASUV,SUVW,THSUV)..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN6#,LAN50,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-0K470 |
KUN51..(SASUV,SUVW,THSUV)..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN6#,LAN50,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0K240 |
KUN51..(SASUV,SUVW,THSUV)..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN6#,LAN50,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-0K030 |
KUN51..(SASUV,SUVW,THSUV)..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN6#,LAN50,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06830 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(1107- )
O-RING FOR FRONT AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90068-14042 | ||||
| 90068-14043 | ||||
| 90068-14044 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
