TGN51R-NKPSKP (2013)

Toyota Fortuner

Production Feb 2013 - Sep 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )

Click highlighted areas on diagram

diagram 86120 86211 86212 86221A 86221D 90153T0001 90153T0001 90163T0001 90163T0001 90163T0001 90163T0001
Part # Description Qty Price
Common parts
90153-T0001
90163-T0001

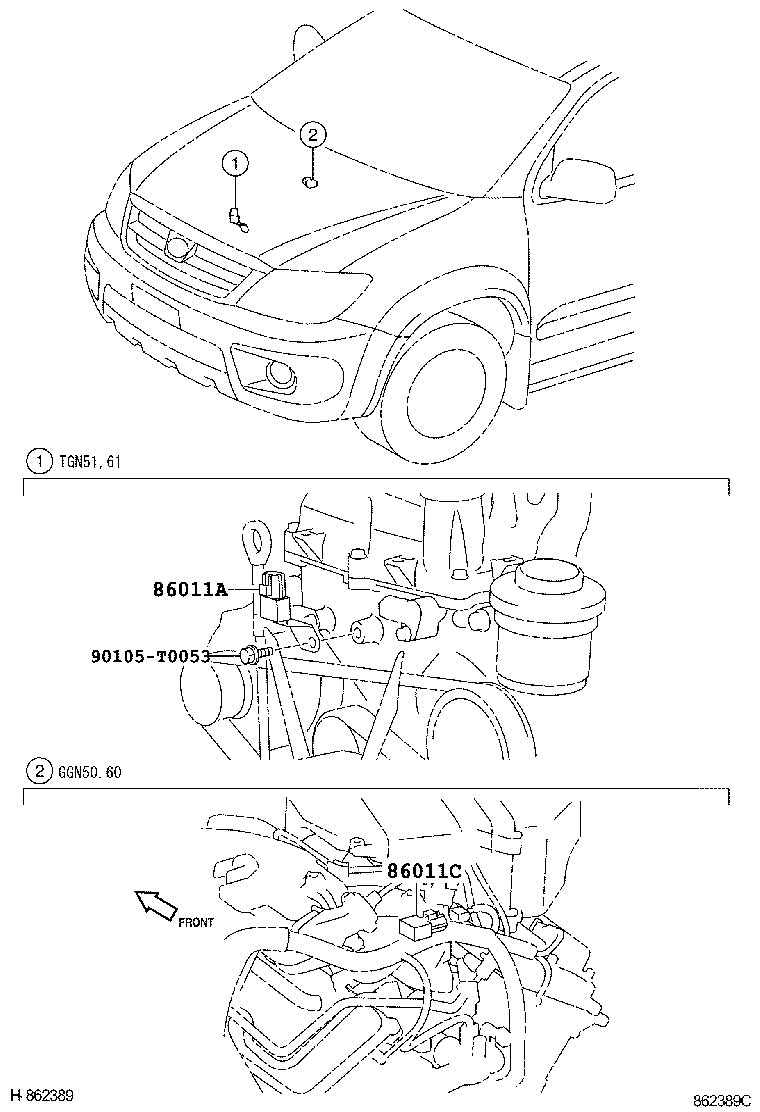

ILLUST NO. 2 OF 2(0501- )GGN50,60,TGN51,61

Click highlighted areas on diagram

CONDENSER & NOISE FILTER

diagram 86011A 86011C 90105T0053
Part # Description Qty Price
Common parts
90105-T0053

ILLUST NO. 1 OF 2(0501- )

Click highlighted areas on diagram

diagram 86120A 86120A 86120A 86120A
Part # Description Qty Price

ILLUST NO. 1 OF 4(1107- )

Click highlighted areas on diagram

diagram 86120A 86120A 86190C 86203 86211 86211 86211H 86212 86212 90153T0001 90153T0001 90159T0009 90159T0009 90159T0009 90159T0009 90167T0007 90167T0007
Part # Description Qty Price
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25246

TGN51..PKN

AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25246

TGN51..PKN

AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0K010

TGN61..SUVW..GCC;TGN51..SUVW..(GCC,GEN,IDN,PKN)

AUDIO-AM/FM CD 6SPEAKER

 1
86203 - WIRE, RADIO
86203-71020

TGN51..SUVW..(GEN,IDN,PKN)

AUDIO-AM/FM CD 6SPEAKER

 1
86211 - BRACKET, RADIO, NO.1
86211-0K070

TGN61..SUVW..GCC;TGN51..SUVW..(GCC,GEN,IDN,PKN)

AUDIO-AM/FM CD 6SPEAKER,MARK=YR

 1
86211-0K090

TGN51..PKN

AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,MARK=IR

 1
86211-0K030

TGN51..PKN

MARK=CR

 1
86211 - BRACKET, RADIO, NO.1
86211-0K070

TGN61..SUVW..GCC;TGN51..SUVW..(GCC,GEN,IDN,PKN)

AUDIO-AM/FM CD 6SPEAKER,MARK=YR

 1
86211-0K090

TGN51..PKN

AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,MARK=IR

 1
86211-0K030

TGN51..PKN

MARK=CR

 1
86211H - BRACKET, RADIO, NO.2
86211-0K110

TGN51..PKN

 1
86211-0K110

TGN51..PKN

AUDIO-WITHOUT(AUDIO) & 6SPEAKER

 1
86212 - BRACKET, RADIO, NO.2
86212-0K030

TGN51..PKN

MARK=CL

 1
86212-0K070

TGN61..SUVW..GCC;TGN51..SUVW..(GCC,GEN,IDN,PKN)

AUDIO-AM/FM CD 6SPEAKER,MARK=YL

 1
86212-0K090

TGN51..PKN

AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,MARK=IL

 1
86212-0K100

TGN51..PKN

MARK=CL

 1
86212 - BRACKET, RADIO, NO.2
86212-0K030

TGN51..PKN

MARK=CL

 1
86212-0K070

TGN61..SUVW..GCC;TGN51..SUVW..(GCC,GEN,IDN,PKN)

AUDIO-AM/FM CD 6SPEAKER,MARK=YL

 1
86212-0K090

TGN51..PKN

AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,MARK=IL

 1
86212-0K100

TGN51..PKN

MARK=CL

 1
Common parts
90153-T0001
90159-T0009
90167-T0007

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

I-POD/I-PHONE/VTR CABLE

diagram 861A0 86723C
Part # Description Qty Price

ILLUST NO. 2 OF 4(1107- )

Click highlighted areas on diagram

diagram 86120
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0K510

TGN51..SUVW..(GEN,IDN,PKN)

FUJITSU TEN,ID100010,AUDIO-AM/FM CD 6SPEAKER,TYPE A:REFER ILLUST.

 1
86120-0K651

TGN51..PKN

FUJITSU TEN,ID100223,AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,TYPE B:REFER ILLUST.

 1
