TGN51R-NKPSKP (2013)
Toyota Fortuner
ILLUST NO. 2 OF 2(0501- )GGN50,60,TGN51,61
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0059 | ||||
| 90182-T0001 | ||||
| 90466-T0040 | ||||
| 90469-07011 | ||||
| 90469-T0005 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 1 OF 4(1107- )TGN51,61..GEN,IDN,MA,PHL,PKN,TH,VN
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0K020 |
TGN51..PKN |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-0K020 |
TGN51..PKN |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0K030 |
TGN51..PKN |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K010 |
TGN51..PKN |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K010 |
TGN51..PKN |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0K132 |
TGN51..PKN |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0K030 |
TGN51..PKN |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K030 |
TGN51..PKN |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0K070 |
TGN51..PKN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
TGN51..PKN |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
TGN51..PKN |
2 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
TGN51..PKN *H,L=140 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
TGN51..PKN *H,L=160 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-0K030 |
TGN51..PKN |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-0K070 |
TGN51..PKN |
2 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-0K070 |
TGN51..PKN |
2 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K120 |
TGN51..PKN |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-0K060 |
TGN51..PKN |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
TGN51..PKN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
TGN51..PKN |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0K020 |
TGN51..PKN |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0K050 |
TGN51..PKN |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-0K050 |
TGN51..PKN |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
TGN51..PKN |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
TGN51..PKN |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0K040 |
TGN51..PKN |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
TGN51..PKN |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
TGN51..PKN |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-0K030 |
TGN51..PKN |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-0K050 |
TGN51..PKN |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-0K010 |
TGN51..PKN |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K020 |
TGN51..PKN |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0K011 |
TGN51..PKN |
1 | ||
| 77785-0K010 |
TGN51,61..GEN,IDN,MA,PHL,PKN,TH,VN |
1 | ||
| Common parts | ||||
| 77644-0K010 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-08234 | ||||
| 90301-T0035 | ||||
| 90460-46005 | ||||
| 90464-T0004 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(1107- )HTWC

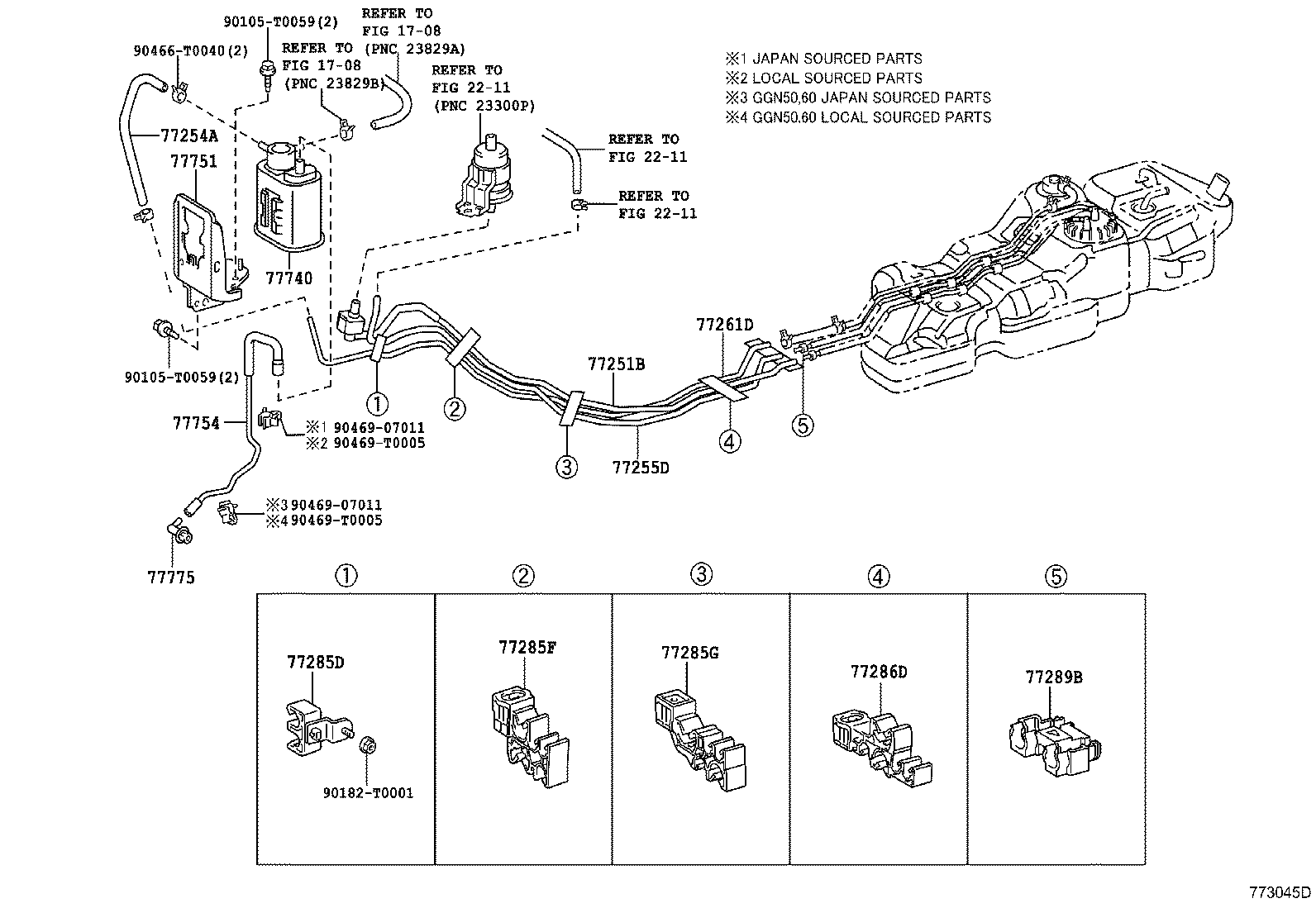

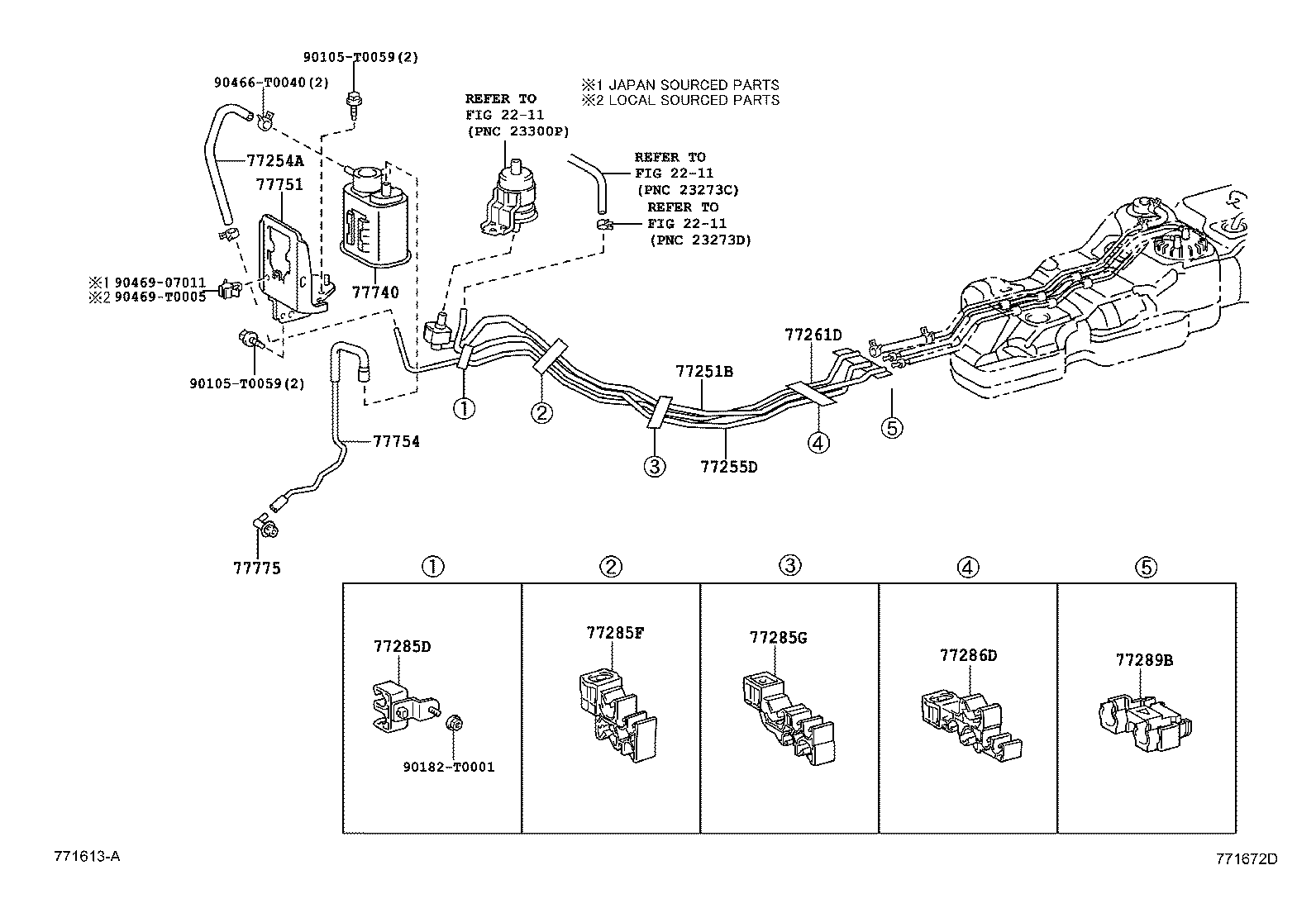

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0K040 |
TGN51..PKN |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06030 |
TGN51..PKN *H,L=220 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0K040 |
TGN51..PKN |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0K020 |
TGN51..PKN |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K020 |
TGN51..PKN |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K040 |
TGN51..PKN |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K050 |
TGN51..PKN |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K090 |
TGN51..PKN |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-0K010 |
TGN51..PKN |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-0K010 |
TGN51..PKN |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-0K010 |
TGN51..PKN |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0K010 |
TGN51..PKN |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-0K010 |
TGN51..PKN |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90182-T0001 | ||||
| 90466-T0040 | ||||
| 90469-07011 | ||||
| 90469-T0005 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 4 OF 4(1107- )
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61668J - SEAL, QUARTER PANEL, NO.1 | ||||
| 61668-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,TH,VN) |
1 | ||
| 61668J - SEAL, QUARTER PANEL, NO.1 | ||||
| 61668-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,TH,VN) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K070 |
KUN60..4FC..SA;KUN61..5FC..TH;KUN61..4FC..(IND,TH);KUN51,60,TGN51,61..RHD..SUVW..(GEN,IDN,PKN,TH) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K070 |
KUN60..4FC..SA;KUN61..5FC..TH;KUN61..4FC..(IND,TH);KUN51,60,TGN51,61..RHD..SUVW..(GEN,IDN,PKN,TH) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K010 |
TGN51..PKN |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K010 |
TGN51..PKN |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0K010 |
TGN51..PKN |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-0K010 |
TGN51..PKN |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0K010 |
TGN51..PKN |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0K010 |
TGN51..PKN |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 90959-T1001 | ||||
