TGN51R-NKPSKP (2013)
Toyota Fortuner

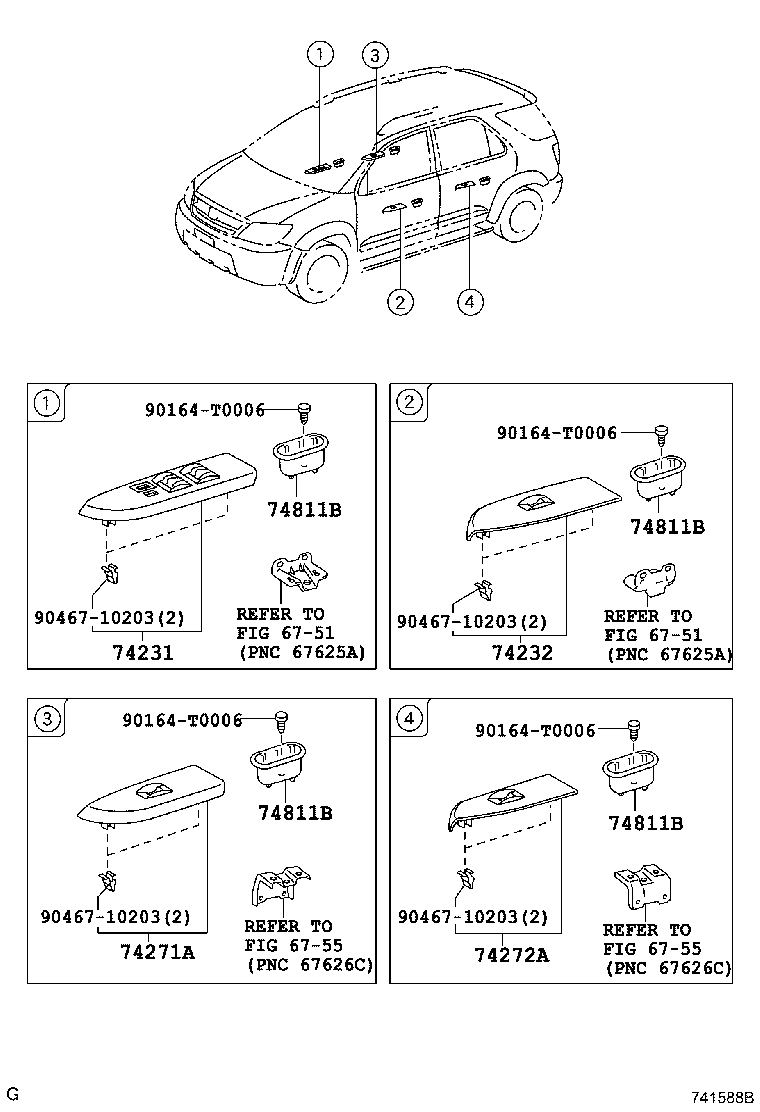

ILLUST NO. 1 OF 2(0501- )RHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-T0006 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
ILLUST NO. 1 OF 2(1107- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0K500 |
TGN51..GEN,PKN;TGN51,61..SUVW..IDN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74231-0K350 |
KUN51..RHD..(4FC,5FC);KUN60..RHD..(GEN,IDN);KUN51..RHD..5F..(IND,SA);GGN50,60,KUN61,LAN50,TGN51,61..RHD |
1 | ||
| 74231-0KA10 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74231-0KA30 |
KUN60..IND;KUN51,61,TGN51,61..IND,PKN,TH |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0K500 |
TGN51..GEN,PKN;TGN51,61..SUVW..IDN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74231-0K350 |
KUN51..RHD..(4FC,5FC);KUN60..RHD..(GEN,IDN);KUN51..RHD..5F..(IND,SA);GGN50,60,KUN61,LAN50,TGN51,61..RHD |
1 | ||
| 74231-0KA10 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74231-0KA30 |
KUN60..IND;KUN51,61,TGN51,61..IND,PKN,TH |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0K500 |
TGN51..GEN,PKN;TGN51,61..SUVW..IDN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74232-0K350 |
KUN51..RHD..(4FC,5FC);KUN60..RHD..(GEN,IDN);KUN51..RHD..5F..(IND,SA);GGN50,60,KUN61,LAN50,TGN51,61..RHD |
1 | ||
| 74232-0KA00 |
KUN60..IND;KUN51,61,TGN51,61..IND,PKN,TH |
1 | ||
| 74232-0K880 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0K500 |
TGN51..GEN,PKN;TGN51,61..SUVW..IDN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74232-0K350 |
KUN51..RHD..(4FC,5FC);KUN60..RHD..(GEN,IDN);KUN51..RHD..5F..(IND,SA);GGN50,60,KUN61,LAN50,TGN51,61..RHD |
1 | ||
| 74232-0KA00 |
KUN60..IND;KUN51,61,TGN51,61..IND,PKN,TH |
1 | ||
| 74232-0K880 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0K200 |
KUN51..4FC,5FC;KUN51..LHD..5F..GEN;KUN51..5F..(CO,IND,LA,SA);KUN61,TGN51..GEN,IDN,IND,MA,PKN,SA,TH,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);GGN50,60,KUN60,LAN50..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,LA,PHL,SA,VN) |
1 | ||
| 74271-0K260 |
TGN51..GEN,PKN;TGN51,61..SUVW..IDN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74271-0K430 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74271-0K440 |
KUN51..4FC..CO;TGN51..4FC..(KZS,PKN,VN);KUN51,61,TGN61..IND,TH,VN;GGN50,60,KUN60..ANCOM,EPT,IND,VN |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0K200 |
KUN51..4FC,5FC;KUN51..LHD..5F..GEN;KUN51..5F..(CO,IND,LA,SA);KUN61,TGN51..GEN,IDN,IND,MA,PKN,SA,TH,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);GGN50,60,KUN60,LAN50..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,LA,PHL,SA,VN) |
1 | ||
| 74272-0K260 |
TGN51..GEN,PKN;TGN51,61..SUVW..IDN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74272-0K430 |
TGN51..PKN AIR CONDITIONER-AIR CONDITIONER DUAL |
1 | ||
| 74272-0K440 |
KUN51..4FC..CO;TGN51..4FC..(KZS,PKN,VN);KUN51,61,TGN61..IND,TH,VN;GGN50,60,KUN60..ANCOM,EPT,IND,VN |
1 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-0K010E0 |
TGN51..PKN SAND BEIGE,TRIM4# |
4 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-0K010E0 |
TGN51..PKN SAND BEIGE,TRIM4# |
4 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-0K010E0 |
TGN51..PKN SAND BEIGE,TRIM4# |
4 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-0K010E0 |
TGN51..PKN SAND BEIGE,TRIM4# |
4 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-0K010E0 |
TGN51..PKN SAND BEIGE,TRIM4# |
4 | ||
| Common parts | ||||
| 90164-T0006 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
ILLUST NO. 2 OF 2(1107- )IDSUV,SUVW,THSUV..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0K390E0 |
KUN61..4FC..IND;KUN51,60,TGN51,61..RHD..SUVW..(GEN,IDN,PKN) SAND BEIGE,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0K480E0 |
KUN61..5FC..TH;KUN61..4FC..(IND,TH);KUN5#,60,TGN51,61..RHD..(IDSUV,SUVW)..(GEN,IDN,PKN,TH) SAND BEIGE,TRIM4# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-0K010E1 |
TGN51..PKN SAND BEIGE,TRIM4# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-0K010E1 |
TGN51..PKN SAND BEIGE,TRIM4# |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74603-0K020E0 |
TGN51..PKN SAND BEIGE,TRIM4# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74603-0K020E0 |
TGN51..PKN SAND BEIGE,TRIM4# |
2 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-0K040E1 |
TGN51..PKN SAND BEIGE,TRIM4# |
5 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-0K040E1 |
TGN51..PKN SAND BEIGE,TRIM4# |
5 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74615-0K010E0 |
TGN51..PKN SAND BEIGE,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 74616-0K010E0 |
TGN51..PKN SAND BEIGE,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 74631C - HOOK, COAT | ||||
| 74631-0K010E1 |
TGN51..PKN SAND BEIGE,TRIM4# |
2 | ||
| 74631C - HOOK, COAT | ||||
| 74631-0K010E1 |
TGN51..PKN SAND BEIGE,TRIM4# |
2 | ||
| 74631C - HOOK, COAT | ||||
| 74631-0K010E1 |
TGN51..PKN SAND BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 90159-60353 | ||||
| 90162-T0001 | ||||
| 93383-16025 | ||||
