TGN51R-NKPSKP (2013)
Toyota Fortuner
Production
Feb 2013
-
Sep 2016
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(0501- )
Click highlighted areas on diagram
ROOF PANEL
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0501- )
Click highlighted areas on diagram
ROOF RAIL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06906 | ||||
| 90119-T0038 | ||||
| 90159-60563 | ||||

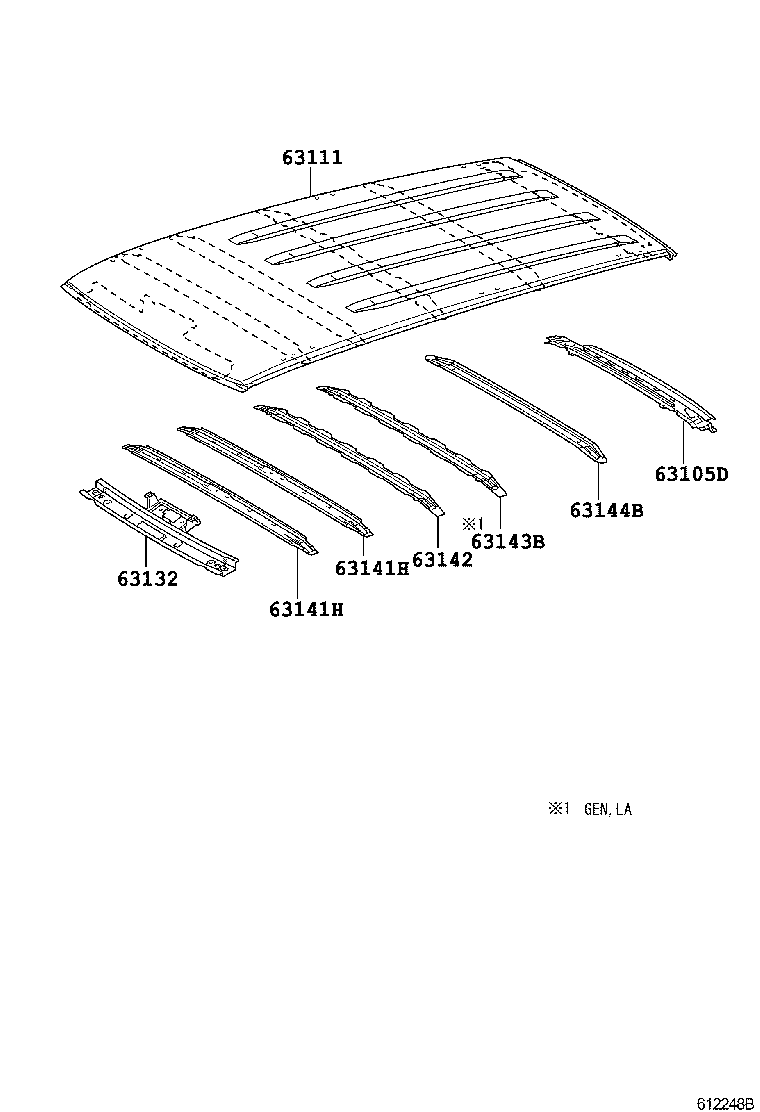

ILLUST NO. 1 OF 2(1107- )
Click highlighted areas on diagram
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-0K901 |
TGN51..PKN |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0K060 |
TGN51..PKN |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-0K040 |
TGN51..PKN |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-0K011 |
TGN51..PKN |
2 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-0K011 |
TGN51..PKN |
2 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-0K011 |
TGN51..PKN |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0K011 |
TGN51..PKN |
1 | ||

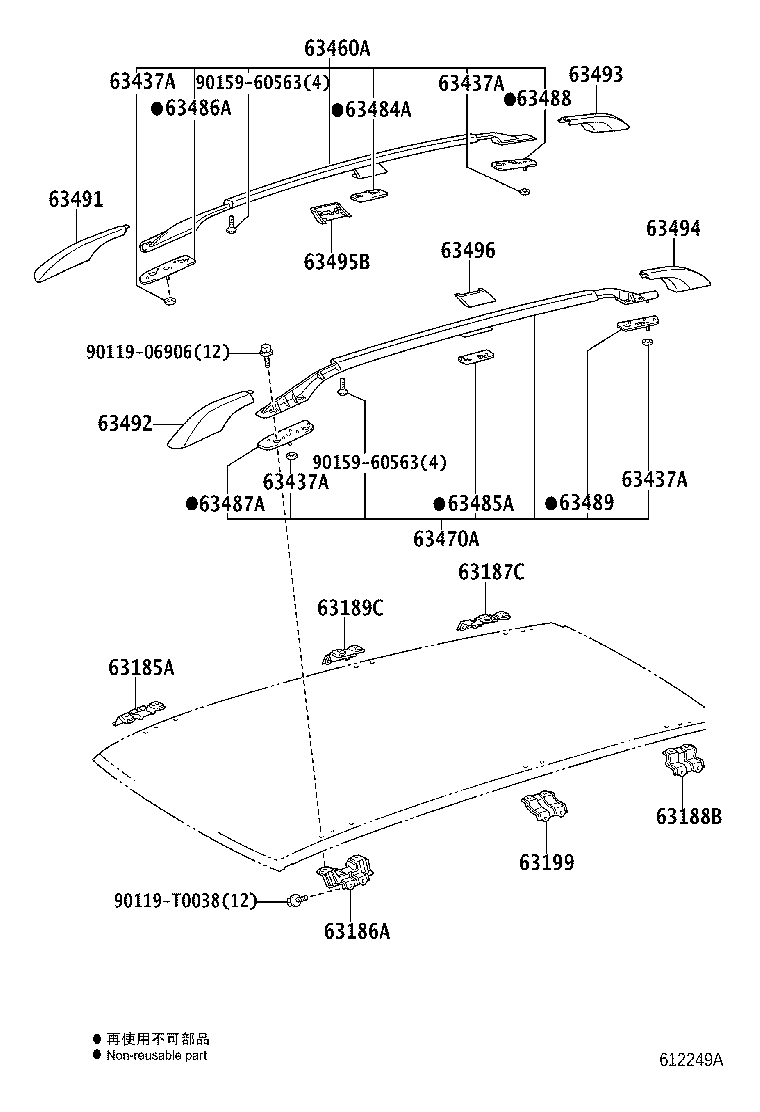

ILLUST NO. 2 OF 2(1107- )
Click highlighted areas on diagram
ROOF RAIL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-0K010 |
TGN51..PKN |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-0K010 |
TGN51..PKN |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-0K010 |
TGN51..PKN |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-0K010 |
TGN51..PKN |
1 | ||
| 63189C - BRACKET, ROOF RACK, CENTER RH | ||||
| 63189-0K010 |
TGN51..PKN |
1 | ||
| 63199 - BRACKET, ROOF RACK, CENTER LH | ||||
| 63199-0K010 |
TGN51..PKN |
1 | ||
| 63460A - RACK ASSY, ROOF, RH | ||||
| 63460-0K011 |
TGN51..PKN |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-0K010 |
TGN51..PKN |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-0K010 |
TGN51..PKN |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63496-0K040 |
TGN51..PKN |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63497-0K010 |
TGN51..PKN |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63498-0K010 |
TGN51..PKN |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63499-0K010 |
TGN51..PKN |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-0K010 |
TGN51..PKN |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-0K010 |
TGN51..PKN |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-0K010 |
TGN51..PKN |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-0K010 |
TGN51..PKN |
1 | ||
| 63495B - COVER, ROOF RACK LEG, CENTER RH | ||||
| 63495-0K010 |
TGN51..PKN |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-0K010 |
TGN51..PKN |
1 | ||
| Common parts | ||||
| 90119-06906 | ||||
| 90119-T0038 | ||||
| 90159-60563 | ||||
