TGN51R-NKPSKP (2013)

Toyota Fortuner

Production Feb 2013 - Sep 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

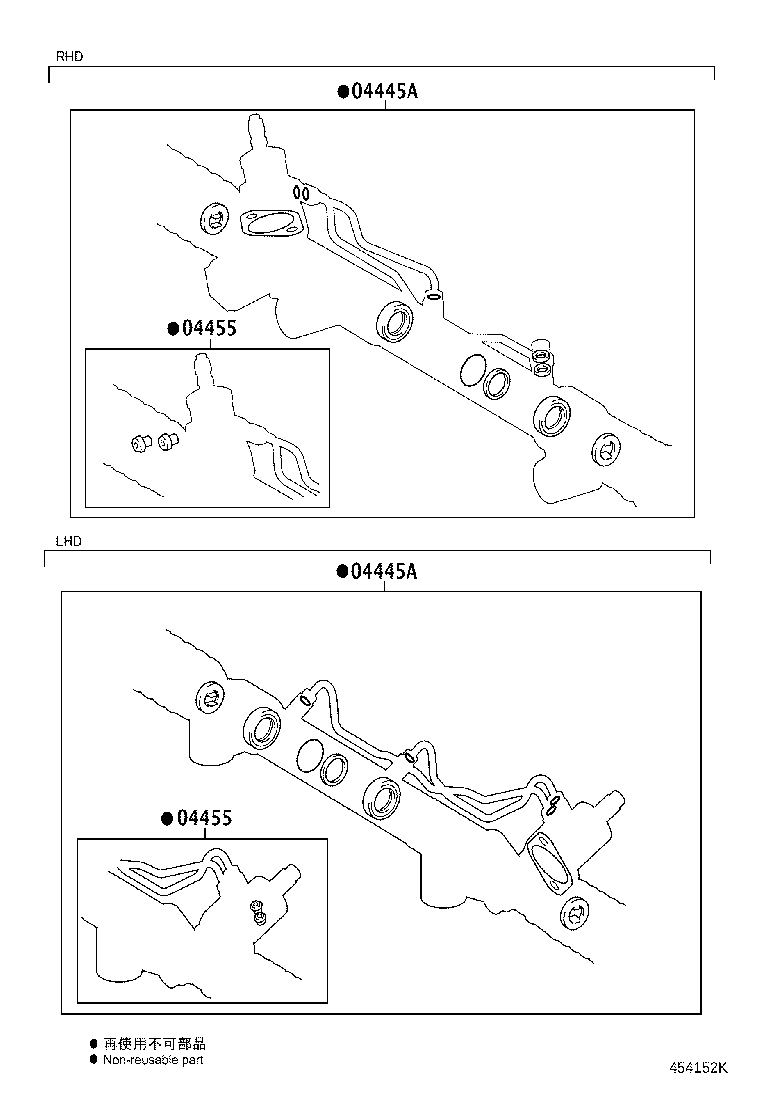

ILLUST NO. 2 OF 2(0501- )

Click highlighted areas on diagram

diagram 04445A 04445A 04455 04455
Part # Description Qty Price

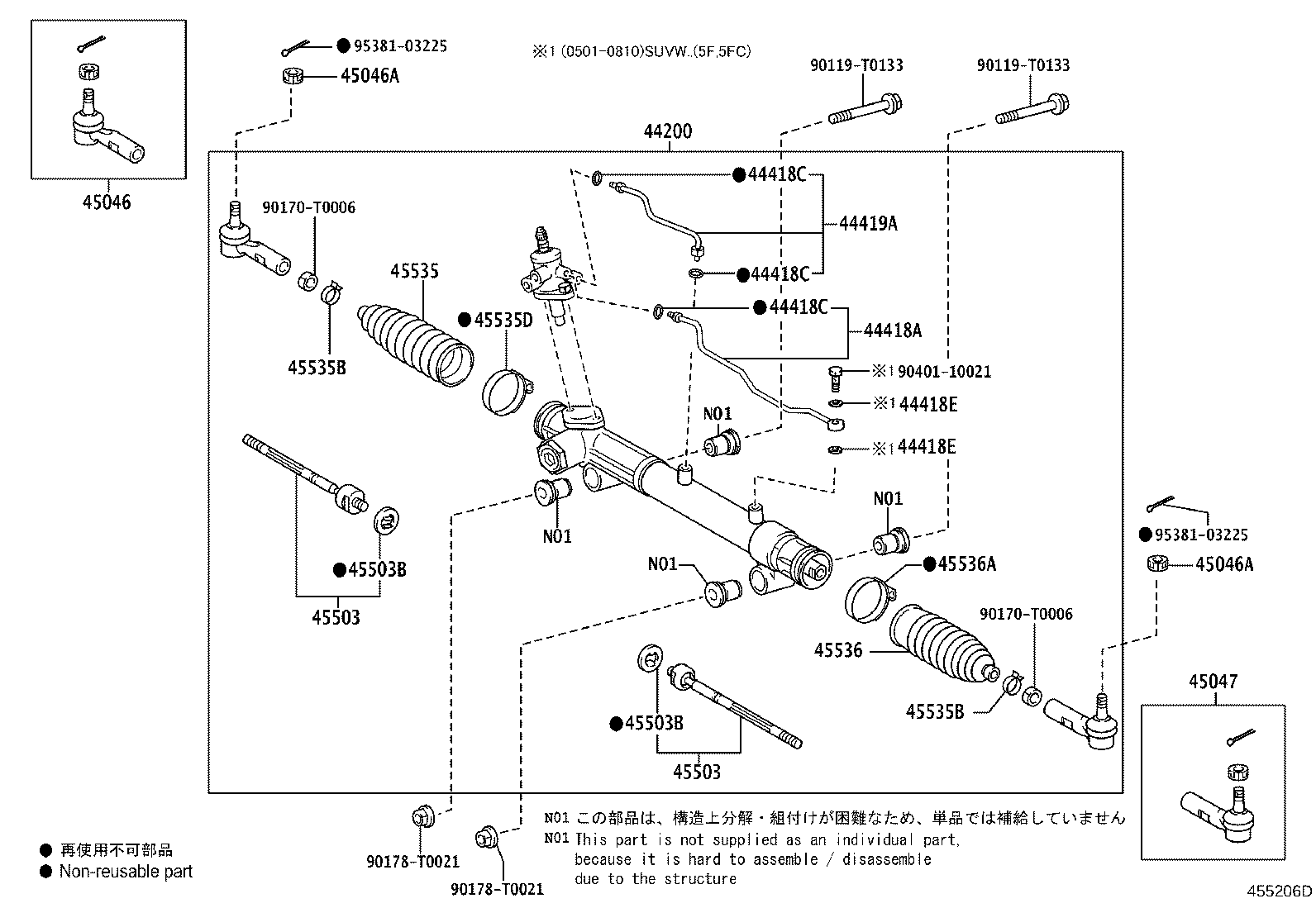

ILLUST NO. 1 OF 2(0501- )RHD

Click highlighted areas on diagram

diagram 44200 44418A 44418C 44418C 44418C 44418E 44418E 44419A 45046 45046A 45046A 45047 45503 45503 45503B 45503B 45535 45535B 45535B 45535D 45536 45536A 90119T0133 90119T0133 90170T0006 90170T0006 90178T0021 90178T0021 9040110021 9538103225 9538103225
Part # Description Qty Price
Common parts
90119-T0133
90170-T0006
90178-T0021
90401-10021
95381-03225

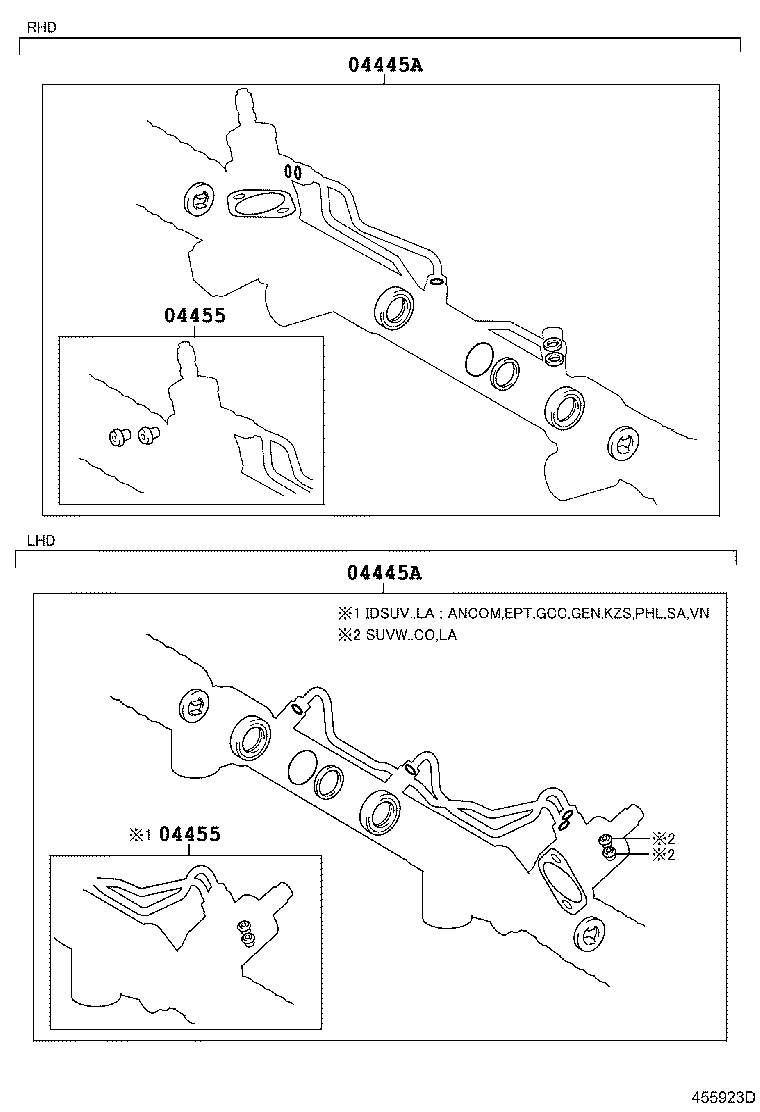

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

diagram 04445A 04445A 04455 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-0K091

KUN61..5FC..TH;KUN61..4FC..(IND,TH);KUN51,60,TGN51,61..RHD..SUVW..(GEN,IDN,PKN,TH)

 1
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-0K091

KUN61..5FC..TH;KUN61..4FC..(IND,TH);KUN51,60,TGN51,61..RHD..SUVW..(GEN,IDN,PKN,TH)

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-0K060

TGN51..PKN

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-0K060

TGN51..PKN

 1

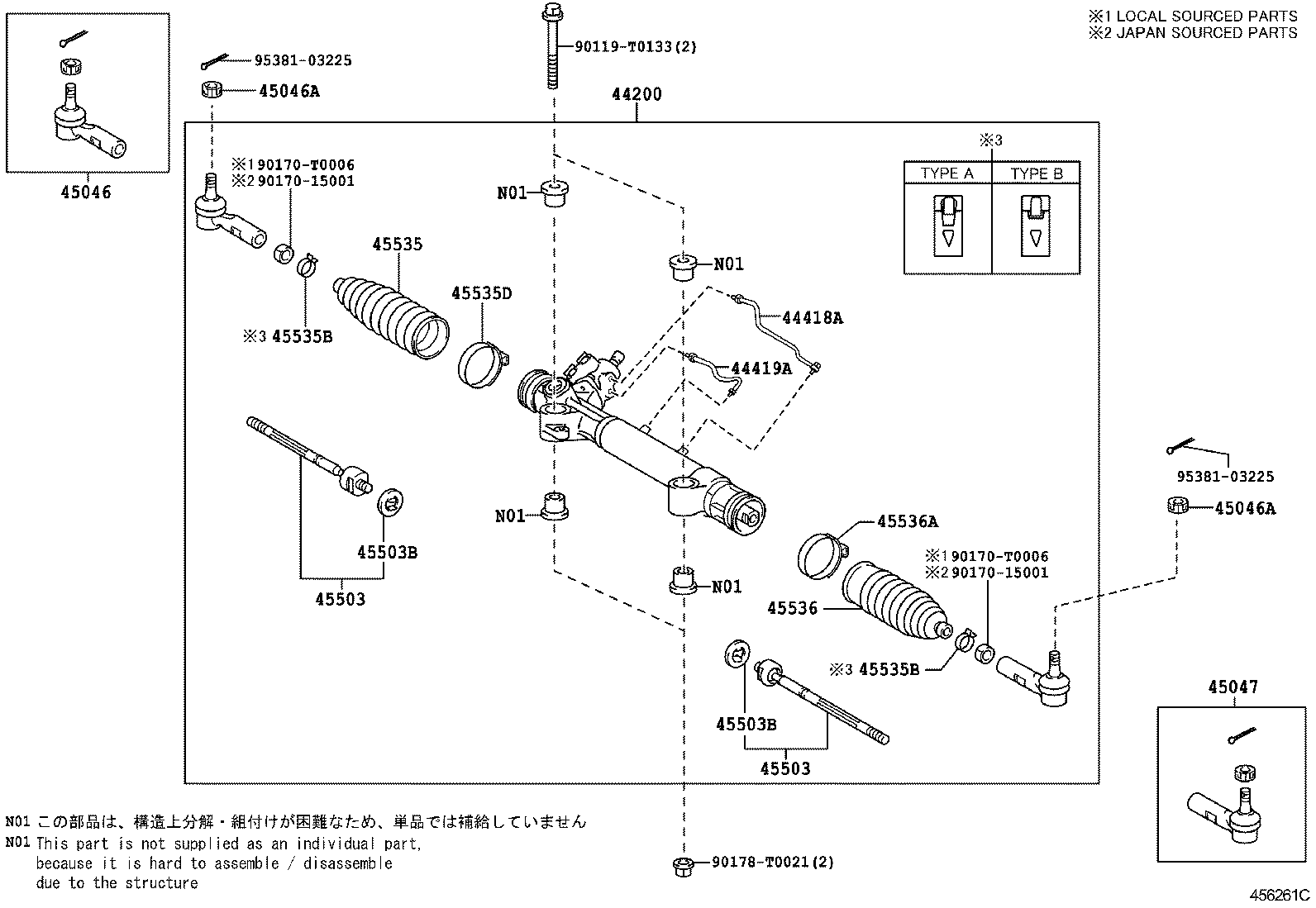

ILLUST NO. 1 OF 2(1107- )RHD

Click highlighted areas on diagram

diagram 44200 44418A 44419A 45046 45046A 45046A 45047 45503 45503 45503B 45503B 45535 45535B 45535B 45535D 45536 45536A 90119T0133 9017015001 9017015001 90170T0006 90170T0006 90178T0021 9538103225 9538103225
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-0K880

TGN51..PKN

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-0K140

KUN61..5FC..TH;KUN61..4FC..(IND,TH);KUN51,60,TGN51,61..RHD..SUVW..(GEN,IDN,PKN,TH)

 1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-0K140

KUN61..5FC..TH;KUN61..4FC..(IND,TH);KUN51,60,TGN51,61..RHD..SUVW..(GEN,IDN,PKN,TH)

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-09281

TGN51..PKN

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002

TGN51..PKN

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002

TGN51..PKN

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09281

TGN51..PKN

 1
45503 - END SUB-ASSY, STEERING RACK
45503-09321

TGN51..PKN

 2
45503 - END SUB-ASSY, STEERING RACK
45503-09321

TGN51..PKN

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-T0001

GGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(ANCOM,EPT,GCC,GEN,IDN,IND,KZS,PHL,PKN,TH)

OD=43

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-T0001

GGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(ANCOM,EPT,GCC,GEN,IDN,IND,KZS,PHL,PKN,TH)

OD=43

 2
45535 - BOOT, STEERING RACK, NO.1
45535-0K010

TGN51..PKN

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90466-T0004

TGN51..PKN

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90466-T0004

TGN51..PKN

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-T0001

TGN51..PKN

 1
45536 - BOOT, STEERING RACK, NO.2
45536-0K010

TGN51..PKN

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-T0001

TGN51..PKN

 1
Common parts
90119-T0133
90170-15001
90170-T0006
90178-T0021
95381-03225
