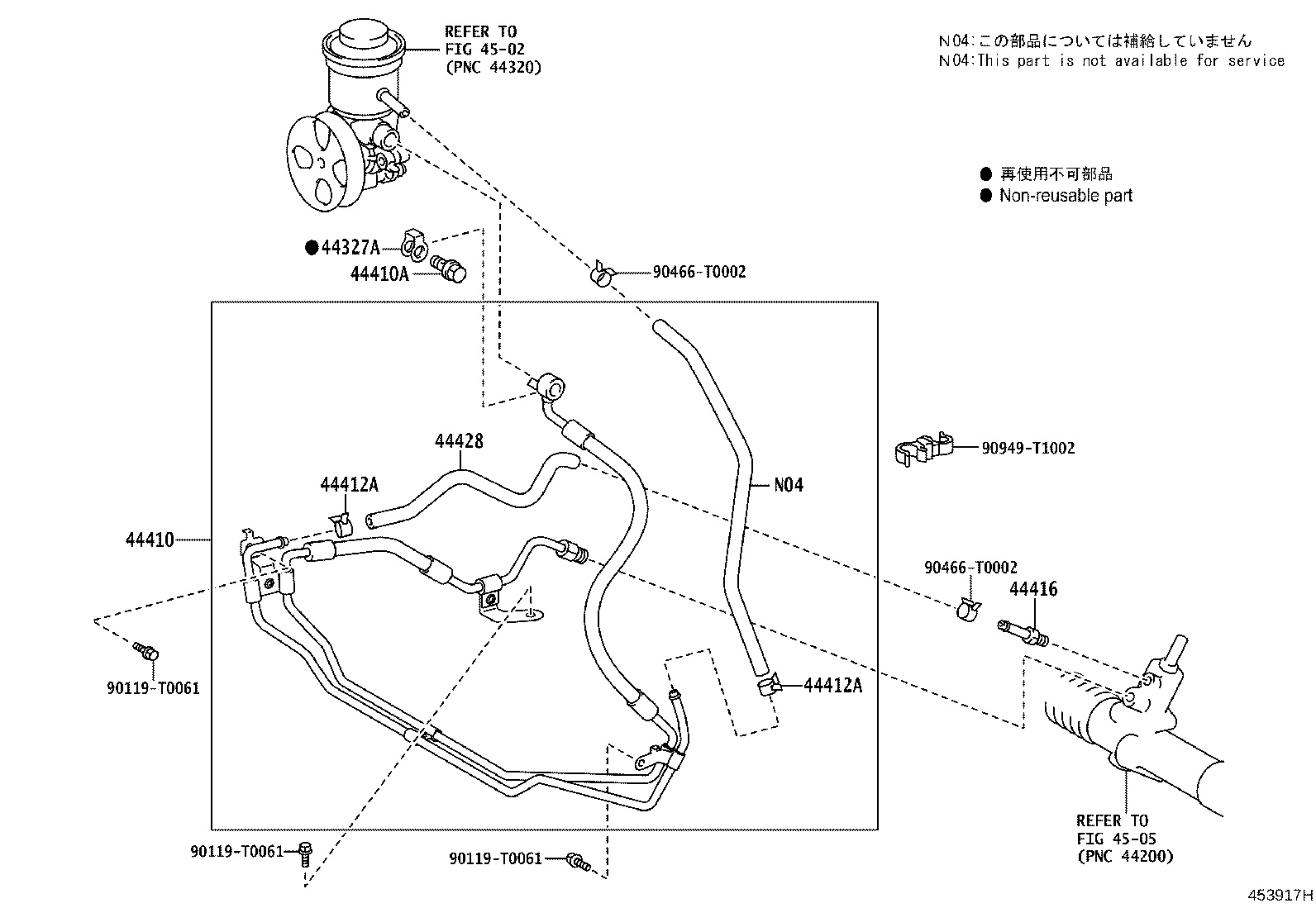

Toyota Fortuner TGN51 POWER STEERING TUBE

Part #

Description

Qty

Price

Common parts

90119-T0061

90466-T0002

90949-T1002

Linked diagrams

4502

4505

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	TGN51..PKN	07/2011 - 09/2016	1
44410 - TUBE ASSY, PRESSURE FEED
44410-0K090	TGN51,61..RHD	07/2011 - 09/2016	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603	TGN51..PKN	07/2011 - 09/2016	1
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002	TGN51,61..RHD;GGN50..IDSUV..GCC;GGN50..SUVW..(CO,EPT,GCC,LA,SA);GGN60,KUN5#,6#,LAN50..CO,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN	07/2011 - 12/2016	2
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002	TGN51,61..RHD;GGN50..IDSUV..GCC;GGN50..SUVW..(CO,EPT,GCC,LA,SA);GGN60,KUN5#,6#,LAN50..CO,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN	07/2011 - 12/2016	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K010	TGN51..PKN	07/2011 - 09/2016	1
44428 - HOSE, RETURN, NO.2
44428-0K100	TGN51,61..RHD	07/2011 - 09/2016	1
Common parts
90119-T0061
90466-T0002
90949-T1002
Linked diagrams
4502
4505

TGN51R-NKPSKP (2013)
