TGN51R-NKPSKP (2013)

Toyota Fortuner

Production Feb 2013 - Sep 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )GGN50,KUN5#,LAN50,TGN51

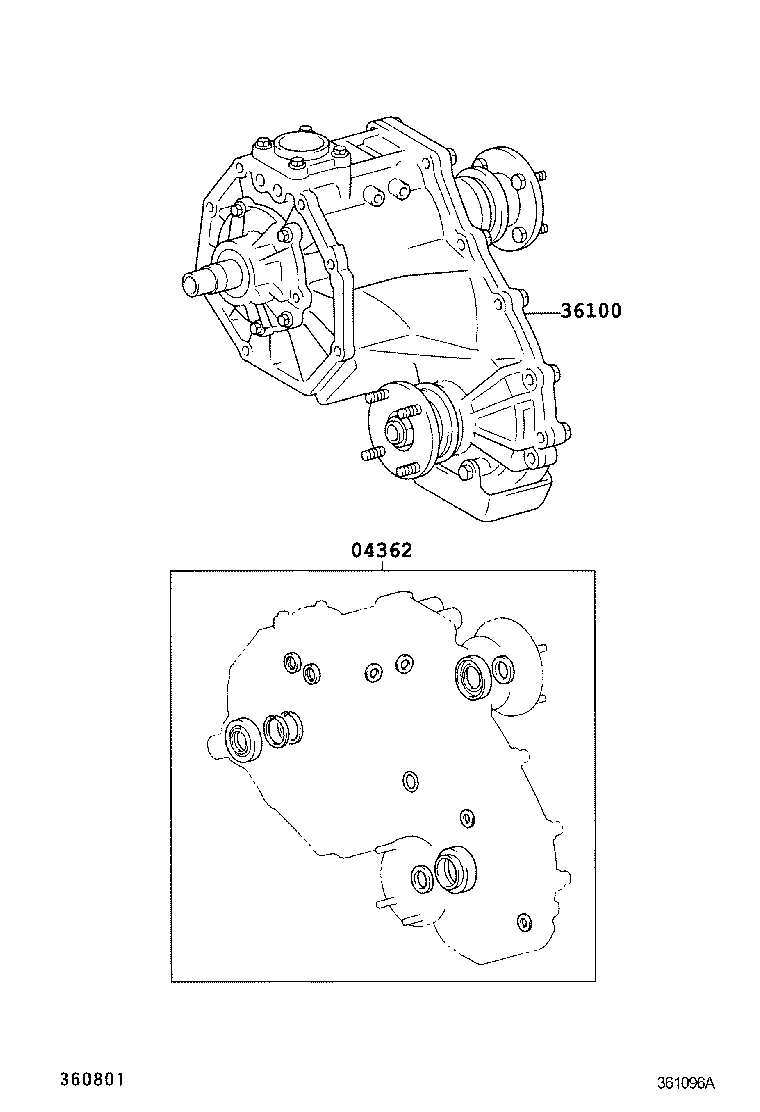

Click highlighted areas on diagram

diagram 04362 36100
Part # Description Qty Price

(1107- )GGN50,KUN5#,LAN50,TGN51

Click highlighted areas on diagram

diagram 04362 36100
Part # Description Qty Price
04362 - GASKET KIT, TRANSFER OVERHAUL
04362-71090

GGN50,TGN51..4FC,5FC;TGN51..SUVW..5F..GCC

TYPE A:REFER ILLUST.

 1
04362-71100

GGN50,KUN5#,LAN50,TGN51

TYPE B:REFER ILLUST.

 1
36100 - TRANSFER ASSY
36100-6D270

TGN51..4FC

TYPE A:REFER ILLUST.

 1
36100-6D271

TGN51..PKN

TYPE A:REFER ILLUST.

 1
36100-0K050

TGN51..PKN

TYPE B:REFER ILLUST.

 1
