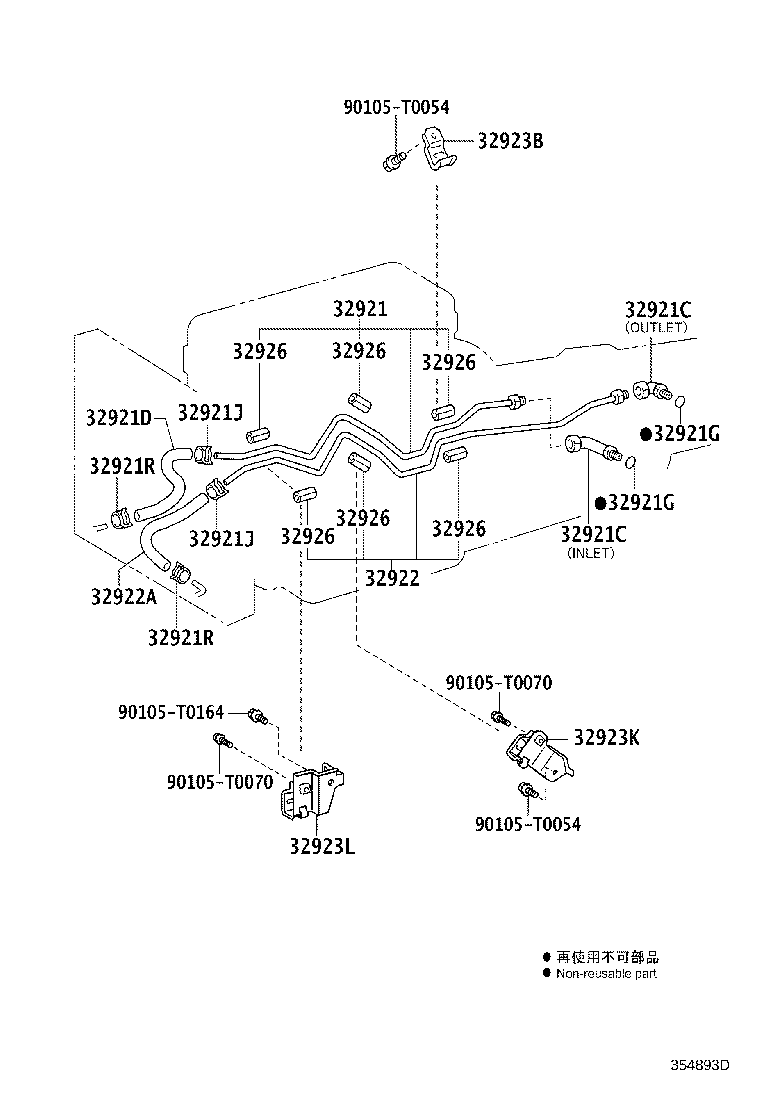

Toyota Fortuner TGN51 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32921 - TUBE, OIL COOLER INLET, NO.1
32921-0K020	TGN51,61..4FC	07/2011 - 03/2017	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009	TGN51..PKN OUTLET	07/2011 - 09/2016	1
90407-16012	TGN51..PKN INLET	07/2011 - 09/2016	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009	TGN51..PKN OUTLET	07/2011 - 09/2016	1
90407-16012	TGN51..PKN INLET	07/2011 - 09/2016	1
32921D - HOSE(FOR OIL COOLER INLET)
90445-T0012	KUN5#,6#,TGN51,61..4FC	07/2011 - 03/2017	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	TGN51..PKN	07/2011 - 09/2016	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	TGN51..PKN	07/2011 - 09/2016	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-T0016	GGN50,60,KUN5#,6#,TGN51,61..4FC,5FC	07/2011 - 12/2999	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-T0016	GGN50,60,KUN5#,6#,TGN51,61..4FC,5FC	07/2011 - 12/2999	2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-T0016	TGN51..PKN	07/2011 - 09/2016	2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-T0016	TGN51..PKN	07/2011 - 09/2016	2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-0K021	TGN51,61..4FC	07/2011 - 03/2017	1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-T0013	KUN5#,6#,TGN51,61..4FC	07/2011 - 03/2017	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-0K030	TGN51..PKN	07/2011 - 09/2016	1
32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
32909-0K020	TGN51..PKN	07/2011 - 09/2016	1
32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3
32909-0K030	TGN51..PKN	07/2011 - 09/2016	1
Common parts
90105-T0054
90105-T0070
90105-T0164

TGN51R-NKPSKP (2013)
