Toyota Fortuner TGN51 MANIFOLD - JDM Part Detective

TGN51R-NKPSKP (2013)

Toyota Fortuner

Production Feb 2013 - Sep 2016

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

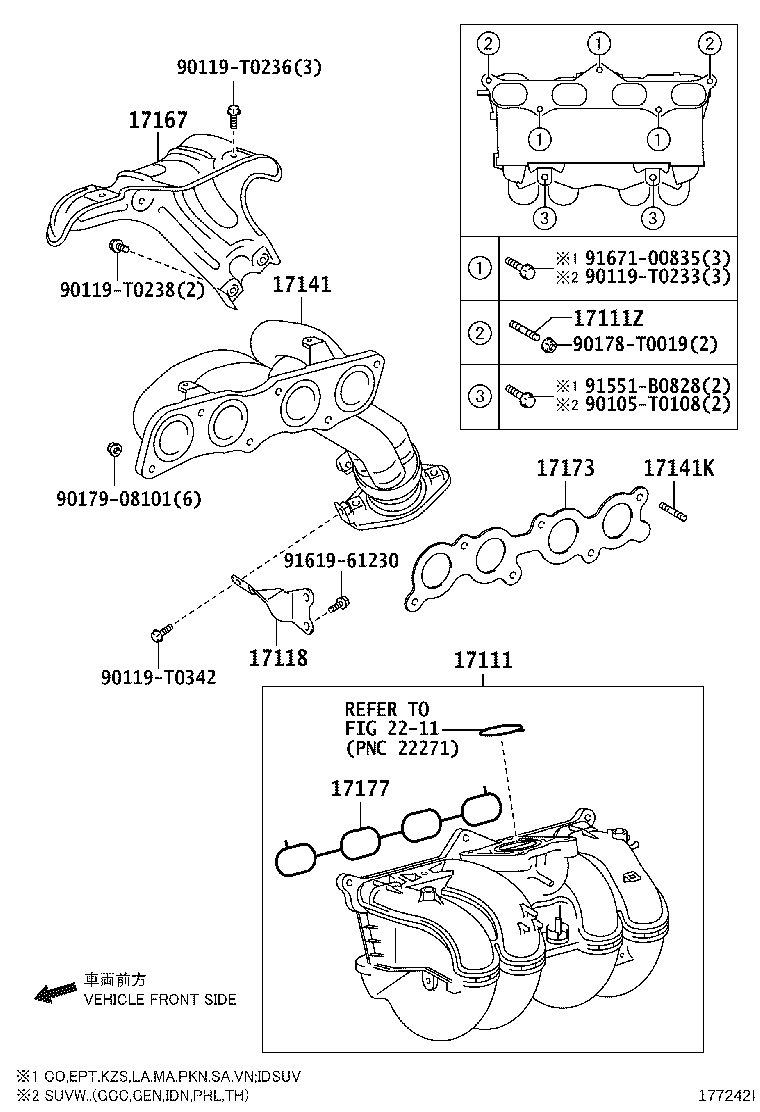

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-0C020	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-T0003	2TRFE..TGN51,61	07/2011 - 02/2015	2
90126-08026	2TRFE..TGN51..PKN (J)	02/2015 - 09/2016	2
90126-T0003	2TRFE..TGN51..PKN (L)	02/2015 - 09/2016	2
17118 - STAY, MANIFOLD
17118-75060	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17141 - MANIFOLD, EXHAUST
17141-0C010	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08052	2TRFE..TGN51..PKN (J)	05/2016 - 09/2016	6
90126-T0016	2TRFE..TGN51..PKN (L)	05/2016 - 09/2016	6
90126-08052	2TRFE..TGN51,61..CO,EPT,GCC,GEN,IDN,PHL,PKN,SA,VN	07/2011 - 05/2016	6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0C010	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0C010	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0C010	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
Common parts
90105-T0108
90119-T0233
90119-T0236
90119-T0238
90119-T0342
90178-T0019
90179-08101
91551-B0828
91619-61230
91671-00835
Linked diagrams
2211

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-0C020	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-T0003	2TRFE..TGN51,61	07/2011 - 02/2015	2
90126-08026	2TRFE..TGN51..PKN (J)	02/2015 - 09/2016	2
90126-T0003	2TRFE..TGN51..PKN (L)	02/2015 - 09/2016	2
17118 - STAY, MANIFOLD
17118-75060	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17141 - MANIFOLD, EXHAUST
17141-0C010	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08052	2TRFE..TGN51..PKN (J)	05/2016 - 09/2016	6
90126-T0016	2TRFE..TGN51..PKN (L)	05/2016 - 09/2016	6
90126-08052	2TRFE..TGN51,61..CO,EPT,GCC,GEN,IDN,PHL,PKN,SA,VN	07/2011 - 05/2016	6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0C010	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0C010	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0C010	2TRFE..TGN51..PKN	07/2011 - 09/2016	1
Common parts
90105-T0108
90119-T0233
90119-T0236
90119-T0238
90119-T0342
90178-T0019
90179-08101
91619-61230
94151-80800
Linked diagrams
2211
