TGN51R-NKPSKP (2013)
Toyota Fortuner
ILLUST NO. 2 OF 2(0501- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90179-08087 | ||||
| 91551-00820 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8716 | ||||

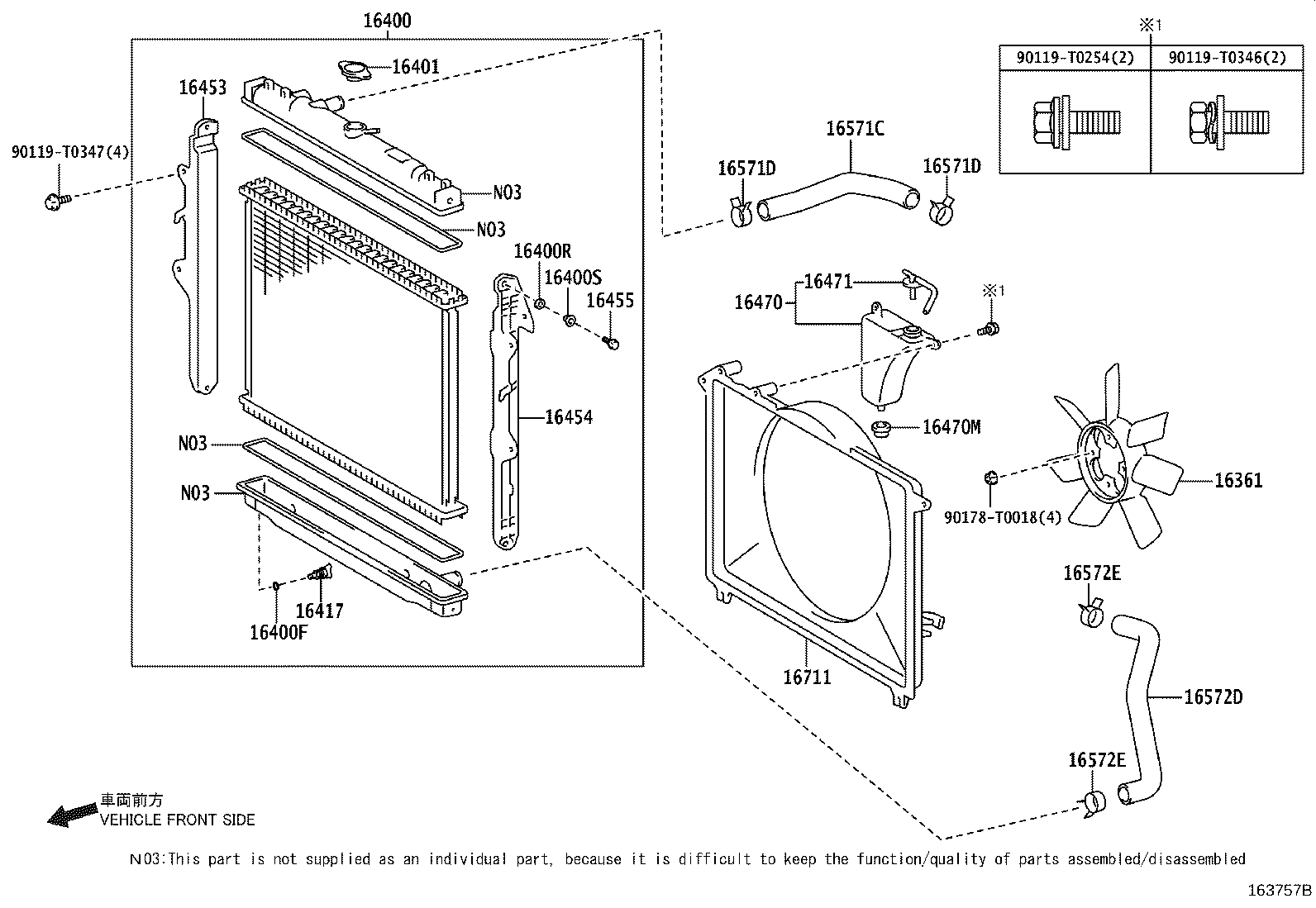

ILLUST NO. 1 OF 2(0501- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0254 | ||||
| 90119-T0346 | ||||
| 90119-T0347 | ||||
| 90178-T0018 | ||||

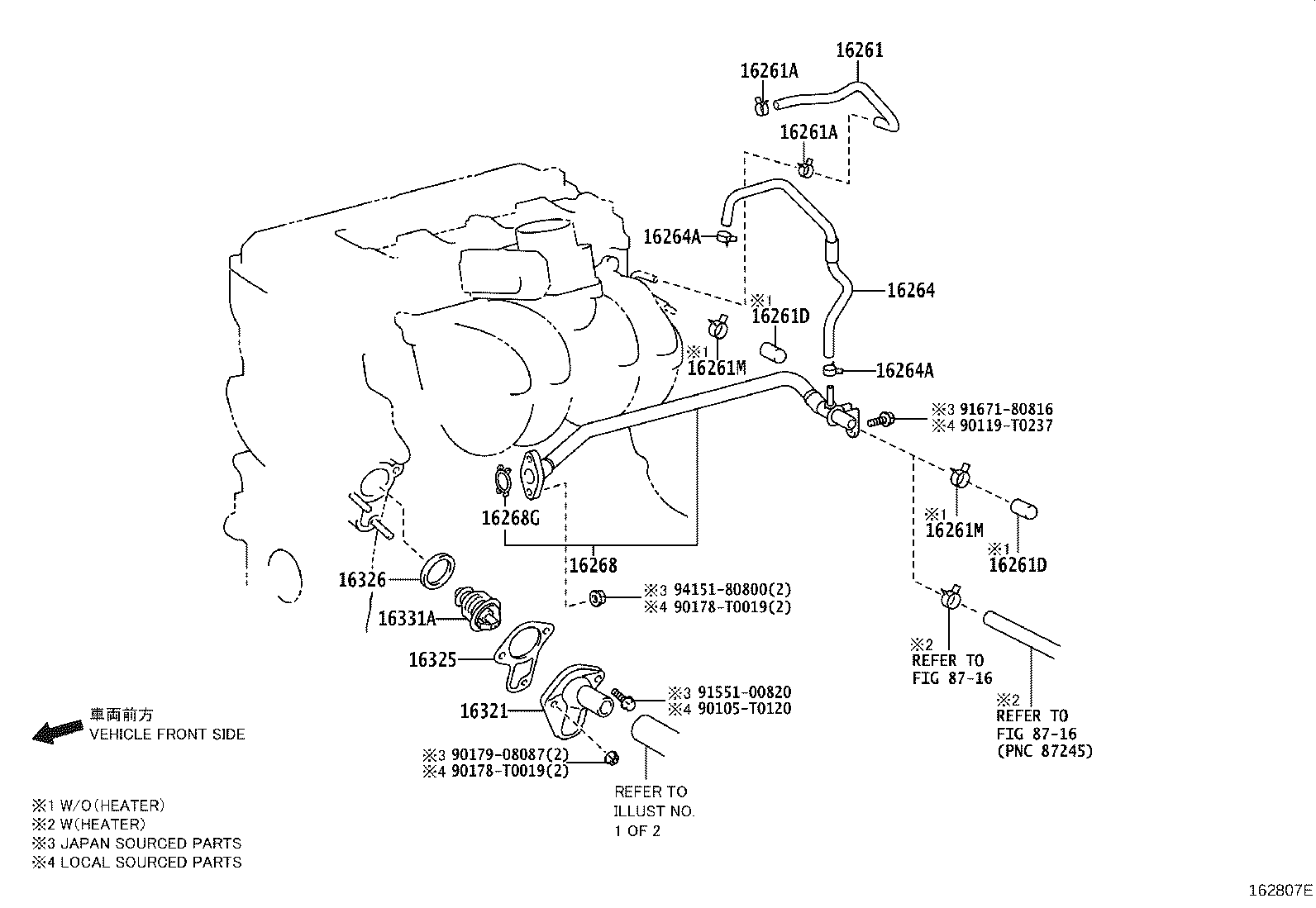

ILLUST NO. 2 OF 2(1503- )2TRFE..CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0C010 |
2TRFE..TGN51..PKN |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
2TRFE..TGN51..PKN (L) |
2 | ||
| 96136-41501 |
2TRFE..TGN51..PKN (J) |
2 | ||
| 96137-41501 |
2TRFE..TGN51..4FC..SA;2TRFE..TGN51,61..IDSUV..(GCC,GEN);2TRFE..TGN51,61..HTWC..(CO,EPT,KZS,LA,MA,PKN,VN) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
2TRFE..TGN51..PKN (L) |
2 | ||
| 96136-41501 |
2TRFE..TGN51..PKN (J) |
2 | ||
| 96137-41501 |
2TRFE..TGN51..4FC..SA;2TRFE..TGN51,61..IDSUV..(GCC,GEN);2TRFE..TGN51,61..HTWC..(CO,EPT,KZS,LA,MA,PKN,VN) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
2TRFE..TGN51..PKN (L) |
2 | ||
| 96136-41501 |
2TRFE..TGN51..PKN (J) |
2 | ||
| 96137-41501 |
2TRFE..TGN51..4FC..SA;2TRFE..TGN51,61..IDSUV..(GCC,GEN);2TRFE..TGN51,61..HTWC..(CO,EPT,KZS,LA,MA,PKN,VN) |
2 | ||
| 16261D - PLUG, W/O HEATER | ||||
| 90339-16001 |
2TRFE..TGN51,61..IDN,MA,PHL,PKN,TH |
2 | ||
| 16261D - PLUG, W/O HEATER | ||||
| 90339-16001 |
2TRFE..TGN51,61..IDN,MA,PHL,PKN,TH |
2 | ||
| 16261M - CLIP, W/O HEATER PLUG | ||||
| 90467-22011 |
2TRFE..TGN51,61..IDN,MA,PHL,PKN,TH |
2 | ||
| 16261M - CLIP, W/O HEATER PLUG | ||||
| 90467-22011 |
2TRFE..TGN51,61..IDN,MA,PHL,PKN,TH |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0C030 |
2TRFE..TGN51..PKN |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0015 |
2TRFE..TGN51..PKN (L) |
2 | ||
| 96136-41501 |
2TRFE..TGN51..PKN (J) |
2 | ||
| 96137-41501 |
2TRFE..TGN51..4FC..SA;2TRFE..TGN51,61..IDSUV..(GCC,GEN);2TRFE..TGN51,61..HTWC..(CO,EPT,KZS,LA,MA,PKN,VN) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0015 |
2TRFE..TGN51..PKN (L) |
2 | ||
| 96136-41501 |
2TRFE..TGN51..PKN (J) |
2 | ||
| 96137-41501 |
2TRFE..TGN51..4FC..SA;2TRFE..TGN51,61..IDSUV..(GCC,GEN);2TRFE..TGN51,61..HTWC..(CO,EPT,KZS,LA,MA,PKN,VN) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75091 |
2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..CO,EPT,LA,MA,PKN,SA,VN |
1 | ||
| 16268-0C021 |
2TRFE..TGN51..PKN |
1 | ||
| 16268-0C020 |
2TRFE..TGN51,61..IDSUV..GCC;2TRFE..TGN51,61..CO,EPT,LA,MA,PKN,SA,VN |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..CO,EPT,LA,MA,PKN,SA,VN |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..CO,EPT,LA,MA,PKN,SA,VN |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0C021 |
2TRFE..TGN51..PKN (L) |
1 | ||
| 16325-75011 |
2TRFE..TGN51..PKN (J) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-0C030 |
2TRFE..TGN51..4FC..SA;2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..CO,EPT,KZS,LA,MA,PKN,VN |
1 | ||
| 16325-76010 |
2TRFE..TGN51..PKN (J) |
1 | ||
| 16325-0C030 |
2TRFE..TGN51..PKN (L) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
2TRFE..TGN51..PKN *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90178-T0030 | ||||
| 90179-08087 | ||||
| 90339-07010 | ||||
| 91551-00825 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||

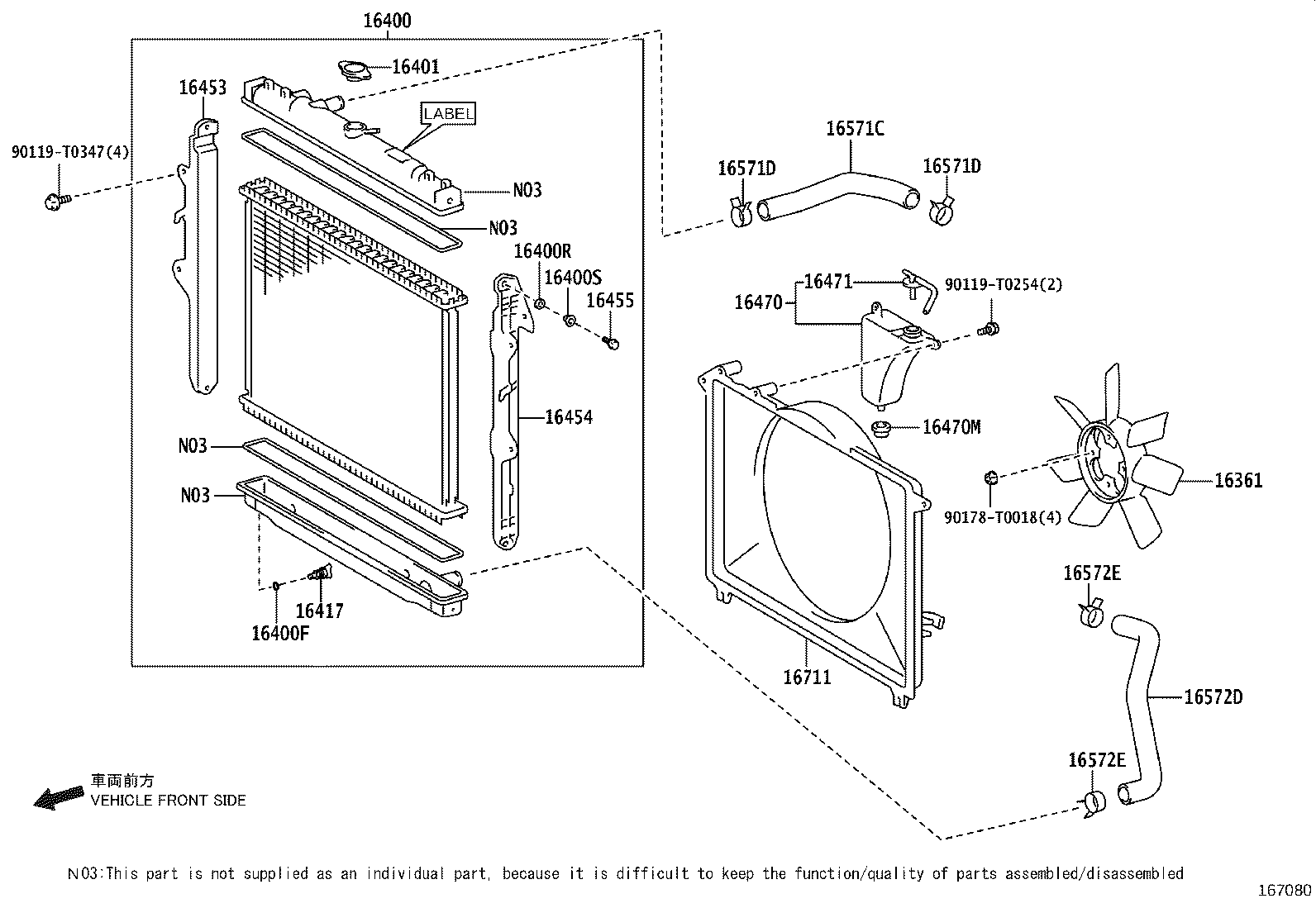

ILLUST NO. 1 OF 2(1107- )2TRFE..TGN51..EPT,GCC,GEN,IDN,KZS,MA,PKN,SA,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-0C190 |
2TRFE..TGN51..PKN |
1 | ||
| 16400-0C190 |
2TRFE..TGN51..PKN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2TRFE..TGN51..PKN |
1 | ||
| 16492-21050 |
2TRFE..TGN51..PKN |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
2TRFE..TGN51..PKN |
2 | ||
| 16444-75180 |
2TRFE..TGN51..PKN |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
2TRFE..TGN51..PKN |
2 | ||
| 16445-0C180 |
2TRFE..TGN51..PKN |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0C030 |
2TRFE..TGN51..PKN |
1 | ||
| 16401-0C030 |
2TRFE..TGN51..PKN |
1 | ||
| 16417 - COCK | ||||
| 16417-0C180 |
2TRFE..TGN51..PKN |
1 | ||
| 16417-0C180 |
2TRFE..TGN51..PKN |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-0C180 |
2TRFE..TGN51..PKN |
1 | ||
| 16453-0C180 |
2TRFE..TGN51..PKN |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-0C180 |
2TRFE..TGN51..PKN |
1 | ||
| 16454-0C180 |
2TRFE..TGN51..PKN |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2TRFE..TGN51..PKN |
4 | ||
| 91651-B0820 |
2TRFE..TGN51..PKN |
4 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0C040 |
2TRFE..TGN51..PKN |
1 | ||
| 16470-0C040 |
2TRFE..TGN51..PKN |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0003 |
2TRFE..TGN51..PKN |
1 | ||
| 90480-T0003 |
2TRFE..TGN51..PKN |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0C020 |
2TRFE..TGN51..PKN |
1 | ||
| 16405-0C020 |
2TRFE..TGN51..PKN |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0011 |
2TRFE..TGN51,61 |
2 | ||
| 90466-T0011 |
2TRFE..TGN51,61 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0011 |
2TRFE..TGN51,61 |
2 | ||
| 90466-T0011 |
2TRFE..TGN51,61 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0011 |
2TRFE..TGN51,61 |
2 | ||
| 90466-T0011 |
2TRFE..TGN51,61 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0011 |
2TRFE..TGN51,61 |
2 | ||
| 90466-T0011 |
2TRFE..TGN51,61 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C090 |
2TRFE..TGN51..PKN |
1 | ||
| 16711-0C090 |
2TRFE..TGN51..PKN |
1 | ||
| Common parts | ||||
| 90119-T0254 | ||||
| 90119-T0347 | ||||
| 90178-T0018 | ||||
