TGN51L-NKPSKZ (2012)

Toyota Fortuner

Production Mar 2012 - Dec 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

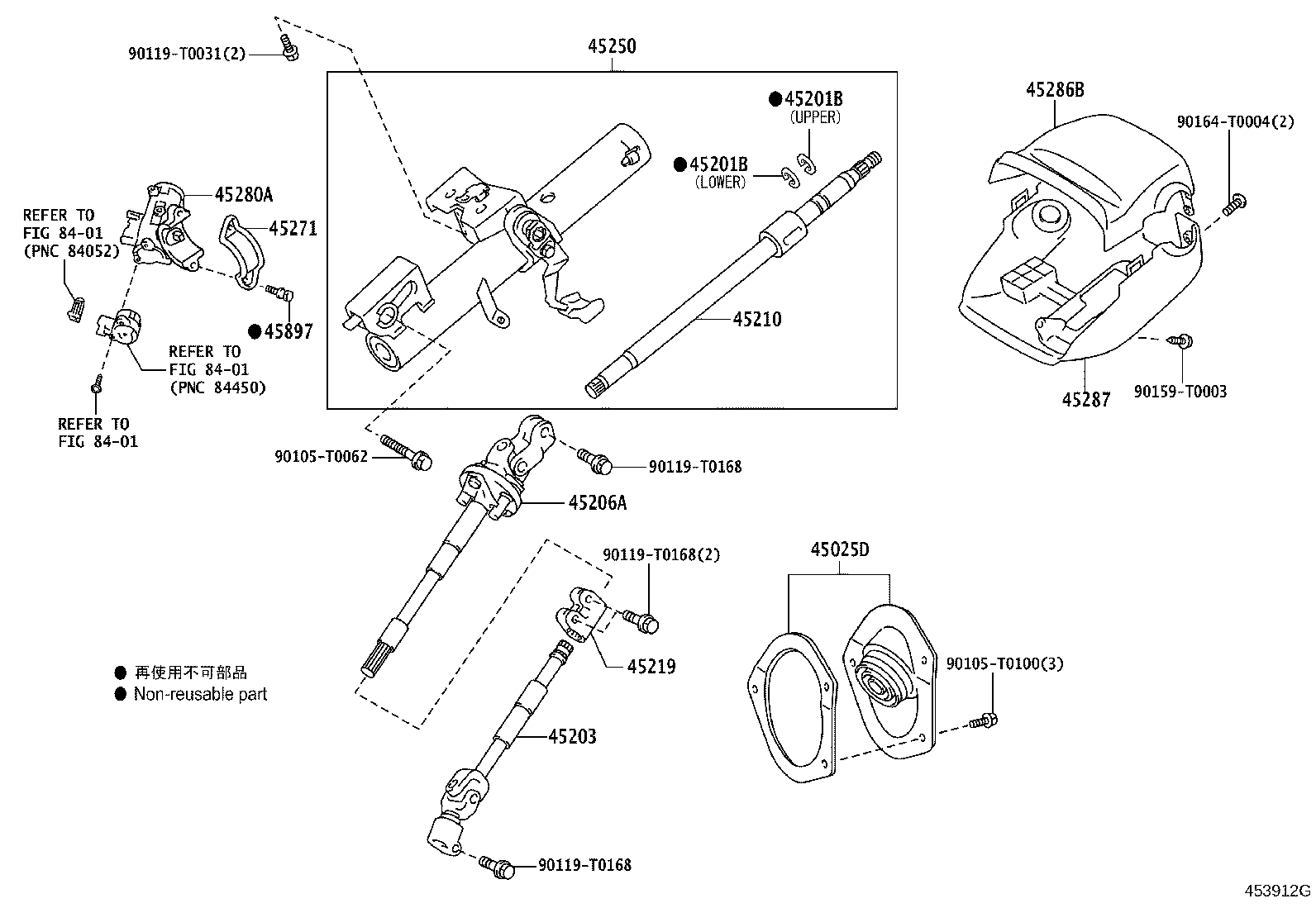

Click highlighted areas on diagram

diagram 45025D 45201B 45201B 45203 45206A 45210 45219 45250 45271 45280A 45286B 45287 45897 8401 8401 8401 90105T0062 90105T0100 90119T0031 90119T0168 90119T0168 90119T0168 90159T0003 90164T0004
Part # Description Qty Price
Common parts
90105-T0062
90105-T0100
90119-T0031
90119-T0168
90159-T0003
90164-T0004
Linked diagrams
8401

(1107- )

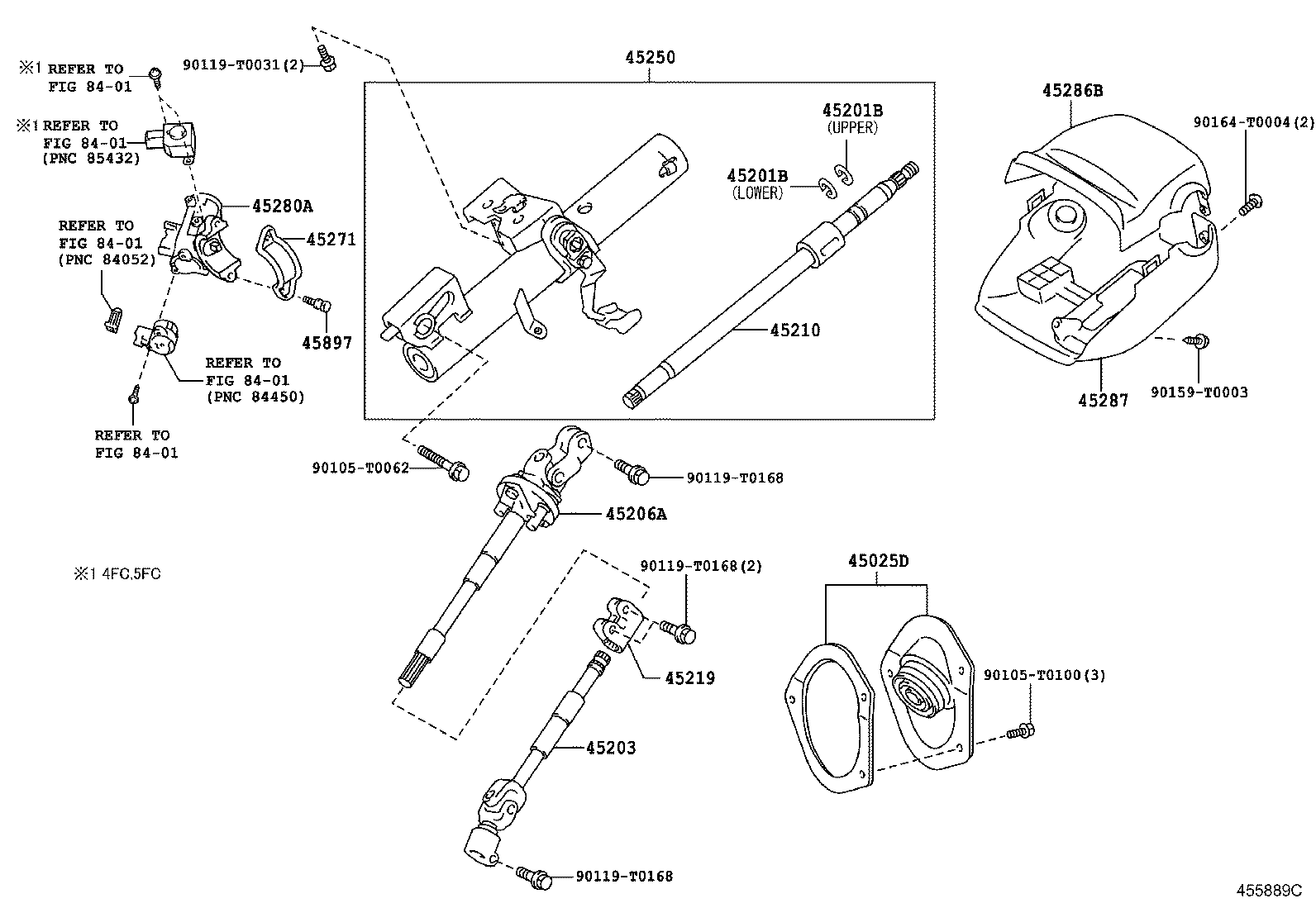

Click highlighted areas on diagram

diagram 45025D 45201B 45201B 45203 45206A 45210 45219 45250 45271 45280A 45286B 45287 45897 8401 8401 8401 8401 8401 90105T0062 90105T0100 90119T0031 90119T0168 90119T0168 90119T0168 90159T0003 90164T0004
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0K040

GGN50,TGN51..EPT

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

GGN50,TGN51..EPT

T=1.20,UPPER

 1
90520-17042

GGN50,TGN51..EPT

T=1.20,LOWER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

GGN50,TGN51..EPT

T=1.20,UPPER

 1
90520-17042

GGN50,TGN51..EPT

T=1.20,LOWER

 1
45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45203-0K110

GGN50,TGN51..EPT

 1
45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING
45206-0K040

GGN50,TGN51..EPT

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-0K010

GGN50,TGN51..EPT

 1
45219 - YOKE, STEERING SLIDING
45219-0K090

GGN50,TGN51..EPT

 1
45250 - COLUMN ASSY, STEERING
45250-0K010

GGN50,TGN51..EPT

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-0K010

GGN50,TGN51..EPT

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-0K030

GGN50,TGN51..EPT

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0K010C0

GGN50,TGN51..EPT

BLACK,TRIM40

 1
45286-0K010E1

GGN50,TGN51..EPT

ASH BROWN,TRIM40

 1
45286-0K010E1

KUN51,61..5FC..TH;GGN50,KUN60,TGN51,61..EPT,TH

ASH BROWN,TRIM4#

 1
45286-0K010C0

GGN50,TGN51..EPT

BLACK,TRIM4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0K010E1

KUN51,61..5FC..TH;GGN50,KUN60,TGN51,61..EPT,TH

ASH BROWN,TRIM4#

 1
45287-0K010E1

GGN50,TGN51..EPT

ASH BROWN,TRIM40

 1
45287-0K010C0

GGN50,TGN51..EPT

BLACK,TRIM40

 1
45287-0K010C0

GGN50,TGN51..EPT

BLACK,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-0K010

GGN50,TGN51..EPT

 2
Common parts
90105-T0062
90105-T0100
90119-T0031
90119-T0168
90159-T0003
90164-T0004
Linked diagrams
8401
