TGN51L-NKPSKZ (2012)

Toyota Fortuner

Production Mar 2012 - Dec 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42601C 42603 42611G 42611J 42652 42652A
Part # Description Qty Price

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

DISC WHEEL & WHEEL HUB ORNAMENT

diagram 42601 42601A 42601C 42601C 42603 42611G 42611J 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-0KE40

GGN50,TGN51..EPT

17X7.5J, #,TYPE V:REFER ILLUST.

 4
42611-0KE30

GGN50,TGN51..EPT

17X7.5J, #,TYPE W:REFER ILLUST.

 4
42611-0KE41

GGN50,TGN51..EPT

17X7.5J, #,TYPE V:REFER ILLUST.

 4
42611-0KE31

GGN50,TGN51..EPT

17X7.5J, #,TYPE W:REFER ILLUST.

 4
42611-0KM92

GGN50,TGN51..EPT

17X7.5J, #,TYPE W:REFER ILLUST.

 4
42611-0KN01

GGN50,TGN51..EPT

17X7.5J, #,TYPE V:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-0KE30

GGN50,TGN51..EPT

17X7.5J, #,TYPE W:REFER ILLUST.

 1
42611-0KE40

GGN50,TGN51..EPT

17X7.5J, #,TYPE V:REFER ILLUST.

 1
42611-0KE31

GGN50,TGN51..EPT

17X7.5J, #,TYPE W:REFER ILLUST.

 1
42611-0KE41

GGN50,TGN51..EPT

17X7.5J, #,TYPE V:REFER ILLUST.

 1
42611-0KN01

GGN50,TGN51..EPT

17X7.5J, #,TYPE V:REFER ILLUST.

 1
42611-0KM92

GGN50,TGN51..EPT

17X7.5J, #,TYPE W:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01109

KUN51..IDSUV;KUN51..SUVW..5FC;KUN51,TGN61..5F..CO;TGN61..4FC..(CO,LA,TH,VN);TGN51..CO,EPT,KZS,MA,PKN,VN;KUN6#..(5F,5FC)..(IND,TH,VN);KUN51..SUVW..(4FC,5F)..(IND,LA);GGN50,60,KUN50..ANCOM,CO,EPT,IDN,LA,MA;GGN50,KUN60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)

TYPE B:REFER ILLUST.

 24
90942-T1005

TGN61..SR;TGN61..4FC..LA;GGN50,60,KUN5#,6#,TGN51..(IDSUV,SUVW)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN)

(L),TYPE B:REF ILL.

 24
90942-01109

TGN61..SR;TGN61..4FC..LA;GGN50,60,KUN5#,6#,TGN51..(IDSUV,SUVW)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN)

(J),TYPE B:REF ILL.

 24
42601C - NUT, HUB (FOR AXLE)
90942-01109

KUN51..IDSUV;KUN51..SUVW..5FC;KUN51,TGN61..5F..CO;TGN61..4FC..(CO,LA,TH,VN);TGN51..CO,EPT,KZS,MA,PKN,VN;KUN6#..(5F,5FC)..(IND,TH,VN);KUN51..SUVW..(4FC,5F)..(IND,LA);GGN50,60,KUN50..ANCOM,CO,EPT,IDN,LA,MA;GGN50,KUN60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)

TYPE B:REFER ILLUST.

 24
90942-T1005

TGN61..SR;TGN61..4FC..LA;GGN50,60,KUN5#,6#,TGN51..(IDSUV,SUVW)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN)

(L),TYPE B:REF ILL.

 24
90942-01109

TGN61..SR;TGN61..4FC..LA;GGN50,60,KUN5#,6#,TGN51..(IDSUV,SUVW)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN)

(J),TYPE B:REF ILL.

 24
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
4260B-0K240

GGN50,KUN60,TGN51,61..EPT,VN

*ALU,TYPE G:REFER ILLUST.

 4
4260B-0K080

GGN50,KUN60,TGN51,61..EPT,VN

*ALU,TYPE G:REFER ILLUST.

 4
42611G - VALVE (FOR TUBELESS TIRE)
90080-94031

GGN50,TGN51..EPT

 4
90942-05009

GGN50,TGN51..EPT

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

GGN50,TGN51..EPT

 1
90080-94031

GGN50,TGN51..EPT

 1

ILLUST NO. 2 OF 2(1205- )EPT,KZS

Click highlighted areas on diagram

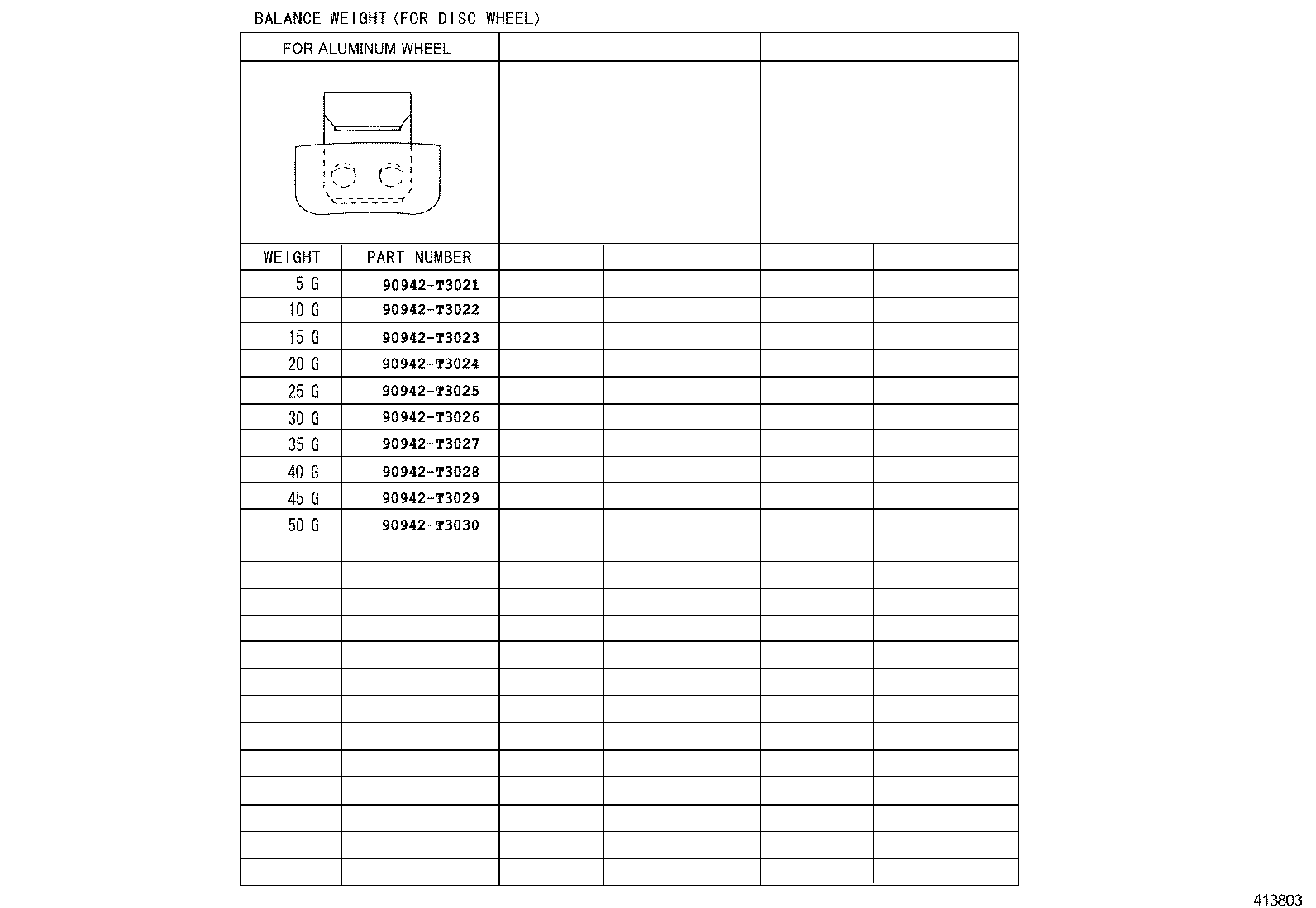

BALANCE WEIGHT

diagram 90942T3021 90942T3022 90942T3023 90942T3024 90942T3025 90942T3026 90942T3027 90942T3028 90942T3029 90942T3030
Part # Description Qty Price
Common parts
90942-T3021
90942-T3022
90942-T3023
90942-T3024
90942-T3025
90942-T3026
90942-T3027
90942-T3028
90942-T3029
90942-T3030
