TGN51L-NKPSKZ (2012)

Toyota Fortuner

Production Mar 2012 - Dec 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )4FC

Click highlighted areas on diagram

A340E,A340F,A343E,A343F

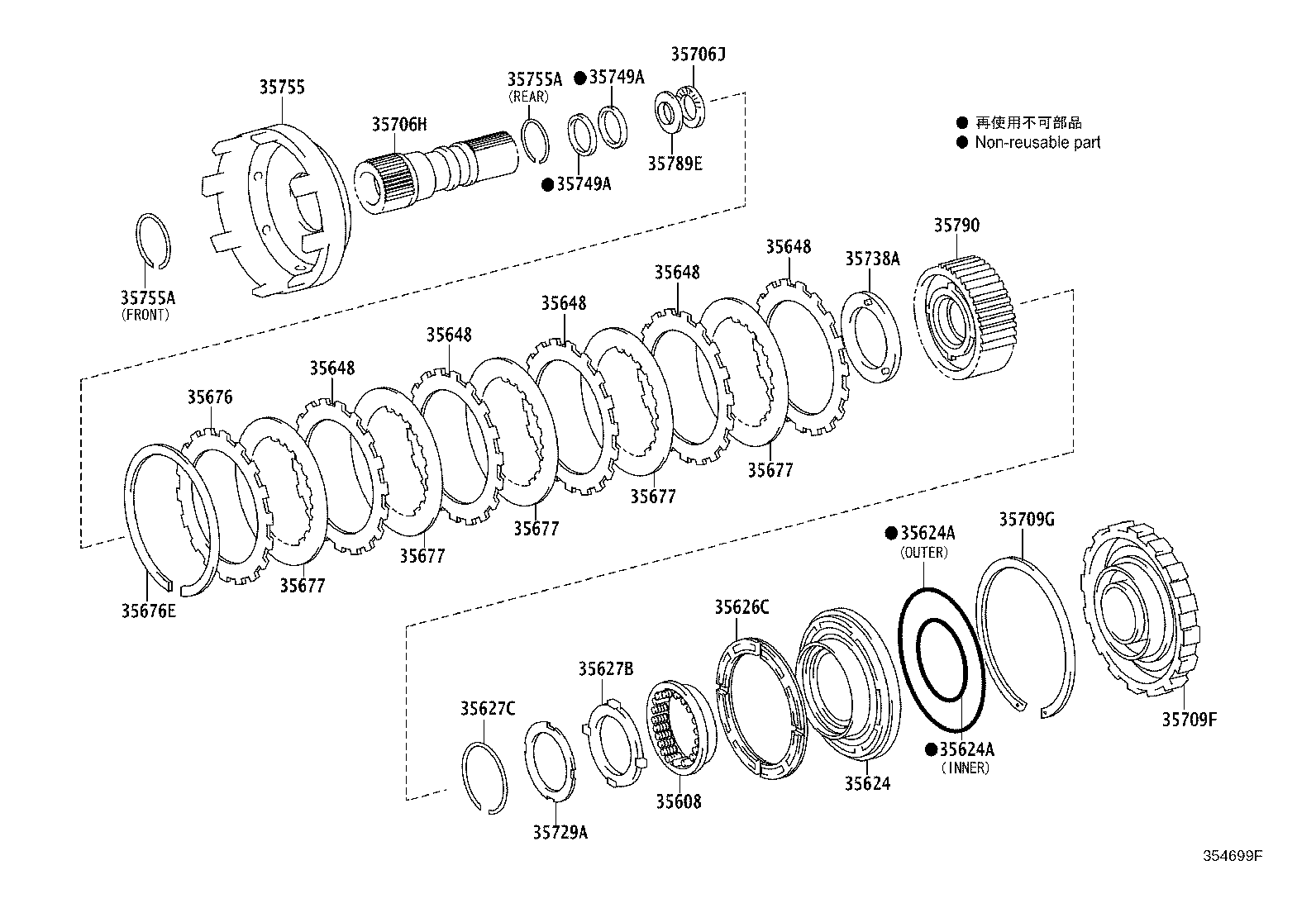

diagram 35608 35624 35624A 35624A 35626C 35627B 35627C 35648 35648 35648 35648 35648 35676 35676E 35677 35677 35677 35677 35677 35706H 35706J 35709F 35709G 35729A 35738A 35749A 35749A 35755 35755A 35755A 35789E 35790
Part # Description Qty Price

(1107- )4FC

Click highlighted areas on diagram

A340E,A340F,A343E,A343F

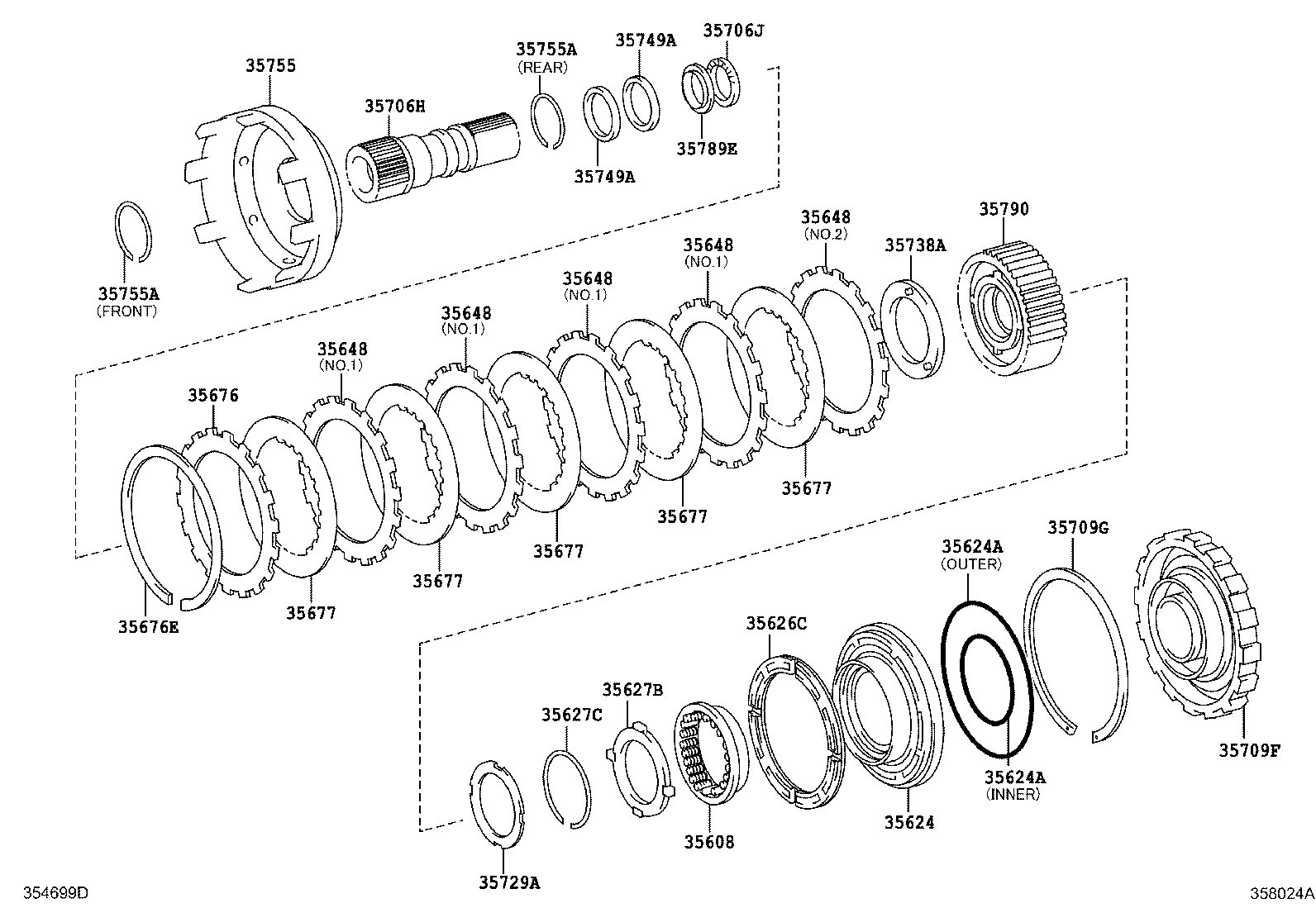

diagram 35608 35624 35624A 35624A 35626C 35627B 35627C 35648 35648 35648 35648 35648 35676 35676E 35677 35677 35677 35677 35677 35706H 35706J 35709F 35709G 35729A 35738A 35749A 35749A 35755 35755A 35755A 35789E 35790
Part # Description Qty Price
35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-30010

TGN51..EPT

 1
35624 - PISTON, 2ND BRAKE
35624-30010

TGN51..EPT

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99038

TGN51..EPT

OUTER

 1
90301-85001

TGN51..EPT

INNER

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99038

TGN51..EPT

OUTER

 1
90301-85001

TGN51..EPT

INNER

 1
35626C - SLEEVE, 2ND BRAKE PISTON
35626-30030

TGN51..EPT

 1
35627B - SEAT, 2ND BRAKE PISTON RETURN SPRING
35627-30010

TGN51..EPT

 1
35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA
90520-54001

TGN51..EPT

 1
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35647-30030

TGN51..EPT

T=1.8,NO.2

 1
35647-30020

TGN51..EPT

T=2.5,NO.1

 4
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35647-30030

TGN51..EPT

T=1.8,NO.2

 1
35647-30020

TGN51..EPT

T=2.5,NO.1

 4
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35647-30030

TGN51..EPT

T=1.8,NO.2

 1
35647-30020

TGN51..EPT

T=2.5,NO.1

 4
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35647-30030

TGN51..EPT

T=1.8,NO.2

 1
35647-30020

TGN51..EPT

T=2.5,NO.1

 4
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35647-30030

TGN51..EPT

T=1.8,NO.2

 1
35647-30020

TGN51..EPT

T=2.5,NO.1

 4
35676 - FLANGE, BRAKE (FOR 2ND BRAKE)
35676-30020

TGN51..EPT

T=3.0

 1
35676E - RING, HOLE SNAP (FOR 2ND BRAKE)
90521-99032

TGN51..EPT

 1
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35667-30080

TGN51..EPT

 5
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35667-30080

TGN51..EPT

 5
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35667-30080

TGN51..EPT

 5
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35667-30080

TGN51..EPT

 5
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35667-30080

TGN51..EPT

 5
35706H - GEAR SUB-ASSY, PLANETARY SUN
35706-30061

TGN51..EPT

 1
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-27009

TGN51..EPT

 1
35709F - DRUM SUB-ASSY, 2ND BRAKE
35709-30061

TGN51..EPT

 1
35709G - RING, HOLE SNAP (FOR 2ND BRAKE DRUM)
90521-99044

TGN51..EPT

 1
35729A - WASHER, PLANETARY CARRIER THRUST, NO.4
35729-30010

TGN51..EPT

 1
35738A - WASHER, 1 WAY CLUTCH THRUST, NO.1
35738-30040

TGN51..EPT

 1
35749A - RING, SUN GEAR SHAFT OIL SEAL
35749-30010

TGN51..EPT

 2
35749A - RING, SUN GEAR SHAFT OIL SEAL
35749-30010

TGN51..EPT

 2
35755 - DRUM, SUN GEAR INPUT
35755-50010

TGN51..EPT

 1
35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
90520-46002

TGN51..EPT

ID=46.0,T=1.2,REAR

 1
90520-49001

TGN51..EPT

ID=49.0,WD=2.3,FRONT

 1
35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
90520-46002

TGN51..EPT

ID=46.0,T=1.2,REAR

 1
90520-49001

TGN51..EPT

ID=49.0,WD=2.3,FRONT

 1
35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
35789-30240

TGN51..EPT

 1
35790 - CLUTCH ASSY, 1 WAY
35790-30050

TGN51..EPT

 1
