TGN51L-NKPSKZ (2012)

Toyota Fortuner

Production Mar 2012 - Dec 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )4FC,5FC

Click highlighted areas on diagram

diagram 33504F 33560 33563 33877 35906 35921 35971A 35974 35975 35976 90119T0123 90501T0013
Part # Description Qty Price
Common parts
90119-T0123
90501-T0013

ILLUST NO. 2 OF 2(0501- )4FC,5FC

Click highlighted areas on diagram

diagram 33820B 33823 33823 33826A 3513 90119T0029 90119T0029 90119T0261 90178T0007 90178T0007 9017906274 9017906274 9017908054 90468T0007 90468T0007
Part # Description Qty Price
Common parts
90119-T0029
90119-T0261
90178-T0007
90179-06274
90179-08054
90468-T0007
Linked diagrams
3513

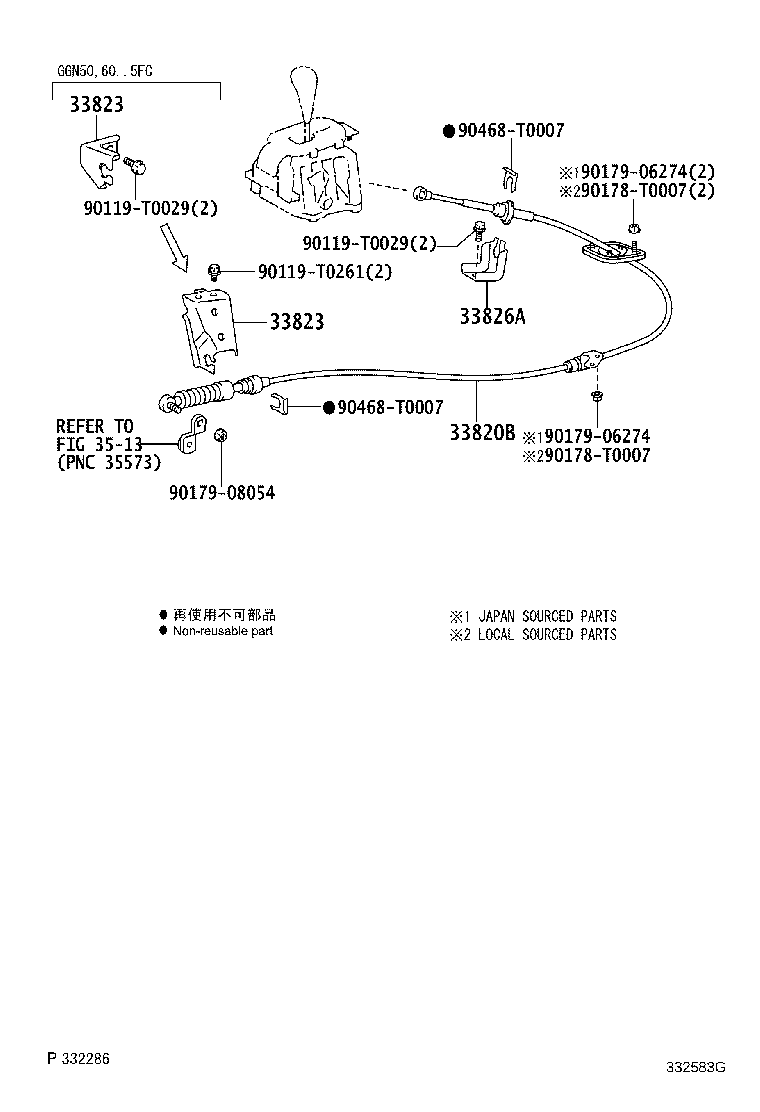

ILLUST NO. 2 OF 2(1107- )4FC,5FC

Click highlighted areas on diagram

diagram 33820B 33823 33823 33826A 3513 90119T0029 90119T0029 90119T0261 90178T0007 90178T0007 9017908054 90468T0007 90468T0007
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0K021

TGN51..EPT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-0K020

TGN51..EPT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-0K020

TGN51..EPT

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33823-0K030

GGN50,TGN51..EPT

 1
Common parts
90119-T0029
90119-T0261
90178-T0007
90179-08054
90468-T0007
Linked diagrams
3513

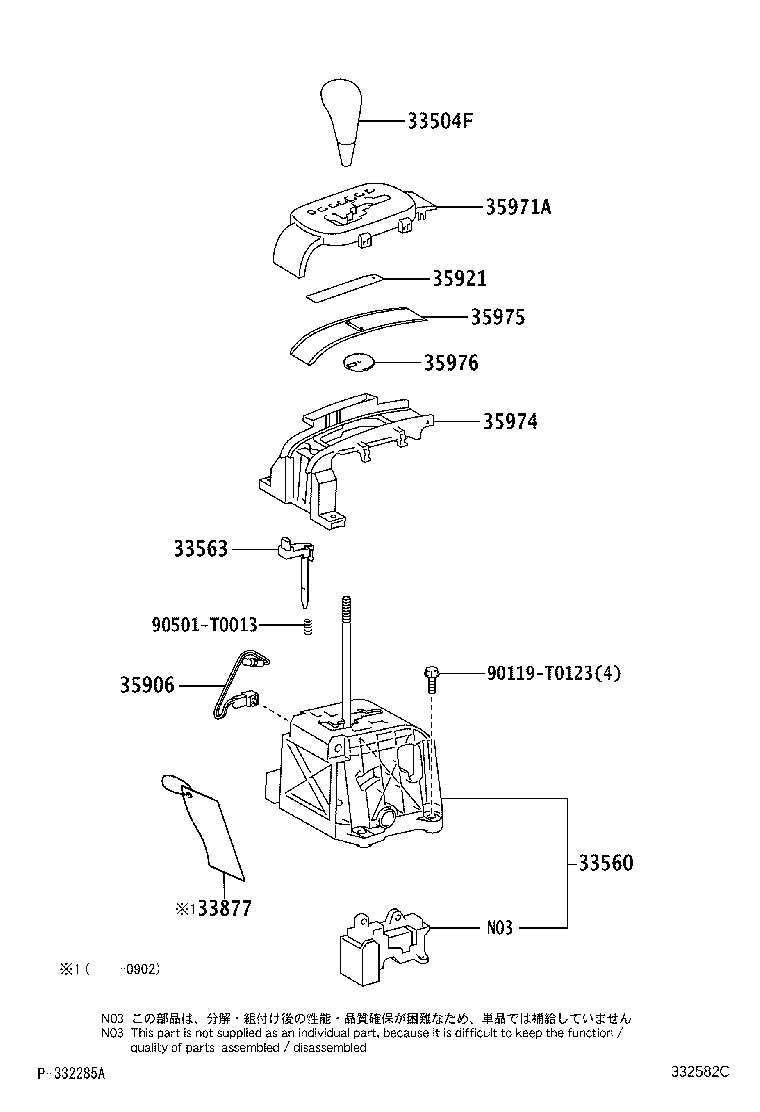

ILLUST NO. 1 OF 2(1107- )4FC,5FC

Click highlighted areas on diagram

diagram 33504F 33560 33563 35906 35921 35971A 35974 35975 35976 90119T0123 90501T0013
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0K010E1

TGN51,61..4FC..(CO,EPT);TGN51,61..IDSUV..4FC..GCC;KUN60,TGN61..(4FC,5FC)..(HDCR,HTWCF)..(LA,SA,TH)

ASH BROWN,TRIM4#

 1
33504-0K010E1

TGN51..EPT

ASH BROWN,TRIM40

 1
33504-0K010C0

TGN51..EPT

BLACK,TRIM40

 1
33504-71020C0

TGN51..EPT

BLACK,TRIM4#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-0K020

TGN51..EPT

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-0K020

GGN50,TGN51..EPT

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-0K010

GGN50,TGN51..EPT

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-0K020

TGN51..EPT

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-0K050

TGN51..EPT

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-0K021

GGN50,TGN51..EPT

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-0K010

GGN50,TGN51..EPT

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-0D051

GGN50,TGN51..EPT

 1
Common parts
90119-T0123
90501-T0013
