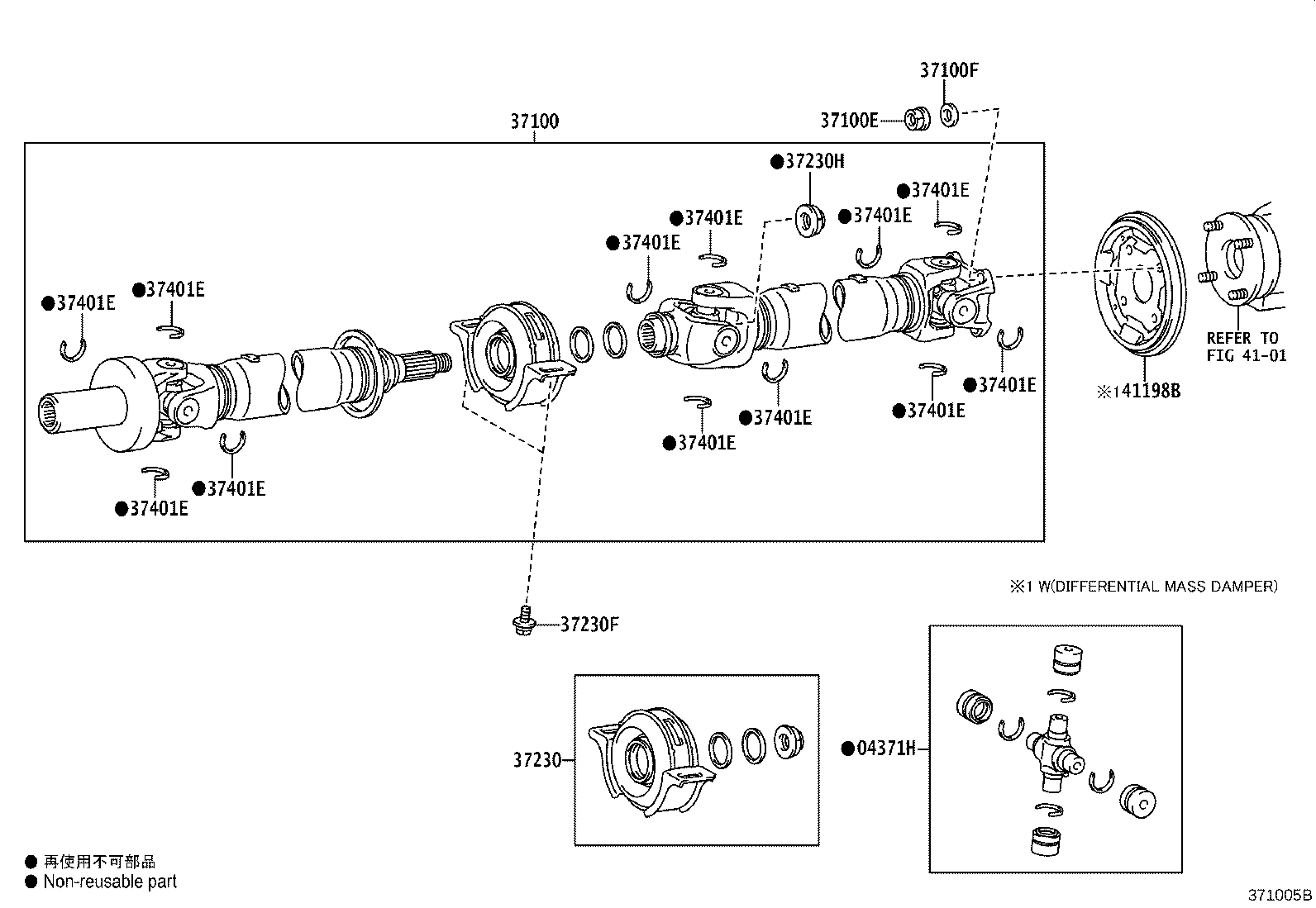

TGN166L-SGTSKG (2015)
Toyota Fortuner
(1512- )GUN165..6FC..LA,SA ; (1512- )KUN165,TGN16#..AGTSU,SASUV ; (1603-2005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K082 |
TGN166..AGTSU |
3 | ||
| 04371-0K140 |
GUN165,TGN16#..(AGTSU,SASUV)..(5F,6FC) |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0KF40 |
TGN16#..AGTSU..6FC |
1 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA;GGN165,GUN16#,KUN165,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV |
4 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA;GGN165,GUN16#,KUN165,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV |
4 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-09050 |
TGN166..AGTSU |
1 | ||
| 37230-09090 |
GUN16#,KUN165,TGN16#..AGTSU,SASUV |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 37230H - NUT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 37328-0K010 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,SASUV |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
KUN156,TGN156,166..AGTSU..ATM T=1.44,RED |
1 | ||
| 90080-52174 |
KUN156,TGN156,166..AGTSU..ATM T=1.41 |
1 | ||
| 90080-52175 |
KUN156,TGN156,166..AGTSU..ATM T=1.46 |
1 | ||
| 90080-52156 |
TGN166..AGTSU T=1.52 |
1 | ||
| 90080-52180 |
KUN156,TGN156,166..AGTSU..ATM T=1.71 |
1 | ||
| 90080-52044 |
KUN156,TGN156,166..AGTSU..ATM T=1.38,GREEN |
1 | ||
| 90080-52177 |
KUN156,TGN156,166..AGTSU..ATM T=1.56 |
1 | ||
| 90080-52178 |
KUN156,TGN156,166..AGTSU..ATM T=1.61 |
1 | ||
| 90080-52179 |
KUN156,TGN156,166..AGTSU..ATM T=1.66 |
1 | ||
| 90080-52038 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.64,BLUE |
1 | ||
| 90080-52041 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.49,COPPER |
1 | ||
| 90080-52040 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.54,SILVER |
1 | ||
| 90080-52176 |
KUN156,TGN156,166..AGTSU..ATM T=1.48 |
1 | ||
| 90080-52042 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.51,BLACK |
1 | ||
| 90080-52039 |
GUN155,165,KUN156,LAN155,TGN156,16#..(AGTSU,SASUV)..(5F,5FC,6FC) T=1.59,YELLOW |
1 | ||
| 90521-A0010 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.64,BLUE |
1 | ||
| 90521-A0011 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.54,BLACK |
1 | ||
| 90521-A0003 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49 |
1 | ||
| 90521-A0008 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.52,BLACK |
1 | ||
| 90521-A0015 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.51,COPPER |
1 | ||
| 90521-A0014 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.49,BLACK |
1 | ||
| 90521-A0013 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.62,BLACK |
1 | ||
| 90521-A0016 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.56,SILVER |
1 | ||
| 90521-A0005 |
GUN165..6F..SA;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S);GUN156,KUN156,165..(AGTSU,SASUV)..(6F,6FC) T=1.59 |
1 | ||
| 90521-A0006 |
GUN156,KUN165..SA;GUN156..AGTSU..6F;GUN165,KUN156..(AGTSU,SASUV)..6F;GGN155,GUN155,166..(AGTSU,SASUV)..(H,M,S) T=1.51 |
1 | ||
| Linked diagrams | ||||
| 4101 | ||||
(2009- )GUN16#,TGN16#..AGTSU,EPTSU,PKNSU,SASUV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4101 | ||||
(2006- )GUN166..H ; (2006- )GUN165..IDNSU,VNSUV..6F ; (2006- )GUN165,TGN16
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
