TGN166L-SDTSKM (2016)
Toyota Fortuner
(1601- )GUN165..S..PH ; (1601- )GUN165..IDNSU..L,M,S..GCC,GEN,IDN,VN ; (1601-

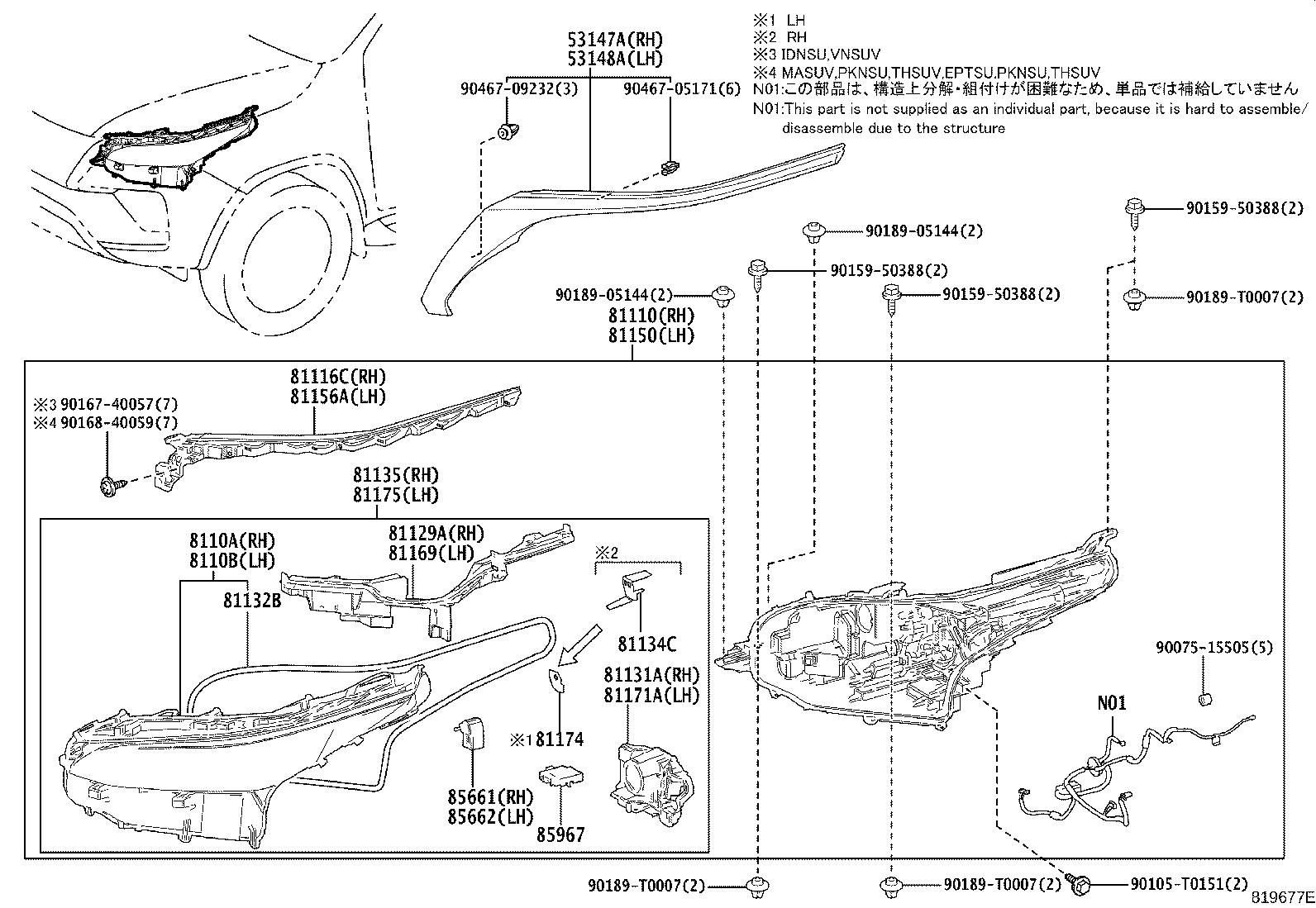

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0KB90 |
GGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU..(H,M) |
1 | ||
| 81110-0KD00 |
GUN165,TGN166..S..PH;GUN155,165,TGN156,166..IDNSU..L..GCC |
1 | ||
| 81110-0KD01 |
TGN166..PH;GUN165..IDNSU..(L,S)..(GCC,PH);GUN155,TGN156,166..IDNSU..L..GCC |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13091 |
GUN155,165..6F..S..(SA,TH);GGN155,165,GUN156,KUN156,165,LAN155,TGN156,168..LHD..(L,S);GUN155,165,TGN166..(L,S)..(BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,VN) 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-0KB90 |
GGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU..(H,M) |
1 | ||
| 81130-0KD00 |
GUN165,TGN166..S..PH;GUN155,165,TGN156,166..IDNSU..L..GCC |
1 | ||
| 81130-0KD01 |
TGN166..PH;GUN165..IDNSU..(L,S)..(GCC,PH);GUN155,TGN156,166..IDNSU..L..GCC |
1 | ||
| 81135A - CAP, LOCKING | ||||
| 90075-66004 |
TGN166..L..SA;GUN165..6F..TH;GUN156..(L,S)..ARL;TGN166..(AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..(L,S);GGN155,165,GUN156,KUN156,165,LAN155,TGN168..LHD..(L,S);GUN155,165,TGN156..(L,S)..(BZAGT,EPT,GCC,GEN,IDN,KZS,LA,PH,SA,VN) |
2 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
TGN166..L..SA;GUN165..6F..TH;GUN156..(L,S)..ARL;TGN166..(AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..(L,S);GGN155,165,GUN156,KUN156,165,LAN155,TGN168..LHD..(L,S);GUN155,165,TGN156..(L,S)..(BZAGT,EPT,GCC,GEN,IDN,KZS,LA,PH,SA,VN) |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0KD00 |
GUN165,TGN166..S..PH;GUN155,165,TGN156,166..IDNSU..L..GCC |
1 | ||
| 81150-0KB90 |
GGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU..(H,M) |
1 | ||
| 81150-0KD01 |
TGN166..PH;GUN165..IDNSU..(L,S)..(GCC,PH);GUN155,TGN156,166..IDNSU..L..GCC |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-0KB90 |
GGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU..(H,M) |
1 | ||
| 81170-0KD00 |
GUN165,TGN166..S..PH;GUN155,165,TGN156,166..IDNSU..L..GCC |
1 | ||
| 81170-0KD01 |
TGN166..PH;GUN165..IDNSU..(L,S)..(GCC,PH);GUN155,TGN156,166..IDNSU..L..GCC |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV 12V 21W,AMBER |
2 | ||
| 81510J - BULB(FOR DAYTIME RUNNING LAMP) | ||||
| 90981-13088 |
GUN155,165..6F..S..(SA,TH);TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..(L,S);GGN155,165,GUN156,KUN156,165,LAN155,TGN168..LHD..(L,S);GUN155,165,TGN166..(L,S)..(BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,VN) 12V 21/5W |
2 | ||
| 81510L - SOCKET, DAYTIME RUNNING LAMP | ||||
| 90075-60086 |
GUN155,165..6F..S..(SA,TH);TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..(L,S);GGN155,165,GUN156,KUN156,165,LAN155,TGN168..LHD..(L,S);GUN155,165,TGN166..(L,S)..(BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,VN) |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
GGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU..(H,M) |
1 | ||
| 85661-12020 |
GUN156..IDNSU..M..(LA,PH);GUN155..IDNSU..(H,M)..(GCC,IDN);TGN156,166..(H,M)..(GEN,IDN,VN);GGN155,165,GUN165,KUN156..IDNSU..(H,M) (J) |
1 | ||
| 85661-02040 |
GUN156..IDNSU..M..(LA,PH);GUN155..IDNSU..(H,M)..(GCC,IDN);TGN156,166..(H,M)..(GEN,IDN,VN);GGN155,165,GUN165,KUN156..IDNSU..(H,M) (L) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
GGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU..(H,M) |
1 | ||
| 85661-02040 |
GUN156..IDNSU..M..(LA,PH);GUN155..IDNSU..(H,M)..(GCC,IDN);TGN156,166..(H,M)..(GEN,IDN,VN);GGN155,165,GUN165,KUN156..IDNSU..(H,M) (L) |
1 | ||
| 85661-12020 |
GUN156..IDNSU..M..(LA,PH);GUN155..IDNSU..(H,M)..(GCC,IDN);TGN156,166..(H,M)..(GEN,IDN,VN);GGN155,165,GUN165,KUN156..IDNSU..(H,M) (J) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
TGN156..M..GEN;TGN166..L..(EPT,SA);TGN156..BZAGT,EPT,KZS,SA,VN;GUN156,TGN156..(M,S)..(GCC,LA);GUN155,165..(H,S)..(GCC,SA,TH,VN);GUN155,165..(H,L,M)..(GEN,IDN,PH,SA,TH,VN);GUN156,KUN165,LAN155,TGN168..ARL,BZAGT,GCC,GEN,PH,PKN,SA,TH,VN;GGN155,165,GUN166,KUN156,TGN166..(H,M,S)..(BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN) |
2 | ||
| Common parts | ||||
| 90105-T0151 | ||||
| 90159-50388 | ||||
| 90168-40059 | ||||
| 90189-05144 | ||||
| 90189-T0007 | ||||
(2006- )L..PH ; (2006- )IDNSU,MASUV,SASUV,VNSUV..L,S..GCC,GEN,MA,SA,VN

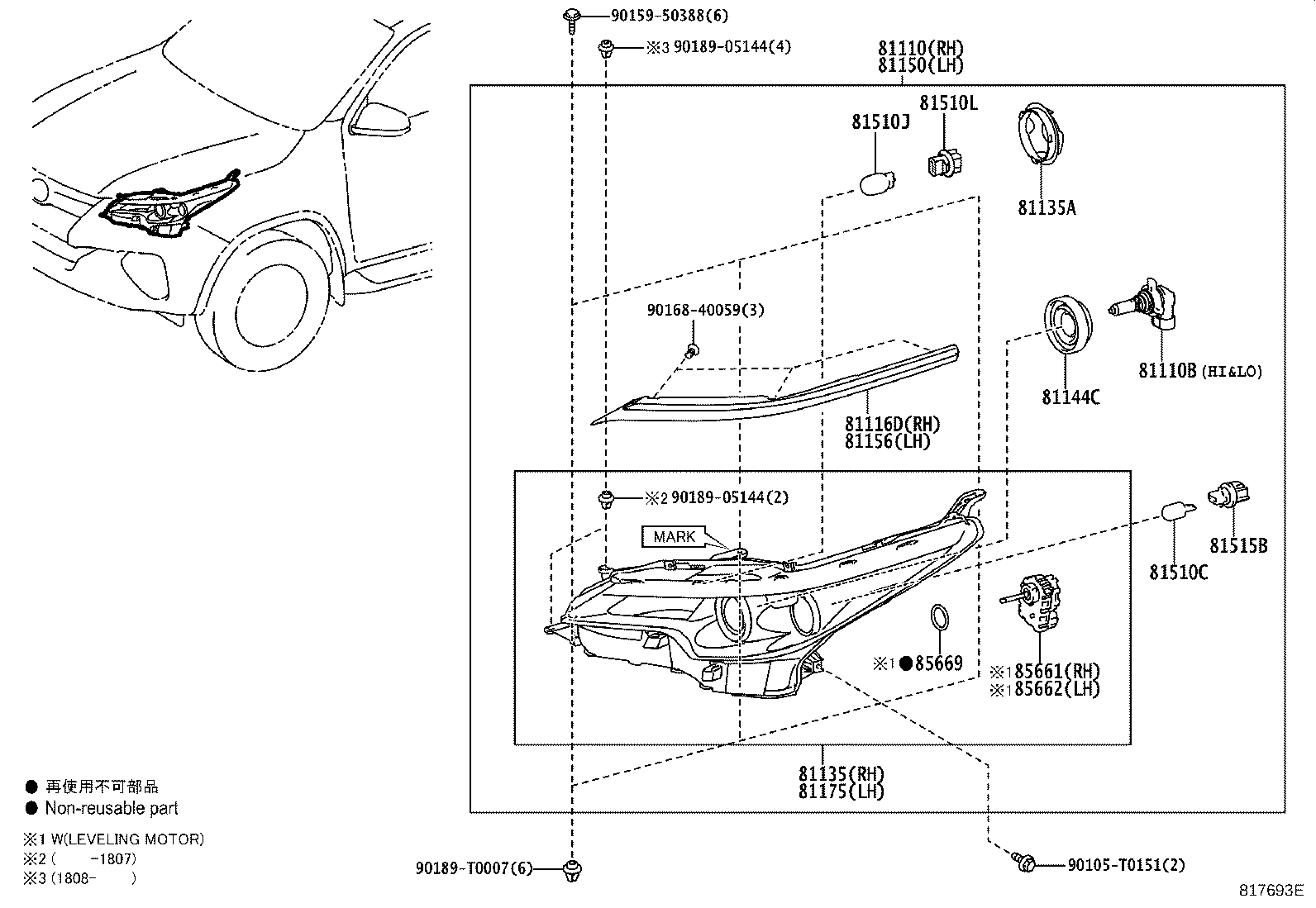

SINGLE BEAM HEADLIGHT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90075-15505 | ||||
| 90105-T0151 | ||||
| 90159-50388 | ||||
| 90167-40057 | ||||
| 90168-40059 | ||||
| 90189-05144 | ||||
| 90189-T0007 | ||||
| 90467-05171 | ||||
| 90467-09232 | ||||
(2006- )

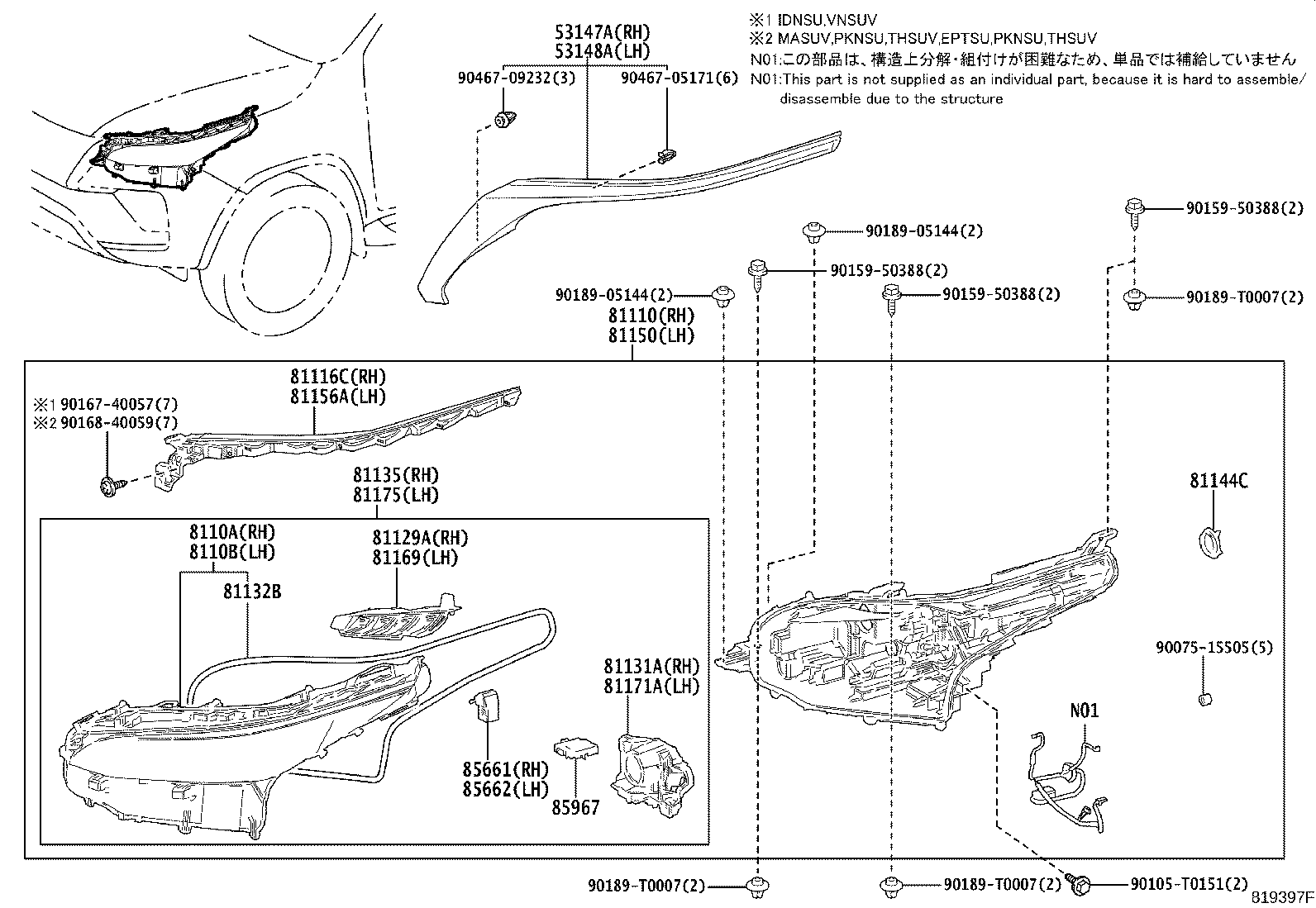

TRIPLE BEAM HEADLIGHT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 75895-YP070 | ||||
| 90075-15505 | ||||
| 90105-T0151 | ||||
| 90159-50388 | ||||
| 90167-40057 | ||||
| 90189-05144 | ||||
| 90189-T0007 | ||||
| 90467-05171 | ||||
| 90467-09232 | ||||
(2006- )GGN155,GUN156,16#,TGN156..IDNSU,INDSU,MASUV,VNSUV..H..GCC,GEN,IND,MA,PH,
SINGLE BEAM HEADLIGHT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90075-15505 | ||||
| 90105-T0151 | ||||
| 90159-50388 | ||||
| 90167-40057 | ||||
| 90168-40059 | ||||
| 90189-05144 | ||||
| 90189-T0007 | ||||
| 90467-05171 | ||||
| 90467-09232 | ||||
