TGN166L-SDMLK (2016)
Toyota Fortuner
(1601- )2TRFE..TGN156..S..KZS ; (1601- )2TRFE..TGN156..THSUV..6FC..L ; (1708-
ASIA COLD COUNTRY SPEC

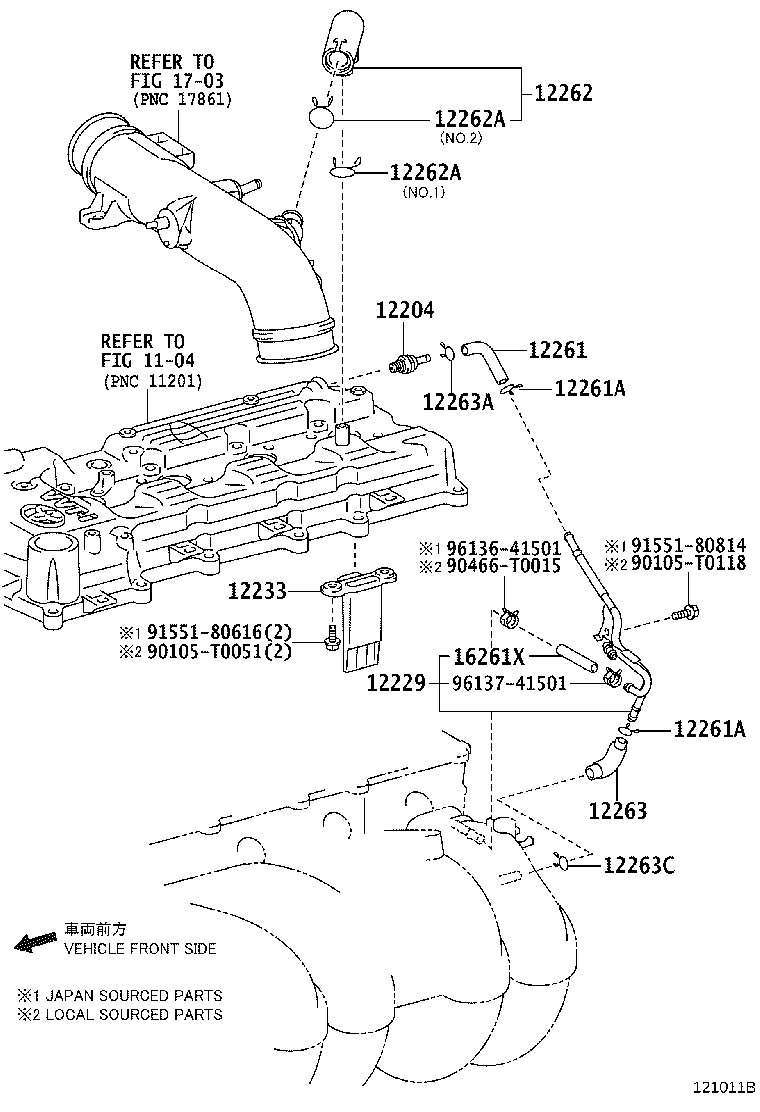

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12233 - CONNECTOR, VENTILATION NO.1 | ||||
| 12233-75010 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90466-T0026 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
2 | ||
| 90467-14001 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90466-T0026 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
2 | ||
| 90467-14001 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-24038 |
2TRFE..TGN168;2TRFE..TGN166..L..GEN;2TRFE..TGN156..(L,M)..(GEN,KZS);2TRFE..TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,SA,VN);2TRFE..TGN156,166..(AGTSU,INDSU,SASUV)..(H,L,M)..(IND,LA,SA);2TRFE..TGN166..6FC..(L,M,S)..(BZAGT,EPT,GCC,GEN,IDN,PH,PKN,VN) NO.2 |
1 | ||
| 90467-24038 |
2TRFE..TGN156..H;2TRFE..TGN156,166..5F..GCC;2TRFE..TGN166..(H,S)..(GEN,SA);2TRFE..TGN166..(IDNSU,THSUV)..(LA,TH);2TRFE..TGN156..(IDNSU,MASUV)..M..(LA,MA);2TRFE..TGN156..IDNSU..6FC..(L,S)..(GEN,LA) NO.2 |
1 | ||
| 90466-T0075 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),NO.2 |
1 | ||
| 90466-T0027 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),NO.1 |
1 | ||
| 90467-21004 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),NO.1 |
1 | ||
| 90467-24038 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),NO.2 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-24038 |
2TRFE..TGN168;2TRFE..TGN166..L..GEN;2TRFE..TGN156..(L,M)..(GEN,KZS);2TRFE..TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,SA,VN);2TRFE..TGN156,166..(AGTSU,INDSU,SASUV)..(H,L,M)..(IND,LA,SA);2TRFE..TGN166..6FC..(L,M,S)..(BZAGT,EPT,GCC,GEN,IDN,PH,PKN,VN) NO.2 |
1 | ||
| 90467-24038 |
2TRFE..TGN156..H;2TRFE..TGN156,166..5F..GCC;2TRFE..TGN166..(H,S)..(GEN,SA);2TRFE..TGN166..(IDNSU,THSUV)..(LA,TH);2TRFE..TGN156..(IDNSU,MASUV)..M..(LA,MA);2TRFE..TGN156..IDNSU..6FC..(L,S)..(GEN,LA) NO.2 |
1 | ||
| 90466-T0075 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),NO.2 |
1 | ||
| 90466-T0027 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),NO.1 |
1 | ||
| 90467-21004 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),NO.1 |
1 | ||
| 90467-24038 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),NO.2 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-15021 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 12263C - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-16035 |
2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..5F..(GCC,GEN);2TRFE..TGN156..(AGTSU,EPTSU,IDNSU,SASUV)..6FC;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0118 | ||||
| 90466-T0015 | ||||
| 91551-80616 | ||||
| 91551-80814 | ||||
| 96136-41501 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1703 | ||||
(2006- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0118 | ||||
| 91551-80616 | ||||
| 91551-80814 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1703 | ||||
