TGN156R-SDTHK (2020)

Toyota Fortuner

Production Jul 2020 - Aug 2021
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )TGN156,166..RHD

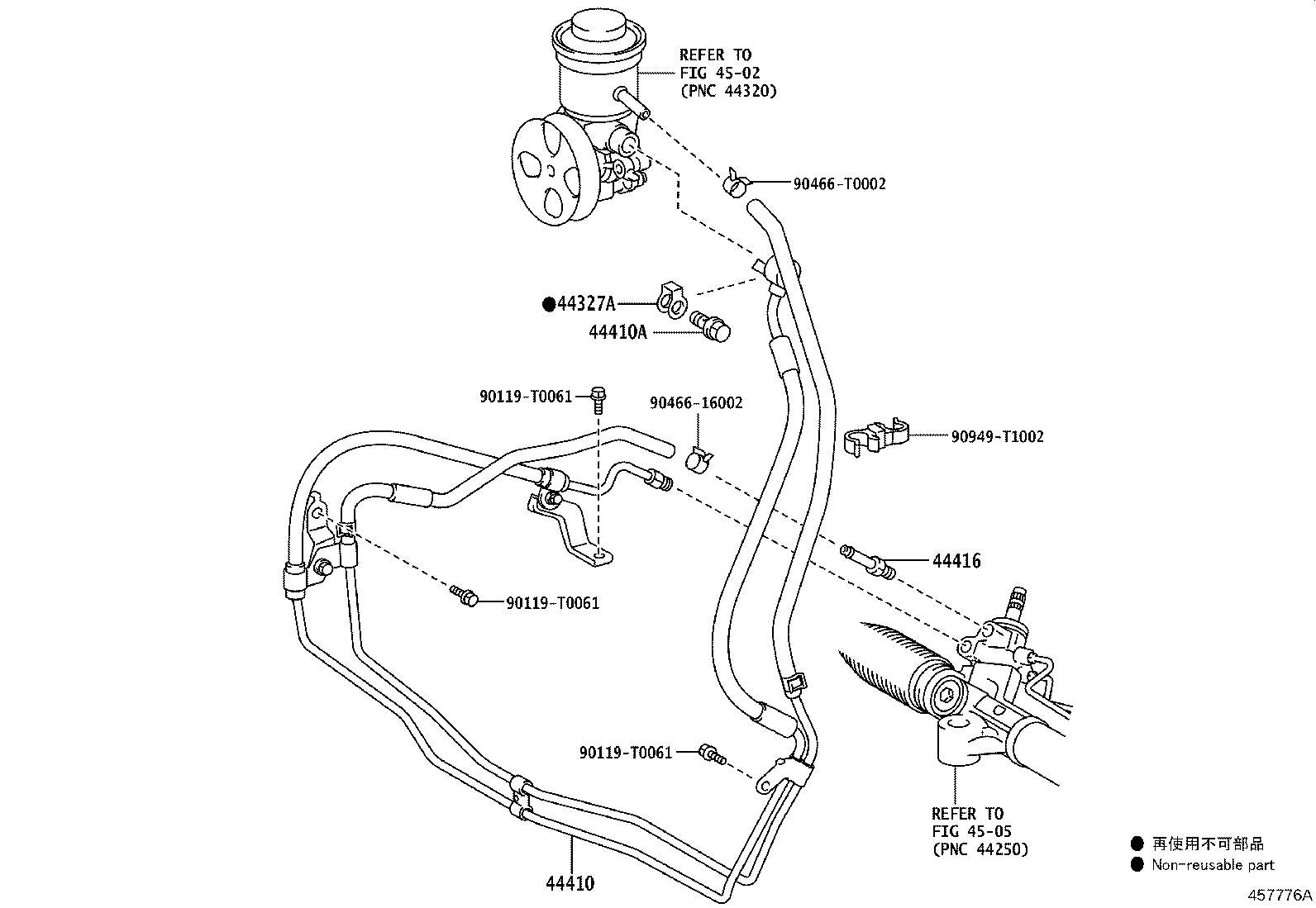

Click highlighted areas on diagram

diagram 44327A 44410 44410A 44416 4502 4505 90119T0061 90119T0061 90119T0061 9046616002 90466T0002 90949T1002
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603

TGN156,16#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K040

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
Common parts
90119-T0061
90466-16002
90466-T0002
90949-T1002
Linked diagrams
4502
4505
