TGN156L-STTSKK (2017)

Toyota Fortuner

Production Aug 2017 - May 2020
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )KUN5#,6#..IDSUV,SUVW,THSUV..CO,GEN,IDN,LA,MA,PHL,TH,VN

Click highlighted areas on diagram

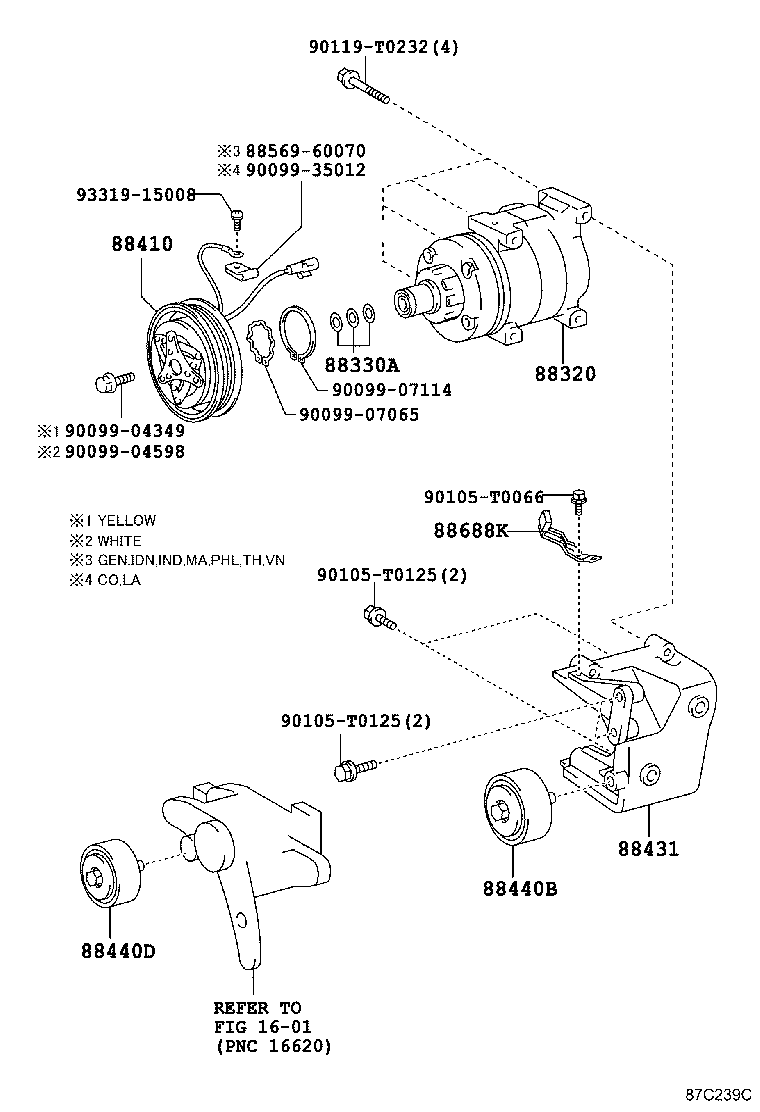

diagram 1601 88320 88330A 88410 88431 88440B 88440D 8856960070 88688K 9009904349 9009904598 9009907065 9009907114 9009935012 90105T0066 90105T0125 90105T0125 90119T0232 9331915008
Part # Description Qty Price
Common parts
88569-60070
90099-04349
90099-04598
90099-07065
90099-07114
90099-35012
90105-T0066
90105-T0125
90119-T0232
93319-15008
Linked diagrams
1601

(1507- )TGN156,16#..AGTSU,EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV

Click highlighted areas on diagram

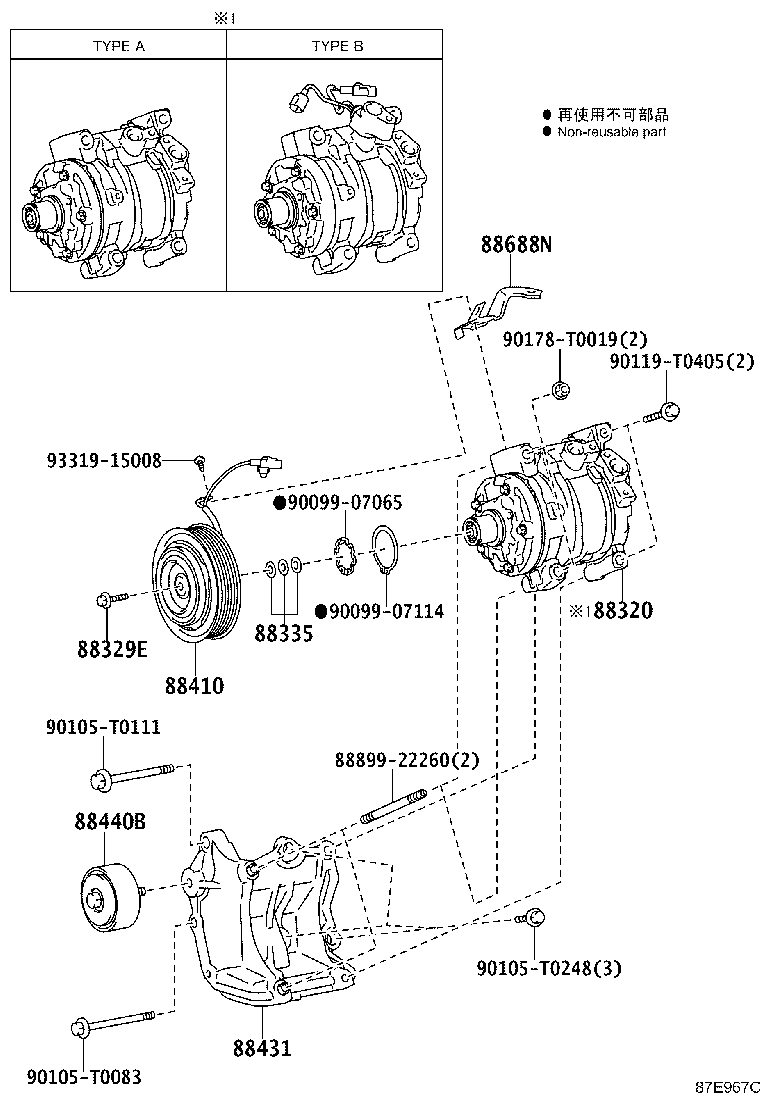

diagram 88320 88329E 88335 88410 88431 88440B 88688N 8889922260 9009907065 9009907114 90105T0083 90105T0111 90105T0248 90119T0405 90178T0019 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-0K540

TGN156,16#..BZAGT,GEN,IDN,IND,KZS,LA,MA,PH,TH,VN

TYPE A:REFER ILLUST.

 1
88329E - BOLT, COMPRESSOR, NO.1
90099-04349

KUN156..AGTSU;GGN155,165,GUN15#,16#,TGN156,16#..AGTSU,EPTSU,IDNSU,THSUV,VNSUV

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

GGN155,165,GUN15#,16#,KUN156,TGN156,16#..AGTSU,EPTSU,IDNSU,THSUV,VNSUV

 1
88410 - CLUTCH ASSY, MAGNET
88410-0K610

TGN156,16#..BZAGT,GEN,IDN,IND,KZS,LA,MA,PH,TH,VN

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K210

TGN156,166..EPTSU,THSUV

 1
88440B - PULLEY ASSY, IDLE
88440-0K381

TGN156..EPTSU,IDNSU,THSUV;TGN166..EPTSU,IDNSU,PKNSU,THSUV,VNSUV

 1
88688N - BRACKET, COOLER
88688-0K280

TGN156,16#..AGTSU,EPTSU,IDNSU,THSUV,VNSUV

 1
Common parts
88899-22260
90099-07065
90099-07114
90105-T0083
90105-T0111
90105-T0248
90119-T0405
90178-T0019
93319-15008
