TGN156L-STTSKK (2017)

Toyota Fortuner

Production Aug 2017 - May 2020
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )LHD

Click highlighted areas on diagram

diagram 8420 8420 84231E 89780 89783 90159T0013 9016720001
Part # Description Qty Price
Common parts
90159-T0013
90167-20001
Linked diagrams
8420

(1507- )

Click highlighted areas on diagram

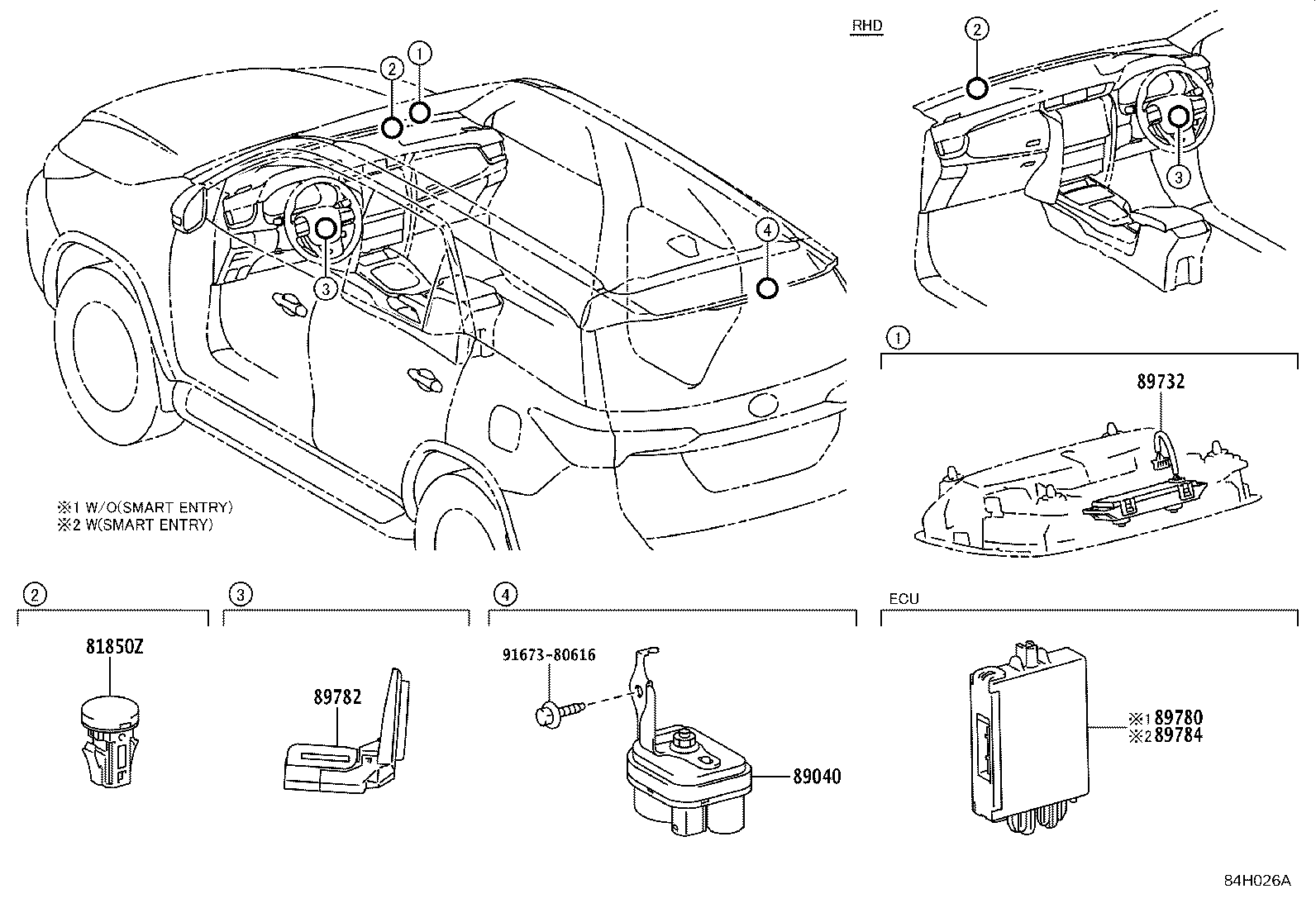

diagram 81850Z 89040 89732 89780 89782 89784 9167380616
Part # Description Qty Price
81850Z - LAMP ASSY, THEFT WARNING INDICATOR
81850-0K020

TGN156..EPTSU,THSUV;GGN155,165,GUN15#,16#,TGN166..EPTSU,PKNSU,THSUV,VNSUV

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-06111

TGN156..S..KZS

WIRELESS DOOR LOCK-WITH(*SES)

 1
89780-06111

GUN156,TGN156..THSUV..S..(GEN,KZS)

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

 1
89780-06112

GUN156,TGN156..S..(GEN,KZS)

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

 1
89780-06112

TGN156..S..KZS

WIRELESS DOOR LOCK-WITH(*SES)

 1
89780-06112

TGN168..L;GUN156..(L,S)..ARL;TGN166..(AGTSU,EPTSU,THSUV)..(L,S);GGN155,GUN15#,165,LAN155,TGN156..LHD..(AGTSU,EPTSU,SASUV,THSUV,VNSUV)..(L,S)

 1
89782 - COIL, TRANSPONDER KEY
89782-02050

TGN166..LHD..(EPTSU,THSUV);GGN155,165,GUN15#,165,TGN156..(EPTSU,THSUV,VNSUV)..(L,S)..(ARL,EPT,GCC,GEN,KZS,VN)

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-30060

GUN156,TGN156..LHD..THSUV..S

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

 1
89784-F4020

GUN156,TGN156..S..(GEN,KZS)

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

 1
Common parts
91673-80616

(2006- )

Click highlighted areas on diagram

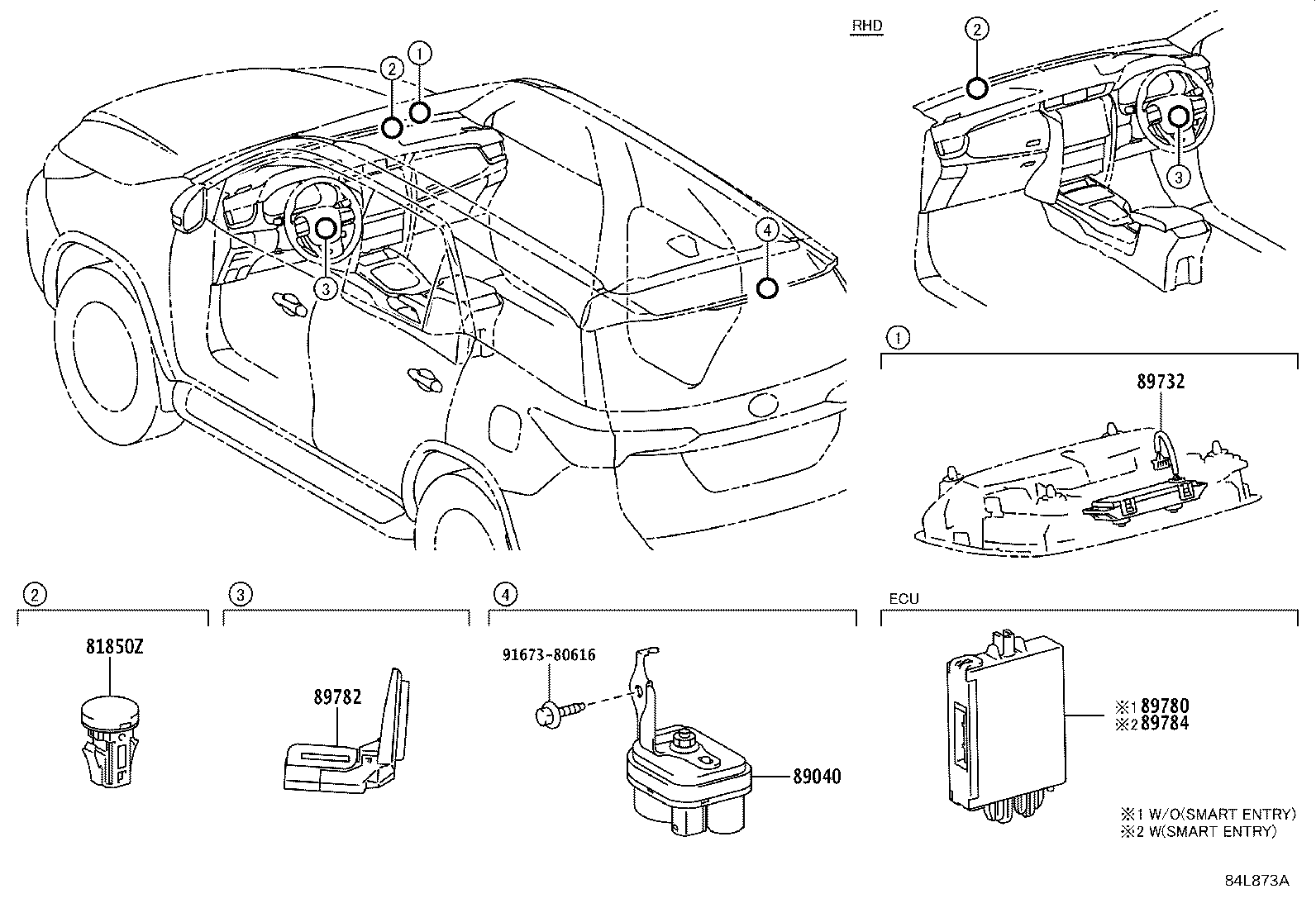

diagram 81850Z 89040 89732 89780 89782 89784 9167380616
Part # Description Qty Price
Common parts
91673-80616
