Toyota Fortuner TGN156 BATTERY & BATTERY CABLE

Manufacturers Home
Toyota
GR
FORTUNER
TGN156L-STTSKK (2017)
8201 - BATTERY & BATTERY CABLE

TGN156L-STTSKK (2017)

Toyota Fortuner

Production Aug 2017 - May 2020

Engine 2TRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0501- )

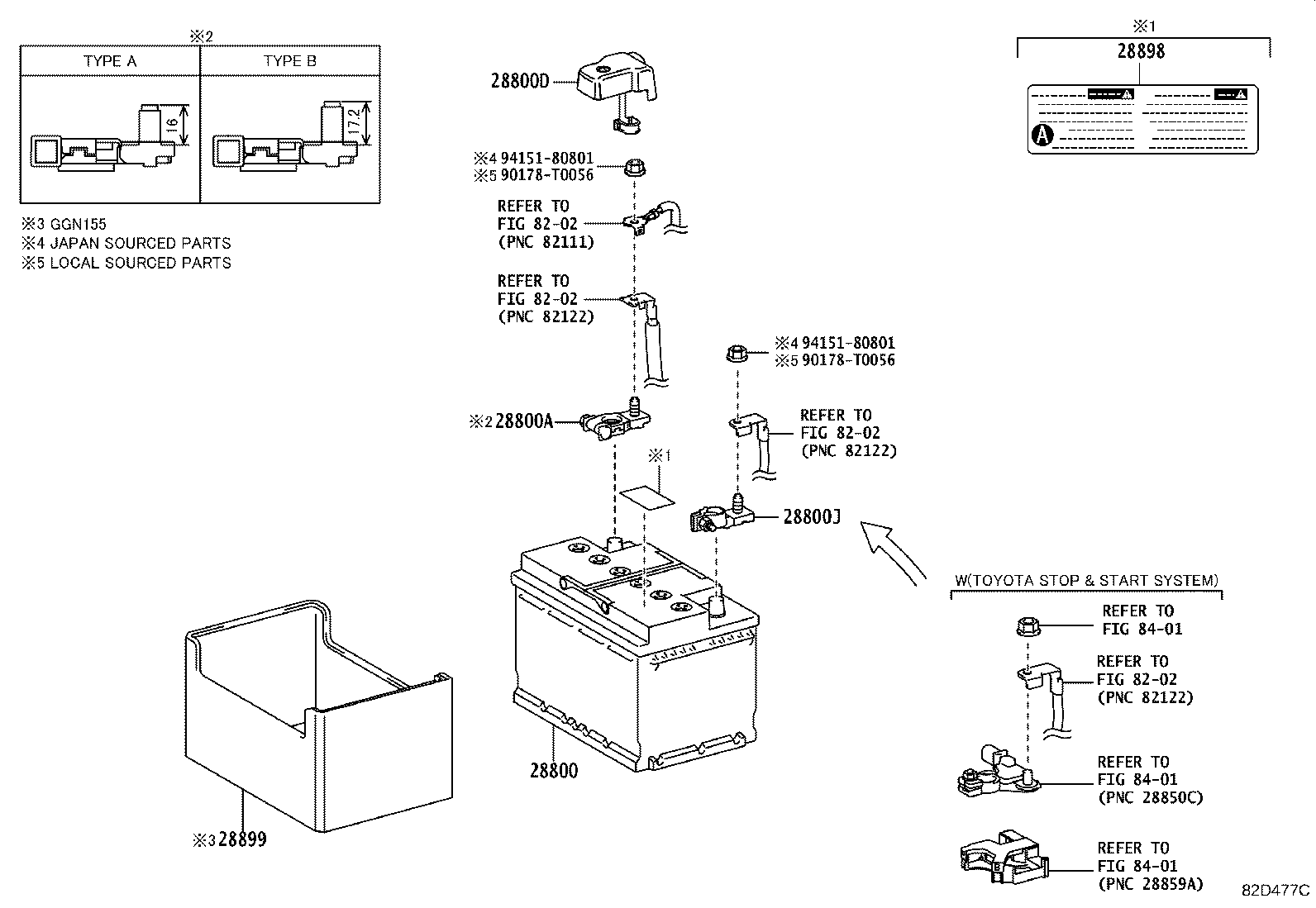

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-T0019

(1107- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-T0019

(1507- )

Click highlighted areas on diagram

1-BATTERY

Part #	Description	Period	Qty
28800 - BATTERY
28800-0C240	2TRFE..TGN156,166..THSUV..6FC..L LN2,GS	07/2015 - 11/2018	1
28800-0L570	2TRFE..TGN156..KZS;1G#..GGN155,GUN166..EPT,TH;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L)..(ARL,GEN);1GRFE,2GDFTV..GGN165,GUN165..THSUV..(H,M,S) LN3,YUASA	07/2015 - 04/2020	1
28800-0C240	2TRFE..TGN156,166..THSUV..5F..GCC;2TRFE..TGN156,166..(EPTSU,THSUV,VNSUV)..(EPT,TH,VN) LN2,GS	07/2015 - 12/2999	1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061	2TRFE..TGN156..IDNSU,THSUV;2TRFE..TGN156,166..AGTSU..M;1GDFTV..GUN156..RHD..THSUV..(M,S);2TRFE..TGN166..IDNSU,PKNSU,THSUV,VNSUV;1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,5LE..GUN156,LAN155..(SASUV,THSUV)..(H,L);1G#,2GDFTV,2TRFE..GGN155,165,GUN155,16#,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV TYPE B:REFER ILLUST.	08/2017 - 12/2999	1
90982-05054	2TRFE..TGN156..IDNSU,THSUV;2TRFE..TGN156,166..AGTSU..M;1GDFTV..GUN156..RHD..THSUV..(M,S);2TRFE..TGN166..IDNSU,PKNSU,THSUV,VNSUV;1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,5LE..GUN156,LAN155..(SASUV,THSUV)..(H,L);1G#,2GDFTV,2TRFE..GGN155,165,GUN155,16#,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV TYPE A:REFER ILLUST.	08/2017 - 12/2999	1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061	2TRFE..TGN156..IDNSU,THSUV;2TRFE..TGN156,166..AGTSU..M;1GDFTV..GUN156..RHD..THSUV..(M,S);2TRFE..TGN166..IDNSU,PKNSU,THSUV,VNSUV;1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,5LE..GUN156,LAN155..(SASUV,THSUV)..(H,L);1G#,2GDFTV,2TRFE..GGN155,165,GUN155,16#,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV TYPE B:REFER ILLUST.	08/2017 - 12/2999	1
90982-05054	2TRFE..TGN156..IDNSU,THSUV;2TRFE..TGN156,166..AGTSU..M;1GDFTV..GUN156..RHD..THSUV..(M,S);2TRFE..TGN166..IDNSU,PKNSU,THSUV,VNSUV;1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,5LE..GUN156,LAN155..(SASUV,THSUV)..(H,L);1G#,2GDFTV,2TRFE..GGN155,165,GUN155,16#,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV TYPE A:REFER ILLUST.	08/2017 - 12/2999	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-0K160	1G#,2GDFTV,2TRFE..GGN155,165,GUN15#,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;1GDFTV,2GDFTV,1KDFTV,2KDFTV,5LE,2TRFE..GUN16#,KUN156,165,LAN155,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059	2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;1G#,2GDFTV,2TRFE..GGN155,GUN16#,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV;1G#,2GDFTV,1KDFTV,2KDFTV,5LE,2TRFE..GGN165,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA,VN	07/2015 - 12/2999	1
28898B - PLATE, BATTERY
28897-31040	2TRFE..TGN156..KZS	08/2017 - 05/2020	1
Common parts
94151-80801
Linked diagrams
8202
8401

(1708- )

Click highlighted areas on diagram

2-BATTERY

Part #	Description	Period	Qty
28800 - BATTERY
28800-0C240	2TRFE..TGN156,166..THSUV..6FC..L LN2,GS	07/2015 - 11/2018	1
28800-0L570	2TRFE..TGN156..KZS;1G#..GGN155,GUN166..EPT,TH;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L)..(ARL,GEN);1GRFE,2GDFTV..GGN165,GUN165..THSUV..(H,M,S) LN3,YUASA	07/2015 - 04/2020	1
28800-0C240	2TRFE..TGN156,166..THSUV..5F..GCC;2TRFE..TGN156,166..(EPTSU,THSUV,VNSUV)..(EPT,TH,VN) LN2,GS	07/2015 - 12/2999	1
28800 - BATTERY
28800-0C240	2TRFE..TGN156,166..THSUV..6FC..L LN2,GS	07/2015 - 11/2018	1
28800-0L570	2TRFE..TGN156..KZS;1G#..GGN155,GUN166..EPT,TH;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L)..(ARL,GEN);1GRFE,2GDFTV..GGN165,GUN165..THSUV..(H,M,S) LN3,YUASA	07/2015 - 04/2020	1
28800-0C240	2TRFE..TGN156,166..THSUV..5F..GCC;2TRFE..TGN156,166..(EPTSU,THSUV,VNSUV)..(EPT,TH,VN) LN2,GS	07/2015 - 12/2999	1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061	2TRFE..TGN156..IDNSU,THSUV;2TRFE..TGN156,166..AGTSU..M;1GDFTV..GUN156..RHD..THSUV..(M,S);2TRFE..TGN166..IDNSU,PKNSU,THSUV,VNSUV;1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,5LE..GUN156,LAN155..(SASUV,THSUV)..(H,L);1G#,2GDFTV,2TRFE..GGN155,165,GUN155,16#,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV TYPE B:REFER ILLUST.	08/2017 - 12/2999	1
90982-05054	2TRFE..TGN156..IDNSU,THSUV;2TRFE..TGN156,166..AGTSU..M;1GDFTV..GUN156..RHD..THSUV..(M,S);2TRFE..TGN166..IDNSU,PKNSU,THSUV,VNSUV;1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,5LE..GUN156,LAN155..(SASUV,THSUV)..(H,L);1G#,2GDFTV,2TRFE..GGN155,165,GUN155,16#,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV TYPE A:REFER ILLUST.	08/2017 - 12/2999	1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061	2TRFE..TGN156..IDNSU,THSUV;2TRFE..TGN156,166..AGTSU..M;1GDFTV..GUN156..RHD..THSUV..(M,S);2TRFE..TGN166..IDNSU,PKNSU,THSUV,VNSUV;1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,5LE..GUN156,LAN155..(SASUV,THSUV)..(H,L);1G#,2GDFTV,2TRFE..GGN155,165,GUN155,16#,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV TYPE B:REFER ILLUST.	08/2017 - 12/2999	1
90982-05054	2TRFE..TGN156..IDNSU,THSUV;2TRFE..TGN156,166..AGTSU..M;1GDFTV..GUN156..RHD..THSUV..(M,S);2TRFE..TGN166..IDNSU,PKNSU,THSUV,VNSUV;1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,5LE..GUN156,LAN155..(SASUV,THSUV)..(H,L);1G#,2GDFTV,2TRFE..GGN155,165,GUN155,16#,TGN168..AGTSU,IDNSU,SASUV,THSUV,VNSUV TYPE A:REFER ILLUST.	08/2017 - 12/2999	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-0K160	1G#,2GDFTV,2TRFE..GGN155,165,GUN15#,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;1GDFTV,2GDFTV,1KDFTV,2KDFTV,5LE,2TRFE..GUN16#,KUN156,165,LAN155,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059	2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;1G#,2GDFTV,2TRFE..GGN155,GUN16#,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV;1G#,2GDFTV,1KDFTV,2KDFTV,5LE,2TRFE..GGN165,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA,VN	07/2015 - 12/2999	1
28898B - PLATE, BATTERY
28897-31040	2TRFE..TGN156..KZS	08/2017 - 05/2020	1
Common parts
94151-80801
Linked diagrams
8202

(2006- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-T0056
94151-80801
Linked diagrams
8202
8401
