TGN156L-STTSKK (2017)
Toyota Fortuner
ILLUST NO. 1 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-16055 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8202 | ||||
| 8424 | ||||
ILLUST NO. 2 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-40083 | ||||
| 90189-T0002 | ||||
ILLUST NO. 1 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-16055 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8202 | ||||
| 8424 | ||||
ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-40206 | ||||
| 90159-T0047 | ||||
| 90189-T0002 | ||||
| Linked diagrams | ||||
| 8603 | ||||

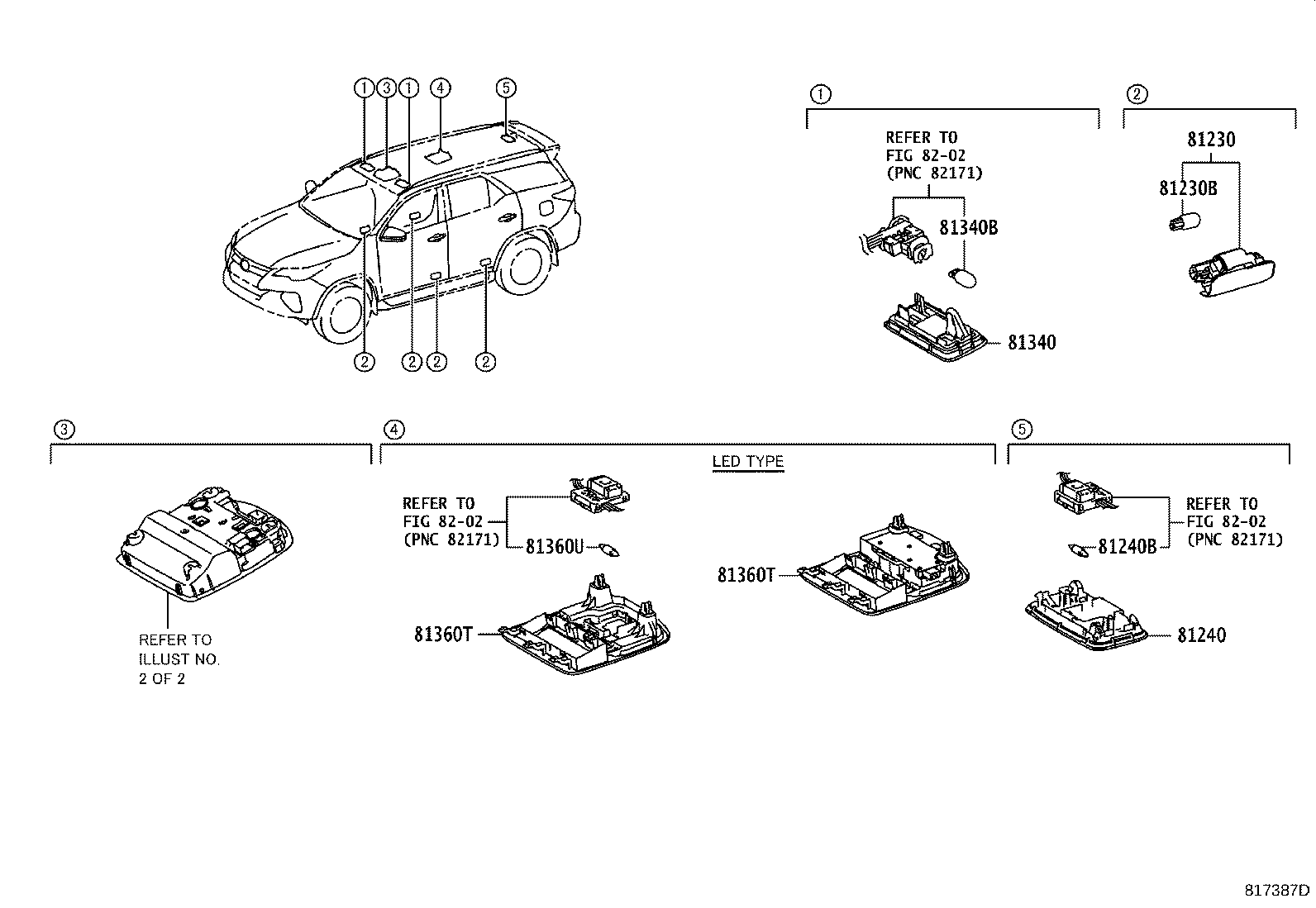

ILLUST NO. 1 OF 2(1507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30200 |
GUN156..(H,M)..(ARL,BZAGT);TGN156..(M,S)..(KZS,LA,VN);TGN156..(H,M)..(BZAGT,GEN);GUN156..(H,M,S)..(GCC,GEN,LA,PH,PKN,TH,VN);GGN155,165,GUN155,16#,KUN156,TGN166..(AGTSU,EPTSU,IDNSU,THSUV)..(H,M) |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
GUN156..(H,M)..(ARL,BZAGT);TGN156..(M,S)..(KZS,LA,VN);TGN156..(H,M)..(BZAGT,GEN);GUN156..(H,M,S)..(GCC,GEN,LA,PH,PKN,TH,VN);GGN155,165,GUN155,16#,KUN156,TGN166..(AGTSU,EPTSU,IDNSU,THSUV)..(H,M) 12V 5W |
4 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-0K070B0 |
GUN156..6F..M;GUN156,TGN168..L..BZAGT;GUN156..THSUV..(H,L)..(ARL,GCC);TGN156..(AGTSU,EPTSU,SASUV,THSUV)..(L,M,S);GGN155,GUN155,166..(AGTSU,EPTSU,SASUV,THSUV)..(EPT,GCC,LA,SA);GGN165,GUN165,KUN156,165,LAN155,TGN166..AGTSU,EPTSU,PKNSU,SASUV,THSUV;GUN156..(AGTSU,PKNSU,SASUV,THSUV)..(L,M,S)..HDCR..(BZAGT,GEN,LA,PKN,SA) LT.GRAY,TRIM4# |
1 | ||
| 81240-0K070B0 |
GUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156..THSUV..H..GEN;GUN156,TGN168..S..(HTWCF,IART);GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) LT.GRAY,TRIM3#,4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV 12V 8W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-0K030 |
GUN156..S..IART;GUN166,TGN168..6FC..(BZAGT,TH);TGN166..(AGTSU,PKNSU,THSUV)..(M,S)..(LA,PKN,TH);GGN155,165,GUN15#,165,KUN156,TGN156..(AGTSU,EPTSU,PKNSU,THSUV)..(H,M) |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
GUN156..S..IART;GUN166,TGN168..6FC..(BZAGT,TH);TGN166..(AGTSU,PKNSU,THSUV)..(M,S)..(LA,PKN,TH);GGN155,165,GUN15#,165,KUN156,TGN156..(AGTSU,EPTSU,PKNSU,THSUV)..(H,M) 12V 8W |
2 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-0K010B0 |
GUN156..TH;GUN156..6F..H..BZAGT;GUN156..THSUV..H..GEN;GUN156,TGN168..S..(HTWCF,IART);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT.GRAY,TRIM3#,4# |
1 | ||
| 81360-0K050B0 |
GUN156..6F..H..BZAGT;GUN156..THSUV..H..GEN;GUN156..RHD..THSUV..6FC..M;GUN156,TGN168..S..(HTWCF,IART);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) LT.GRAY,TRIM3#,4# |
1 | ||
| 81360-0K010B0 |
GUN155..IDNSU..M;GUN156..THSUV..GCC;GUN156..(AGTSU,IDNSU)..(H,M)..(GCC,GEN,LA);GGN155,GUN165,KUN156,TGN156,166..(H,M)..(EPT,GEN,IDN,LA,TH) FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT.GRAY,TRIM4# |
1 | ||
| 81360-0K040B0 |
GUN165..THSUV..L;TGN156,166..S..BZAGT;GUN165..(L,S)..(LA,SA,TH);GUN165,TGN156,166..IDNSU..MTM..GCC;TGN156,166..(AGTSU,EPTSU,SASUV,THSUV)..L;GUN15#,TGN168..(AGTSU,SASUV,THSUV)..L..(ARL,BZAGT,GCC,SA);TGN156,166..LHD..(IDNSU,SASUV,THSUV)..6FC..(L,S)..(KZS,LA,SA);GUN15#,KUN156,165,LAN155..LHD..(L,S)..(DCR,DEFI,HDCR)..(BZAGT,GEN,LA,SA) LT.GRAY,TRIM4# |
1 | ||
| 81360-0K050B0 |
KUN156..RHD;GUN165..M..TH;GUN156..6F..M;GUN156..THSUV..GCC;KUN156..LHD..(H,M);GUN156..LHD..(AGTSU,THSUV)..M;GGN165,GUN16#..(H,S)..(GCC,SA);GUN156,TGN156,166..IDNSU..M..LA;GUN156,TGN156,166..RHD..(H,S)..(GEN,SA);TGN156,166..(AGTSU,THSUV)..(M,S)..(GCC,LA,TH);GGN155,GUN155..(AGTSU,EPTSU,SASUV,THSUV)..6FC..(H,M,S)..(EPT,GCC,LA,SA) LT.GRAY,TRIM4# |
1 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-0K010B0 |
GUN156..TH;GUN156..6F..H..BZAGT;GUN156..THSUV..H..GEN;GUN156,TGN168..S..(HTWCF,IART);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT.GRAY,TRIM3#,4# |
1 | ||
| 81360-0K050B0 |
GUN156..6F..H..BZAGT;GUN156..THSUV..H..GEN;GUN156..RHD..THSUV..6FC..M;GUN156,TGN168..S..(HTWCF,IART);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) LT.GRAY,TRIM3#,4# |
1 | ||
| 81360-0K010B0 |
GUN155..IDNSU..M;GUN156..THSUV..GCC;GUN156..(AGTSU,IDNSU)..(H,M)..(GCC,GEN,LA);GGN155,GUN165,KUN156,TGN156,166..(H,M)..(EPT,GEN,IDN,LA,TH) FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),LT.GRAY,TRIM4# |
1 | ||
| 81360-0K040B0 |
GUN165..THSUV..L;TGN156,166..S..BZAGT;GUN165..(L,S)..(LA,SA,TH);GUN165,TGN156,166..IDNSU..MTM..GCC;TGN156,166..(AGTSU,EPTSU,SASUV,THSUV)..L;GUN15#,TGN168..(AGTSU,SASUV,THSUV)..L..(ARL,BZAGT,GCC,SA);TGN156,166..LHD..(IDNSU,SASUV,THSUV)..6FC..(L,S)..(KZS,LA,SA);GUN15#,KUN156,165,LAN155..LHD..(L,S)..(DCR,DEFI,HDCR)..(BZAGT,GEN,LA,SA) LT.GRAY,TRIM4# |
1 | ||
| 81360-0K050B0 |
KUN156..RHD;GUN165..M..TH;GUN156..6F..M;GUN156..THSUV..GCC;KUN156..LHD..(H,M);GUN156..LHD..(AGTSU,THSUV)..M;GGN165,GUN16#..(H,S)..(GCC,SA);GUN156,TGN156,166..IDNSU..M..LA;GUN156,TGN156,166..RHD..(H,S)..(GEN,SA);TGN156,166..(AGTSU,THSUV)..(M,S)..(GCC,LA,TH);GGN155,GUN155..(AGTSU,EPTSU,SASUV,THSUV)..6FC..(H,M,S)..(EPT,GCC,LA,SA) LT.GRAY,TRIM4# |
1 | ||
| 81360U - BULB, SPOT LAMP | ||||
| 90981-14011 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 63650-0K130B0 |
TGN156..S..KZS AZERBAIJAN SPEC(EURO 4 REGULATION),LT.GRAY,TRIM4# |
1 | ||
| 63650-0K160B0 |
GUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS) LT.GRAY,TRIM4# |
1 | ||
| 63650-0K130B0 |
TGN156..S..KZS WITHOUT(DESTINATION PACKAGE(ERP)&AZERBAIJAN SPEC(EURO 4 REGULATION),LT.GRAY,TRIM4# |
1 | ||
| 63650-0K161B0 |
GUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS) LT.GRAY,TRIM4# |
1 | ||
| 63650-0K690B0 |
TGN156..S..KZS WITHOUT(DESTINATION PACKAGE(ERP)&AZERBAIJAN SPEC(EURO 4 REGULATION),LT.GRAY,TRIM4# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 63650-0K130B0 |
TGN156..S..KZS AZERBAIJAN SPEC(EURO 4 REGULATION),LT.GRAY,TRIM4# |
1 | ||
| 63650-0K160B0 |
GUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS) LT.GRAY,TRIM4# |
1 | ||
| 63650-0K130B0 |
TGN156..S..KZS WITHOUT(DESTINATION PACKAGE(ERP)&AZERBAIJAN SPEC(EURO 4 REGULATION),LT.GRAY,TRIM4# |
1 | ||
| 63650-0K161B0 |
GUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS) LT.GRAY,TRIM4# |
1 | ||
| 63650-0K690B0 |
TGN156..S..KZS WITHOUT(DESTINATION PACKAGE(ERP)&AZERBAIJAN SPEC(EURO 4 REGULATION),LT.GRAY,TRIM4# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
GGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV 12V 5W |
1 | ||
| 90981-11062 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV 12V 8W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
GGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV 12V 5W |
1 | ||
| 90981-11062 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV 12V 8W |
1 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV |
2 | ||
| 81936-28010 |
GGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV |
2 | ||
| 81936C - BULB ASSY | ||||
| 81936-12150 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV |
2 | ||
| 81936-28010 |
GGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV |
2 | ||
| Common parts | ||||
| 90467-09240 | ||||
| 90530-10007 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8603 | ||||
ILLUST NO. 1 OF 2(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-09240 | ||||
| 90530-10007 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8603 | ||||
