TGN156L-STTSKK (2017)

Toyota Fortuner

Production Aug 2017 - May 2020
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )

Click highlighted areas on diagram

ROOF PANEL

diagram 63105D 63111 63132 63141H 63141H 63142 63143B 63144B
Part # Description Qty Price

ILLUST NO. 2 OF 2(0501- )

Click highlighted areas on diagram

ROOF RAIL

diagram 63185A 63186A 63187C 63188B 63189C 63199 63437A 63437A 63437A 63437A 63460A 63470A 63484A 63485A 63486A 63487A 63488 63489 63491 63492 63493 63494 63495B 63496 9011906906 90119T0038 9015960563 9015960563
Part # Description Qty Price
Common parts
90119-06906
90119-T0038
90159-60563

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

ROOF PANEL

diagram 63105D 63111 63132 63141H 63141H 63142 63144B
Part # Description Qty Price

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

ROOF RAIL

diagram 63185A 63186A 63187C 63188B 63189C 63199 63437A 63437A 63437A 63437A 63460A 63470A 63484A 63485A 63486A 63487A 63488 63489 63491 63492 63493 63494 63495B 63496 9011906906 90119T0038 9015960563 9015960563
Part # Description Qty Price
Common parts
90119-06906
90119-T0038
90159-60563

(1507- )

Click highlighted areas on diagram

ROOF PANEL

diagram 63105D 63111 63132 63137A 63141G 63142 63143B 63144B 63145A 63145D 90119T0208 90119T0208
Part # Description Qty Price
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-KK020

GUN165..S..PH;GUN165,TGN156..BZAGT,EPT,GCC,GEN,IDN,KZS,LA,SA,TH,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
63111 - PANEL, ROOF
63111-KK040

GUN156,TGN156..L..(ARL,KZS);GUN15#,165,KUN156,165,LAN155,TGN156,166..LHD..(L,S)..(PH,SA)

 1
63111-KK050

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-KK900

TGN156..H;GGN165,KUN156;TGN166..THSUV;GUN156..S..IART;GUN156..IDNSU..LA;TGN156,166..IDNSU..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..6FC..(L,S)..(GEN,LA);TGN166..(IDNSU,SASUV)..6FC..(H,L,S)..(GEN,LA,SA);GGN155,GUN15#,16#,KUN165,LAN155,TGN156..SASUV,THSUV

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-KK030

GUN165..S..PH;GUN165,TGN156..BZAGT,EPT,GCC,GEN,IDN,KZS,LA,SA,TH,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63104-KK010

GUN165..S..PH;GUN165,TGN156..BZAGT,EPT,GCC,GEN,IDN,KZS,LA,SA,TH,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63141-KK050

GUN165..S..PH;GUN165,TGN156..BZAGT,EPT,GCC,GEN,IDN,KZS,LA,SA,TH,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63103-KK010

GUN165..S..PH;GUN165,TGN156..BZAGT,EPT,GCC,GEN,IDN,KZS,LA,SA,TH,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-KK010

GUN165..S..PH;GUN165,TGN156..BZAGT,EPT,GCC,GEN,IDN,KZS,LA,SA,TH,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
63145A - REINFORCEMENT, ROOF PANEL, NO.5
63106-KK010

GUN165..S..PH;GUN165,TGN156..BZAGT,EPT,GCC,GEN,IDN,KZS,LA,SA,TH,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
63145D - BRACKET, ROOF REINFORCEMENT
63145-KK010

GUN165..S..PH;GUN165..GCC,GEN,IDN,LA,SA,TH,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,INDSU,SASUV,THSUV,VNSUV

 2
Common parts
90119-T0208

(1507- )

Click highlighted areas on diagram

ROOF RAIL

diagram 63435F 63437A 63438D 63439A 63443B 63444A 63460A 63470A 63485 63486A 63487A 63488 63489 63491 63492 63493 63494 634990K040 634990K040 634990K040 634990K070 634990K070 634990K070 9015960563 9015960563 9015960563 9015960563
Part # Description Qty Price
63435F - SEAL, ROOF CARRIER, NO.1
63437-0K020

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 2
63437A - SEAL, ROOF CARRIER, NO.2
63439-0K010

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 2
63438D - SEAL, ROOF CARRIER, NO.3 RH
63437-0K070

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 1
63439A - SEAL, ROOF CARRIER, NO.3 LH
63437-0K070

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 1
63443B - PROTECTOR, ROOF RACK, RH
63444-0K010

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 1
63444A - PROTECTOR, ROOF RACK, LH
63444-0K010

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 1
63460A - RACK ASSY, ROOF, RH
63460-0K040

TGN156..L..KZS

ROOF RAIL-WITH

 1
63460-0K040

TGN166..EPT;TGN156..S..KZS;TGN166..THSUV..5F;GUN156,TGN166..(PKNSU,THSUV)..(H,M,S);GGN155,165,GUN155,16#,TGN156..(EPTSU,THSUV)..(EPT,GCC,TH)

 1
63470A - RACK ASSY, ROOF, LH
63470-0K040

TGN156..L..KZS

ROOF RAIL-WITH

 1
63470-0K040

TGN166..EPT;TGN156..S..KZS;TGN166..THSUV..5F;GUN156,TGN166..(PKNSU,THSUV)..(H,M,S);GGN155,165,GUN155,16#,TGN156..(EPTSU,THSUV)..(EPT,GCC,TH)

 1
63485 - CUSHION, ROOF RACK LEG, CENTER
63485-0K040

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 2
63486A - CUSHION, ROOF RACK LEG, FRONT RH
63486-0K040

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 1
63487A - CUSHION, ROOF RACK LEG, FRONT LH
63487-0K040

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 1
63488 - CUSHION, ROOF RACK LEG, REAR RH
63488-0K040

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 1
63489 - CUSHION, ROOF RACK LEG, REAR LH
63489-0K040

TGN156..S..KZS;TGN166..5F..GCC;GUN156,KUN156..RHD..SA;GUN155..(IDNSU,SASUV,THSUV)..6FC;KUN156,TGN156..BZAGT,EPT,GCC,GEN,LA,VN;GUN156,TGN166..L..(BZAGT,EPT,GEN,LA,SA);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M,S);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PKN,SA,TH,VN);GGN155,165,GUN16#,TGN168..BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH,VN

 1
63491 - COVER, ROOF RACK LEG, FRONT RH
63491-0K040

TGN166..EPT;TGN156..S..KZS;TGN166..THSUV..5F;GUN156,TGN166..(PKNSU,THSUV)..(H,M,S);GGN155,165,GUN155,16#,TGN156..(EPTSU,THSUV)..(EPT,GCC,TH)

 1
63491-0K040

TGN156..L..KZS

ROOF RAIL-WITH

 1
63492 - COVER, ROOF RACK LEG, FRONT LH
63492-0K040

TGN166..EPT;TGN156..S..KZS;TGN166..THSUV..5F;GUN156,TGN166..(PKNSU,THSUV)..(H,M,S);GGN155,165,GUN155,16#,TGN156..(EPTSU,THSUV)..(EPT,GCC,TH)

 1
63492-0K040

TGN156..L..KZS

ROOF RAIL-WITH

 1
63493 - COVER, ROOF RACK LEG, REAR RH
63493-0K040

TGN156..L..KZS

ROOF RAIL-WITH

 1
63493-0K040

TGN166..EPT;TGN156..S..KZS;TGN166..THSUV..5F;GUN156,TGN166..(PKNSU,THSUV)..(H,M,S);GGN155,165,GUN155,16#,TGN156..(EPTSU,THSUV)..(EPT,GCC,TH)

 1
63494 - COVER, ROOF RACK LEG, REAR LH
63494-0K040

TGN156..L..KZS

ROOF RAIL-WITH

 1
63494-0K040

TGN166..EPT;TGN156..S..KZS;TGN166..THSUV..5F;GUN156,TGN166..(PKNSU,THSUV)..(H,M,S);GGN155,165,GUN155,16#,TGN156..(EPTSU,THSUV)..(EPT,GCC,TH)

 1
Common parts
63499-0K040
63499-0K070
90159-60563

ILLUST NO. 1 OF 2(2006- )

Click highlighted areas on diagram

ROOF PANEL

diagram 63105D 63111 63132 63137A 63141G 63142 63143B 63144B 63145A 63145D 90119T0208 90119T0208
Part # Description Qty Price
Common parts
90119-T0208

ILLUST NO. 2 OF 2(2006- )

Click highlighted areas on diagram

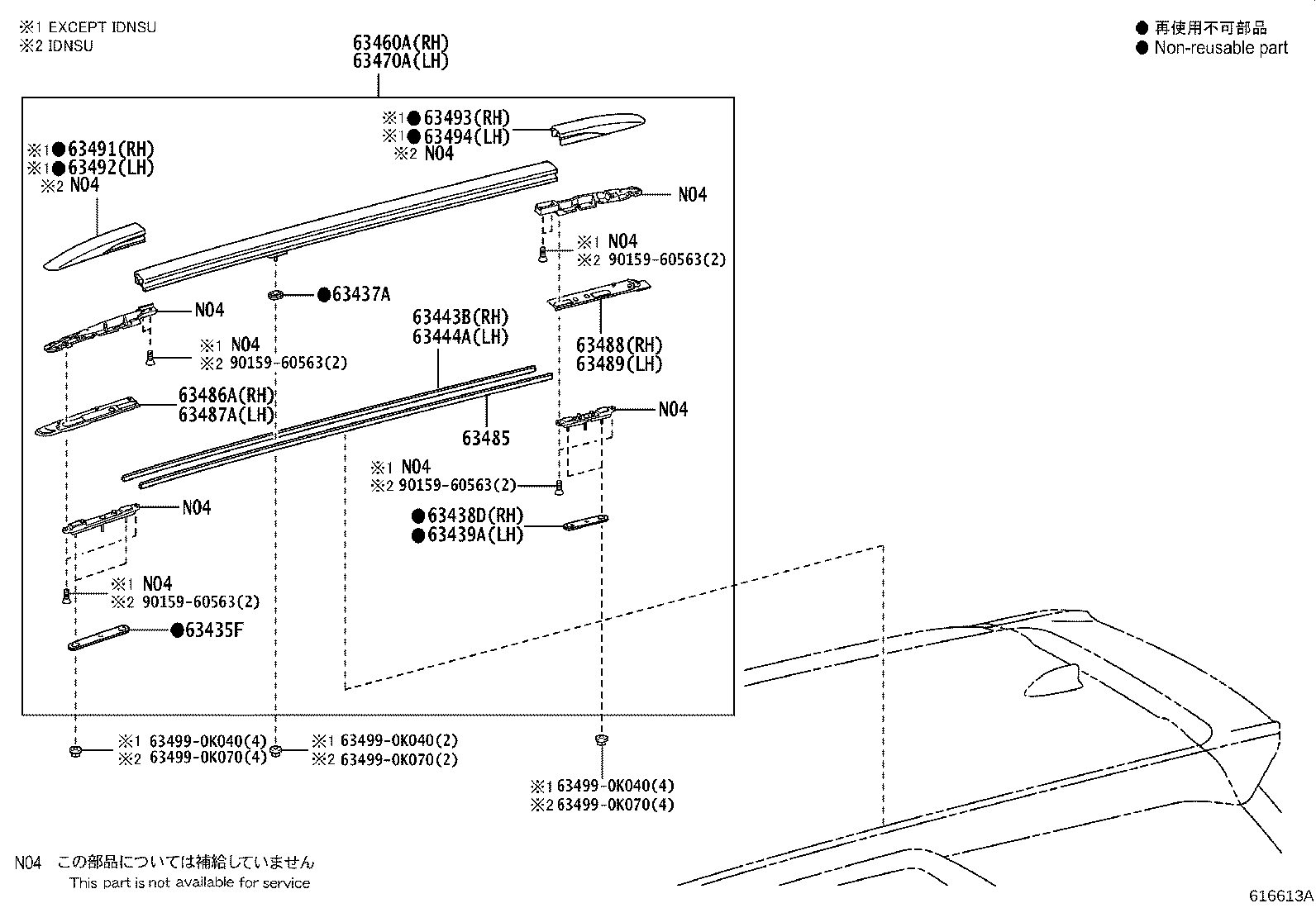

ROOF RAIL

diagram 63435F 63437A 63438D 63439A 63443B 63444A 63460A 63470A 63485 63486A 63487A 63488 63489 63491 63492 63493 63494 634990K040 634990K040 634990K040 634990K070 634990K070 634990K070 9015960563 9015960563 9015960563 9015960563
Part # Description Qty Price
Common parts
63499-0K040
63499-0K070
90159-60563
