TGN156L-STTSKK (2017)

Toyota Fortuner

Production Aug 2017 - May 2020
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

Click highlighted areas on diagram

diagram 55225A 55225B 58151 58153 58327B 58329G 90119T0144 90119T0144 90182T0021 90182T0021 90182T0021 90182T0021
Part # Description Qty Price
Common parts
90119-T0144
90182-T0021

(1107- )

Click highlighted areas on diagram

diagram 55225A 55225A 55225B 58151 58151 58151 58153 58327B 58327B 58327B 58329G 58329G 58329G 90119T0144 90119T0144 90119T0144 90119T0144 90119T0144 90119T0144 90182T0021 90182T0021 90182T0021 90182T0021 90182T0021 90182T0021 90182T0021
Part # Description Qty Price
Common parts
90119-T0144
90182-T0021

(1507- )

Click highlighted areas on diagram

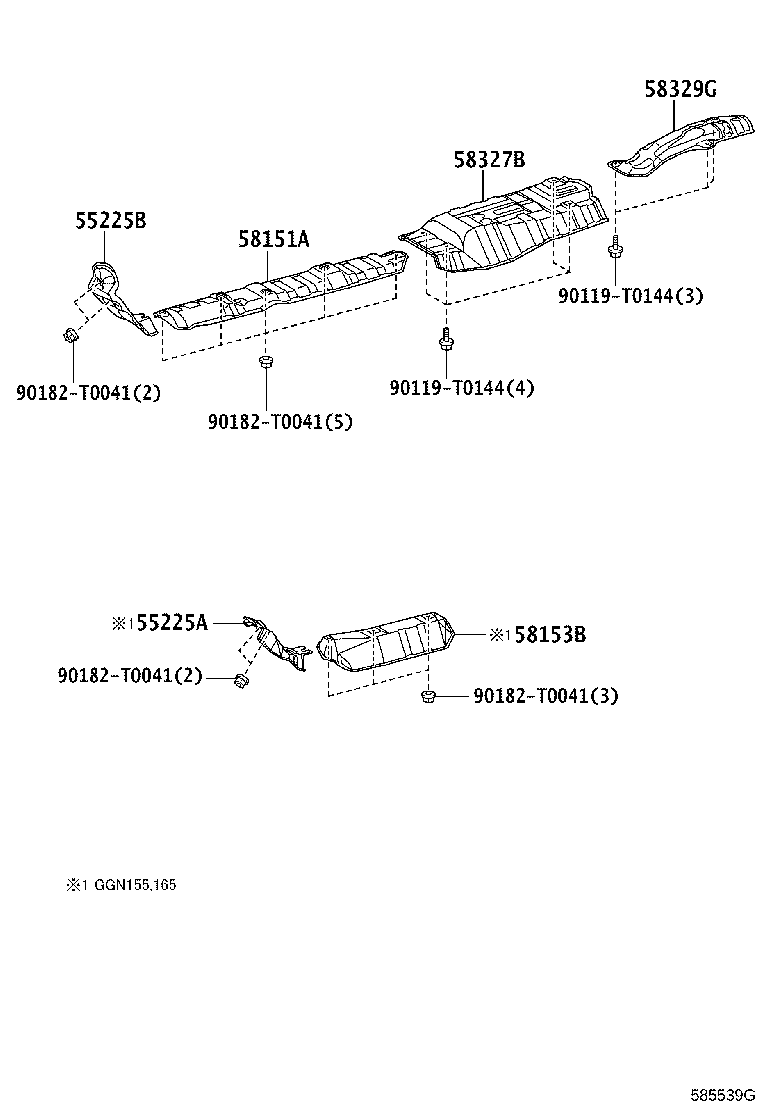

diagram 55225A 55225B 58151A 58153B 58327B 58329G 90119T0144 90119T0144 90182T0041 90182T0041 90182T0041 90182T0041
Part # Description Qty Price
58151A - INSULATOR, FLOOR HEAT, NO.1
58151-KK020

TGN156..EPTSU,SASUV,THSUV;GGN155,GUN15#,16#,LAN155,TGN166..EPTSU,PKNSU,SASUV,THSUV,VNSUV

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-0K030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
58329G - INSULATOR, MAIN MUFFLER HEAT, REAR UPPER
58329-0K030

GGN155,165,GUN15#,16#,TGN156,166..EPTSU,THSUV

 1
Common parts
90119-T0144
90182-T0041
