TGN156L-STTSKK (2017)
Toyota Fortuner
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 62589-0K010 | ||||
| 90105-T0193 | ||||
| 90119-T0187 | ||||
| Linked diagrams | ||||
| 5752 | ||||

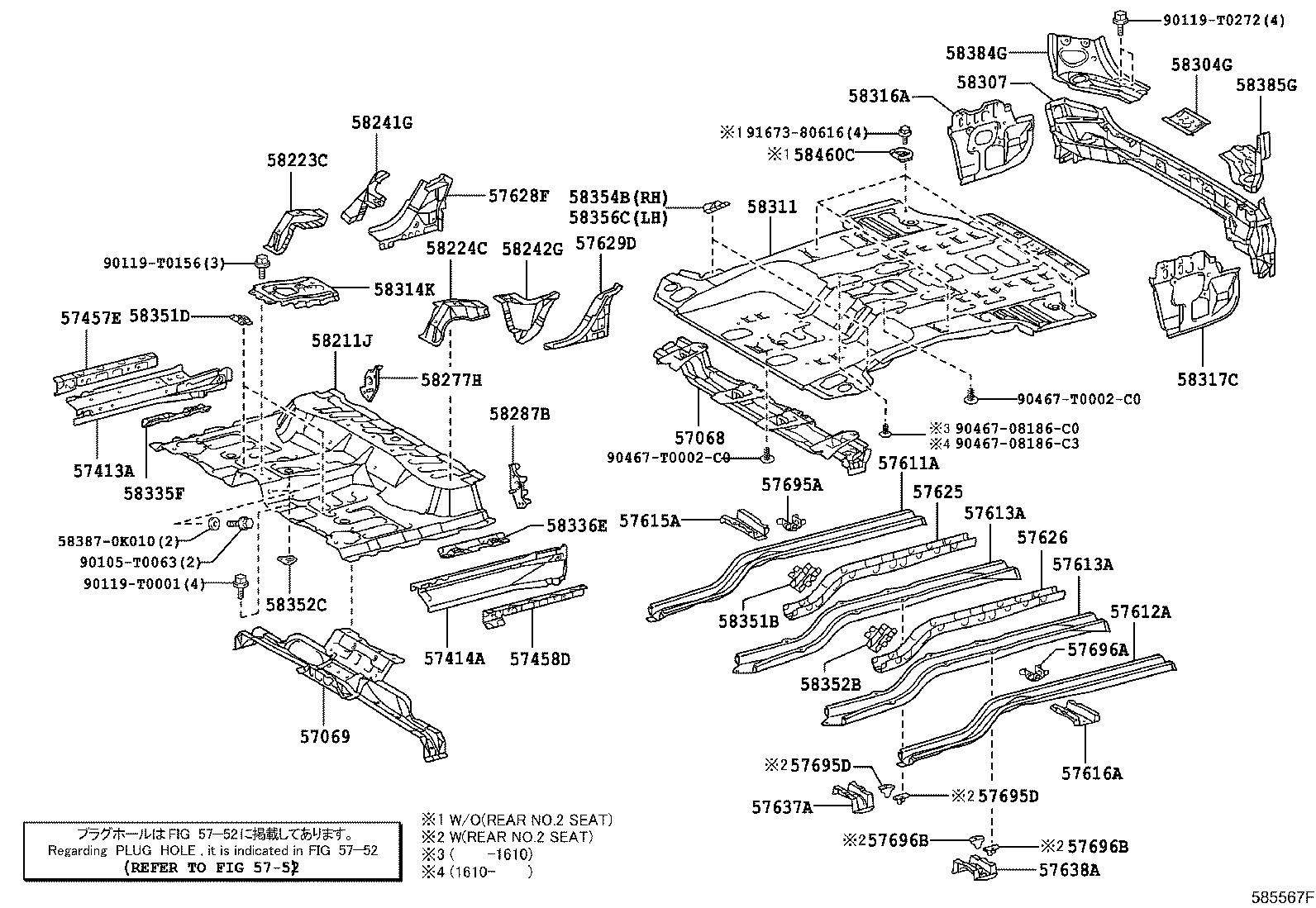

(1507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57413A - MEMBER, FLOOR SIDE, INNER REAR RH | ||||
| 57413-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57414A - MEMBER, FLOOR SIDE, INNER REAR LH | ||||
| 57414-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57457E - PATCH, FLOOR SIDE MEMBER, RR RH | ||||
| 57457-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57458D - PATCH, FLOOR SIDE MEMBER, REAR LH | ||||
| 57458-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57611A - MEMBER, REAR FLOOR SIDE, RH | ||||
| 57611-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57612A - MEMBER, REAR FLOOR SIDE, LH | ||||
| 57611-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-0K010 |
TGN156..EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN166..EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-0K010 |
TGN156..EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN166..EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH | ||||
| 57641-0K040 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH | ||||
| 57641-0K040 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57628F - PLATE, REAR FLOOR SIDE MEMBER, RH | ||||
| 57628-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57629D - PLATE, REAR FLOOR SIDE MEMBER, LH | ||||
| 57629-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57637A - REINFORCEMENT, REAR FLOOR SIDE, RH | ||||
| 57637-0K030 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57638A - REINFORCEMENT, REAR FLOOR SIDE, LH | ||||
| 57637-0K030 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57695A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | ||||
| 57696-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH | ||||
| 57695-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH | ||||
| 57695-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 57696A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | ||||
| 57696-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH | ||||
| 57695-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH | ||||
| 57695-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 58211J - PAN, CENTER FLOOR | ||||
| 58211-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58223C - REINFORCEMENT, SEAT SET, NO.1 | ||||
| 58223-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58224C - REINFORCEMENT, SEAT SET, NO.2 | ||||
| 58224-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58241G - PANEL, FLOOR SIDE, RH | ||||
| 58241-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58242G - PANEL, FLOOR SIDE, LH | ||||
| 58242-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58277H - REINFORCEMENT, SIDE FLOOR, NO.2 RH | ||||
| 58277-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58287B - REINFORCEMENT, SIDE FLOOR, NO.2 LH | ||||
| 58287-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58304G - REINFORCE SUB-ASSY, BODY LOWER BACK PANEL | ||||
| 58304-0K030 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58314K - PANEL, REAR FLOOR, CENTER | ||||
| 58314-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58335F - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58336E - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58351B - REINFORCEMENT, REAR FLOOR PANEL, RH | ||||
| 58351-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58351D - REINFORCEMENT, REAR FLOOR PANEL | ||||
| 57555-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 58352B - REINFORCEMENT, REAR FLOOR PANEL, LH | ||||
| 58351-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58352C - REINFORCEMENT, REAR FLOOR PANEL, NO.2 | ||||
| 58352-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58354B - REINFORCEMENT, REAR FLOOR PANEL, NO.4 | ||||
| 58354-0K030 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58356C - REINFORCEMENT, REAR FLOOR PANEL, NO.6 | ||||
| 58356-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-KK010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| Common parts | ||||
| 58387-0K010 | ||||
| 90105-T0063 | ||||
| 90119-T0001 | ||||
| 90119-T0156 | ||||
| 90119-T0272 | ||||
| 90467-08186C0 | ||||
| 90467-08186C3 | ||||
| 90467-T0002C0 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5752 | ||||
