TGN156L-STTSKK (2017)
Toyota Fortuner

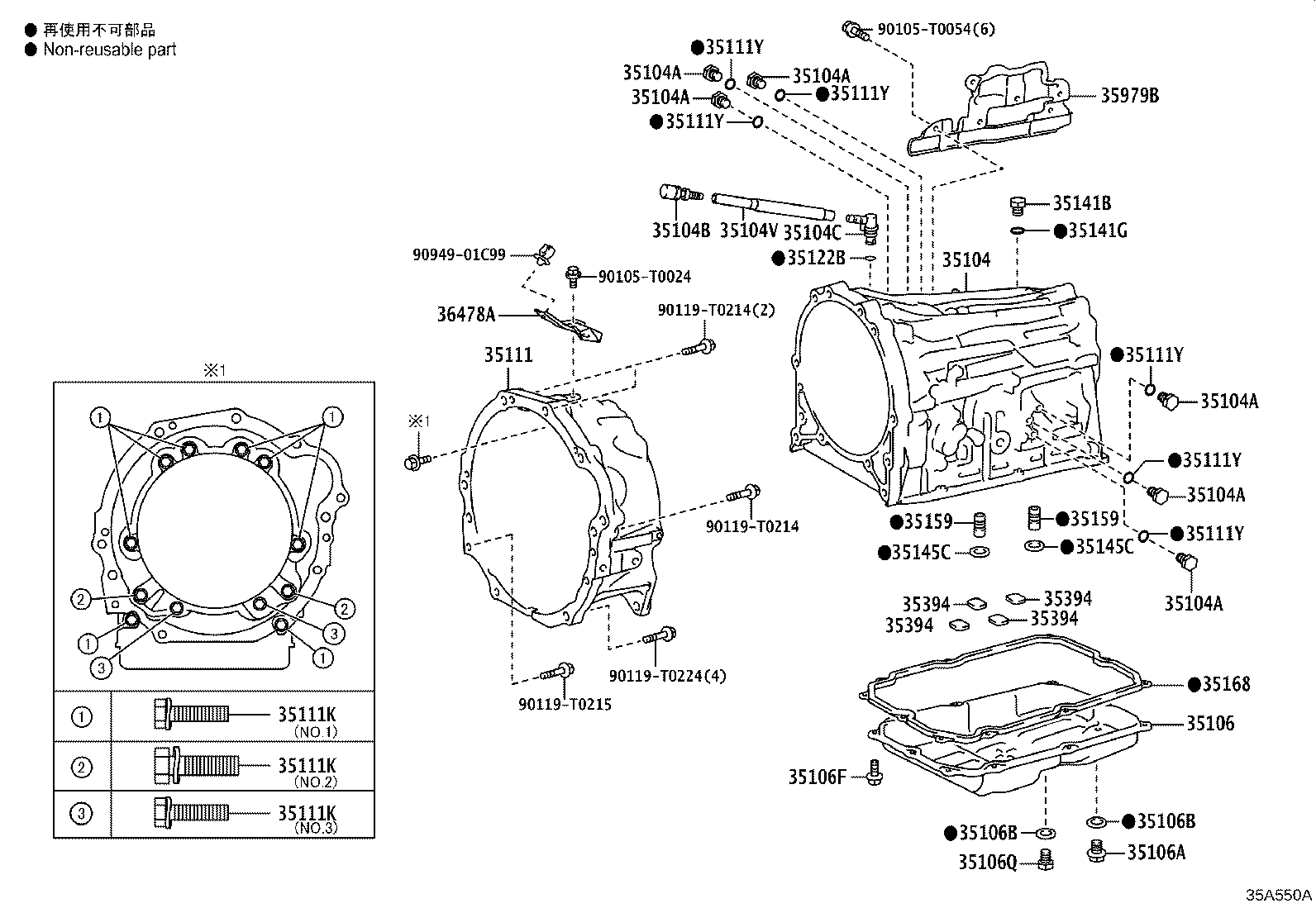

(1507- )TGN156,16#..6FC
AC60E,AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
6 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03211 |
GUN155..THSUV;TGN156..M..GEN;GUN165..6FC..L..GCC;TGN156..6FC..(GCC,KZS,VN);GUN165..6FC..(GEN,IDN,PH,TH,VN);TGN166..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN);GGN155,GUN156,166..6FC..(ARL,GCC,GEN,PH,TH,VN) |
1 | ||
| 90930-03211 |
TGN156,166..M..(LA,TH);GUN165..IDNSU..(H,S)..GCC;GGN165,KUN156..ATM..(GCC,GEN,LA,SA);TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03220 |
GUN155..THSUV;TGN156..M..GEN;GUN165..6FC..L..GCC;TGN156..6FC..(GCC,KZS,VN);GUN165..6FC..(GEN,IDN,PH,TH,VN);TGN166..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN);GGN155,GUN156,166..6FC..(ARL,GCC,GEN,PH,TH,VN) |
1 | ||
| 90930-03220 |
GGN165..GCC;TGN156,166..M..(LA,TH);GUN165..IDNSU..(H,S)..GCC;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11078 |
TGN156,168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;TGN166..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GUN156..TH;GUN155..(SASUV,THSUV)..6FC;GUN156,165..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..6FC;TGN166..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC;GGN155,165,GUN166,KUN156,TGN156,168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..ATM |
2 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GUN156..TH;GUN155..(SASUV,THSUV)..6FC;GUN156,165..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..6FC;TGN166..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC;GGN155,165,GUN166,KUN156,TGN156,168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..ATM |
2 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06A02 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
10 | ||
| 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-08C62 |
GUN165..6FC;GUN155..(MASUV,SASUV,THSUV)..6FC;GUN156,TGN156,166..LHD..THSUV..(H,M,S) *8-1.25PX30-23.5 |
1 | ||
| 90119-10232 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
8 | ||
| 90119-12378 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM *12-1.75PX38-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-10947 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
2 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-08C62 |
GUN165..6FC;GUN155..(MASUV,SASUV,THSUV)..6FC;GUN156,TGN156,166..LHD..THSUV..(H,M,S) *8-1.25PX30-23.5 |
1 | ||
| 90119-10232 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
8 | ||
| 90119-12378 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM *12-1.75PX38-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-10947 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
2 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-08C62 |
GUN165..6FC;GUN155..(MASUV,SASUV,THSUV)..6FC;GUN156,TGN156,166..LHD..THSUV..(H,M,S) *8-1.25PX30-23.5 |
1 | ||
| 90119-10232 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
8 | ||
| 90119-12378 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM *12-1.75PX38-30,NO.2:REFER ILLUST. |
2 | ||
| 90119-10947 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
2 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-71010 |
GUN165..6FC..TH;GUN165..THSUV..6FC..L;TGN166..THSUV..6FC..GCC;GUN15#,166,TGN156..THSUV..6FC |
2 | ||
| 35159-71010 |
GGN165..GCC;TGN156,166..M..(LA,TH);GUN165..IDNSU..(H,S)..GCC;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-71010 |
GUN165..6FC..TH;GUN165..THSUV..6FC..L;TGN166..THSUV..6FC..GCC;GUN15#,166,TGN156..THSUV..6FC |
2 | ||
| 35159-71010 |
GGN165..GCC;TGN156,166..M..(LA,TH);GUN165..IDNSU..(H,S)..GCC;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) |
2 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-71010 |
GUN155..THSUV;TGN156..M..GEN;GUN165..6FC..L..GCC;TGN156..6FC..(GCC,KZS,VN);GUN165..6FC..(GEN,IDN,PH,TH,VN);TGN166..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN);GGN155,GUN156,166..6FC..(ARL,GCC,GEN,PH,TH,VN) |
1 | ||
| 35168-71010 |
GGN165..GCC;TGN156,166..M..(LA,TH);GUN165..IDNSU..(H,S)..GCC;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
4 | ||
| 35979B - INSULATOR, TRANSMISSION, RH | ||||
| 35979-0K010 |
GUN156..S..IART;GUN156,165..(IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC;TGN166..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC;GGN155,165,GUN155,166,TGN156,168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC |
1 | ||
| 36478A - BRACKET, TRANSMISSION BREATHER | ||||
| 36478-0K040 |
TGN156,168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;TGN166..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
1 | ||
| Common parts | ||||
| 90105-T0024 | ||||
| 90105-T0054 | ||||
| 90119-T0214 | ||||
| 90119-T0215 | ||||
| 90119-T0224 | ||||
| 90949-01C99 | ||||
(2006- )TGN156,16#..6FC
AC60E,AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0024 | ||||
| 90105-T0054 | ||||
| 90119-T0214 | ||||
| 90119-T0215 | ||||
| 90119-T0224 | ||||
| 90949-01C99 | ||||
