TGN156L-STTSKK (2017)

Toyota Fortuner

Production Aug 2017 - May 2020
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2TRFE..GCC,IDN,MA,PHL,TH,VN

Click highlighted areas on diagram

diagram 17700 17705 17750 17801 17861 17861D 17880 17881 17881A 17881A 17893 17893A 22204 22204A 9009900289 90105T0066 90105T0235 90119T0286 90119T0334 90480T0002
Part # Description Qty Price
Common parts
90099-00289
90105-T0066
90105-T0235
90119-T0286
90119-T0334
90480-T0002

(1107- )2TRFE..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,TH,VN

Click highlighted areas on diagram

diagram 17700 17705 17750 17801 17861 17861D 17880 17881 17881A 17881A 17893 17893A 22204 22204A 9009900289 90105T0066 90105T0235 90119T0145 90119T0286 90119T0334 90480T0002
Part # Description Qty Price
Common parts
90099-00289
90105-T0066
90105-T0235
90119-T0145
90119-T0286
90119-T0334
90480-T0002

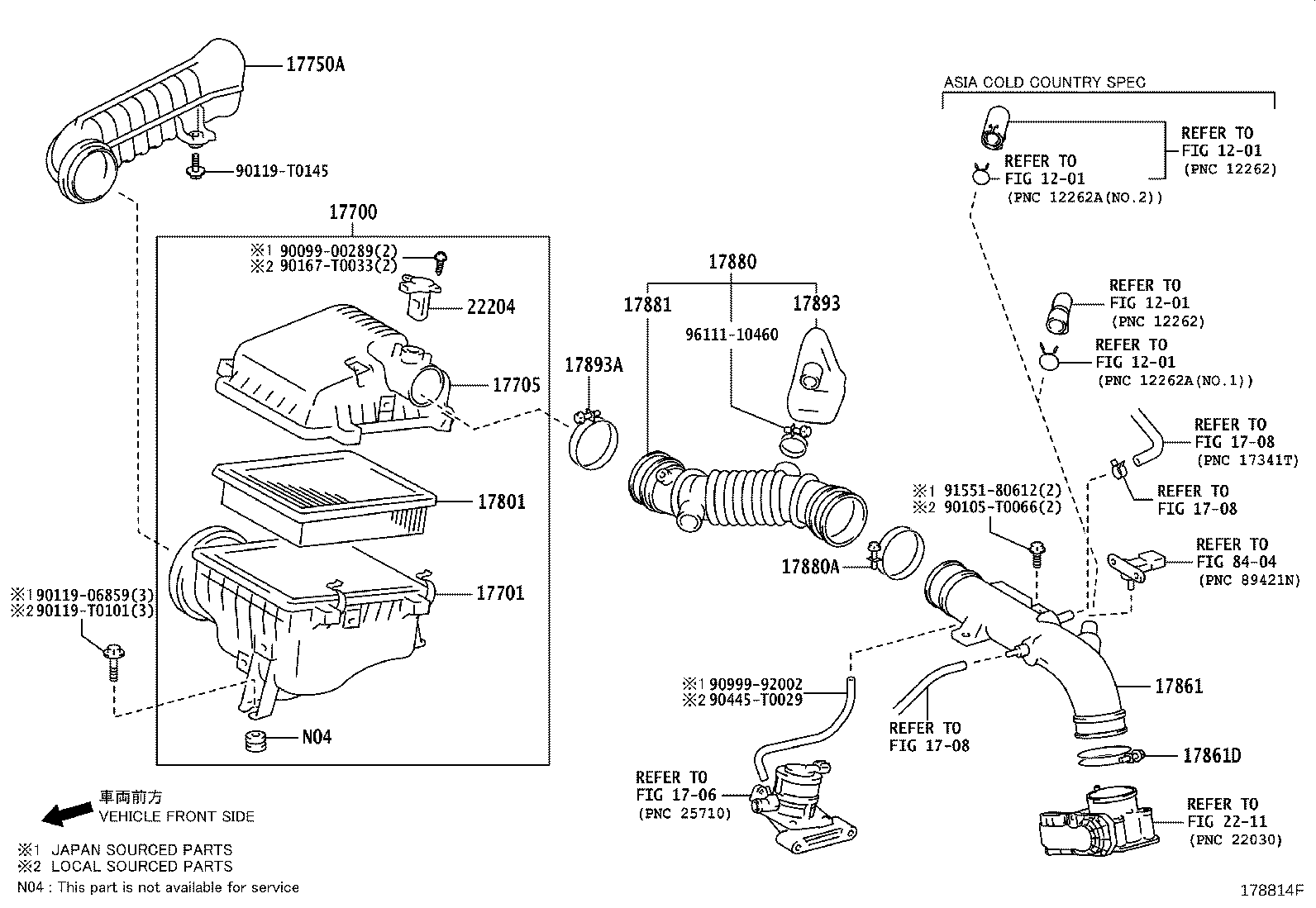

(1507- )2TRFE

Click highlighted areas on diagram

diagram 1201 1201 1201 1201 1706 1708 1708 1708 17700 17701 17705 17750A 17801 17861 17861D 17880 17880A 17881 17893 17893A 2211 22204 8404 9009900289 90105T0066 9011906859 90119T0101 90119T0145 90167T0033 90445T0029 9099992002 9155180612 9611110460
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0C210

2TRFE..TGN156..EPTSU,THSUV;2TRFE..TGN166..EPTSU,PKNSU,THSUV,VNSUV

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0C200

2TRFE..TGN156..EPTSU,THSUV;2TRFE..TGN166..EPTSU,PKNSU,THSUV,VNSUV

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0C160

2TRFE..TGN156..EPTSU,THSUV;2TRFE..TGN166..EPTSU,PKNSU,THSUV,VNSUV

 1
17750A - INLET ASSY, AIR CLEANER
17750-0L060

2TRFE..TGN156,166..THSUV

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0L040

2TRFE..TGN156,168..AGTSU,EPTSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,PKNSU,SASUV,THSUV,VNSUV

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
96111-10800

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(J)

 1
90460-T0005

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L)

 1
17880 - HOSE ASSY, AIR CLEANER
17880-0C090

2TRFE..TGN156,168..AGTSU,EPTSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,PKNSU,SASUV,THSUV,VNSUV

 1
17880A - CLAMP, HOSE
90460-T0005

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0C110

2TRFE..TGN156,168..AGTSU,EPTSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,PKNSU,SASUV,THSUV,VNSUV

 1
17893 - RESONATOR, INTAKE AIR
17893-0C070

2TRFE..TGN156,168..AGTSU,EPTSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,PKNSU,SASUV,THSUV,VNSUV

 1
17893A - CLAMP, HOSE
90460-T0020

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
Common parts
90099-00289
90105-T0066
90119-06859
90119-T0101
90119-T0145
90167-T0033
90445-T0029
90999-92002
91551-80612
96111-10460
Linked diagrams
1201
1706
1708
2211
8404

(2006- )2TRFE

Click highlighted areas on diagram

diagram 1201 1201 1201 1201 1706 1708 1708 1708 17700 17701 17705 17750A 17801 17861 17861D 17880 17880A 17881 17881A 17893 17893A 2211 22204 8404 9009900289 90105T0066 9011906859 90119T0101 90119T0145 90167T0033 90445T0029 9099992002 9155180612
Part # Description Qty Price
Common parts
90099-00289
90105-T0066
90119-06859
90119-T0101
90119-T0145
90167-T0033
90445-T0029
90999-92002
91551-80612
Linked diagrams
1201
1706
1708
2211
8404
