TGN156L-STTSKK (2017)

Toyota Fortuner

Production Aug 2017 - May 2020
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2TRFE..LA,TH ; (0909- )2TRFE..TGN51..MA

Click highlighted areas on diagram

diagram 17111 17111Z 17118 17141 17141K 17167 17173 17177 2211 90105T0108 90119T0231 90119T0233 90119T0236 90178T0019 9017908101 91551B0828 9161961230 9167100835 9167180814 9167180818 9167180822 9415180800
Part # Description Qty Price
Common parts
90105-T0108
90119-T0231
90119-T0233
90119-T0236
90178-T0019
90179-08101
91551-B0828
91619-61230
91671-00835
91671-80814
91671-80818
91671-80822
94151-80800
Linked diagrams
2211

(1507- )2TRFE..TGN156..LHD ; (1507- )2TRFE..TGN156..M..GEN ; (1507- )2TRFE

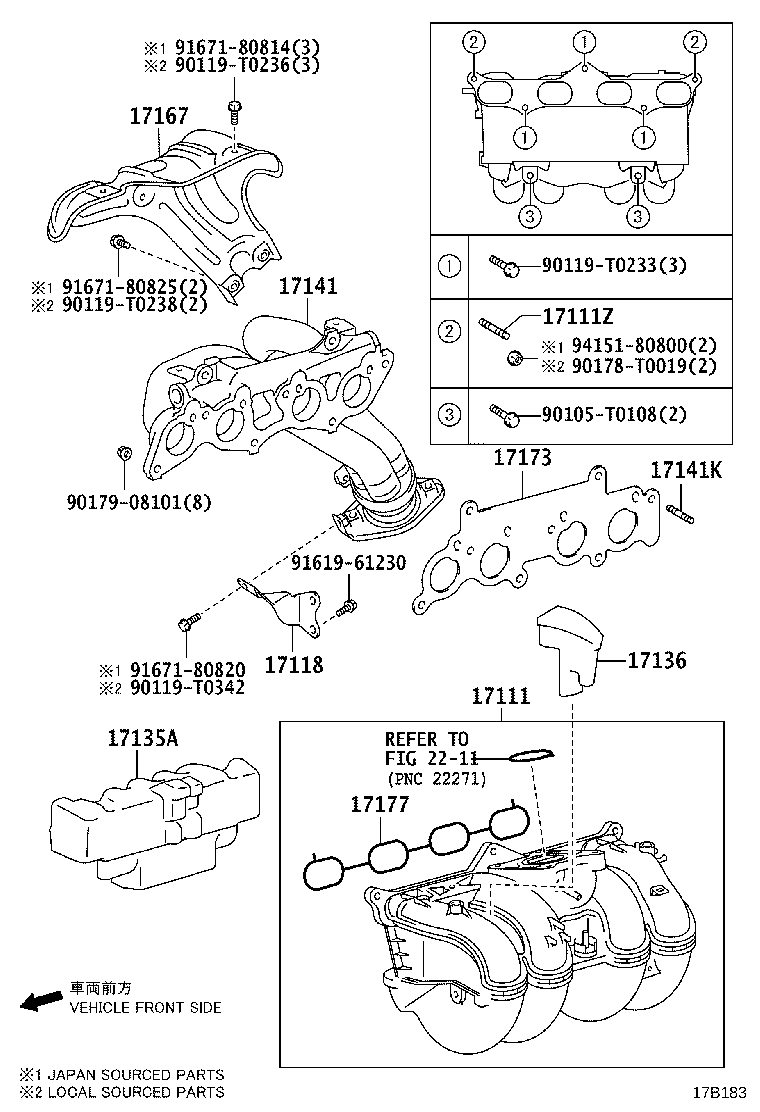

Click highlighted areas on diagram

diagram 17111 17111Z 17118 17135A 17136 17141 17141K 17167 17173 17177 2211 90105T0108 90119T0233 90119T0236 90119T0238 90119T0342 90178T0019 9017908101 9161961230 9167180814 9167180820 9167180825 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0C050

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),*163

 1
17120-0C050

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),*163

 1
17120-0C050

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163

 1
17120-0C050

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163

 1
17120-0C050

2TRFE..TGN156,166..THSUV..(GCC,TH)

*163

 1
17120-0C050

2TRFE..TGN156,166..THSUV..(GCC,TH)

*163

 1
17120-0C050

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163

 1
17120-0C050

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(J)

 2
90126-08026

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(J)

 2
90126-T0003

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L)

 2
90126-T0003

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L)

 2
17118 - STAY, MANIFOLD
17118-75060

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
17118-75060

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17853-0C010

2TRFE..TGN168;2TRFE..TGN156,166..5F..(GCC,KZS);2TRFE..TGN156,166..M..(LA,TH,VN);2TRFE..TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,KZS,LA,SA);2TRFE..TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA,VN)

 1
17853-0C010

2TRFE..TGN168;2TRFE..TGN156,166..5F..(GCC,KZS);2TRFE..TGN156,166..M..(LA,TH,VN);2TRFE..TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,KZS,LA,SA);2TRFE..TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA,VN)

 1
17853-0C010

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
17853-0C010

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-0C010

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 2
17136-0C010

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 2
17136-0C010

2TRFE..TGN168;2TRFE..TGN156,166..5F..(GCC,KZS);2TRFE..TGN156,166..M..(LA,TH,VN);2TRFE..TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,KZS,LA,SA);2TRFE..TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA,VN)

 2
17136-0C010

2TRFE..TGN168;2TRFE..TGN156,166..5F..(GCC,KZS);2TRFE..TGN156,166..M..(LA,TH,VN);2TRFE..TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,KZS,LA,SA);2TRFE..TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA,VN)

 2
17141 - MANIFOLD, EXHAUST
17141-0C130

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17141-0C130

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17141-0C130

2TRFE..TGN156,166..THSUV..(M,S)..(GCC,TH)

MADE IN INDONESIA

 1
17141-0C130

2TRFE..TGN156,166..THSUV..(M,S)..(GCC,TH)

MADE IN INDONESIA

 1
17141-0C150

2TRFE..TGN156,166..THSUV..(M,S)..(GCC,TH)

MADE IN THAILAND

 1
17141-0C150

2TRFE..TGN156,166..THSUV..(M,S)..(GCC,TH)

MADE IN THAILAND

 1
17141-0C130

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
17141-0C130

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
17141-0C130

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17141-0C130

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17141-0C150

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
17141-0C150

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
17141-0C150

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
17141-0C150

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08052

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

 8
90126-08052

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0C030

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),MADE IN INDONESIA

 1
17167-0C030

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),MADE IN INDONESIA

 1
17167-0C040

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),MADE IN THAILAND

 1
17167-0C040

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),MADE IN THAILAND

 1
17167-0C040

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
17167-0C040

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
17167-0C030

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
17167-0C030

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
17167-0C040

2TRFE..TGN156,166..THSUV..(GCC,TH)

MADE IN THAILAND

 1
17167-0C040

2TRFE..TGN156,166..THSUV..(GCC,TH)

MADE IN THAILAND

 1
17167-0C040

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
17167-0C040

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
17167-0C030

2TRFE..TGN156,166..THSUV..(GCC,TH)

MADE IN INDONESIA

 1
17167-0C030

2TRFE..TGN156,166..THSUV..(GCC,TH)

MADE IN INDONESIA

 1
17167-0C030

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17167-0C030

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17167-0C030

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17167-0C030

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0C020

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17173-0C020

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17173-75040

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN

 1
17173-75040

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN

 1
17173-75040

2TRFE..TGN156,166..THSUV..(M,S)..(GCC,TH)

MADE IN JAPAN

 1
17173-75040

2TRFE..TGN156,166..THSUV..(M,S)..(GCC,TH)

MADE IN JAPAN

 1
17173-0C020

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
17173-0C020

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
17173-0C020

2TRFE..TGN156,166..THSUV..(M,S)..(GCC,TH)

MADE IN INDONESIA

 1
17173-0C020

2TRFE..TGN156,166..THSUV..(M,S)..(GCC,TH)

MADE IN INDONESIA

 1
17173-75040

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN

 1
17173-75040

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN

 1
17173-0C020

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17173-0C020

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0C010

2TRFE..TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
17177-0C010

2TRFE..TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
Common parts
90105-T0108
90119-T0233
90119-T0236
90119-T0238
90119-T0342
90178-T0019
90179-08101
91619-61230
91671-80814
91671-80820
91671-80825
94151-80800
Linked diagrams
2211

(2006- )2TRFE..AGTSU,IDNSU,INDSU,PKNSU,THSUV,VNSUV

Click highlighted areas on diagram

PNC 17141=TYPE B

diagram 17111 17111Z 17118 17135A 17136 17141 17141K 17167 17173 17177 2211 90105T0108 90119T0233 90119T0236 90119T0238 90119T0342 90178T0019 9017908101 9161961230 9167180814 9167180820 9167180825 9415180800
Part # Description Qty Price
Common parts
90105-T0108
90119-T0233
90119-T0236
90119-T0238
90119-T0342
90178-T0019
90179-08101
91619-61230
91671-80814
91671-80820
91671-80825
94151-80800
Linked diagrams
2211
