TGN156L-STTSKK (2017)

Toyota Fortuner

Production Aug 2017 - May 2020
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501- )2TRFE

Click highlighted areas on diagram

diagram 11302 1501 1501 1501 1501 1501 1501 1501 1601 1601 1601 1601 9211280822 9211280822
Part # Description Qty Price
Common parts
92112-80822
Linked diagrams
1501
1601

ILLUST NO. 1 OF 2(0501- )2TRFE

Click highlighted areas on diagram

diagram 11301C 11301G 11301J 11301K 11301M 11301N 11354 11355 11381 11381A 16603B 16620D 9010508338 9010508424 90105T0051 90105T0117 90105T0125 90105T0140 9011608337 90119T0230 90119T0236 90178T0019 90301T0029 9155100820 9155180616 9155180875 9155180890 91551A0622 9164180835 9167180814 9167281090 91672K1075 9415180800 9672335028
Part # Description Qty Price
Common parts
90105-08338
90105-08424
90105-T0051
90105-T0117
90105-T0125
90105-T0140
90116-08337
90119-T0230
90119-T0236
90178-T0019
90301-T0029
91551-00820
91551-80616
91551-80875
91551-80890
91551-A0622
91641-80835
91671-80814
91672-81090
91672-K1075
94151-80800
96723-35028

ILLUST NO. 2 OF 2(1107- )2TRFE

Click highlighted areas on diagram

diagram 11302 1501 1501 1501 1501 1501 1501 1501 1601 1601 1601 1601 9211280822 9211280822
Part # Description Qty Price
Common parts
92112-80822
Linked diagrams
1501
1601

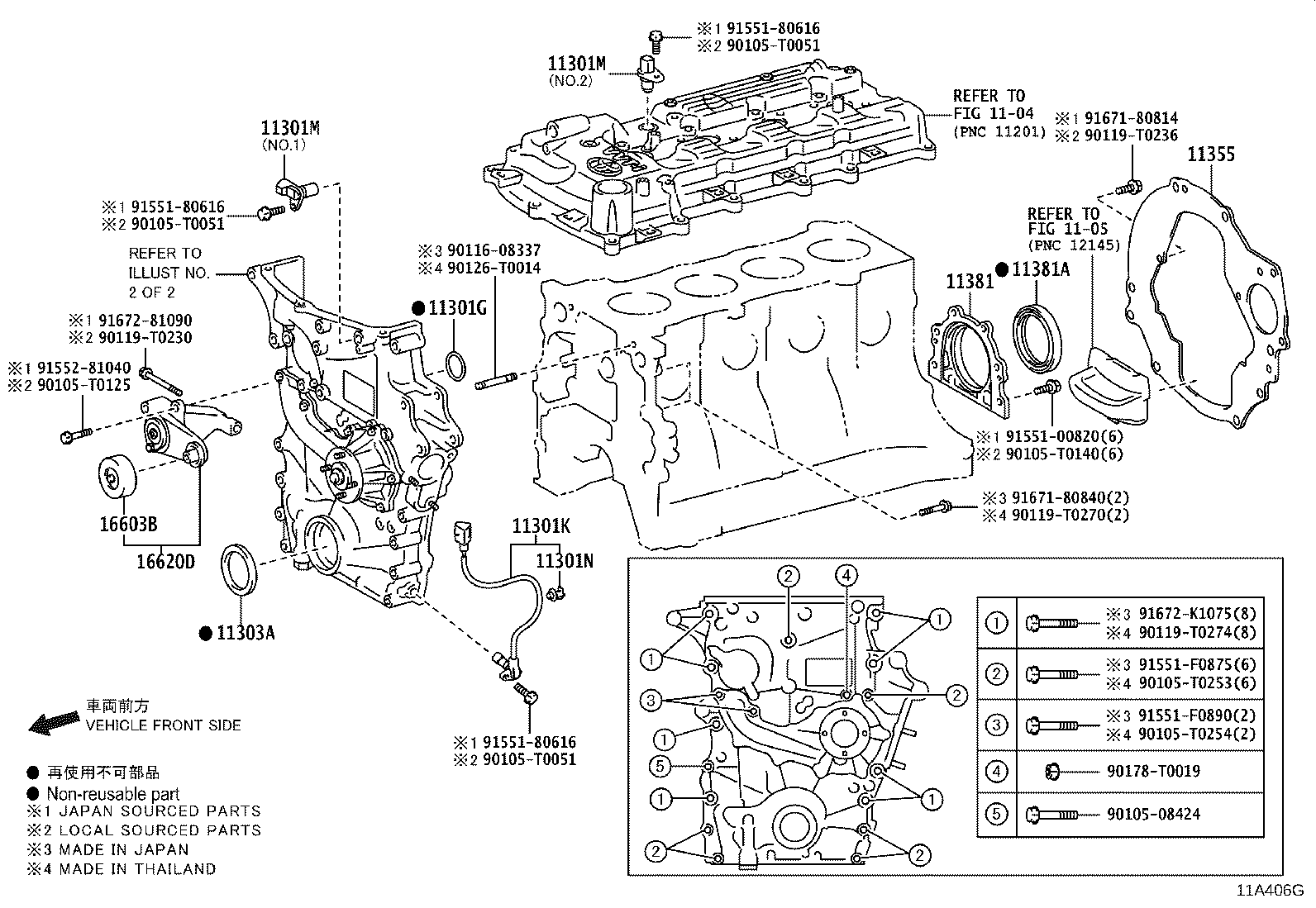

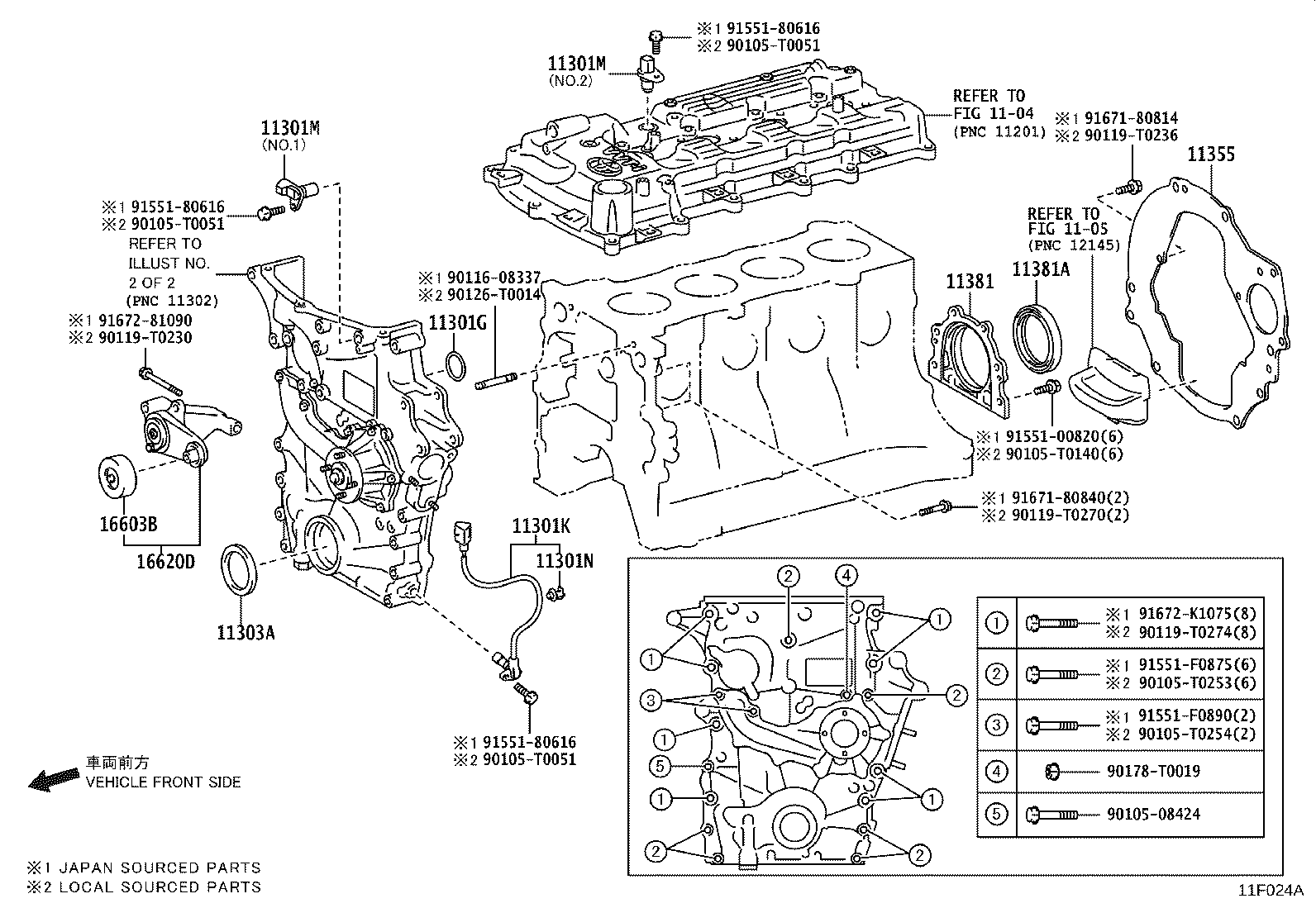

ILLUST NO. 1 OF 2(1507- )2TRFE

Click highlighted areas on diagram

diagram 1104 1105 11301G 11301K 11301M 11301M 11301N 11303A 11355 11381 11381A 16603B 16620D 9010508424 90105T0051 90105T0051 90105T0051 90105T0125 90105T0140 90105T0253 90105T0254 9011608337 90119T0230 90119T0236 90119T0270 90119T0274 90126T0014 90178T0019 9155100820 9155180616 9155180616 9155180616 91551F0875 91551F0890 9155281040 9167180814 9167180840 9167281090 91672K1075
Part # Description Qty Price
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-T0021

2TRFE..TGN156..L..GEN;2TRFE..TGN156,166..AGTSU..LA;2TRFE..TGN156..IDNSU..S..GCC;2TRFE..TGN166..(L,M)..(EPT,GEN,IDN,IND,SA);2TRFE..TGN156..IDNSU..6FC..(L,M)..(GCC,GEN);2TRFE..TGN156,168..(L,M,S)..(BZAGT,EPT,KZS,MA,PKN,SA,VN);2TRFE..TGN166..(AGTSU,IDNSU,INDSU,PKNSU)..6FC..(BZAGT,GCC,IND,PH,PKN,VN)

 1
90301-T0021

2TRFE..TGN156..H;2TRFE..TGN166..IDNSU..LA;2TRFE..TGN156..IDNSU..M..LA;2TRFE..TGN166..(H,S)..(GEN,SA);2TRFE..TGN156,166..IDNSU..5F..GCC;2TRFE..TGN156,166..THSUV..(GCC,TH);2TRFE..TGN156..IDNSU..6FC..(L,S)..(GEN,LA)

 1
90301-T0021

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
90301-T0021

2TRFE..TGN156..IDNSU..GCC;2TRFE..TGN156..BZAGT,EPT,GEN,KZS,LA,SA,VN;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV

MADE IN THAILAND

 1
90301-T0021

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

 1
90301-T0085

2TRFE..TGN156..IDNSU..GCC;2TRFE..TGN156..BZAGT,EPT,GEN,KZS,LA,SA,VN;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV

MADE IN INDONESIA

 1
11301K - SENSOR, CRANK POSITION
90919-05059

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
11301M - SENSOR, CAM POSITION
90919-05061

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.1

 1
11301M - SENSOR, CAM POSITION
90919-05061

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.1

 1
11301N - CLAMP
90469-07018

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-T0061

2TRFE..TGN156,166..THSUV..(GCC,TH)

*163:REFER TO ILL.

 1
90311-T0060

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*447:REFER TO ILL.

 1
90311-T0100

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163:REFER TO ILL.

 1
90311-T0099

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*447:REFER TO ILL.

 1
90311-T0100

2TRFE..TGN156,166..THSUV..(GCC,TH)

*163:REFER TO ILL.

 1
90311-T0100

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),*163:REFER TO ILL.

 1
90311-T0100

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163:REFER TO ILL.

 1
90311-T0061

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),*163:REFER TO ILL.

 1
90311-T0099

2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,LA,SA,VN);2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV

*447:REFER TO ILL.

 1
11355 - PLATE, REAR END
11355-75021

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163,(J)

 1
11355-0C020

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163,(L)

 1
11355-0C020

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),*163,(L)

 1
11355-75021

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),*163,(J)

 1
11355-0C010

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*447

 1
11355-75021

2TRFE..TGN156,166..THSUV..(GCC,TH)

*163,(J)

 1
11355-0C020

2TRFE..TGN156,166..THSUV..(GCC,TH)

*163,(L)

 1
11355-0C020

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163,(L)

 1
11355-75021

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163,(J)

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-0C022

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),*163

 1
11381-0C022

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163

 1
11381-0C022

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163

 1
11381-0C022

2TRFE..TGN156,166..THSUV..(GCC,TH)

*163

 1
11381A - SEAL, ENGINE REAR OIL
90311-T0059

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),*163

 1
90311-T0059

2TRFE..TGN156,166..THSUV..(GCC,TH)

*163

 1
90311-T0098

2TRFE..TGN156..S..KZS

WITHOUT(DESTINATION PACKAGE(ERP)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163

 1
90311-T0098

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*163

 1
90311-T0098

2TRFE..TGN156,166..THSUV..(GCC,TH)

*163

 1
90311-T0098

2TRFE..TGN156..S..KZS

AZERBAIJAN SPEC(EURO 4 REGULATION),*163

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-0C031

2TRFE..TGN166;2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

 1
16603-0C032

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
16603-0C030

2TRFE..TGN156,16#

 1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-0C031

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
16620-0C030

2TRFE..TGN156,16#

 1
Common parts
90105-08424
90105-T0051
90105-T0125
90105-T0140
90105-T0253
90105-T0254
90116-08337
90119-T0230
90119-T0236
90119-T0270
90119-T0274
90126-T0014
90178-T0019
91551-00820
91551-80616
91551-F0875
91551-F0890
91552-81040
91671-80814
91671-80840
91672-81090
91672-K1075
Linked diagrams
1104
1105

ILLUST NO. 2 OF 2(1507- )2TRFE

Click highlighted areas on diagram

diagram 11302 11324 11328 1501 1501 1501 1501 1601 1601 1601 1601 9155180616 9211280822 9211280822
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0C040

2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
Common parts
91551-80616
92112-80822
Linked diagrams
1501
1601

ILLUST NO. 1 OF 2(2006- )2TRFE

Click highlighted areas on diagram

diagram 1104 1105 11301G 11301K 11301M 11301M 11301N 11303A 11355 11381 11381A 16603B 16620D 9010508424 90105T0051 90105T0051 90105T0051 90105T0140 90105T0253 90105T0254 9011608337 90119T0230 90119T0236 90119T0270 90119T0274 90126T0014 90178T0019 9155100820 9155180616 9155180616 9155180616 91551F0875 91551F0890 9167180814 9167180840 9167281090 91672K1075
Part # Description Qty Price
Common parts
90105-08424
90105-T0051
90105-T0140
90105-T0253
90105-T0254
90116-08337
90119-T0230
90119-T0236
90119-T0270
90119-T0274
90126-T0014
90178-T0019
91551-00820
91551-80616
91551-F0875
91551-F0890
91671-80814
91671-80840
91672-81090
91672-K1075
Linked diagrams
1104
1105

ILLUST NO. 2 OF 2(2006- )2TRFE

Click highlighted areas on diagram

diagram 11302 11324 11328 1501 1501 1501 1501 1601 1601 1601 1601 9155180616 9211280822 9211280822
Part # Description Qty Price
Common parts
91551-80616
92112-80822
Linked diagrams
1501
1601
