TGN156L-SNTSKN (2020)

Toyota Fortuner

Production Sep 2020 - Sep 2021
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1507- )TGN156,16#

Click highlighted areas on diagram

COWL

diagram 89661 89661 89667 89667 89668 89668 90105T0066 90153T0001 90153T0001 90153T0001 90153T0001 90178T0018 90178T0018 9017906323 9017906323 9167380616
Part # Description Qty Price
Common parts
90105-T0066
90153-T0001
90178-T0018
90179-06323
91673-80616

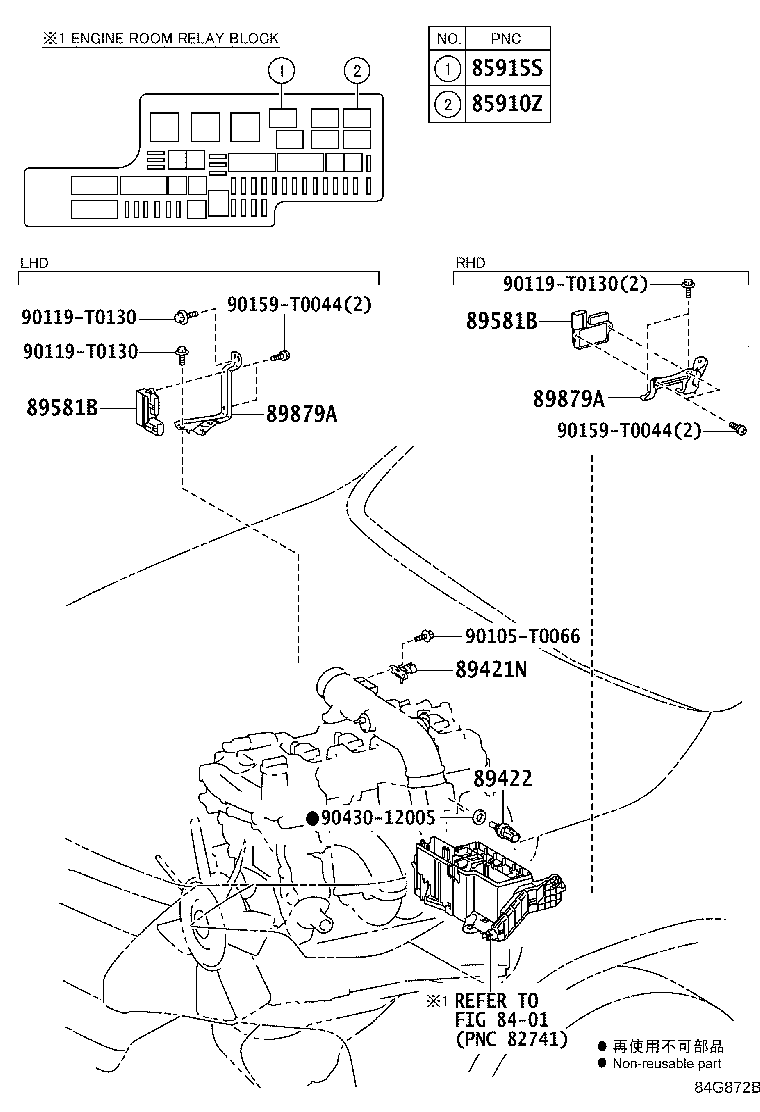

ILLUST NO. 1 OF 2(1507- )TGN156,16#

Click highlighted areas on diagram

ENGINE ROOM

diagram 8401 85910Z 85915S 89421N 89422 89581B 89581B 89879A 89879A 90105T0066 90119T0130 90119T0130 90119T0130 90159T0044 90159T0044 9043012005
Part # Description Qty Price
Common parts
90105-T0066
90119-T0130
90159-T0044
90430-12005
Linked diagrams
8401

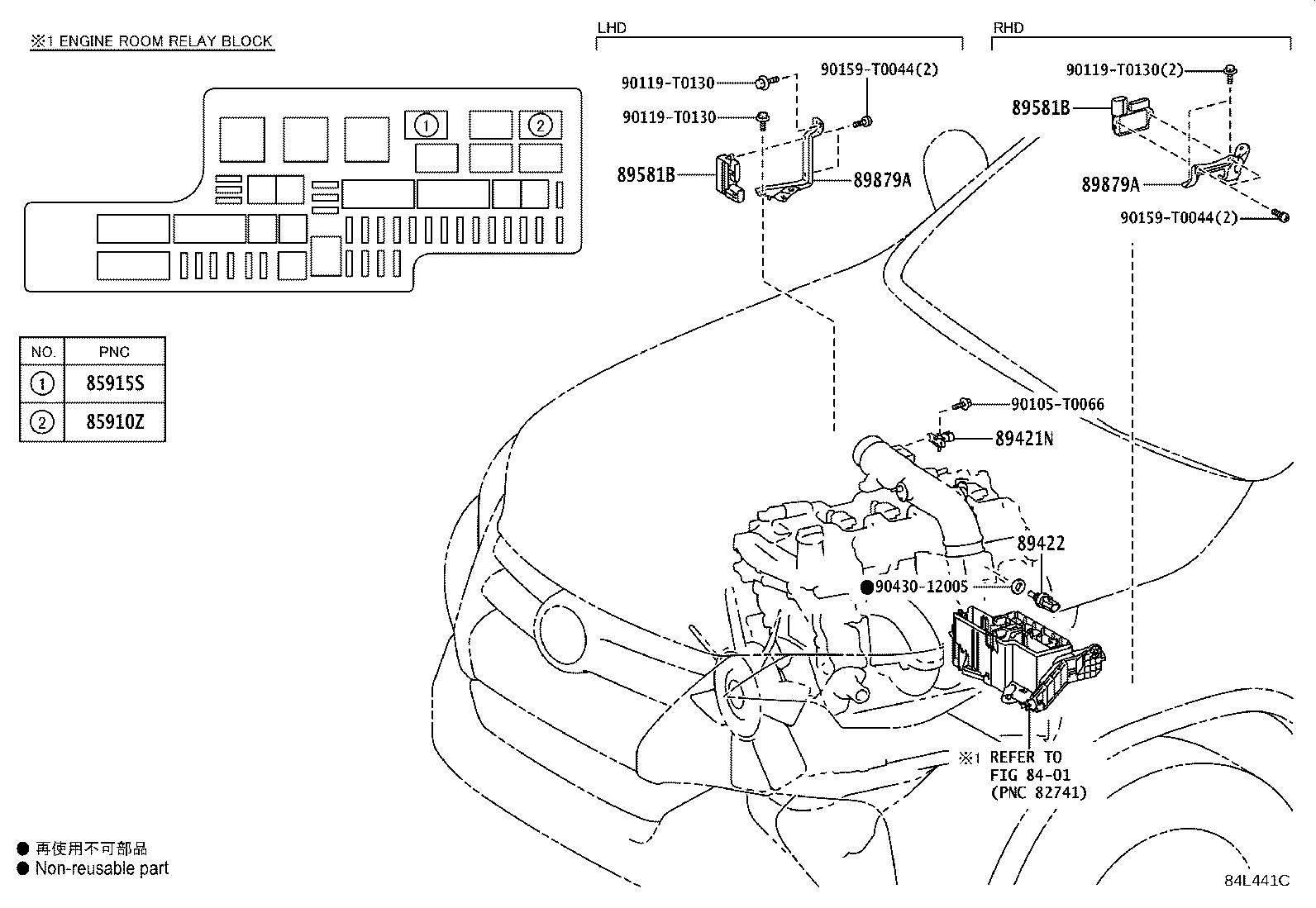

ILLUST NO. 1 OF 2(2006- )TGN156,16#

Click highlighted areas on diagram

ENGINE ROOM

diagram 8401 85910Z 85915S 89421N 89422 89581B 89581B 89879A 89879A 90105T0066 90119T0130 90119T0130 90119T0130 90159T0044 90159T0044 9043012005
Part # Description Qty Price
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027

TGN156,16#

(J)

 1
90987-T2001

TGN156,16#

(L)

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-T2001

GGN155,TGN156,16#

(L)

 1
90987-02027

GGN155,TGN156,16#

(J)

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

GGN155,TGN156,16#

 1
89879A - BRACKET, INJECTOR DRIVER
89589-0K040

TGN156..SA

EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
89589-0K020

TGN156..SA

EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
89879A - BRACKET, INJECTOR DRIVER
89589-0K040

TGN156..SA

EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),MADE IN INDONESIA

 1
89589-0K020

TGN156..SA

EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),MADE IN THAILAND

 1
Common parts
90105-T0066
90119-T0130
90159-T0044
90430-12005
Linked diagrams
8401

ILLUST NO. 2 OF 2(2006- )TGN156,16#

Click highlighted areas on diagram

COWL

diagram 89661 89661 89667 89667 89668 89668 90153T0001 90153T0001 90153T0001 90153T0001 90178T0018 90178T0018 9017906323 9017906323 90185T0001 90185T0001 9167380616 9167380616
Part # Description Qty Price
89661 - COMPUTER, ENGINE CONTROL
89661-F0K60

TGN156..SA

DENSO,NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),P/N LABEL=89661F0K60

 1
89661-F0K40

TGN156..SA

NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),P/N LABEL=89661F0K40

 1
89661-F0L90

TGN156..SA

DENSO,NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),P/N LABEL=89661F0L90

 1
89661-F0K70

TGN156..SA

DENSO,NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),P/N LABEL=89661F0K70

 1
89661 - COMPUTER, ENGINE CONTROL
89661-F0K60

TGN156..SA

DENSO,NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),P/N LABEL=89661F0K60

 1
89661-F0K40

TGN156..SA

NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),P/N LABEL=89661F0K40

 1
89661-F0L90

TGN156..SA

DENSO,NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),P/N LABEL=89661F0L90

 1
89661-F0K70

TGN156..SA

DENSO,NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS),P/N LABEL=89661F0K70

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0K090

GGN155,TGN156,16#..LHD

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0K090

GGN155,TGN156,16#..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K100

TGN156,16#..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K100

TGN156,16#..LHD

 1
Common parts
90153-T0001
90178-T0018
90179-06323
90185-T0001
91673-80616
