TGN156L-SNTSKN (2020)

Toyota Fortuner

Production Sep 2020 - Sep 2021
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(1107- )HTWC

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 2211 77251B 77254A 77255D 77261D 77285D 77285F 77285G 77286D 77289B 77740 77751 77754 77775 90105T0059 90105T0059 90182T0001 90466T0040 9046907011 9046907011 90469T0005 90469T0005
Part # Description Qty Price
Common parts
90105-T0059
90182-T0001
90466-T0040
90469-07011
90469-T0005
Linked diagrams
1708
2211

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 61668J 61668J 77035 77035 77306 77306 77350 77366 77377 77377 9026906017 90959T1001 90959T1001 90959T1001 90959T1001
Part # Description Qty Price
Common parts
90269-06017
90959-T1001

ILLUST NO. 1 OF 3(1507- )GGN155,165,TGN156,166

Click highlighted areas on diagram

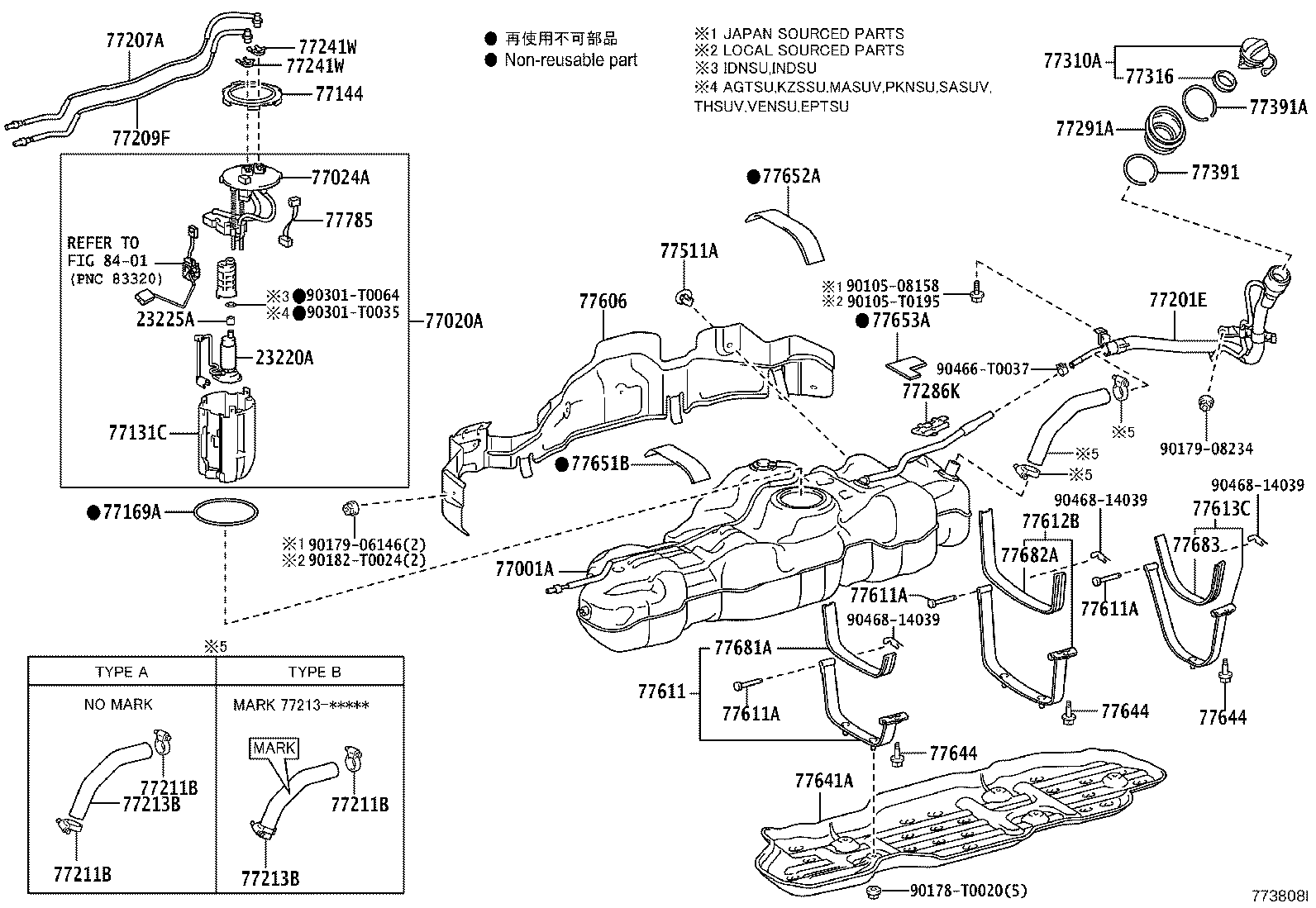

FUEL TANK

diagram 23220A 23225A 77001A 77020A 77024A 77131C 77144 77169A 77201E 77207A 77209F 77211B 77211B 77211B 77213B 77213B 77241W 77241W 77286K 77291A 77310A 77316 77391 77391A 77511A 77606 77611 77611A 77611A 77611A 77612B 77613C 77641A 77644 77644 77644 77651B 77652A 77653A 77681A 77682A 77683 77785 8401 9010508158 90105T0195 90178T0020 9017906146 9017908234 90182T0024 90301T0035 90301T0064 90466T0037 9046814039 9046814039 9046814039
Part # Description Qty Price
Common parts
90105-08158
90105-T0195
90178-T0020
90179-06146
90179-08234
90182-T0024
90301-T0035
90301-T0064
90466-T0037
90468-14039
Linked diagrams
8401

ILLUST NO. 2 OF 3(1507- )GGN155,165,TGN156,166

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 1708 2211 2211 2211 2211 77249 77251B 77255D 77261D 77285D 77285F 77285R 77286D 77289B 77704 77751 77754B 77775 90105T0059 90182T0026 90466T0039 9046907011 9046907011 90469T0005 90469T0005 9167380616 9613241000 9613251000
Part # Description Qty Price
Common parts
90105-T0059
90182-T0026
90466-T0039
90469-07011
90469-T0005
91673-80616
96132-41000
96132-51000
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(1507- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 77035 77035 77306 77306 77350 77360A 77377 77377 9026906017 9054106069 90959T1001 90959T1001 90959T1001 90959T1001
Part # Description Qty Price
Common parts
90269-06017
90541-06069
90959-T1001

ILLUST NO. 1 OF 3(2006- )GGN155,TGN156,166

Click highlighted areas on diagram

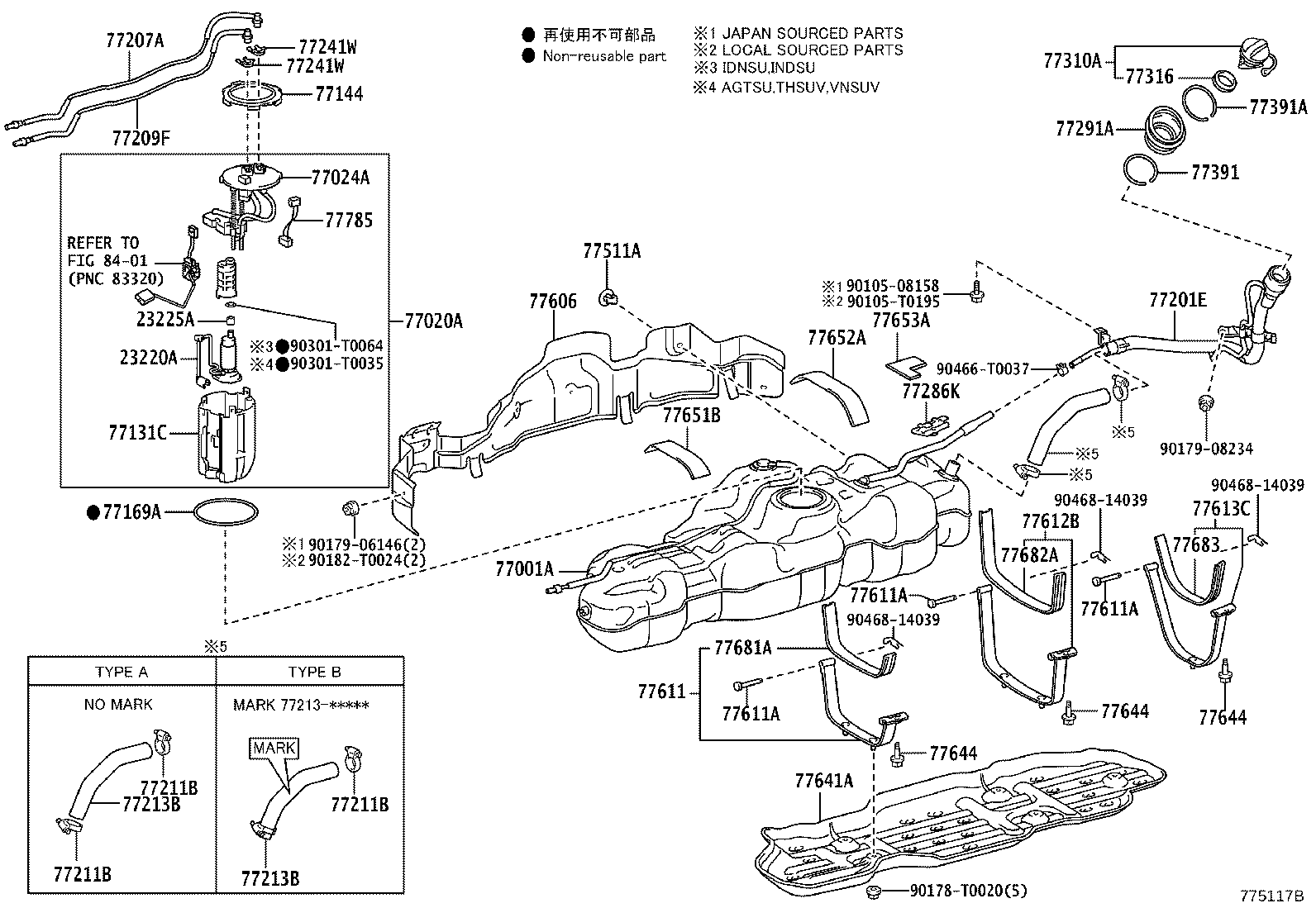

FUEL TANK

diagram 23220A 23225A 77001A 77020A 77024A 77131C 77144 77169A 77201E 77207A 77209F 77211B 77211B 77211B 77213B 77213B 77241W 77241W 77286K 77291A 77310A 77316 77391 77391A 77511A 77606 77611 77611A 77611A 77611A 77612B 77613C 77641A 77644 77644 77644 77651B 77652A 77653A 77681A 77682A 77683 77785 8401 9010508158 90105T0195 90178T0020 9017906146 9017908234 90182T0024 90301T0035 90301T0064 90466T0037 9046814039 9046814039 9046814039
Part # Description Qty Price
23220A - PUMP ASSY, FUEL W/FILTER
23220-0C201

2TRFE..TGN156,166..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
23225A - SPACER, FUEL PUMP
23225-0V030

1GRFE,2TRFE..GGN155,TGN156,166

 1
77001A - TANK SUB-ASSY, FUEL
77001-0K730

TGN156..SA

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0K470

TGN156,166..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-0K220

GGN155,TGN156,166..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
77131C - SUB-TANK, FUEL, NO.1
77131-0K100

GGN155,TGN156,166..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-0K040

GGN155,GUN15#,16#,LAN155,TGN156,166

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0K030

GGN155,TGN156,16#

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-KK160

GGN155..EPT,GCC;TGN156,166..6FC..(EPT,GCC,GEN,PKN,SA)

 1
77207A - TUBE SUB-ASSY, FUEL RETURN
77204-0K090

GGN155,TGN156,16#

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0K150

GGN155,TGN156,16#

 1
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-46005

GGN155,GUN166,LAN155..EPT,GCC,IND,PH,SA,TH;TGN166..(EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..6FC;GUN15#,165,TGN156..(IDNSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..(6F,6FC)

TYPE B:REFER ILLUST.

 1
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-46005

GGN155,GUN166,LAN155..EPT,GCC,IND,PH,SA,TH;TGN166..(EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..6FC;GUN15#,165,TGN156..(IDNSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..(6F,6FC)

TYPE B:REFER ILLUST.

 1
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-46005

GGN155,GUN166,LAN155..EPT,GCC,IND,PH,SA,TH;TGN166..(EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..6FC;GUN15#,165,TGN156..(IDNSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..(6F,6FC)

TYPE B:REFER ILLUST.

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-KK020

GGN155,GUN15#,16#,LAN155,TGN156,16#

TYPE A:REFER ILLUST.

 1
77213-KK051

GGN155,GUN15#,16#,LAN155,TGN156,16#

TYPE B:REFER ILLUST.

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-KK020

GGN155,GUN15#,16#,LAN155,TGN156,16#

TYPE A:REFER ILLUST.

 1
77213-KK051

GGN155,GUN15#,16#,LAN155,TGN156,16#

TYPE B:REFER ILLUST.

 1
77241W - CLIP, TUBE JOINT
77241-0K010

GGN155,TGN156,16#

 2
77241W - CLIP, TUBE JOINT
77241-0K010

GGN155,TGN156,16#

 2
77286K - CLAMP, FUEL TUBE, NO.2
77286-0K180

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0K110

GGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,SASUV,THSUV

 1
77310A - CAP ASSY, FUEL TANK
77300-0K010

GGN155,TGN156,16#

 1
77316 - GASKET, FUEL TANK CAP
77316-0K020

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77391 - RING, FUEL INLET BOX
77391-0K010

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77391A - RING, FUEL INLET BOX
77391-0K110

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77511A - BRACKET, FUEL TANK
77644-0K010

TGN166..AGTSU,EPTSU,PKNSU,THSUV,VNSUV;GGN155,GUN15#,16#,LAN155,TGN156,168..AGTSU,EPTSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 4
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-0K080

TGN166..AGTSU,EPTSU,PKNSU,THSUV,VNSUV;GGN155,GUN15#,16#,LAN155,TGN156,168..AGTSU,EPTSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
77611 - BAND, FUEL TANK
77601-KK060

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-0K041

GGN155,GUN15#,16#,LAN155,TGN156,16#

 3
77611A - PIN (FOR FUEL TANK BAND)
77653-0K041

GGN155,GUN15#,16#,LAN155,TGN156,16#

 3
77611A - PIN (FOR FUEL TANK BAND)
77653-0K041

GGN155,GUN15#,16#,LAN155,TGN156,16#

 3
77612B - BAND, FUEL TANK, NO.2
77602-KK040

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77613C - BAND, FUEL TANK, NO.3
77603-KK020

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-KK040

GUN15#,16#,LAN155,TGN156,166..IND,SA

 1
77644 - BOLT, FUEL TANK
77644-35030

GGN155,GUN15#,16#,LAN155,TGN156,16#

 3
77644 - BOLT, FUEL TANK
77644-35030

GGN155,GUN15#,16#,LAN155,TGN156,16#

 3
77644 - BOLT, FUEL TANK
77644-35030

GGN155,GUN15#,16#,LAN155,TGN156,16#

 3
77651B - CUSHION, FUEL TANK
77651-0K060

GGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-0K070

GGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
77653A - CUSHION, FUEL TANK, NO.3
77653-0K120

GGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
77681A - SEAT, FUEL TANK BAND
77681-KK030

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77682A - SEAT, FUEL TANK BAND, NO.2
77682-KK020

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77683 - SEAT, FUEL TANK BAND, NO.3
77683-KK020

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77785 - HARNESS, FUEL PUMP
77785-0K070

GGN155,TGN156,166..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
Common parts
90105-08158
90105-T0195
90178-T0020
90179-06146
90179-08234
90182-T0024
90301-T0035
90301-T0064
90466-T0037
90468-14039
Linked diagrams
8401

ILLUST NO. 2 OF 3(2006- )GGN155,TGN156,166

Click highlighted areas on diagram

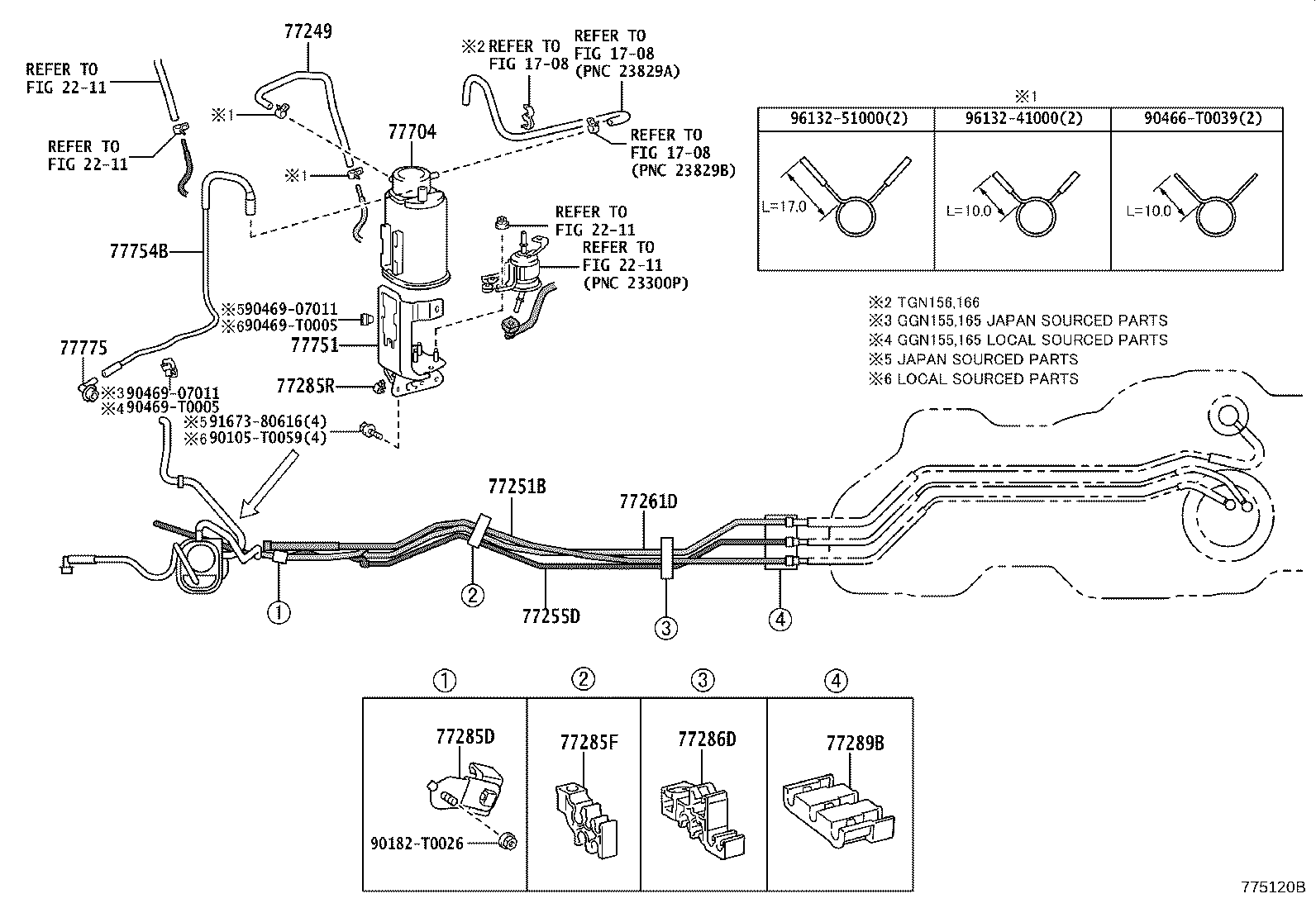

FUEL TUBE

diagram 1708 1708 1708 2211 2211 2211 2211 77249 77251B 77255D 77261D 77285D 77285F 77285R 77286D 77289B 77704 77751 77754B 77775 90105T0059 90182T0026 90466T0039 9046907011 9046907011 90469T0005 90469T0005 9167380616 9613241000 9613251000
Part # Description Qty Price
77249 - HOSE, FUEL EMISSION
77249-KK010

TGN156,166

 1
77251B - TUBE, FUEL MAIN
77205-KK050

GGN155,TGN156,166

 1
77255D - TUBE, FUEL RETURN
77255-KK100

GGN155,TGN156,16#

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-KK010

GGN155,TGN156,16#

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-0K130

GGN155,TGN156,16#

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-0K230

TGN166;GGN155,GUN15#,16#,LAN155,TGN156,168..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
77285R - CLAMP, FUEL TUBE, NO.1
77285-0K340

GGN155,TGN156,16#

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-0K170

TGN166;GGN155,GUN15#,16#,LAN155,TGN156,168..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-0K040

GGN155,TGN156,16#

 1
77704 - CANISTER SUB-ASSY, CHARCOAL
77704-0K010

GGN155,TGN156,16#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-KK010

GGN155,TGN156,16#

 1
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-0K010

GGN155,TGN156,16#

 1
77775 - GUIDE, CHARCOAL CANISTER OUTLET
77775-0K010

GGN155,TGN156,16#

 1
Common parts
90105-T0059
90182-T0026
90466-T0039
90469-07011
90469-T0005
91673-80616
96132-41000
96132-51000
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(2006- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 77035 77035 77306 77306 77350 77360A 77377 77377 9026906017 9054106069 90959T1001 90959T1001 90959T1001
Part # Description Qty Price
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0K410

GGN155,GUN15#,165,LAN155,TGN156,16#..LHD..(AGTSU,EPTSU,SASUV,THSUV)

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0K410

GGN155,GUN15#,165,LAN155,TGN156,16#..LHD..(AGTSU,EPTSU,SASUV,THSUV)

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0K110

GUN15#,16#,LAN155,TGN156..SA

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0K110

GUN15#,16#,LAN155,TGN156..SA

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-KK080

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77360A - SPRING ASSY, FUEL FILLER OPENING LID
77360-0K010

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-0K050

GUN15#,16#,LAN155,TGN156..SA

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-0K050

GUN15#,16#,LAN155,TGN156..SA

 1
Common parts
90269-06017
90541-06069
90959-T1001
