TGN156L-SGTSKG (2015)
Toyota Fortuner
ILLUST NO. 2 OF 2(1512- )2TRFE..TGN156..M..GEN ; (1512- )2TRFE..TGN156,168..6FC..BZAGT,LA,SA ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0C061 |
2TRFE..TGN156,168..BZAGT,EPT,GCC,GEN,LA,SA,VN;2TRFE..TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA,TH,VN MADE IN THAILAND |
1 | ||
| 16261-0C051 |
2TRFE..TGN156,168..BZAGT,EPT,GCC,GEN,LA,SA,VN;2TRFE..TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA,TH,VN MADE IN INDONESIA |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0C071 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA,TH,VN MADE IN INDONESIA |
1 | ||
| 16264-0C081 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA,TH,VN MADE IN THAILAND |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75140 |
2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA) (L) |
1 | ||
| 16268-0C030 |
2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA) (J) |
1 | ||
| 16268-75141 |
2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA) (L) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75021 |
2TRFE..TGN156,16# |
1 | ||
| 16258-75021 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 16258-0C010 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0C011 |
2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA) |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-0C010 |
2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA) |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-75030 |
2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA) |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-52101 |
2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA) |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-75040 |
2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0C010 |
2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,LA,SA,VN);2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV *447 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0C021 |
2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,INDSU,SASUV;2TRFE..TGN156..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV)..6FC (L) |
1 | ||
| 16325-0C040 |
2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,LA,SA,VN);2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV (L),MADE IN IDN |
1 | ||
| 16325-75011 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-0C030 |
2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,LA,SA,VN);2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV (L) |
1 | ||
| 16325-76010 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
2TRFE..TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0415 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90178-T0030 | ||||
| 90179-08087 | ||||
| 90466-T0017 | ||||
| 91551-00825 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1503 | ||||
| 8716 | ||||

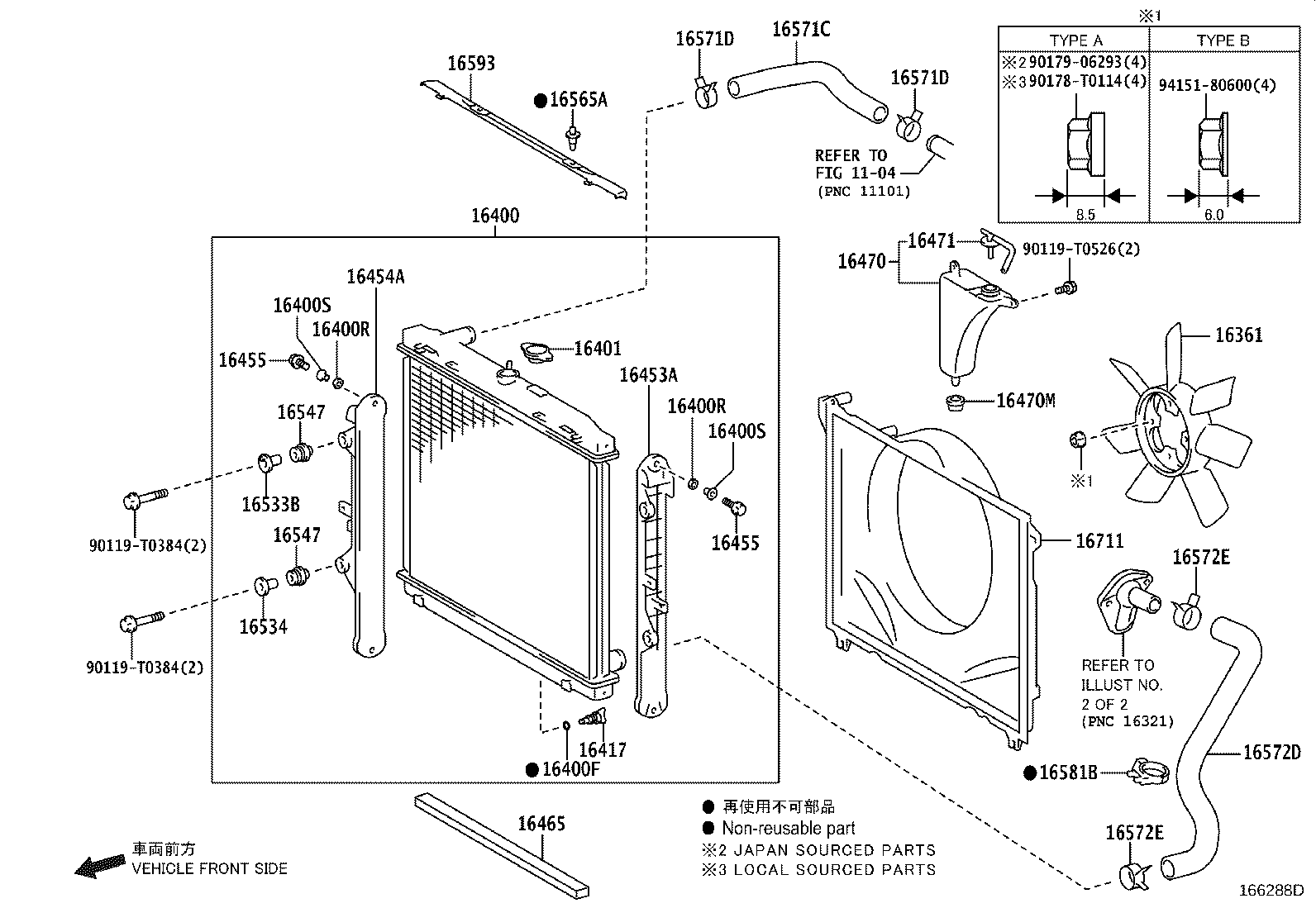

ILLUST NO. 1 OF 2(1512- )2TRFE..AGTSU,IDNSU,MASUV,SASUV,VNSUV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0C011 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0C440 |
2TRFE..TGN156,166..AGTSU |
1 | ||
| 16400-0C441 |
2TRFE..TGN156,16#..AGTSU..6FC |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2TRFE..TGN156,16#..AGTSU,IDNSU,MASUV |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
2TRFE..TGN156,16#..AGTSU |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
2TRFE..TGN156,16#..AGTSU |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN166..IDNSU..GCC;2TRFE..TGN156..(AGTSU,IDNSU)..6FC;2TRFE..TGN16#..(AGTSU,IDNSU,THSUV)..(BZAGT,GEN,IDN,LA,PH,TH,VN) |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN166..IDNSU..GCC;2TRFE..TGN156..(AGTSU,IDNSU)..6FC;2TRFE..TGN16#..(AGTSU,IDNSU,THSUV)..(BZAGT,GEN,IDN,LA,PH,TH,VN) |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0C030 |
2TRFE..TGN156,166 |
1 | ||
| 16401-0C050 |
2TRFE..TGN168;2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..(AGTSU,IDNSU)..6FC..L;2TRFE..TGN166..(AGTSU,IDNSU,SASUV)..L;2TRFE..TGN156..(H,M,S)..(BZAGT,GCC,GEN,LA,SA,VN);2TRFE..TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA,VN) (L) |
1 | ||
| 16417 - COCK | ||||
| 16417-21280 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16453A - PLATE, RADIATOR SIDE SUPPORT, RH | ||||
| 16453-0L380 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16454A - PLATE, RADIATOR SIDE SUPPORT, LH | ||||
| 16454-0L380 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,THSUV,VNSUV |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,THSUV,VNSUV |
4 | ||
| 16465 - PACKING, RADIATOR | ||||
| 88619-0K020 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0C130 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0003 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0C110 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-0L010 |
2TRFE..TGN166..S..SA;2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV |
2 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-0L010 |
2TRFE..TGN166..S..SA;2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-0L010 |
2TRFE..TGN166..S..SA;2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV |
4 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-0L010 |
2TRFE..TGN166..S..SA;2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV |
4 | ||
| 16565A - CLIP | ||||
| 90467-T0027C0 |
2TRFE..TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV BLACK |
4 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0C170 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16571-0C160 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
2TRFE..TGN156,16# |
2 | ||
| 90466-T0067 |
2TRFE..TGN156,16# |
2 | ||
| 90466-T0028 |
2TRFE..TGN156,16#..AGTSU..L;2TRFE..TGN156..(H,S)..(BZAGT,GEN,KZS,SA);2TRFE..TGN166..(AGTSU,IDNSU)..(BZAGT,PH,VN);2TRFE..TGN156,166..(EPTSU,IDNSU,SASUV,THSUV)..(H,L,M) |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
2TRFE..TGN156,16# |
2 | ||
| 90466-T0067 |
2TRFE..TGN156,16# |
2 | ||
| 90466-T0028 |
2TRFE..TGN156,16#..AGTSU..L;2TRFE..TGN156..(H,S)..(BZAGT,GEN,KZS,SA);2TRFE..TGN166..(AGTSU,IDNSU)..(BZAGT,PH,VN);2TRFE..TGN156,166..(EPTSU,IDNSU,SASUV,THSUV)..(H,L,M) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0C170 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16572-0C160 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0028 |
2TRFE..TGN156,16#..AGTSU..L;2TRFE..TGN156..(H,S)..(BZAGT,GEN,KZS,SA);2TRFE..TGN166..(AGTSU,IDNSU)..(BZAGT,PH,VN);2TRFE..TGN156,166..(EPTSU,IDNSU,SASUV,THSUV)..(H,L,M) |
2 | ||
| 90466-T0028 |
2TRFE..TGN156,16# |
2 | ||
| 90466-T0067 |
2TRFE..TGN156,16# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0028 |
2TRFE..TGN156,16#..AGTSU..L;2TRFE..TGN156..(H,S)..(BZAGT,GEN,KZS,SA);2TRFE..TGN166..(AGTSU,IDNSU)..(BZAGT,PH,VN);2TRFE..TGN156,166..(EPTSU,IDNSU,SASUV,THSUV)..(H,L,M) |
2 | ||
| 90466-T0028 |
2TRFE..TGN156,16# |
2 | ||
| 90466-T0067 |
2TRFE..TGN156,16# |
2 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-0C010 |
2TRFE..TGN156,168..AGTSU,EPTSU,SASUV,THSUV;2TRFE..TGN166..AGTSU,EPTSU,PKNSU,SASUV,THSUV |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-0L020 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C200 |
2TRFE..TGN156,16#..AGTSU |
1 | ||
| Common parts | ||||
| 90119-T0384 | ||||
| 90119-T0526 | ||||
| 90178-T0114 | ||||
| 90179-06293 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
ILLUST NO. 2 OF 2(2006- )2TRFE..BZAGT,EPT,GCC,GEN,IND,LA,MA,PKN,SA,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0415 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90178-T0030 | ||||
| 90179-08087 | ||||
| 90466-T0017 | ||||
| 91551-00825 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1503 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(2006- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0384 | ||||
| 90119-T0526 | ||||
| 90119-T0610 | ||||
| 90178-T0114 | ||||
| 90179-06293 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
