LAN50R-NKMSEN (2006)
Toyota Fortuner

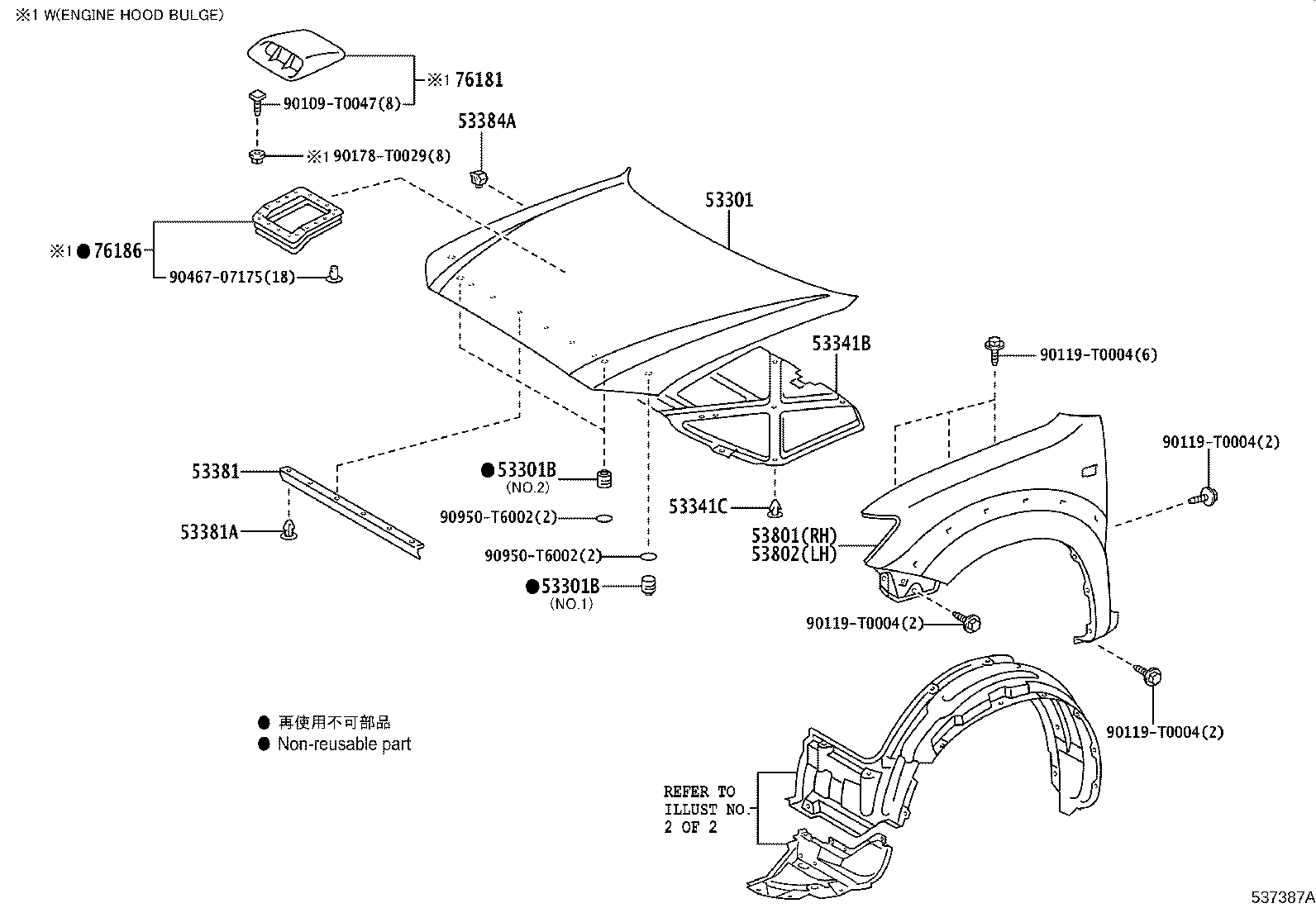

ILLUST NO. 1 OF 2(0608-0808)GCC,GEN,IDN,PHL,TH ; (0609-0809)MA ;(0610-0810)SA ; (0612-0812)GGN60..A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0K010 |
GGN50,60,KUN50,60,LAN50,TGN51,61 |
1 | ||
| 53301-0K011 |
GGN60..SUVW..5FC;GGN50,KUN50..RHD..(4FC,5FC);KUN60,LAN50,TGN51..GCC,IDN,MA,PHL,SA,VN;GGN50,TGN61..ANCOM,GCC,GEN,IDN,LA,PHL,TH |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) (J),NO.1 |
2 | ||
| 90541-15019 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..GCC,IDN,MA,PHL,SA,TH NO.1 |
2 | ||
| 90541-15024 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) NO.2 |
2 | ||
| 90541-T0006 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) (L),NO.1 |
2 | ||
| 90541-15019 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) (J),NO.1 |
2 | ||
| 90541-15024 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) NO.2 |
2 | ||
| 90541-T0006 |
GGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN (L),NO.1 |
2 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) (J),NO.1 |
2 | ||
| 90541-15019 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..GCC,IDN,MA,PHL,SA,TH NO.1 |
2 | ||
| 90541-15024 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) NO.2 |
2 | ||
| 90541-T0006 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) (L),NO.1 |
2 | ||
| 90541-15019 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) (J),NO.1 |
2 | ||
| 90541-15024 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) NO.2 |
2 | ||
| 90541-T0006 |
GGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN (L),NO.1 |
2 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-T0014 |
KUN51,61,LAN50;GGN60..SUVW..5FC;GGN50,KUN60..ANCOM,LA,TH,VN;GGN50,KUN50,60..RHD..(4FC,5FC) |
15 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-0K010 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 53381-0K010 |
GGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-T0013 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
6 | ||
| 90467-T0013 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
6 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 53384-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 53811-0K020 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 53812-0K020 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| Common parts | ||||
| 90109-T0047 | ||||
| 90119-T0004 | ||||
| 90178-T0029 | ||||
| 90467-07175 | ||||
| 90950-T6002 | ||||

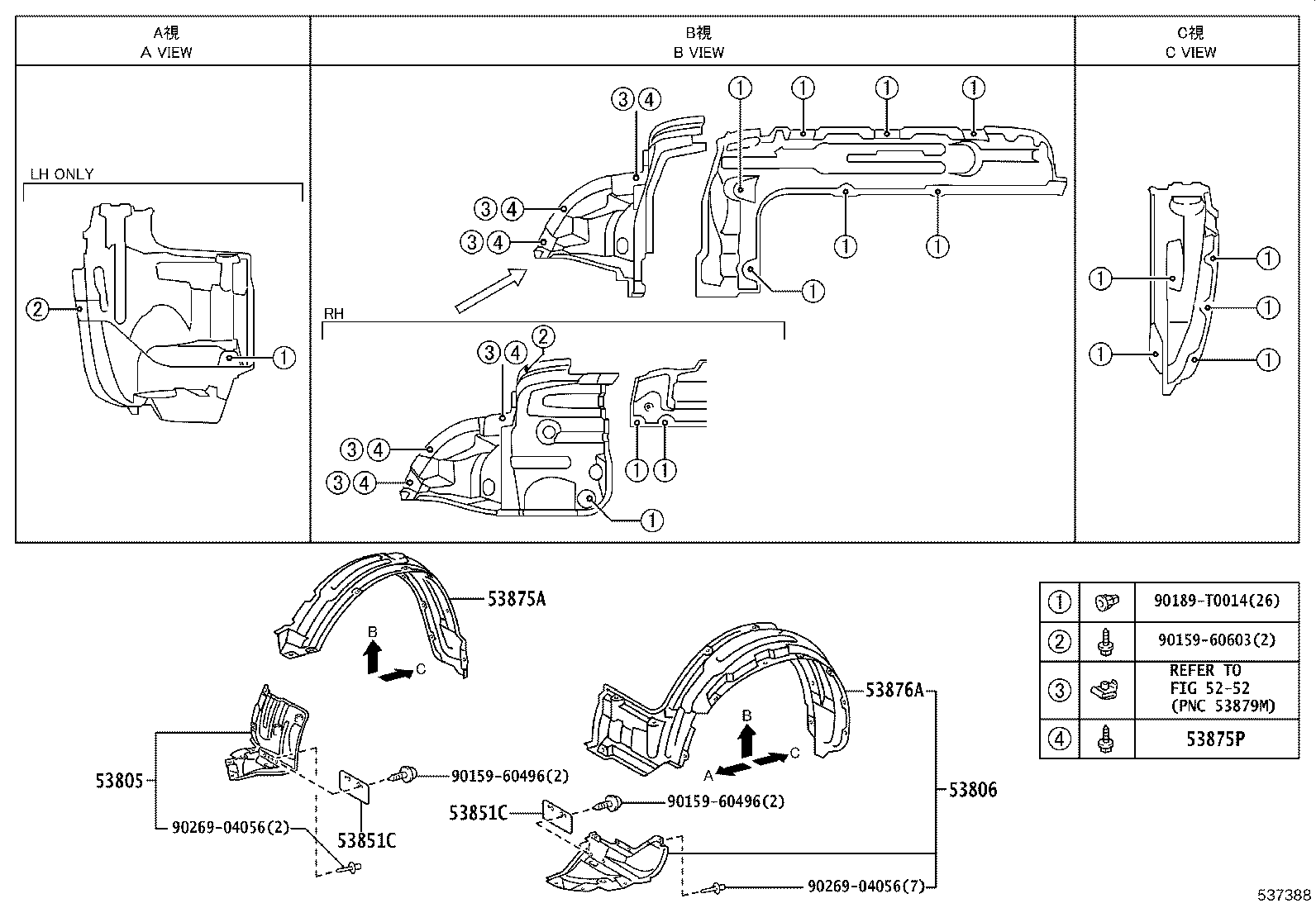

ILLUST NO. 2 OF 2(0608-0808)GCC,GEN,IDN,PHL,TH ; (0609-0809)MA ;(0610-0810)SA ; (0612-0812)GGN60..A
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-0K070 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-0K070 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-0K020 |
GGN50,60,KUN51,61,LAN50,TGN51..SA |
1 | ||
| Common parts | ||||
| 90159-60496 | ||||
| 90159-60603 | ||||
| 90189-T0014 | ||||
| 90269-04056 | ||||
| Linked diagrams | ||||
| 5252 | ||||
ILLUST NO. 1 OF 2(0808- )GCC,GEN,IDN,IND,PHL,TH ; (0809- )MA ; (0810- )LA,SA ; (0812- )G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0K010 |
GGN50,60,KUN50,60,LAN50,TGN51,61 |
1 | ||
| 53301-0K011 |
GGN60..SUVW..5FC;GGN50,KUN50..RHD..(4FC,5FC);KUN60,LAN50,TGN51..GCC,IDN,MA,PHL,SA,VN;GGN50,TGN61..ANCOM,GCC,GEN,IDN,LA,PHL,TH |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) (J),NO.1 |
2 | ||
| 90541-15019 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..GCC,IDN,MA,PHL,SA,TH NO.1 |
2 | ||
| 90541-15024 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) NO.2 |
2 | ||
| 90541-T0006 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) (L),NO.1 |
2 | ||
| 90541-15019 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) (J),NO.1 |
2 | ||
| 90541-15024 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) NO.2 |
2 | ||
| 90541-T0006 |
GGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN (L),NO.1 |
2 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) (J),NO.1 |
2 | ||
| 90541-15019 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..GCC,IDN,MA,PHL,SA,TH NO.1 |
2 | ||
| 90541-15024 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) NO.2 |
2 | ||
| 90541-T0006 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) (L),NO.1 |
2 | ||
| 90541-15019 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) (J),NO.1 |
2 | ||
| 90541-15024 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) NO.2 |
2 | ||
| 90541-T0006 |
GGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN (L),NO.1 |
2 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-T0014 |
KUN51,61,LAN50;GGN60..SUVW..5FC;GGN50,KUN60..ANCOM,LA,TH,VN;GGN50,KUN50,60..RHD..(4FC,5FC) |
15 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-0K010 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 53381-0K010 |
GGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-T0013 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
6 | ||
| 90467-T0013 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
6 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 53384-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 53811-0K020 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 53812-0K020 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| Common parts | ||||
| 90109-T0047 | ||||
| 90119-T0004 | ||||
| 90178-T0029 | ||||
| 90467-07175 | ||||
| 90950-06124 | ||||
| 90950-T6002 | ||||
ILLUST NO. 2 OF 2(0808- )GCC,GEN,IDN,IND,PHL,TH ; (0809- )MA ; (0810- )LA,SA ; (0812- )G
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-0K070 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-0K070 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| Common parts | ||||
| 90159-60496 | ||||
| 90159-60603 | ||||
| 90189-T0014 | ||||
| 90269-04056 | ||||
| Linked diagrams | ||||
| 5252 | ||||
ILLUST NO. 2 OF 2(0808- )GCC,GEN,IDN,IND,PHL,TH ; (0809- )MA ; (0810- )LA,SA ; (0812- )G
FENDER LINER(SEPARATE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-0K070 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-0K070 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-0K020 |
GGN50,60,KUN51,61,LAN50,TGN51..SA |
1 | ||
| Common parts | ||||
| 90159-60496 | ||||
| 90159-60603 | ||||
| 90189-T0014 | ||||
| 90269-04056 | ||||
| Linked diagrams | ||||
| 5252 | ||||
