LAN50L-NKMSEN (2006)

Toyota Fortuner

Production May 2006 - Oct 2008
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )5LE

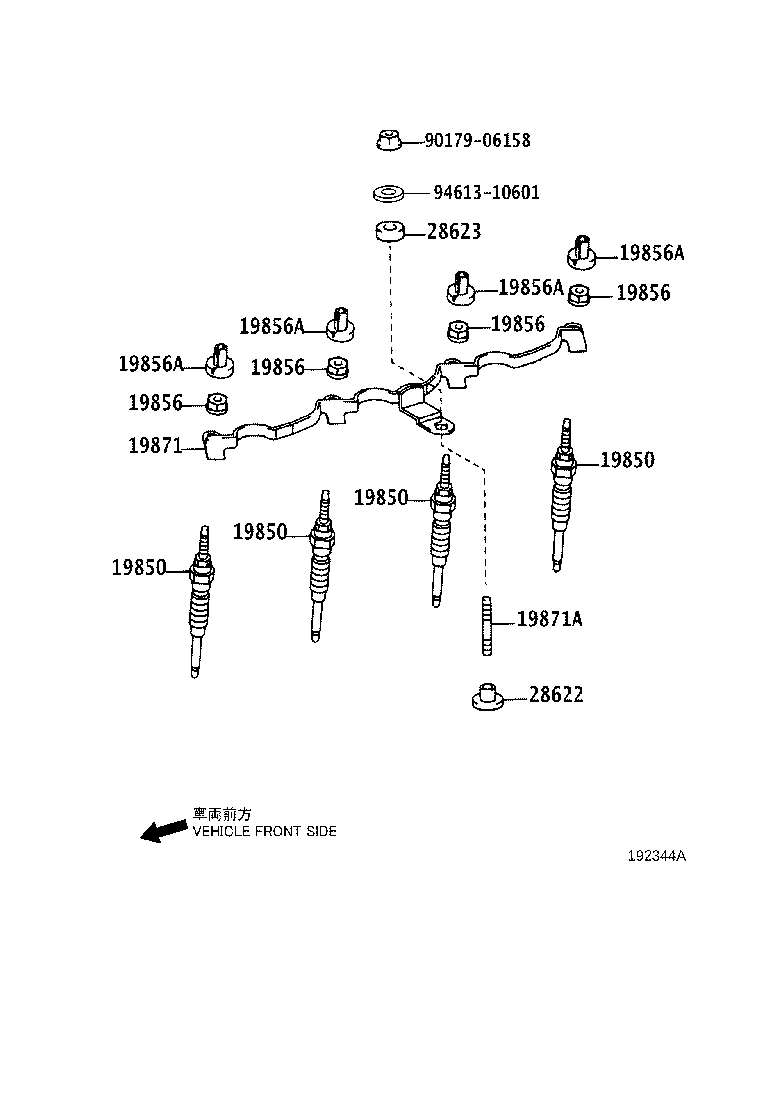

Click highlighted areas on diagram

diagram 19850 19850 19850 19850 19856 19856 19856 19856 19856A 19856A 19856A 19856A 19871 19871A 28622 28623 9017906158 9461310601
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-54140

5LE..LAN50

*BV-GV=12V-11V

 4
19850 - PLUG ASSY, GLOW
19850-54140

5LE..LAN50

*BV-GV=12V-11V

 4
19850 - PLUG ASSY, GLOW
19850-54140

5LE..LAN50

*BV-GV=12V-11V

 4
19850 - PLUG ASSY, GLOW
19850-54140

5LE..LAN50

*BV-GV=12V-11V

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

5LE..LAN50

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

5LE..LAN50

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

5LE..LAN50

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

5LE..LAN50

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

5LE..LAN50

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

5LE..LAN50

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

5LE..LAN50

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

5LE..LAN50

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-54020

5LE..LAN50

 1
19871A - BOLT, STUD(FOR INTAKE MANIFOLD TO GLOW PLUG CONNECTOR N
90116-06095

5LE..LAN50

 1
28622 - INSULATOR, GLOW PLUG RESISTOR, NO.1
28622-57010

5LE..LAN50

 1
28623 - INSULATOR, GLOW PLUG RESISTOR, NO.2
28623-54010

5LE..LAN50

 1
Common parts
90179-06158
94613-10601
