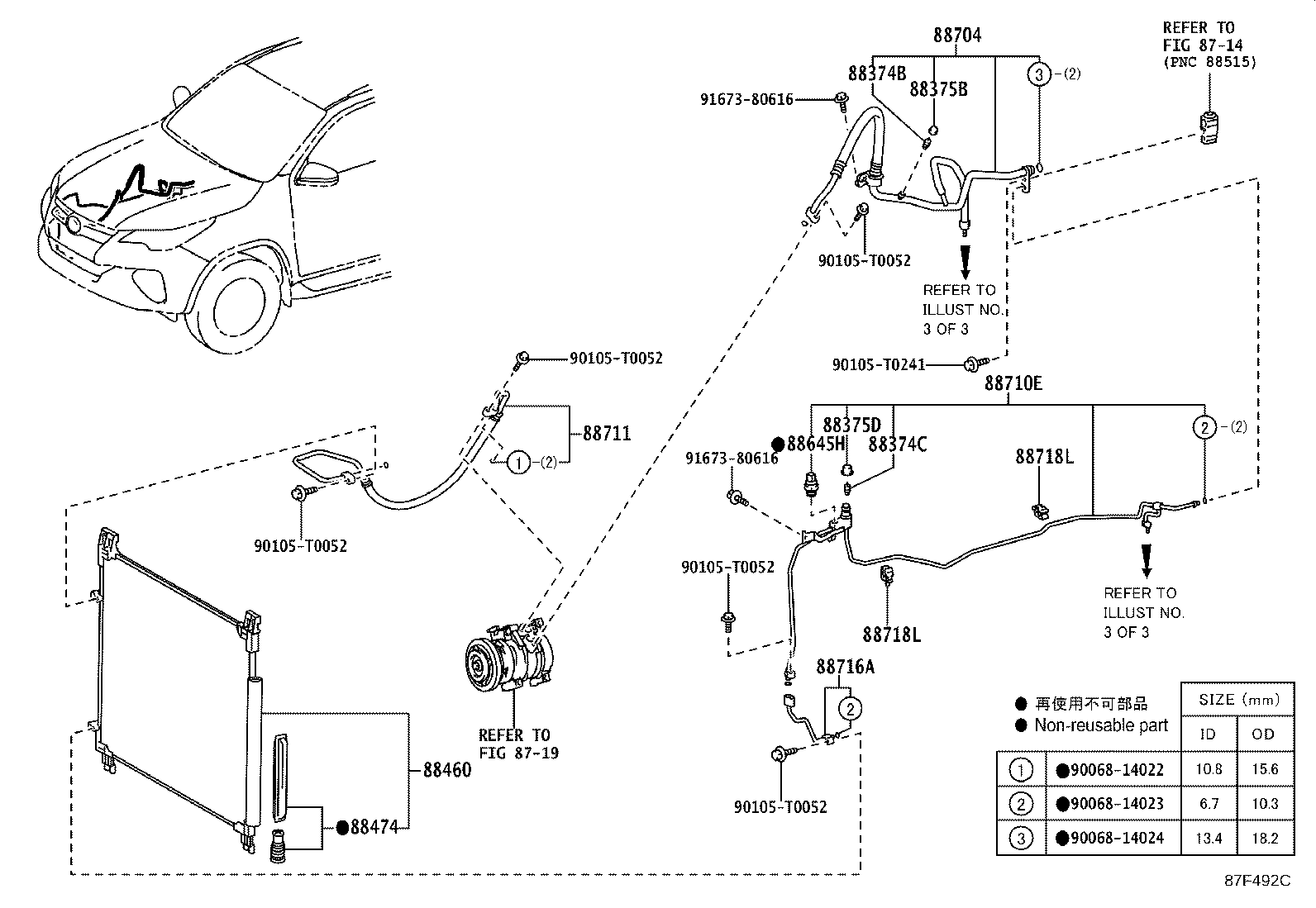

Toyota Fortuner LAN155 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-02020	GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA	03/2016 - 09/2020	1
88374C - VALVE, SERVICE, NO.2
88374-02020	GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA	03/2016 - 09/2020	1
88375B - CAP, SERVICE VALVE, NO.1
88375-02140	GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA	03/2016 - 09/2020	1
88375D - CAP, SERVICE VALVE, NO.2
88375-02150	GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA	03/2016 - 09/2020	1
88460 - CONDENSER ASSY, COOLER
88460-0K460	KUN156,165,LAN155..SA	03/2016 - 09/2020	1
88474 - DRYER, COOLER
88474-0K030	GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA	03/2016 - 09/2020	1
88645H - SWITCH, PRESSURE NO.1
88645-0K030	GUN165..6F..PH;GUN165..L..(LA,SA,VN);TGN166..BZAGT,GEN,LA,PH,PKN,SA,TH,VN;GUN166,TGN156..BZAGT,GEN,KZS,LA,SA,TH,VN;GUN165..6FC..(H,M,S)..(GCC,GEN,PH,TH,VN);GGN155,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,GEN,LA,PH,PKN,SA,VN	07/2015 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0KE20	LAN155	03/2016 - 09/2020	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KF70	GGN155,KUN156,165,LAN155,TGN156,166..SA	03/2016 - 09/2020	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K830	LAN155	03/2016 - 09/2020	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KR20	GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA	03/2016 - 09/2020	1
88718L - CLAMP, PIPING
88718-0KW80	GGN155,KUN156,165,LAN155,TGN156,166..SA	03/2016 - 09/2020	2
88718L - CLAMP, PIPING
88718-0KW80	GGN155,KUN156,165,LAN155,TGN156,166..SA	03/2016 - 09/2020	2
Common parts
90068-14022
90068-14023
90068-14024
90105-T0052
90105-T0241
91673-80616
Linked diagrams
8714
8719

LAN155L-SNMSEN (2016)

ILLUST NO. 2 OF 3(1603- )LAN155

ILLUST NO. 3 OF 3(2006- )
