KUN61R-NKPSYT (2008)

Toyota Fortuner

Production Aug 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

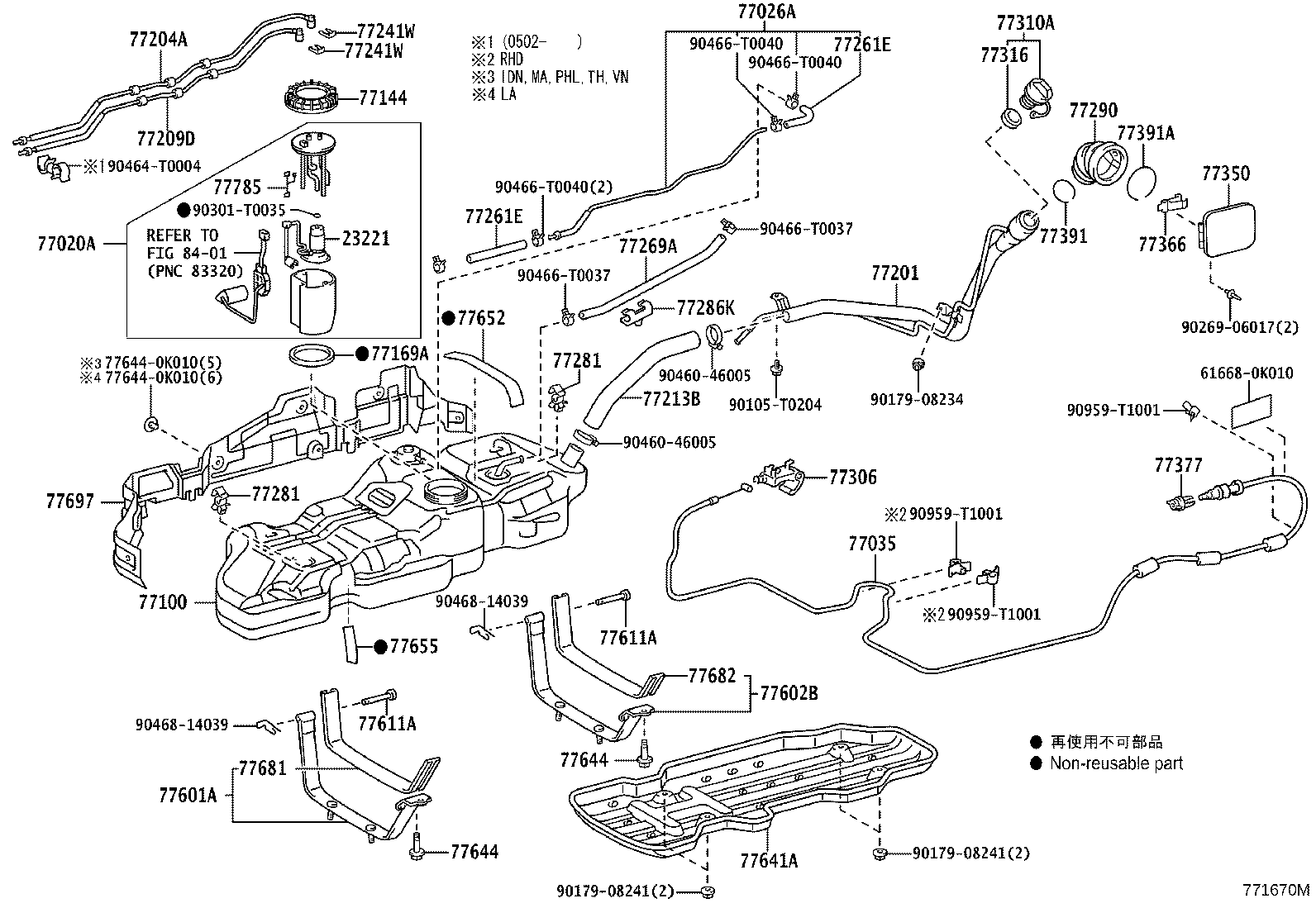

ILLUST NO. 1 OF 2(0501- )KUN5#,6#..IDN,LA,MA,PHL,TH,VN

Click highlighted areas on diagram

FUEL TANK

diagram 616680K010 77017B 77026A 77035 77100 77144 77169A 77201 77204A 77209D 77213B 77241V 77241W 77269A 77277T 77281 77281 77286K 77290 77306 77310A 77316 77350 77366 77377 77391 77391A 77601A 77602B 77611A 77611A 77641A 77644 77644 776440K010 776440K010 77652 77655 77681 77682 77697 8401 90105T0204 9017908234 9017908241 9017908241 9026906017 9046046005 9046046005 90466T0037 90466T0037 90466T0040 90466T0040 9046814039 9046814039 90959T1001 90959T1001 90959T1001
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77010-0K020

KUN5#,6#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0K070

KUN6#..RHD..SUVW..5F;GGN50,60,KUN51,LAN50,TGN51,61..RHD..(IDN,SA,TH)

 1
77035-0K070

KUN51,6#,TGN51,61..SUVW..(GEN,IDN,IND,TH)

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-0K040

GGN50..5FC..SA;KUN51,61,LAN50,TGN61;GGN60,KUN50..4FC,5FC;GGN50,KUN60,TGN51..ANCOM,GCC,GEN,IDN,LA,MA,PHL,VN

 2
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-0K040

GGN50..5FC..SA;KUN51,61,LAN50,TGN61;GGN60,KUN50..4FC,5FC;GGN50,KUN60,TGN51..ANCOM,GCC,GEN,IDN,LA,MA,PHL,VN

 2
77286K - CLAMP, FUEL TUBE, NO.2
77286-0K120

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-0K060

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0K010

GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,6#,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77391A - RING, FUEL INLET BOX
77391-0K020

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-0K050

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-0K050

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-0K040

GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IDN,LA,MA,PHL,TH

 2
77653-0K041

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-0K040

GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IDN,LA,MA,PHL,TH

 2
77653-0K041

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 2
77641A - PROTECTOR, FUEL TANK, NO.1
77641-0K040

KUN60..IDN,PHL,VN;GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,61,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN

 1
77644 - BOLT, FUEL TANK
77644-35030

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 2
77644 - BOLT, FUEL TANK
77644-35030

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 2
77681 - SEAT, FUEL TANK BAND, RH
77681-0K050

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 1
77682 - SEAT, FUEL TANK BAND, LH
77682-0K010

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 1
Common parts
61668-0K010
77644-0K010
90105-T0204
90179-08234
90179-08241
90269-06017
90460-46005
90466-T0037
90466-T0040
90468-14039
90959-T1001
Linked diagrams
8401

ILLUST NO. 1 OF 2(0501- )TGN51,61..IDN,MA,PHL,TH,VN

Click highlighted areas on diagram

FUEL TANK

diagram 23221 616680K010 77020A 77026A 77035 77100 77144 77169A 77201 77204A 77209D 77213B 77241W 77241W 77261E 77261E 77269A 77281 77281 77286K 77290 77306 77310A 77316 77350 77366 77377 77391 77391A 77601A 77602B 77611A 77611A 77641A 77644 77644 776440K010 776440K010 77652 77655 77681 77682 77697 77785 8401 90105T0204 9017908234 9017908241 9017908241 9026906017 90301T0035 9046046005 9046046005 90464T0004 90466T0037 90466T0037 90466T0040 90466T0040 90466T0040 9046814039 9046814039 90959T1001 90959T1001 90959T1001
Part # Description Qty Price
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0K020

TGN51,61..MA,PHL,TH,VN

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0K070

KUN6#..RHD..SUVW..5F;GGN50,60,KUN51,LAN50,TGN51,61..RHD..(IDN,SA,TH)

 1
77035-0K070

KUN51,6#,TGN51,61..SUVW..(GEN,IDN,IND,TH)

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

GGN50..5FC..SA;GGN60..SUVW..5FC;GGN50,TGN51,61..ANCOM,GCC,GEN,IDN,LA,MA,PHL,TH,VN

*H,L=160

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

GGN50..5FC..SA;GGN60..SUVW..5FC;GGN50,TGN51,61..ANCOM,GCC,GEN,IDN,LA,MA,PHL,TH,VN

*H,L=160

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-0K040

GGN50..5FC..SA;KUN51,61,LAN50,TGN61;GGN60,KUN50..4FC,5FC;GGN50,KUN60,TGN51..ANCOM,GCC,GEN,IDN,LA,MA,PHL,VN

 2
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-0K040

GGN50..5FC..SA;KUN51,61,LAN50,TGN61;GGN60,KUN50..4FC,5FC;GGN50,KUN60,TGN51..ANCOM,GCC,GEN,IDN,LA,MA,PHL,VN

 2
77286K - CLAMP, FUEL TUBE, NO.2
77286-0K120

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-0K060

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0K010

GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,6#,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77391A - RING, FUEL INLET BOX
77391-0K020

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-0K050

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-0K050

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-0K040

GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IDN,LA,MA,PHL,TH

 2
77653-0K041

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-0K040

GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IDN,LA,MA,PHL,TH

 2
77653-0K041

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 2
77641A - PROTECTOR, FUEL TANK, NO.1
77641-0K040

KUN60..IDN,PHL,VN;GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,61,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN

 1
77644 - BOLT, FUEL TANK
77644-35030

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 2
77644 - BOLT, FUEL TANK
77644-35030

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 2
77681 - SEAT, FUEL TANK BAND, RH
77681-0K050

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 1
77682 - SEAT, FUEL TANK BAND, LH
77682-0K010

KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)

 1
77785 - HARNESS, FUEL PUMP
77785-0K010

TGN51,61..IDN,MA,PHL,TH,VN

 1
Common parts
61668-0K010
77644-0K010
90105-T0204
90179-08234
90179-08241
90269-06017
90301-T0035
90460-46005
90464-T0004
90466-T0037
90466-T0040
90468-14039
90959-T1001
Linked diagrams
8401

ILLUST NO. 2 OF 2(0501- )KUN51,61 ; (0501- )KUN60..TH

Click highlighted areas on diagram

FUEL TUBE

diagram 2202 23917 77251B 77251D 77255D 77255F 77259D 77259E 77285A 77285D 77285F 77285G 77286D 77286L 8202 8202 90182T0001 90182T0021 90182T0021 90182T0021 9046400241 90466T0038 90466T0038 90466T0038 90466T0038 90466T0041 90466T0041 90466T0041 90466T0041
Part # Description Qty Price
23917 - COOLER, FUEL
23917-30011

1KDFTV..KUN51,61;2KDFTV..KUN60..TH

 1
23917-30010

1KDFTV..KUN51,61

 1
77251B - TUBE, FUEL MAIN
77251-0K040

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77251-0K060

KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95338-10018

KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN

L=180

 1
77255D - TUBE, FUEL RETURN
77255-0K040

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77255-0K090

KUN51,61

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95337-08040

KUN51,61

L=400

 1
95333-08040

KUN51,61

L=400

 1
77259D - HOSE, FUEL, NO.1
77259-71010

KUN51,61

 1
77259-71060

KUN51,61

 1
77259E - HOSE, FUEL
77259-0K060

KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN

 1
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-0K200

KUN51,61

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-0K030

KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN

 1
77285-0K020

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-0K040

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-0K050

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-0K090

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77286L - CLAMP, FUEL TUBE, NO.5
77286-0K070

KUN51,61

 1
Common parts
90182-T0001
90182-T0021
90464-00241
90466-T0038
90466-T0041
Linked diagrams
2202
8202

ILLUST NO. 2 OF 2(0501- )GGN50,60,TGN51,61

Click highlighted areas on diagram

FUEL TUBE

diagram 2211 2211 2211 77251B 77254A 77255D 77261D 77285D 77285F 77285G 77286D 77289B 77740 77751 77754 77775 90105T0059 90105T0059 90182T0001 90466T0040 9046907011 90469T0005
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-0K040

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77251-0K060

KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95333-06030

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

*H,L=220

 1
77255D - TUBE, FUEL RETURN
77255-0K040

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77255-0K090

KUN51,61

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-0K020

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-0K030

KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN

 1
77285-0K020

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-0K040

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-0K050

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-0K090

GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-0K010

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77740 - CANISTER ASSY, CHARCOAL
77704-0K010

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-0K010

TGN61..5F..LA;GGN50..LHD..(SUVW,THSUV);GGN60,TGN51,61..SUVW..(ANCOM,GCC,IDN,PHL,TH)

 1
77751-0K010

GGN50..LHD..(SUVW,THSUV);GGN60,TGN51,61..SUVW..(ANCOM,GCC,IDN,LA,PHL,TH)

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-0K010

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
77775 - GUIDE, CHARCOAL CANISTER OUTLET
77775-0K010

TGN51,61;GGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC

 1
Common parts
90105-T0059
90182-T0001
90466-T0040
90469-07011
90469-T0005
Linked diagrams
2211

ILLUST NO. 1 OF 4(1107- )TGN51,61..GEN,IDN,MA,PHL,PKN,TH,VN

Click highlighted areas on diagram

FUEL TANK

diagram 23221 77020A 77026A 77100 77144 77169A 77201 77204A 77209D 77213B 77241W 77241W 77261E 77261F 77269A 77281 77281 77286K 77290 77310A 77316 77391 77391A 77601A 77602B 77611A 77611A 77641A 77644 77644 776440K010 77652 77655 77681 77682 77697 77785 8401 90105T0204 90178T0020 90178T0020 9017908234 90301T0035 9046046005 9046046005 90464T0004 90466T0037 90466T0037 90466T0040 90466T0040 90466T0040 90466T0040 9046814039 9046814039
Part # Description Qty Price
Common parts
77644-0K010
90105-T0204
90178-T0020
90179-08234
90301-T0035
90460-46005
90464-T0004
90466-T0037
90466-T0040
90468-14039
Linked diagrams
8401

ILLUST NO. 1 OF 4(1107- )KUN6#,LAN50..SUVW ; (1107- )KUN51..RHD..4FC,5FC ; (1107- )KUN51..R

Click highlighted areas on diagram

FUEL TANK(TANK BAND X 3)

diagram 77017B 77026A 77100 77144 77169A 77201 77204A 77209D 77213B 77241V 77241W 77269A 77277T 77281 77286K 77290 77310A 77316 77391 77391A 77601A 77602B 77603B 77606 77611A 77611A 77611A 77641A 77644 77644 77644 776440K010 77651A 77652 77652A 77655 77681 77681A 77682 8401 90105T0204 90178T0020 90178T0020 9017906169 9017908234 9046046005 9046046005 90466T0037 90466T0037 90466T0040 90466T0040 9046814039 9046814039 9046814039
Part # Description Qty Price
Common parts
77644-0K010
90105-T0204
90178-T0020
90179-06169
90179-08234
90460-46005
90466-T0037
90466-T0040
90468-14039
Linked diagrams
8401

ILLUST NO. 1 OF 4(1107- )KUN61..4FC,5F ; (1107- )KUN51..RHD..SA ; (1107- )KUN61..5FC..TH ;

Click highlighted areas on diagram

FUEL TANK(TANK BAND X 2)

diagram 77017B 77026A 77100 77144 77169A 77201 77204A 77209D 77213B 77241V 77241W 77269A 77277T 77281 77281 77286K 77290 77310A 77316 77391 77391A 77601A 77602B 77611A 77611A 77641A 77644 77644 776440K010 77652 77681 77682 77697 8401 90105T0204 90178T0020 90178T0020 9017908234 9046046005 9046046005 90466T0037 90466T0037 90466T0040 90466T0040 9046814039 9046814039
Part # Description Qty Price
Common parts
77644-0K010
90105-T0204
90178-T0020
90179-08234
90460-46005
90466-T0037
90466-T0040
90468-14039
Linked diagrams
8401

ILLUST NO. 3 OF 4(1107- )KUN5#,61 ; (1107- )KUN60..SUVW ; (1107- )KUN60..IDSUV..IDN,PHL

Click highlighted areas on diagram

FUEL TUBE(W/FUEL COOLER)

diagram 2202 2302 23917 77251B 77251D 77255D 77255F 77259D 77259E 77285A 77285D 77285F 77285G 77286D 77286L 8202 8202 90182T0001 90182T0021 90182T0021 90182T0021 9046400241 90466T0038 90466T0038 90466T0038 90466T0038 90466T0041 90466T0041 90466T0041 90466T0041
Part # Description Qty Price
Common parts
90182-T0001
90182-T0021
90464-00241
90466-T0038
90466-T0041
Linked diagrams
2202
2302
8202

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 61668J 61668J 77035 77035 77306 77306 77350 77366 77377 77377 9026906017 90959T1001 90959T1001 90959T1001 90959T1001
Part # Description Qty Price
Common parts
90269-06017
90959-T1001
