KUN61R-NKPSYT (2008)

Toyota Fortuner

Production Aug 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

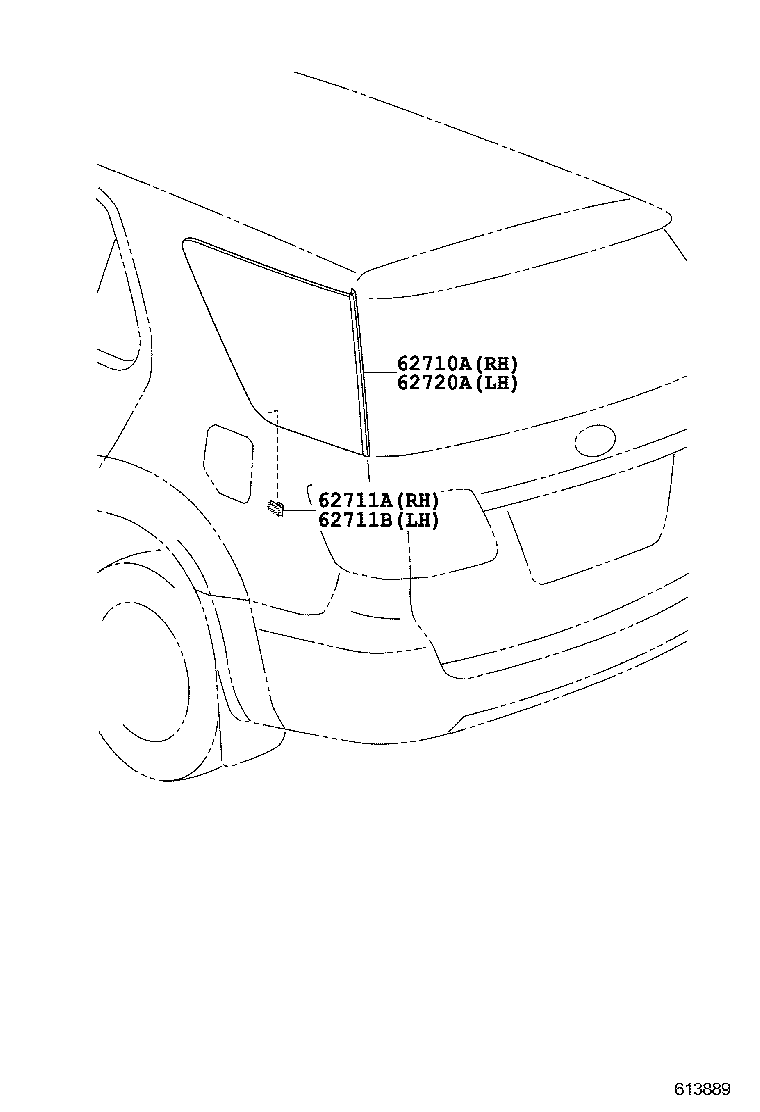

Click highlighted areas on diagram

diagram 62710A 62711A 62711B 62720A
Part # Description Qty Price
62710A - WINDOW ASSY, QUARTER, RH
62710-0K080

KUN51..PHL,TH;KUN51..LHD..SA;KUN50,60,LAN50,TGN51,61..MA,PHL,SA,TH

*TT,T=3.1,GREEN

 1
62711A - SPACER, QUARTER WINDOW GLASS, NO.1
61667-0K010

KUN51..RHD;GGN60..SUVW..5FC;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN51..LHD..(ANCOM,GEN,LA,PHL);KUN6#,LAN50,TGN51,61..IDN,LA,MA,PHL,SA,TH,VN

 1
62711B - SPACER, QUARTER WINDOW GLASS, NO.2
61667-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1

(1107- )

Click highlighted areas on diagram

diagram 62710A 62711A 62711B 62720A
Part # Description Qty Price
