Toyota Fortuner KUN61 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
GR
FORTUNER
KUN61R-NKPSYT (2008)
4703 - BRAKE BOOSTER & VACUUM TUBE

KUN61R-NKPSYT (2008)

Toyota Fortuner

Production Aug 2008 - Jul 2011

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0501- )TGN51,61..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44763 - TUBE, BOOSTER VACUUM
44763-0K010	KUN61..SA;GGN50,60,KUN51,60,TGN51,61..RHD..SUVW..(IDN,SA,TH)	01/2005 - 10/2008	1
44763-0K010	KUN51,6#..RHD;GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)	08/2008 - 12/2999	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0K010	KUN60..SUVW..IDN;KUN5#,TGN51,61..IDN,MA,TH	01/2005 - 09/2008	1
44772-0K010	KUN60..RHD;KUN51..5F..TH;KUN51..SUVW..GEN;KUN50,TGN51,61..RHD..4FC	08/2008 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K010	TGN51,61..RHD	01/2005 - 09/2008	1
44774-0K020	KUN51,6#;KUN50..4FC	08/2008 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-17010	GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)	08/2008 - 12/2999	1
Common parts
90178-T0067
90182-T0001
Linked diagrams
1701
4702

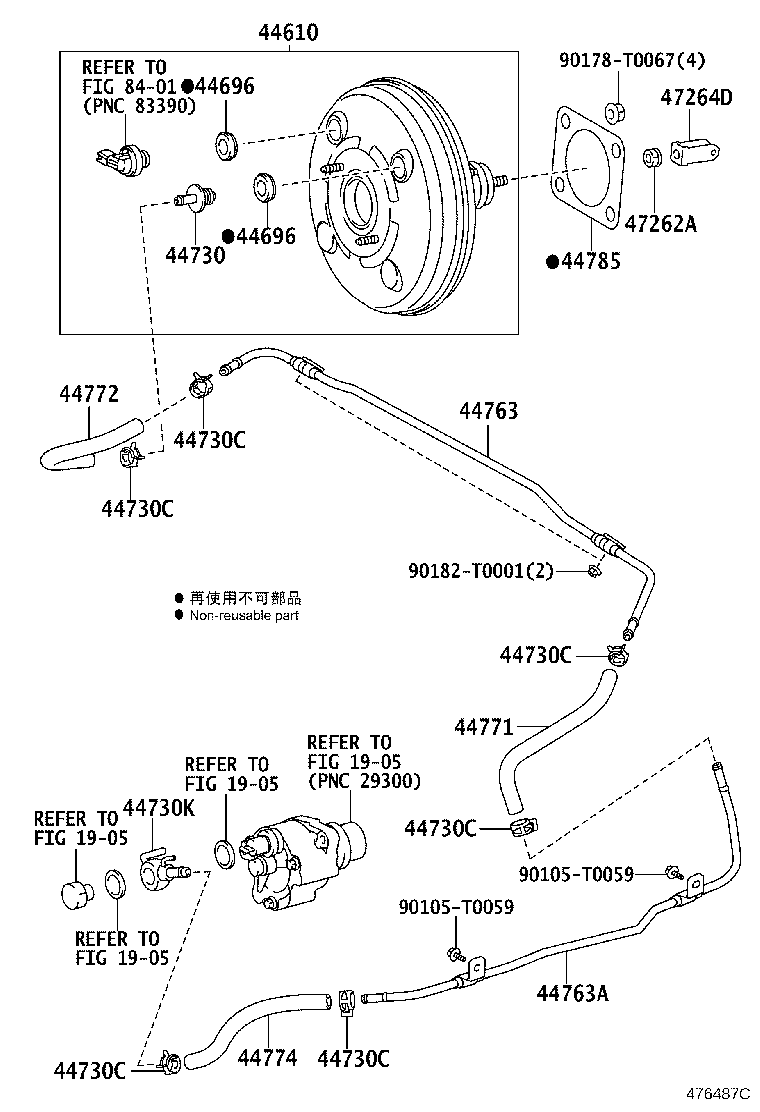

(0808- )KUN51,61..4FC..TH ; (0810- )KUN51,61..RHD..SA

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019	KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD	01/2005 - 10/2008	4
90466-T0019	KUN50..4FC;LAN50..LHD;KUN51,6#..RHD	08/2008 - 12/2999	6
90466-T0019	KUN51,6#..LHD;GGN50,60..5FC..SA;LAN50,TGN51,61..RHD	08/2008 - 12/2999	4
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-T0003	KUN51,6#;KUN50..4FC	08/2008 - 12/2999	1
44763 - TUBE, BOOSTER VACUUM
44763-0K010	KUN61..SA;GGN50,60,KUN51,60,TGN51,61..RHD..SUVW..(IDN,SA,TH)	01/2005 - 10/2008	1
44763-0K010	KUN51,6#..RHD;GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)	08/2008 - 12/2999	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0K020	KUN51,6#;KUN50..4FC	08/2008 - 12/2999	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-0K010	KUN50..4FC;KUN51,6#..RHD	08/2008 - 12/2999	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0K010	KUN60..SUVW..IDN;KUN5#,TGN51,61..IDN,MA,TH	01/2005 - 09/2008	1
44772-0K010	KUN60..RHD;KUN51..5F..TH;KUN51..SUVW..GEN;KUN50,TGN51,61..RHD..4FC	08/2008 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K010	TGN51,61..RHD	01/2005 - 09/2008	1
44774-0K020	KUN51,6#;KUN50..4FC	08/2008 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-17010	GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)	08/2008 - 12/2999	1
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
8401

(1107- )TGN51,61..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-T0067
90182-T0001
Linked diagrams
1701
4702

(1107- )KUN5#,6#..RHD

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty	Price
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
4708
8401

(1107- )KUN5#,6#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
8401

KUN61R-NKPSYT (2008)

(0501- )TGN51,61..RHD

(0808- )KUN51,61..4FC..TH ; (0810- )KUN51,61..RHD..SA

(1107- )TGN51,61..RHD

(1107- )KUN5#,6#..RHD

(1107- )KUN5#,6#..RHD
