KUN61R-NKPSYT (2008)

Toyota Fortuner

Production Aug 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501- )1KDFTV..GEN,LA,PHL,SA,TH ; (1001-)2KDFTV..KUN60..TH

Click highlighted areas on diagram

diagram 1105 1105 16027 16029 16206 16207 16258A 16258A 16261G 16261H 16261H 16278 16278G 16284 16284 16284A 16284A 16284A 16284A 16321 16331 16331 16331A 16341 16346 16347A 8716 8716 8716 8716 90105T0053 90105T0066 90105T0119 90105T0119 90119T0067 90119T0134 90178T0004 90178T0004 90178T0004 9040508029 90405T0002 9151180614 9155180612 9155180812 9155180818 9155180818 9164380635 9167180612 9415180600 9415180600 9415180600
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-0L010

1KDFTV..KUN51,61..IND,LA,PHL,TH

*130

 1
16029 - PIPE SUB-ASSY, TURBO WATER, NO.3
16029-0L010

2KDFTV..KUN60..TH;1KDFTV..KUN51,61..PHL,TH

 1
16258A - GASKET(FOR HEATER RETURN)
16258-0L010

1KDFTV,2KDFTV..KUN51,60..IDN,PHL,TH;1KDFTV,2KDFTV..KUN50,61..4FC..(MA,TH)

*130

 1
16258-67010

2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH

*163 OR *184

 1
16258A - GASKET(FOR HEATER RETURN)
16258-0L010

1KDFTV,2KDFTV..KUN51,60..IDN,PHL,TH;1KDFTV,2KDFTV..KUN50,61..4FC..(MA,TH)

*130

 1
16258-67010

2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH

*163 OR *184

 1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13073

1KDFTV..KUN51,61..GEN,PHL,SA,TH

*163 OR *184

 4
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13073

1KDFTV..KUN51,61..GEN,PHL,SA,TH

*163 OR *184

 4
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13073

1KDFTV..KUN51,61..GEN,PHL,SA,TH

*163 OR *184

 4
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13073

1KDFTV..KUN51,61..GEN,PHL,SA,TH

*163 OR *184

 4
16321 - INLET, WATER
16321-0L010

1KDFTV,2KDFTV..KUN50,61..4FC..(MA,TH);1KDFTV,2KDFTV..KUN51,60..IDN,IND,PHL,TH

*130

 1
16321-30040

2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH

*163 OR *184

 1
16331A - THERMOSTAT
90916-03118

2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-0L010

1KDFTV,2KDFTV..KUN51,60..IDN,PHL,TH;1KDFTV,2KDFTV..KUN50,61..4FC..(MA,TH)

*130

 1
16341-30020

2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH

*163 OR *184

 1
16347A - GASKET(FOR TURBO WATER PIPE)
16347-0L010

1KDFTV..KUN51,61..IND,LA,PHL,TH

*130

 1
Common parts
90105-T0053
90105-T0066
90105-T0119
90119-T0067
90119-T0134
90178-T0004
90405-08029
90405-T0002
91511-80614
91551-80612
91551-80812
91551-80818
91643-80635
91671-80612
94151-80600
Linked diagrams
1105
8716

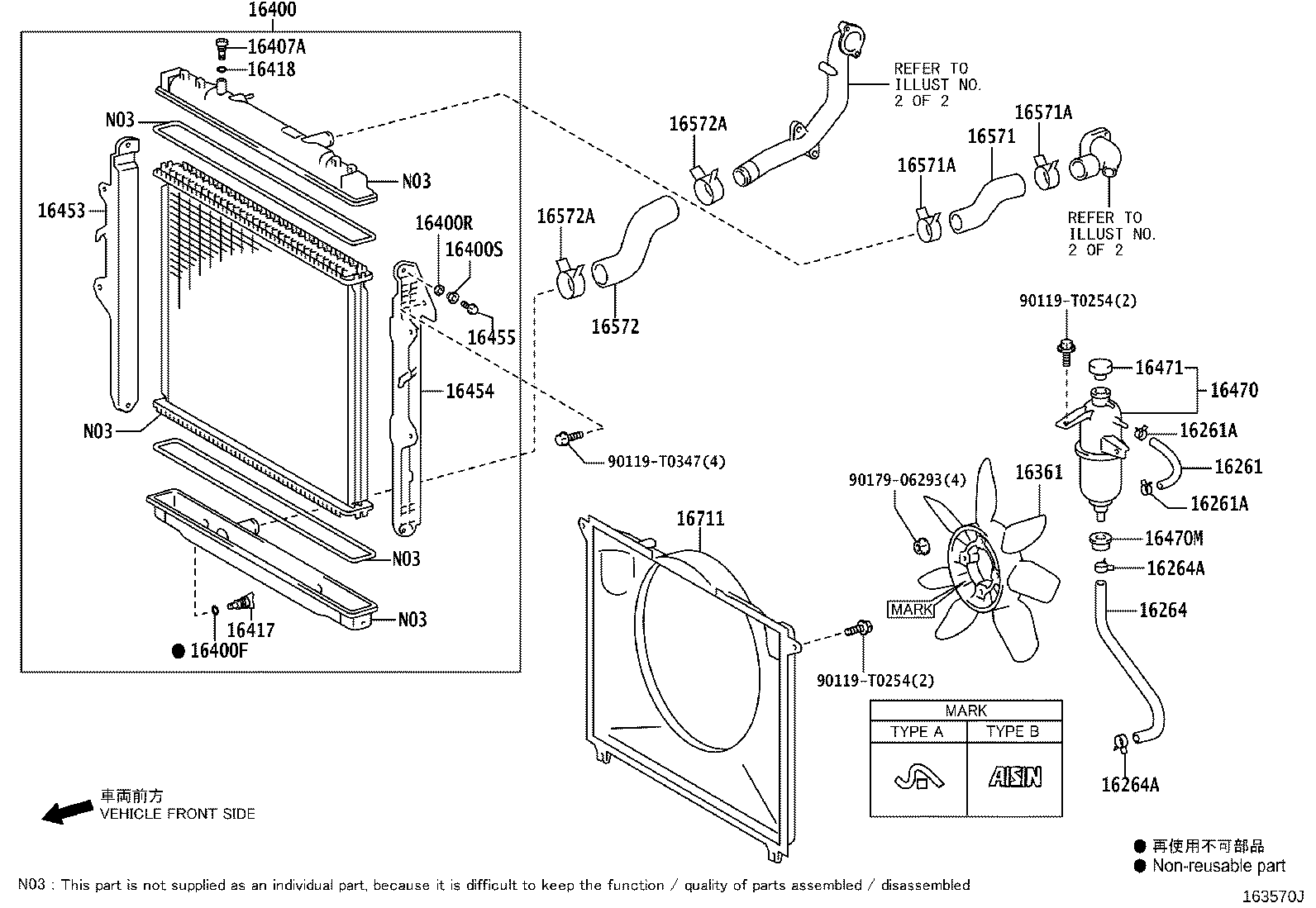

ILLUST NO. 1 OF 2(0808- )1KDFTV,2KDFTV..KUN50,61..4FC..MA,TH ;(0808- )1KDFTV,2KDFTV..KUN51,60

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16361 16400 16400F 16400R 16400S 16407A 16417 16418 16453 16454 16455 16470 16470M 16471 16571 16571A 16571A 16572 16572A 16572A 16711 90119T0254 90119T0254 90119T0347 9017906293
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-0L010

2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH,VN)

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-0L010

2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH,VN)

 1
16400 - RADIATOR ASSY
16400-0L130

1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..4FC..(GEN,PHL,TH)

 1
16400R - BUSHING(FOR RADIATOR)
16444-75180

1KDFTV..KUN51..THSUV;1KDFTV..KUN51,61..SUVW..(PHL,TH);2KDFTV..KUN60..SUVW..(IDN,PHL,VN)

 2
16400S - COLLAR(FOR RADIATOR)
16445-0C180

1KDFTV..KUN51..THSUV;1KDFTV..KUN51,61..SUVW..(PHL,TH);2KDFTV..KUN60..SUVW..(IDN,PHL,VN)

 2
16453 - PLATE, RADIATOR SIDE
16453-0L120

1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
16454 - PLATE, RADIATOR SIDE
16454-0L120

1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
91651-B0820

2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#..GEN,IDN,IND,LA,PHL,TH,VN

 4
16470 - TANK ASSY, RADIATOR RESERVE
16470-0L010

2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,IND,PHL,SA,TH,VN)

 1
16470M - GROMMET
90480-T0004

2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16401-30010

1KDFTV,2KDFTV..KUN5#,6#

 1
16711 - SHROUD, FAN
16711-0L050

1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
Common parts
90119-T0254
90119-T0347
90179-06293

ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16361 16400 16400F 16400R 16400S 16407A 16417 16418 16453 16454 16455 16470 16470M 16471 16571 16571A 16571A 16572 16572A 16572A 16711 90119T0254 90119T0254 90119T0347 9017906293
Part # Description Qty Price
Common parts
90119-T0254
90119-T0347
90179-06293
