KUN61L-NKMDYG (2005)

Toyota Fortuner

Production Sep 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

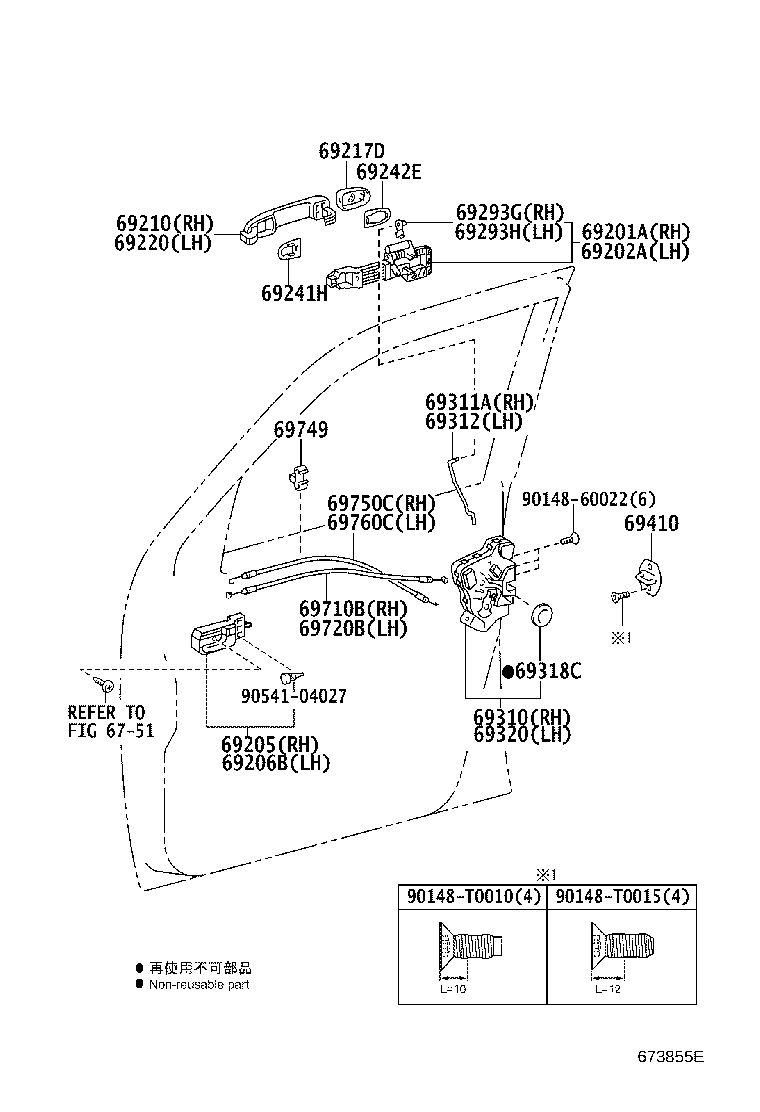

Click highlighted areas on diagram

diagram 6751 69201A 69202A 69205 69206B 69210 69217D 69220 69241H 69242E 69293G 69293H 69310 69311A 69312 69318C 69320 69410 69710B 69720B 69749 69750C 69760C 9014860022 90148T0010 90148T0015 9054104027
Part # Description Qty Price
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-02030

KUN51,61,TGN61..LA

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-02020

KUN51,61,TGN61..LA

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-0D080A0

GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

IVORY,TRIM0#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-0D080A0

GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

IVORY,TRIM0#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-0K010

KUN61,TGN61..LA

NO PAINT REQ.

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-0K010

KUN61,TGN61..LA

BLACK

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-0K010

KUN61,TGN61..LA

NO PAINT REQ.

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-02050

KUN51,61,TGN61..LA

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-02050

KUN51,61,TGN61..LA

 2
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

 1
69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 2
69318-51010

TGN51..IDN,SA,TH;GGN50,TGN51..IDSUV..GCC;GGN60,TGN61..ANCOM,GCC,IDN,TH;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,60,LAN50..(SUVW,THSUV)..(ANCOM,GEN,IDN,LA,SA,TH)

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
69749-32040

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 2
Common parts
90148-60022
90148-T0010
90148-T0015
90541-04027
Linked diagrams
6751

(1107- )

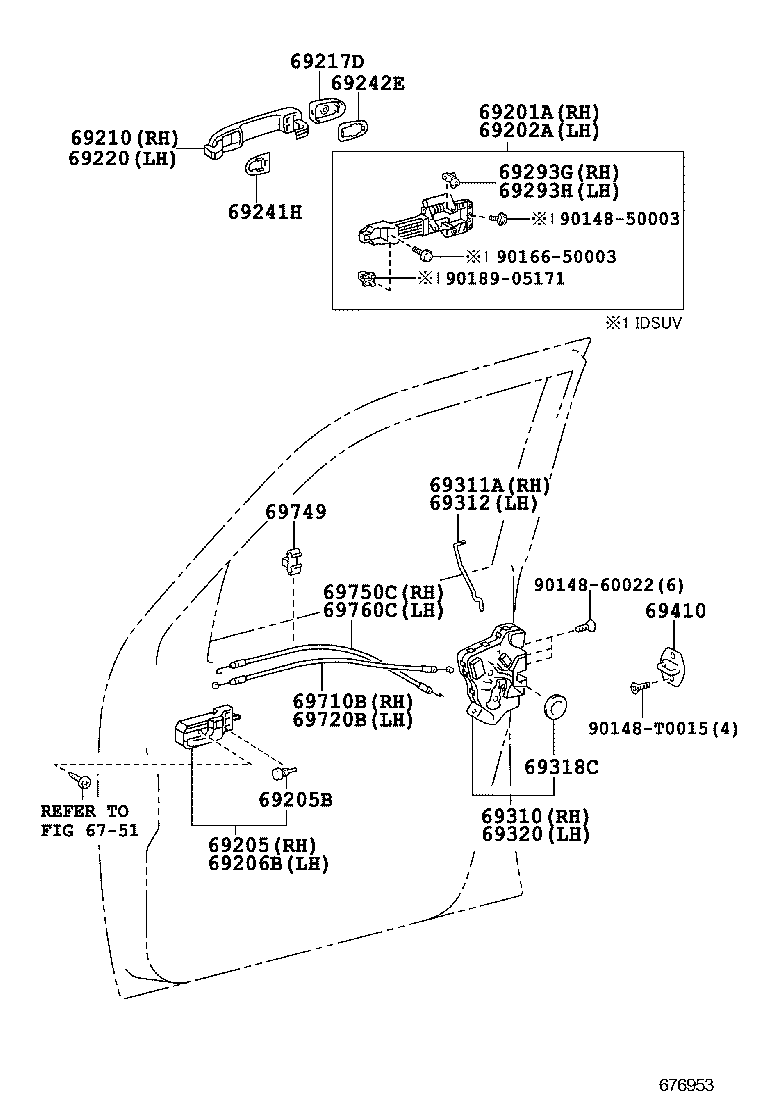

Click highlighted areas on diagram

diagram 6751 69201A 69202A 69205 69205B 69206B 69210 69217D 69220 69241H 69242E 69293G 69293H 69310 69311A 69312 69318C 69320 69410 69710B 69720B 69749 69750C 69760C 9014850003 9014860022 90148T0015 9016650003 9018905171
Part # Description Qty Price
Common parts
90148-50003
90148-60022
90148-T0015
90166-50003
90189-05171
Linked diagrams
6751
