KUN61L-NKMDYG (2008)

Toyota Fortuner

Production Oct 2008 - Oct 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

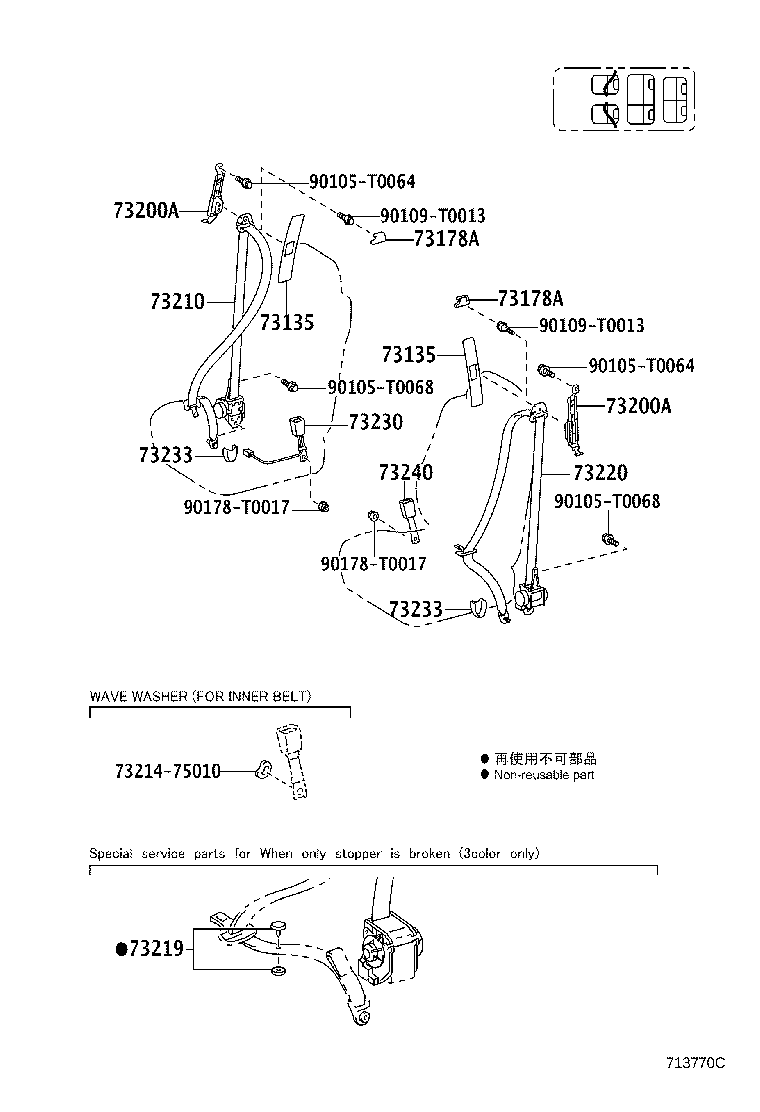

ILLUST NO. 1 OF 3(0501- )

Click highlighted areas on diagram

FRONT

diagram 73135 73135 73178A 73178A 73200A 73200A 73210 7321475010 73219 73220 73230 73233 73233 73240 90105T0064 90105T0064 90105T0068 90105T0068 90109T0013 90109T0013 90178T0017 90178T0017
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-02010A0

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-02010A0

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020A1

TGN51..IDSUV..IDN;TGN61..IDSUV..(GCC,IDN);TGN51..SUVW..(GCC,MA,SA,TH);GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
73178-33020E5

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020A1

TGN51..IDSUV..IDN;TGN61..IDSUV..(GCC,IDN);TGN51..SUVW..(GCC,MA,SA,TH);GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
73178-33020E5

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02020A0

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02020A0

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0K130A1

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

BLACK

 1
73219-33020

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

GRAY

 1
73219-33030

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0K130A1

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0K381E0

KUN61,TGN61..5F..LA

SAND BEIGE,TRIM4#

 1
73230-0K400E0

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#

 1
73230-0K401E0

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60010A0

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

IVORY,TRIM0#

 2
73233-60010E2

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60010A0

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

IVORY,TRIM0#

 2
73233-60010E2

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0K390E0

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#

 1
Common parts
73214-75010
90105-T0064
90105-T0068
90109-T0013
90178-T0017

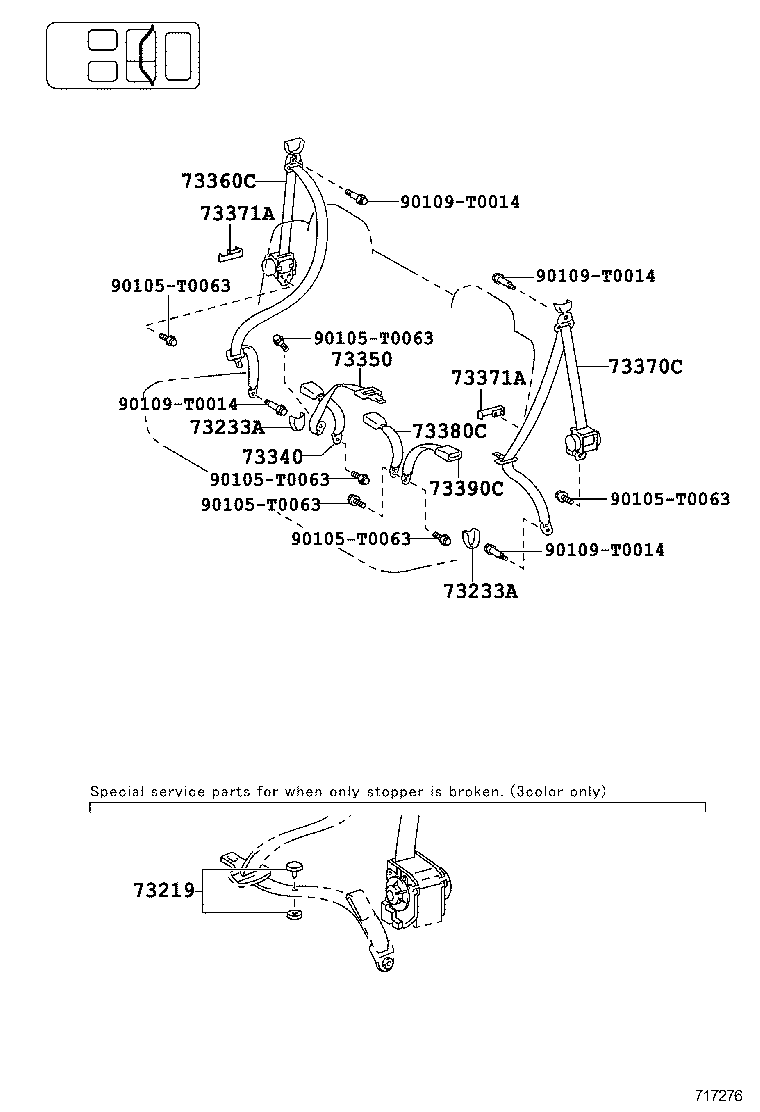

ILLUST NO. 2 OF 3(0501- )

Click highlighted areas on diagram

REAR NO.1

diagram 73219 73233A 73233A 73340 73350 73360C 73370C 73371A 73371A 73380C 73390C 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063 90109T0014 90109T0014 90109T0014 90109T0014
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33010

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

BLACK

 1
73219-33020

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

GRAY

 1
73219-33030

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

BEIGE

 1
73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
73233-60010A0

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

IVORY,TRIM0#

 2
73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
73233-60010A0

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

IVORY,TRIM0#

 2
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73340-0K040A2

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-0K040A2

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-0K090A1

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-0K090A1

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-0K010A0

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-0K010A0

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-0K090A2

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-0K080A2

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 1
Common parts
90105-T0063
90109-T0014

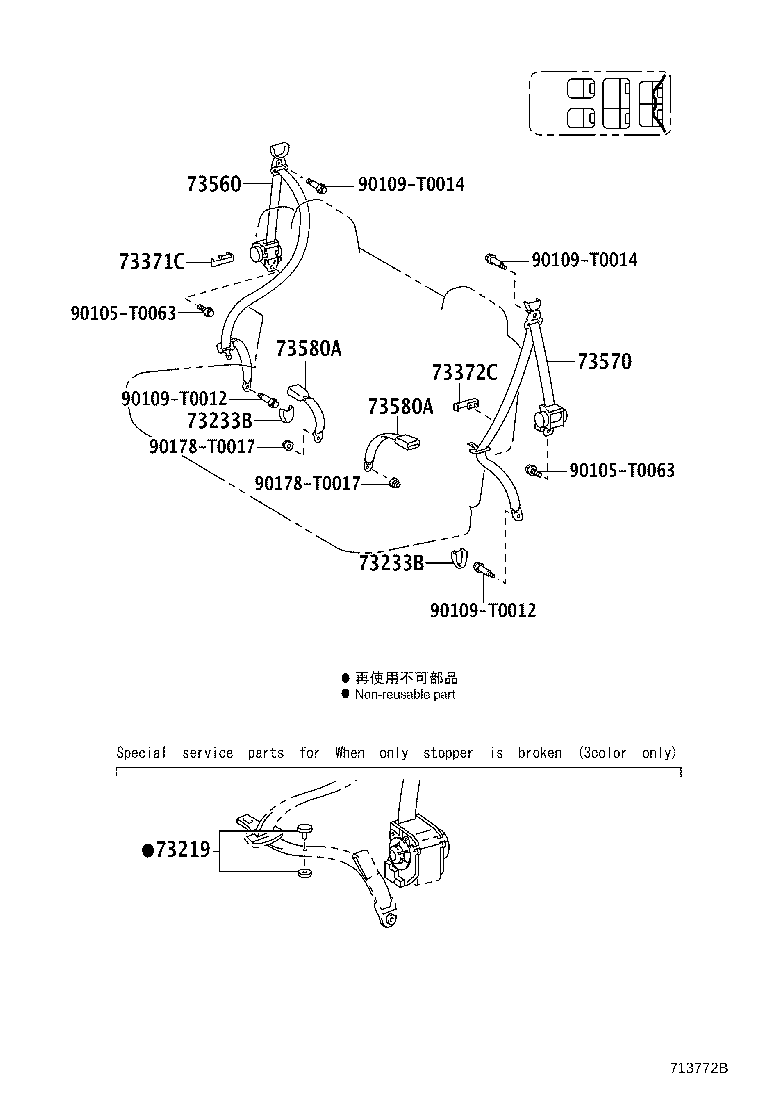

ILLUST NO. 3 OF 3(0501- )

Click highlighted areas on diagram

REAR NO.2

diagram 73219 73233B 73233B 73371C 73372C 73560 73570 73580A 73580A 90105T0063 90105T0063 90109T0012 90109T0012 90109T0014 90109T0014 90178T0017 90178T0017
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33010

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

BLACK

 1
73219-33020

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

GRAY

 1
73219-33030

TGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

BEIGE

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-0K120A0

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-0K120A0

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 1
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-0K100A0

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 2
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-0K100A0

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 2
Common parts
90105-T0063
90109-T0012
90109-T0014
90178-T0017

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

REAR NO.2 SEAT

diagram 73219 73233B 73233B 73371C 73372C 73560 73570 73580A 73580A 90105T0063 90105T0063 90109T0012 90109T0012 90109T0014 90109T0014 90178T0017 90178T0017
Part # Description Qty Price
Common parts
90105-T0063
90109-T0012
90109-T0014
90178-T0017

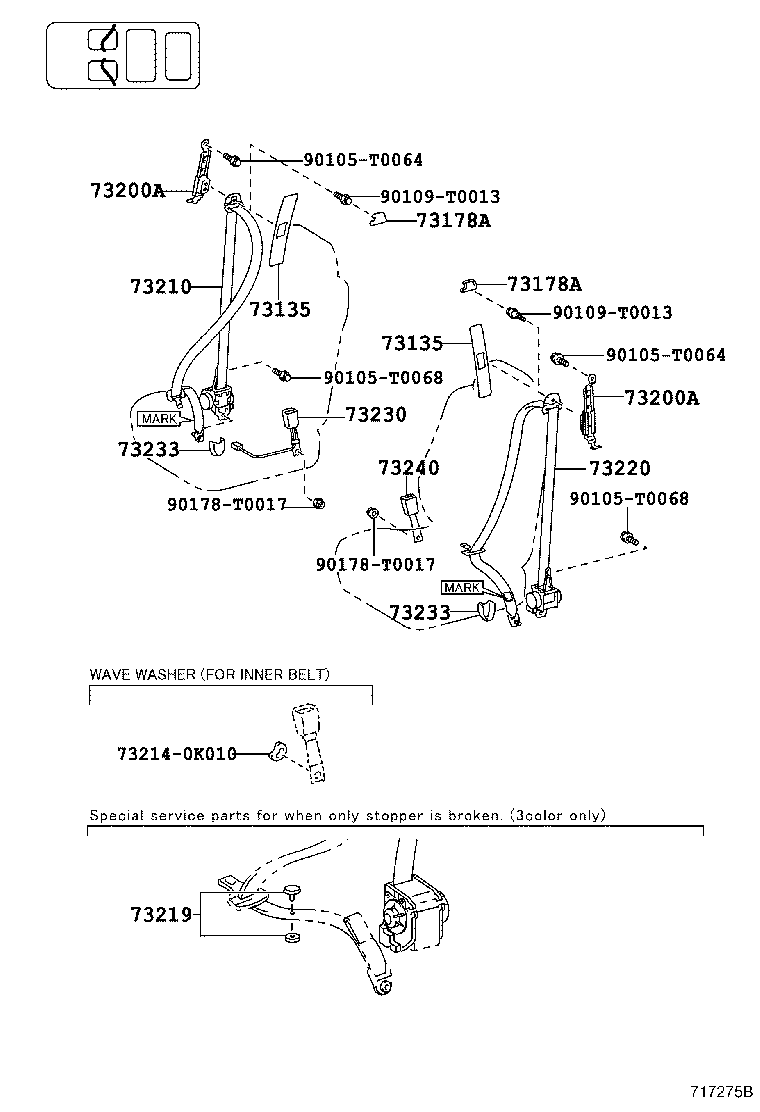

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

FRONT SEAT

diagram 73135 73135 73178A 73178A 73200A 73200A 73210 732140K010 73219 73220 73230 73233 73233 73240 90105T0064 90105T0064 90105T0068 90105T0068 90109T0013 90109T0013 90178T0017 90178T0017
Part # Description Qty Price
Common parts
73214-0K010
90105-T0064
90105-T0068
90109-T0013
90178-T0017

ILLUST NO. 2 OF 3(1107- )

Click highlighted areas on diagram

REAR NO.1 SEAT

diagram 73219 73233A 73233A 73340 73350 73360C 73370C 73371A 73371A 73380C 73390C 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063 90109T0014 90109T0014 90109T0014 90109T0014
Part # Description Qty Price
Common parts
90105-T0063
90109-T0014
